Understanding PD Diesel Injection

For those delving into the intricacies of diesel engine technology, the term "PD pump" might spark curiosity. PD, a German acronym for Pumpe Duse, translates to "pump-nozzle" or "pump-injector." This system represents a significant evolution in diesel fuel injection, fundamentally differing from earlier designs by bringing the high-pressure pumping action directly to each cylinder. Unlike older systems that relied on a single, central pump to generate pressure and then distribute fuel via separate lines, the PD system integrates the pump and injector into a single, compact unit. This article will explore how a PD pump system works, its advantages, and how it differentiates itself from other diesel injection methodologies.

The Core Concept: Integration is Key

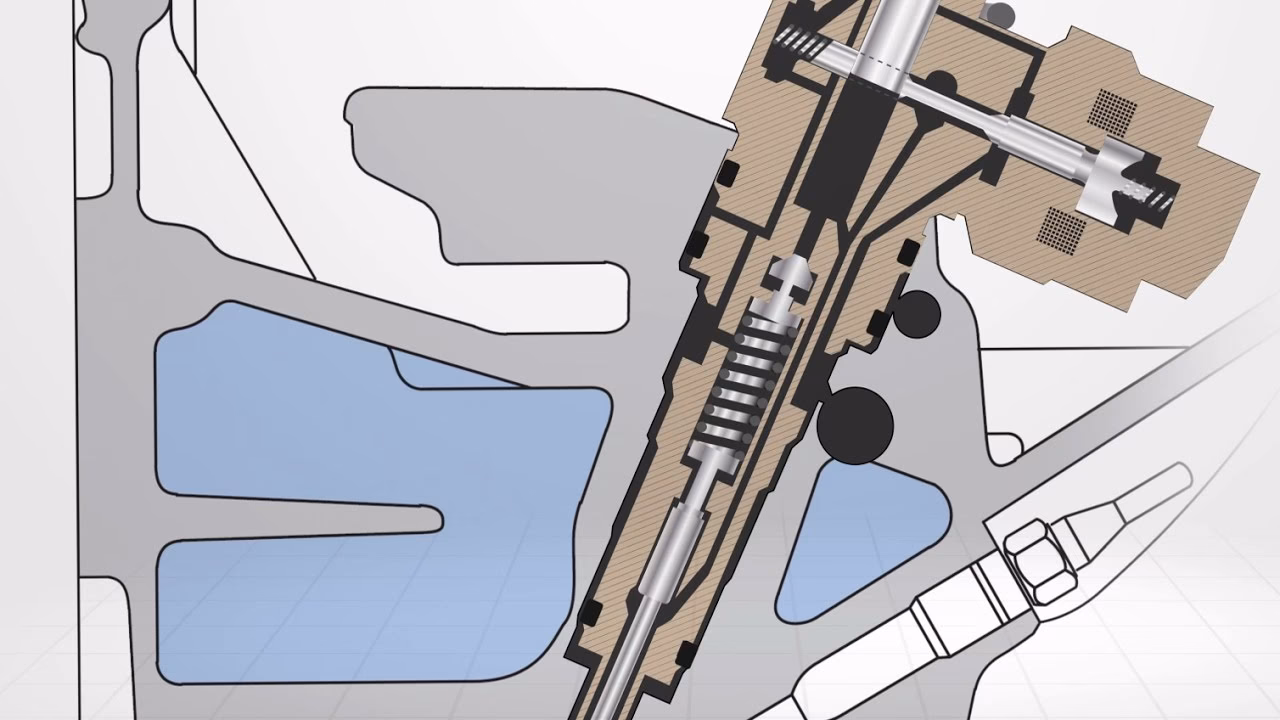

The most striking feature of a Pumpe Duse system is its integrated design. In a PD setup, each engine cylinder is equipped with its own dedicated pump and injector, combined into a single unit. This unit is typically mounted directly in the cylinder head, positioning it for optimal operation. The camshaft, a vital component in any internal combustion engine, plays a crucial role here. Each PD unit is actuated by a dedicated lobe on the camshaft. As the camshaft rotates, this lobe presses down on the unit, driving a small piston within the injector assembly. This precisely timed mechanical action is what generates the immense pressure required for efficient diesel fuel injection.

How the PD System Generates Pressure

Let's break down the process step-by-step to understand the pressure generation within a PD system:

1. Low-Pressure Fuel Supply: Typically, an in-tank fuel pump is responsible for drawing diesel fuel from the tank and supplying it to the engine at a relatively low pressure.
2. Intermediate Pressure Boost: Before reaching the individual PD units, the fuel often passes through a secondary pump, which may be integrated into the engine's fuel system. This pump further pressurises the fuel, preparing it for the final high-pressure stage.

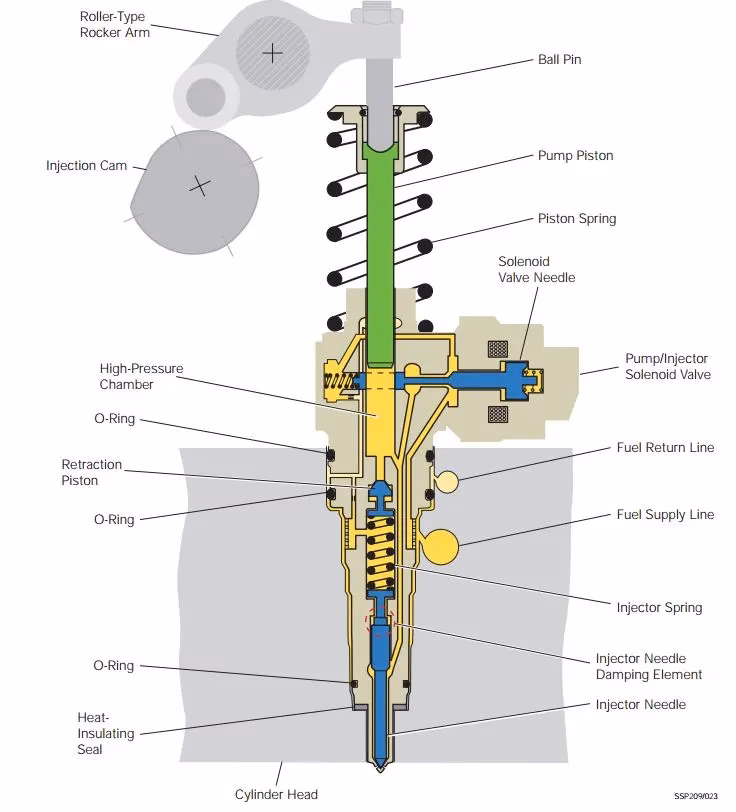

3. High-Pressure Generation within the Unit: This is where the magic of the PD system truly happens. As the camshaft lobe actuates the PD unit, it drives a small, high-precision piston within the injector. This piston compresses the fuel that has been supplied to it. The mechanical force from the camshaft lobe translates into an incredibly high hydraulic pressure within the injector body.
4. Injection: Once the pressure reaches the critical threshold, the nozzle opens, and the finely atomised fuel is sprayed directly into the combustion chamber at precisely the right moment. The electronic control unit (ECU) dictates when this happens and how much fuel is injected, ensuring optimal combustion.

PD vs. Older Diesel Injection Systems: A Comparative Look

To fully appreciate the PD system, it's essential to contrast it with earlier diesel injection technologies. The most common predecessor to PD systems was the rotary pump system.

Rotary Pump Systems

In a rotary pump system, a single, often mechanically driven, pump is responsible for generating the high pressure needed for fuel injection. This pump then delivers the pressurised fuel to each injector through a network of delivery lines. While effective, this system has several limitations compared to PD:

• Pressure Distribution: Maintaining consistent high pressure across all delivery lines to each injector can be challenging. Pressure drops can occur, leading to less precise injection at some cylinders.
• Line Length: The longer the delivery lines, the greater the potential for pressure loss and delayed fuel delivery.
• Complexity: Managing multiple, often high-pressure, fuel lines adds complexity to the engine bay and can be a source of potential leaks.

Pumpe Duse (PD) Systems

The PD system addresses these limitations through its inherent design:

• On-Demand Pressure: Each cylinder has its own pump, meaning high pressure is generated precisely where and when it's needed, eliminating the issues of pressure distribution across long lines.
• Shorter Fuel Paths: The fuel path from the pump to the injection nozzle is extremely short, as they are integrated into a single unit. This minimises pressure loss and ensures rapid response.
• Higher Pressures Achieved: The mechanical advantage of a dedicated camshaft lobe driving a small piston allows PD systems to generate significantly higher injection pressures than many rotary pump systems.

Table: PD vs. Rotary Pump Systems

Advantages of the PD System

The integration and high-pressure capabilities of PD systems translate into several tangible benefits for diesel engines:

• Improved Fuel Atomisation: The higher injection pressures achieved by PD pumps result in finer atomisation of the diesel fuel. This means the fuel is broken down into smaller droplets, which leads to more efficient and complete combustion.
• Increased Power and Torque: Better atomisation and more precise fuel delivery generally translate to more power and torque from the engine. The combustion process is more vigorous and efficient.
• Better Fuel Economy: More complete combustion means less unburnt fuel, leading to improved fuel efficiency.
• Reduced Emissions: Finer atomisation and more controlled combustion can also contribute to lower emissions of harmful pollutants.
• Quieter Operation: While not always the primary driver, the more controlled and efficient combustion can sometimes lead to a reduction in the characteristic diesel "knock."

The Role of Electronic Control

Modern PD systems, like most contemporary diesel injection systems, rely heavily on sophisticated electronic control. The Engine Control Unit (ECU) plays a vital role in managing the operation of the PD units. It precisely controls the timing of the camshaft lobe's action and the duration of injection, based on various sensor inputs such as engine speed, load, and temperature. This electronic management allows for optimal performance across a wide range of operating conditions, further enhancing efficiency and reducing emissions.

Potential Drawbacks and Considerations

While PD systems offer significant advantages, they also come with certain considerations:

• Complexity and Cost: The integrated nature of the pump and injector means that if either component fails, the entire unit often needs to be replaced, which can be more costly than replacing separate components in older systems.
• Maintenance: While designed for durability, the precision engineering of PD units means that specialised knowledge and tools are often required for diagnosis and repair.
• Noise: In some applications, the inherent mechanical nature of the PD system can contribute to a slightly different noise profile compared to common rail systems, though this is often a matter of preference and tuning.

Frequently Asked Questions (FAQs)

Q1: What is the main advantage of a PD pump system over a common rail system?

A1: The primary advantage of a PD system is its direct, mechanical generation of high pressure at each cylinder, potentially leading to very fine atomisation and strong combustion due to the short fuel path. Common rail systems generate pressure centrally in a rail and then deliver it to injectors, which have their own solenoid or piezo actuators to open and close.

Q2: Can PD pumps be repaired?

A2: Yes, PD pumps can be repaired, but it requires specialised equipment and expertise due to the high precision involved. Often, for significant internal wear or damage, replacement of the entire unit is more economical.

Q3: How do I know if my car has a PD system?

A3: PD systems were most famously used by Volkswagen Group (VW, Audi, Skoda, SEAT) between the late 1990s and the mid-2010s. If you have a diesel vehicle from this era, particularly with TDI badging, it's highly likely to be equipped with a PD system. Consulting your vehicle's service manual or a specialist mechanic is the best way to confirm.

Q4: What are the common failure points for PD pumps?

A4: Common issues can include wear on the internal pumping elements, failure of the electronic solenoid that controls injection timing, or issues with the sealing O-rings. Contaminated fuel can also significantly shorten the lifespan of PD units.

Q5: Is a PD system the same as a unit injector system?

A5: Yes, PD is a specific type of unit injector system. The term "Pumpe Duse" directly translates to "pump-nozzle" or "pump-injector," highlighting the combined nature of the two components.

Conclusion

The Pumpe Duse (PD) system marked a significant advancement in diesel fuel injection technology. By integrating the high-pressure pump directly with the fuel injector and actuating it via the camshaft, PD systems achieve superior fuel atomisation, leading to enhanced power, improved fuel economy, and potentially lower emissions. While they have largely been superseded by even more advanced common rail systems in newer vehicles, understanding the principles behind PD pumps provides valuable insight into the ongoing evolution of diesel engine efficiency and performance. The robust mechanical design, coupled with precise electronic control, made PD systems a cornerstone of diesel engineering for many years.
