Fixing a Leaking Sump: Your Complete UK Guide

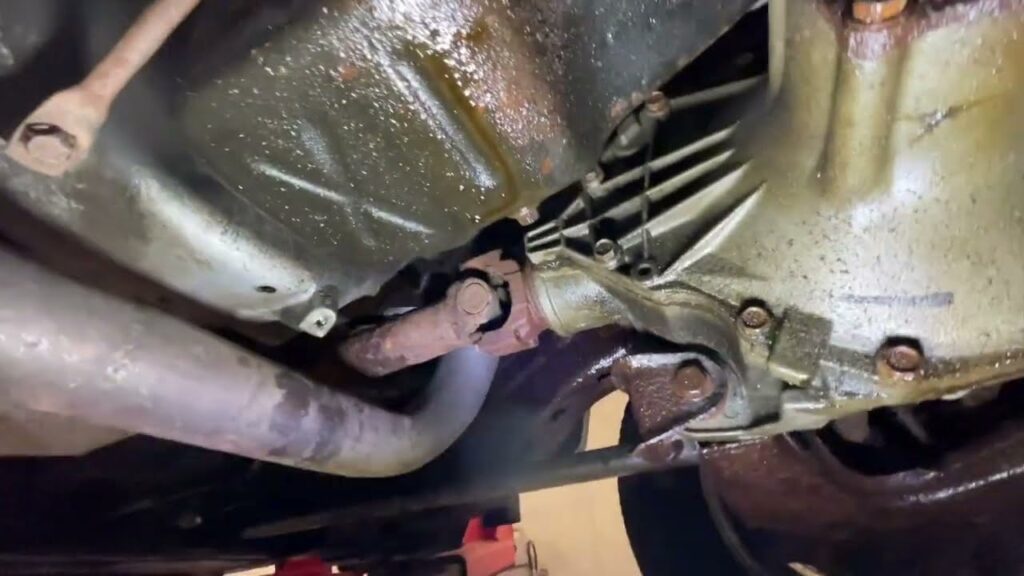

A leaking engine sump can be a frustrating advisory on your MOT certificate, or simply an unsightly stain on your driveway. While a minor weep might not always necessitate immediate action, understanding the nature of the leak and knowing how to address it can save you from more significant issues down the line. This guide will walk you through the common causes of sump leaks, particularly the perplexing 'porous' diagnosis, and provide detailed, practical steps for a robust repair.

Many drivers, upon seeing an MOT advisory for an 'oil leak, not excessive; sump porous and corroded', might feel a pang of worry. The term 'porous' can be particularly confusing; after all, how can solid metal be porous like a sponge? In the context of an engine sump, 'porous' rarely means the metal itself is inherently permeable. Instead, it typically refers to microscopic cracks, casting imperfections, or areas of severe corrosion that have thinned the metal sufficiently to allow oil to seep through. It's often an indication of general material fatigue or environmental wear rather than a literal network of pores. Similarly, 'corroded' implies the material has degraded, creating weak spots where oil can escape.

Understanding Your Sump: Pressed Steel vs. Cast

Before diving into repairs, it's helpful to know what type of sump your vehicle has, as this can influence the extent and nature of the damage. Most modern vehicles feature either a pressed steel sump or a cast aluminium sump.

• Pressed Steel Sumps: These are typically thinner, lighter, and more prone to minor dents or rust-induced corrosion, which can lead to leaks. They are often found on older or more budget-friendly vehicles.
• Cast Aluminium Sumps: Thicker and more rigid, these sumps are less susceptible to corrosion but can be brittle. They are more likely to crack upon impact (e.g., hitting a pothole or speed bump) rather than developing widespread porosity.

While the repair methods detailed below are primarily focused on fixing cracks and sealing areas of porosity or corrosion, the underlying material might influence the long-term durability of the repair. However, with proper preparation and application, both types can be effectively mended.

When to Act on a Leaking Sump

The MOT advisory stating 'oil leak, not excessive' suggests that the leak isn't currently a significant environmental hazard or a severe risk to your engine. If your engine isn't requiring regular topping-up of oil between services, and the leak is truly minimal, you might choose to monitor it. It's possible it won't even be reported on your next MOT if it remains minor. However, even a small leak can gradually worsen, leading to increased oil consumption, a mess under your vehicle, and potentially a more serious failure if left unchecked. Addressing it proactively can prevent future headaches and maintain your car's value.

Preparing for the Repair: Safety First!

Before attempting any repair, ensuring your safety and proper preparation are paramount. You'll be working under your vehicle, potentially with hazardous chemicals, so take all necessary precautions.

1. Vehicle Security: Ensure your car is safely raised on jack stands or ramps on a level, stable surface. Never rely solely on a jack.
2. Engine Cool Down: Allow the engine to cool completely. Hot oil and engine components can cause severe burns.
3. Drain the Oil: This is crucial. You cannot effectively repair a sump with oil inside or weeping from the crack. Drain all engine oil into a suitable waste container. Remember to dispose of used oil responsibly.
4. Clean the Sump: Once drained, the sump needs to be thoroughly cleaned, not just around the leak but the entire exterior surface. Use a degreaser and a brush to remove all traces of oil, grime, and dirt. Rinse thoroughly and allow to dry completely.
5. Locate the Leak: With the sump clean and dry, precisely identify the crack, corroded area, or porous section responsible for the leak.

Method 1: The Adhesive and Putty Solution for Cracks and Porosity

This method is ideal for fixing visible cracks, small holes, or areas identified as 'porous' where oil is seeping through. It relies on a two-stage chemical bonding process for a durable seal.

Step-by-Step Repair Process:

1. Stop the Crack from Spreading:

• Using a 2mm drill bit, carefully drill a small hole at each end of the crack. This simple yet effective step is crucial for preventing the crack from running any further, acting as a stress reliever.

2. Prepare the Surface:

• Roughen up the surface of the substrate that surrounds the crack or porous area. Use a coarse-grade sandpaper (e.g., 80-120 grit). Sand in different directions to create visible scratch marks on the surface. This creates a 'key' for the adhesive to bond to, significantly improving adhesion.

3. Thorough Cleaning and Degreasing:

• Remove any excess oil and contaminants from inside the crack and around the prepared surface. Wipe thoroughly with industrial-grade acetone or, ideally, a dedicated safety cleaner like Pratley Safety Cleaner. Do not use nail polish remover or nail acetone, as these often contain emollients and other contaminants that will hinder proper adhesion. The surface must be completely dry and free of any oily residue for the repair to be successful.

4. Applying the Penetrating Adhesive (Pratlok PEN Grade):

• Apply Pratley Pratlok PEN grade directly into the crack. This adhesive has a very low viscosity, meaning it's very thin and will wick deeply into the crack due to capillary action, effectively sealing it from within.
• Pratlok PEN is an anaerobic adhesive, which means it cures in the absence of oxygen. It will cure quickly inside the crack but not on the surrounding areas exposed to air.
• Allow the Pratlok PEN to cure for approximately 15 minutes.
• After the initial cure, use an oil and lint-free cloth to wipe away any excess Pratlok PEN from the surrounding surface.

5. Reinforcing with Epoxy Putty (Pratley Putty or Pratley Steel Putty):

• Now, prepare a blob of Pratley Putty or Pratley Steel Putty according to the enclosed instructions (these are typically two-part putties that you mix by kneading).
• Place the mixed Pratley Putty over the crack and the surrounding prepared area. Forcefully kneading and working it into place is essential. This ensures the putty resins wet the surface properly, creating a strong bond.
• Apply layers of Pratley Putty if necessary, building up a robust patch over the affected area.
• Wipe off any excess putty with a damp, lint-free cloth to create a neat finish. For a smoother surface, you can often smooth the putty with a wet finger before it fully cures.

6. Final Curing:

• Allow the Pratley Putty and Pratlok to cure completely for a minimum of 48 hours prior to refilling the sump with oil and putting the vehicle back into use. This extended curing time ensures maximum strength and durability for the repair.

Method 2: The Reinforced Steel Plate Approach (For the Ultimate Repair)

For a more robust and permanent solution, particularly for larger cracks or areas requiring significant structural reinforcement, a steel plate can be used in conjunction with a strong adhesive. This is considered the ultimate repair for more serious damage.

Step-by-Step Process for Plate Reinforcement:

1. Prepare the Plate:

• Obtain a square steel plate of appropriate thickness (e.g., 1.5-2mm) that is large enough to cover the crack or damaged area with sufficient overlap.
• Drill holes into the four corners of the plate. These holes will be used to secure the plate to the sump.

2. Prepare the Sump:

• As with Method 1, ensure the sump surface is thoroughly cleaned and degreased (using industrial acetone or Pratley Safety Cleaner) and roughened with sandpaper.
• Carefully mark the positions for the corresponding holes on the sump, aligning them perfectly with the holes drilled in your steel plate.
• Drill pilot holes into the sump at these marked positions. Then, tap these holes to create threads that will accept appropriately sized screws. Ensure the screws are not too long, as they could interfere with internal engine components.

3. Apply Adhesive:

• Apply a strong, oil-resistant adhesive, such as Pratleymix adhesive, to the underside of the prepared steel plate and onto the cleaned sump surface where the plate will sit. Ensure both surfaces are impeccably clean and dry before applying the adhesive.

4. Secure the Plate:

• Carefully align the steel plate with the four tapped holes on the sump.
• Screw down the plate firmly using appropriately sized screws. Do not overtighten, but ensure a snug fit that presses the plate evenly against the sump, squeezing out excess adhesive.

5. Optional Reinforcement with Putty:

• Once the Pratleymix adhesive has cured according to its instructions (typically 24 hours), you can further enhance the repair by applying Pratley Putty or Pratley Steel Putty over the entire steel plate and its edges. This provides an additional layer of sealing and protection, making the repair even more robust and aesthetically pleasing. Smooth with a wet finger as before.

6. Final Curing:

• Allow all adhesives and putties to cure for the recommended time (at least 48 hours for Pratley products) before refilling the sump and operating the vehicle.

Choosing the Right Method

Deciding which repair method to use depends on the severity and nature of the leak. Here's a comparative look:

Post-Repair Care and Testing

Once the specified curing time has elapsed:

1. Refill Oil: Replace the sump plug (with a new washer if possible) and refill your engine with the correct type and quantity of engine oil.
2. Initial Inspection: Before starting the engine, visually inspect the repaired area for any immediate signs of seepage or issues.
3. Engine Start: Start the engine and let it run for a few minutes. Check for leaks immediately after starting and again after the engine has reached operating temperature.
4. Road Test: Take the car for a short drive, then re-inspect the repaired area carefully. Look for any signs of oil weeping.
5. Monitor: Continue to monitor the area over the next few days and weeks. Keep an eye on your oil level and check for fresh stains under the car.

Frequently Asked Questions (FAQs)

Q1: Can I ignore a minor sump leak?

While a very minor leak that doesn't cause a noticeable drop in oil level might not be an immediate mechanical emergency, it's generally not advisable to ignore it long-term. Leaks can worsen, lead to increased oil consumption, contaminate your driveway, and potentially cause an MOT failure in the future. Addressing it proactively is always the best approach.

Q2: What if my sump is severely corroded or has multiple large cracks?

For extensive corrosion or multiple significant cracks, a repair might only be a temporary fix. In such cases, replacing the entire sump might be the more reliable and cost-effective long-term solution. Consult with a professional mechanic if you're unsure about the extent of the damage.

Q3: How long will a sump repair last?

The longevity of a sump repair depends heavily on the quality of the preparation, the proper application of materials, the type of damage, and driving conditions. A well-executed repair using high-quality products like those mentioned can last for many years, often for the remaining life of the vehicle. However, extreme temperatures, vibrations, or future impacts could compromise the repair over time.

Q4: Do I need to drain all the oil before repairing the sump?

Absolutely, yes. It is critical to drain all engine oil from the sump before attempting any repair. You cannot achieve a strong, lasting bond if the repair area is contaminated with oil or if oil is weeping from the crack during the curing process. Thorough cleaning and degreasing after draining are also essential.

Q5: Can I use any type of adhesive or putty for the repair?

No, it is vital to use adhesives and putties specifically designed for automotive applications that are resistant to oil, fuel, and high temperatures. Products like Pratley Pratlok PEN, Pratley Putty, and Pratleymix are formulated to withstand these harsh conditions and bond effectively to metal. Using general-purpose adhesives will likely result in a failed repair.

Q6: What if the oil leak isn't from the sump itself?

While an MOT advisory might point to the sump, oil leaks can originate from various other components, including the sump gasket, oil filter housing, camshaft seals, crankshaft seals, or even the rocker cover gasket. Always ensure you've accurately identified the source of the leak before attempting a repair. Clean the area thoroughly and then observe carefully to pinpoint the exact origin.

Repairing a leaking sump is a manageable task for the competent DIY mechanic, provided you follow the steps meticulously and prioritise thorough preparation. With the right tools and materials, you can confidently tackle this common automotive issue, ensuring your engine remains well-lubricated and your car stays in good health, avoiding those dreaded oil stains and keeping your MOT certificates clean.
