Honda XL125S Engine & Features Explored

The Honda XL125S holds a special place in the hearts of trail bike enthusiasts across the United Kingdom and beyond. Known for its rugged reliability and versatile performance, this machine underwent several key transformations throughout its production run. While often admired for its nimble handling and classic enduro styling, it's the engine and its continuous evolution that truly define the XL125S experience. Understanding the nuances of its powertrain and the array of features introduced over the years is crucial for any owner or prospective buyer looking to appreciate the engineering prowess behind this enduring Honda.

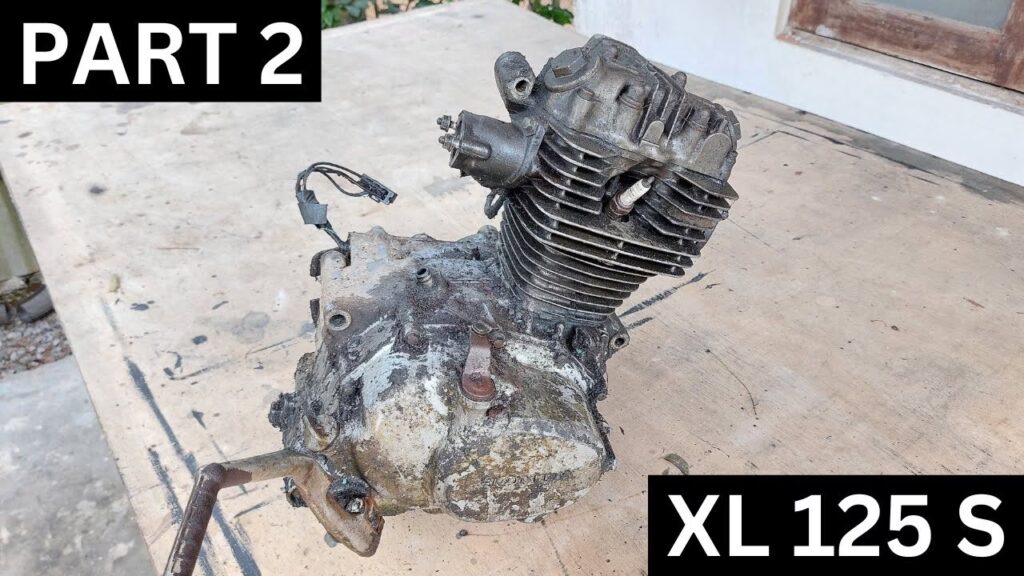

The Heart of the Beast: Honda XL125S Engine Evolution

At its core, the Honda XL125 series, including the later 'S' designation, was powered by a dependable single-cylinder, Overhead Camshaft (OHC) engine. This design choice was pivotal, offering a good balance of power, fuel efficiency, and ease of maintenance, making it ideal for both on-road commuting and off-road adventures. However, the engine wasn't static; it saw several significant changes that improved its performance and refinement.

Early Iterations: The XL125K1 (1975)

The journey of the 125cc engine in this lineage began with the XL125K1, introduced in 1975. This model featured an OHC single-cylinder engine with a displacement of 122cc. Mated to a 5-speed transmission, this early powerplant utilised a one-piece cylinder head. This configuration provided a solid foundation for the subsequent models, establishing the reputation for Honda's small-displacement trail bikes.

The Mid-70s Refinements (1976-1978)

By 1976, the XL125 saw a subtle yet important upgrade to its engine's displacement, increasing it to 124cc. While still an OHC single-cylinder unit, a notable internal change was the adoption of a two-piece cylinder head. This design might have offered advantages in manufacturing or servicing, though the core OHC architecture remained consistent through the 1977 and 1978 models. These years maintained the 5-speed transmission, laying the groundwork for more significant changes to come.

Ushering in the "S" Era: The XL125S (1979 Onwards)

The introduction of the XL125S in 1979 marked a pivotal moment for the series. While retaining the reliable 124cc OHC single-cylinder engine, the 'S' variant brought a significant upgrade to the transmission: a 6-speed gearbox. This extra gear offered a wider range of ratios, improving both acceleration and top-end cruising, making the bike more versatile for various riding conditions. This 6-speed setup remained a standard feature for all subsequent XL125S models through to 1985.

Unlocking More Power: Breathing System Innovations

Beyond the displacement and transmission changes, Honda engineers meticulously refined the engine's breathing system to extract more power. This was a critical improvement that directly impacted the bike's performance capabilities.

The Science Behind the Boost

Later models of the Honda XL125 (implied to be the XL125S, given the context of power improvements) benefited from a sophisticated redesign of the cylinder head's intake and exhaust pathways. These enhancements resulted in approximately 10% more power than its predecessors. This significant increase was achieved by:

• Valve Seat Relocation: The valve seats were moved further apart, creating more space within the combustion chamber.
• Larger Valves: This increased space allowed for the installation of larger valves, facilitating greater airflow into and out of the cylinder.
• Increased Valve Diameters: Specifically, the exhaust valve diameter was increased by 1.5mm, and the intake valve diameter saw an even more substantial increase of 2.5mm.

These modifications to the breathing system meant the engine could inhale more air and fuel mixture and exhale exhaust gases more efficiently, leading to a noticeable boost in overall power output. This highlights Honda's commitment to continuous improvement, even on a venerable commuter/trail bike platform.

Gear Up: Transmission Advancements

The evolution from a 5-speed to a 6-speed transmission was a key functional upgrade for the XL125S. While the 5-speed unit in early XL125 models was perfectly adequate for the bike's intended use, the addition of a sixth gear brought several benefits:

• Improved Acceleration: Closer ratios in the lower gears could allow for quicker acceleration off the line or out of corners.
• Enhanced Top Speed/Cruising: A taller sixth gear could reduce engine RPMs at higher speeds, leading to potentially better fuel economy and reduced engine wear during sustained cruising.
• Greater Versatility: The wider spread of ratios made the bike more adaptable to different terrains and riding styles, from technical trails requiring precise gear selection to open roads where a relaxed cruise was desired.

This transmission upgrade was a clear indicator of Honda's desire to position the XL125S as a more refined and capable dual-sport machine.

Visual and Functional Transformations Over the Years

Beyond the engine and transmission, the XL125 series, particularly the XL125S, saw numerous aesthetic and functional changes that distinguished model years and improved the rider experience.

Instrumentation and Controls

• 1975 (XL125K1): Featured a tachometer, providing riders with engine RPM information.
• 1976-1978 (XL125): The tachometer was deleted, simplifying the instrument panel.
• 1979 (XL125S): Introduced a one-piece rectangular instrument pod, a modern touch for its time.
• 1980-1985 (XL125S): Reverted to a separate, round speedometer unit, often paired with distinct turn signal designs.

Exhaust and Aesthetics

• 1975 (XL125K1): Equipped with a downswept exhaust system, common for road-oriented bikes of the era. The muffler heat shield was chrome.
• 1976-1978 (XL125): Switched to an upswept exhaust system, characteristic of off-road and enduro bikes, offering better ground clearance. The muffler heat shield was black for '76, then chrome again for '77.
• 1979-1985 (XL125S): Maintained the upswept exhaust, reinforcing its trail-bike credentials.

Chassis and Suspension Details

• Early Models (pre-1979): Featured varying colour schemes for fenders, side covers, and fuel tanks, with silver painted plastic fenders in 1975 and colour-impregnated plastic fenders in later years. Wheel hubs were often silver.
• 1979 (XL125S): Notable changes included chrome shock springs and a black frame. Turn signal housings were rectangular plastic.
• 1980 (XL125S): Shock springs and frame became black. Turn signal housings became round metal.
• 1981 (XL125S): Maintained black shock springs and frame, but turn signals reverted to rectangular plastic.
• 1982-1985 (XL125S): Shock springs remained black, but the frame colour shifted to red, providing a distinct visual contrast. The seat often featured a white "XL" logo.

Key Specifications and Evolutionary Changes: A Comparative Look

To truly appreciate the journey of the XL125 series, let's summarise the core mechanical and design changes in a comparative table:

Essential Maintenance for Your XL125S Engine

Maintaining the engine of your Honda XL125S is paramount for its longevity and reliable performance. Given its OHC design, regular oil changes, valve clearance checks, and spark plug maintenance are crucial.

Spark Plug Specifics

The spark plug is a small but vital component for optimal engine combustion. Over the years, Honda specified different spark plugs for the XL125S:

• 1979-1981 XL125S: The recommended spark plug was an NGK D8EA.
• 1982-1985 XL125S: The specification changed to an NGK DR8ES-L.

Always ensure you use the correct spark plug for your specific model year, as using the wrong type can lead to poor performance, misfires, or even engine damage. Regular inspection and replacement of the spark plug, typically as part of a routine service, will keep your XL125S running smoothly.

General Engine Care

Beyond the spark plug, consistent general maintenance is key. This includes:

• Oil Changes: Regular oil and filter changes are fundamental for lubricating the engine's internal components and dissipating heat. Consult your owner's manual for recommended intervals and oil type.
• Valve Clearance: The OHC engine requires periodic valve clearance adjustments to ensure proper valve operation and prevent premature wear. This is a more advanced task often best left to experienced mechanics.
• Air Filter: A clean air filter is essential for the engine to breathe properly. Given the XL125S's potential for off-road use, the air filter can get dirty quickly and should be inspected and cleaned or replaced regularly.
• Carburettor Maintenance: Keeping the carburettor clean and properly adjusted ensures the correct fuel-air mixture, which is vital for engine performance and fuel efficiency.

Frequently Asked Questions About the Honda XL125S

What does OHC mean for the XL125S engine?

OHC stands for Overhead Camshaft. This design means the camshaft, which controls the opening and closing of the engine's valves, is located in the cylinder head above the combustion chamber. This is generally a more efficient design than older pushrod engines, allowing for higher engine speeds and better performance by reducing reciprocating mass and providing more direct valve actuation.

Why did the XL125S get a 6-speed transmission?

The upgrade to a 6-speed transmission in the XL125S, starting in 1979, provided a wider range of gear ratios. This allowed for better acceleration through closer-spaced lower gears and potentially more relaxed cruising at higher speeds with a taller top gear, enhancing the bike's versatility for both trail riding and road use.

How did Honda increase the power output of the XL125S?

Honda achieved an approximate 10% increase in power for the XL125S by improving the engine's breathing system. This involved moving the valve seats further apart to accommodate larger intake and exhaust valves, specifically increasing the exhaust valve diameter by 1.5mm and the intake by 2.5mm. This allowed for more efficient airflow, leading to better combustion and more power.

Are parts still available for the Honda XL125S engine?

While some specific parts for older models like the XL125S may be scarce as new OEM (Original Equipment Manufacturer) stock, many common wear items and some aftermarket parts are still available. Enthusiast communities, specialist Honda parts suppliers, and online marketplaces are excellent resources for finding components for these classic machines. Generic engine consumables like spark plugs, oil filters, and gaskets are generally easier to source.

What's the difference between the XL125 and the XL125S engine?

The primary difference in the engine itself between the later XL125 and the XL125S (from 1979 onwards) is the transmission. The XL125 typically featured a 5-speed gearbox, while the XL125S was equipped with a 6-speed transmission. Additionally, the XL125S benefited from internal engine refinements, particularly in the breathing system, which led to a notable power increase compared to its predecessors.

Conclusion: The Enduring Appeal of the XL125S

The Honda XL125S stands as a testament to Honda's engineering philosophy: continuous improvement and reliable performance. From its early 122cc OHC beginnings with a 5-speed gearbox to the refined 124cc unit with a 6-speed transmission and significant power enhancements, the XL125S evolved into a highly capable and beloved dual-sport motorcycle. Its robust engine, coupled with thoughtful design changes over the years, ensures that even decades after its production, the XL125S remains a popular choice for riders seeking a lightweight, dependable, and characterful machine for both their daily commute and weekend adventures across the British countryside. Understanding its mechanical heart and the journey it took truly enriches the ownership experience.
