Do Your i-VTEC Front Brake Discs Need Replacing?

It's a familiar story for many motorists across the UK: you take your car in for a routine check-up, a tyre change, or even just a puncture repair, and invariably, the conversation turns to your brakes. Suddenly, those brake pads and discs you thought were perfectly fine are declared 'urgently' in need of replacement. It's a tale as old as time, and one that often leaves drivers feeling uneasy, especially when personal inspection reveals plenty of life left in the components. The experience of being told your Honda Jazz's front pads, with a healthy 5mm remaining, needed 'ASAP' replacement by a national chain like ATS, particularly when your wife was at the helm, highlights a frustrating pattern that many suspect preys on a perceived lack of knowledge.

So, what's the real story behind brake wear, especially for your i-VTEC model, and when do those front brake discs genuinely need replacing? Understanding the mechanics and typical wear patterns can empower you to confidently assess recommendations and avoid unnecessary expenditure.

Understanding Your Vehicle's Braking System

Before diving into wear, it's crucial to grasp the basics of how your car's disc braking system works. When you press the brake pedal, hydraulic pressure forces the brake caliper to clamp two brake pads against a spinning brake disc (also known as a rotor). The friction generated slows the wheel. Both the pads and discs are consumables, designed to wear down over time, but at different rates and with distinct indicators for replacement.

The pads, made of a friction material, are designed to wear faster than the metal discs. Their primary purpose is to absorb the kinetic energy of the moving vehicle and convert it into heat, which dissipates into the air. Discs, on the other hand, provide the stable surface for the pads to press against. While robust, they too are subject to wear, scoring, and warping.

Brake Pads: More Life Than You Think?

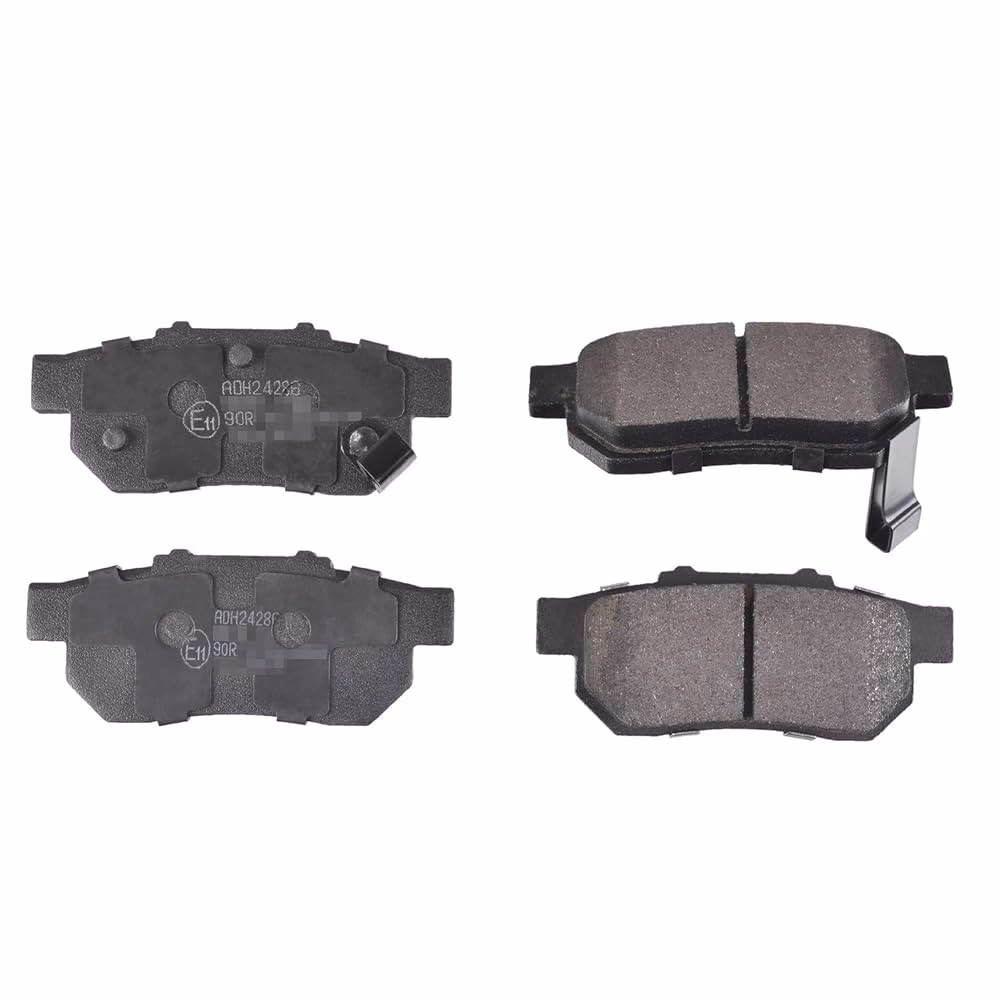

Your wife's Jazz, with 5mm of pad material remaining, is a classic example of a common garage tactic. New brake pads typically come with around 10-12mm of friction material. The generally accepted minimum safe thickness for most vehicles is 2-3mm. This 2-3mm threshold is when the pads are considered truly worn and should be replaced to maintain effective braking and prevent damage to the discs.

Therefore, 5mm is far from "ASAP." Depending on driving style, road conditions, and the specific vehicle, 5mm of pad material could easily last for many thousands of miles more. Aggressive city driving will wear them down quicker than gentle motorway cruising, but even so, 5mm offers a significant safety margin before reaching the critical minimum. Garages often recommend replacement around 3-4mm or even 5mm, citing 'safety' or 'preventative maintenance,' but often it's simply a tactic to secure work.

Brake Discs: When Do They Really Need Attention?

Unlike pads, which have a clear friction material thickness to measure, assessing brake discs requires looking at several factors: minimum thickness, scoring, and warping.

• Minimum Thickness: Every brake disc has a manufacturer-specified minimum thickness, often stamped on the edge of the disc itself (e.g., 'MIN THK 19mm'). This is the most critical factor. Once a disc wears below this minimum, it loses its ability to dissipate heat effectively, making it prone to warping and cracking, and significantly reducing braking performance. It also increases the risk of the caliper piston over-extending, leading to brake failure.
• Scoring and Grooves: Over time, the friction material from the pads can leave light score marks on the disc surface. This is normal. However, deep grooves or significant scoring (often caused by worn-out pads with metal-on-metal contact, or debris trapped between the pad and disc) can reduce braking efficiency and prematurely wear new pads. If the grooves are substantial and can be felt with a fingernail, or if they cover a large surface area, disc replacement might be necessary.
• Warping/Run-out: This manifests as a pulsation felt through the brake pedal or steering wheel when braking. It occurs when the disc's surface is no longer perfectly flat, often due to excessive heat cycling (e.g., heavy braking followed by hitting a puddle, or repeated hard stops). While minor warping *can* sometimes be corrected by 'skimming' the discs (machining them to restore a flat surface), this is only viable if the disc remains above its minimum thickness after skimming. In most cases, warped discs require outright replacement.

Why the Discrepancy? Garages vs. Reality

The continuous push for brake replacements often stems from a few key reasons:

1. Profit Motive: Brakes are a high-margin service. Replacing pads and discs together can be a significant bill, and it's an easy upsell when a customer is already in the workshop.
2. Liability: Garages operate under a duty of care. If they identify wear that *could* become a problem, even if it's not critical yet, they might recommend replacement to mitigate their own risk. It's safer for them to over-recommend than under-recommend.
3. Varying Interpretations: What one technician deems 'worn' another might consider 'plenty of life left'. This subjective element, combined with different company policies, can lead to inconsistent advice.
4. Lack of Consumer Knowledge: Many drivers don't know how to inspect their own brakes or what the wear limits are. This makes them susceptible to persuasive (and sometimes misleading) advice. The anecdotal evidence of women being targeted more often suggests a regrettable but common perception among some unscrupulous outfits that they are 'easy prey'.

How to Inspect Your Own Brakes

Empowering yourself with knowledge is the best defence against unnecessary work. Here’s how you can perform a basic inspection of your i-VTEC's front brakes:

• Visual Pad Inspection (Through Spokes): For many modern wheels, you can often see the outer brake pad through the wheel spokes. Use a torch and look at the thickness of the friction material against the steel backing plate. If it looks very thin (e.g., less than 4-5mm), it's time to consider replacement. Remember, you can often only see the outer pad; the inner pad can sometimes wear faster due to caliper design.
• Wheel-Off Inspection (More Thorough): For a more accurate assessment, safely jack up your car and remove the wheel. This allows you a clear view of both inner and outer pads. You can even use a small ruler or a dedicated brake pad thickness gauge to get an accurate measurement.
• Disc Inspection: While the wheel is off, run your finger across the disc surface from the centre outwards. Feel for any significant ridges or grooves. A small lip on the outer edge of the disc is normal wear, but if the main braking surface feels deeply scored or uneven, it's a concern. To check for warping, observe the disc as you slowly spin the wheel – any noticeable wobble indicates run-out.
• Measuring Disc Thickness: This requires a specialist tool called a micrometer. Measure the disc thickness in several places around the circumference, avoiding the very outer edge. Compare your lowest reading to the minimum thickness stamped on the disc. If it’s at or below this figure, replacement is essential.

When Do i-VTEC Front Brake Discs *Really* Need Replacing?

For your i-VTEC model, be it a Honda Jazz, Civic, or another variant, the principles are universal. Your front brake discs truly need replacing when:

• They have worn down to or below their minimum thickness specification. This is non-negotiable for safety.
• They are significantly warped, causing a noticeable pulsation through the brake pedal or steering wheel. Skimming is a possibility for minor warpage, but only if the disc remains above minimum thickness.
• They have deep grooves or scoring that cannot be rectified by light pad wear, significantly reducing braking efficiency or prematurely wearing new pads.
• There are visible cracks on the disc surface (a rare but dangerous occurrence).
• You experience consistent grinding noises when braking, even with new pads, indicating metal-on-metal contact or severe disc damage.

The 5mm Pad Urgency: A Reality Check

Let's revisit the 5mm pad situation. While some garages might classify this as 'urgent', it is generally not. Most manufacturers recommend replacement when pads reach 2-3mm. At 5mm, you typically have tens of thousands of miles of life left, depending on your driving habits. It's perfectly safe to continue driving and monitor them, perhaps checking again at your next service or in 6-12 months, rather than rushing into an immediate replacement.

Brake Disc Skimming vs. Replacement

In some cases, if discs are only slightly warped or have very minor surface imperfections, they can be 'skimmed' (machined) to restore a flat, smooth surface. This is a cheaper alternative to full replacement. However, it's only feasible if, after skimming, the disc still remains above its minimum thickness. If the disc is already close to or below its minimum, or if the warping is severe, full replacement is the only safe option. Modern discs are also often thinner and lighter than older designs, making skimming less viable due to the reduced material available.

Choosing Quality Parts and Reputable Garages

If you do need to replace your brakes, opting for quality parts is crucial. While OEM (Original Equipment Manufacturer) parts from Honda are always a safe bet, many reputable aftermarket brands (such as Brembo, Pagid, Bosch, or Textar) offer excellent quality that meets or exceeds original specifications, often at a lower cost. Avoid no-name or excessively cheap components, as they can compromise braking performance and longevity.

Finding a trustworthy garage is also key. Look for independent mechanics with good reviews, ask friends or family for recommendations, and don't be afraid to get a second opinion if a diagnosis feels questionable. A good garage should be able to show you the wear on your components and clearly explain why replacement is necessary, ideally allowing you to see the measurements yourself.

Frequently Asked Questions (FAQs)

How often should brake pads and discs be replaced on an i-VTEC?

There's no fixed interval. It heavily depends on your driving style, the type of roads you drive on, and mileage. Aggressive city driving with lots of stop-and-go traffic will wear brakes faster than gentle motorway cruising. Pads typically last between 20,000 to 60,000 miles, while discs can last anywhere from 40,000 to 100,000 miles, often spanning two sets of pads.

Can I just replace the brake pads, or do I need to replace the discs too?

It depends. If your discs are still well above their minimum thickness, are not warped, and have only minor scoring, you can often get away with just replacing the pads. However, if the discs are near their minimum, warped, or deeply grooved, it's highly recommended to replace both pads and discs simultaneously. New pads on worn or warped discs will not perform optimally and can wear out prematurely.

What are the common signs that my brakes are genuinely worn?

Beyond visual inspection, common signs include:

• Squealing or Grinding Noises: A high-pitched squeal often indicates worn pads activating a wear indicator. A metallic grinding sound usually means the pads are completely worn and you have metal-on-metal contact, which rapidly damages discs.
• Vibration or Pulsation: A pulsating feeling through the brake pedal or steering wheel when braking suggests warped brake discs.
• Spongy or Soft Pedal: The pedal goes too far down or feels soft, potentially indicating air in the brake lines or a fluid leak, not necessarily pad/disc wear directly, but a serious brake issue.
• Longer Stopping Distances: If your car takes longer to stop than usual, it's a clear sign of compromised braking performance.

Is it safe to drive with 5mm brake pads?

Yes, absolutely. 5mm is typically considered a healthy amount of pad material, well above the critical minimum of 2-3mm. You can safely continue driving and monitor them, planning for replacement in the coming months rather than urgently.

Do i-VTEC specific models have unique brake requirements?

While specific models (like the Jazz, Civic, or CR-V) will have different disc and pad sizes, the fundamental principles of wear, inspection, and replacement remain the same across all i-VTEC powered vehicles. There's nothing inherently unique about the i-VTEC engine itself that dictates different brake maintenance intervals or procedures compared to other engine types in similar class vehicles.

How do I find the minimum disc thickness for my specific car?

The minimum thickness is almost always stamped on the edge of the brake disc itself. You'll need to remove the wheel for a clear view, and sometimes clean off dirt to see the engraving. If you can't find it, your car's workshop manual or a reputable parts supplier can provide this specification.

Should I go to a main dealer or an independent garage for brake work?

Both have pros and cons. Main dealers often use genuine OEM parts and have manufacturer-specific training, but can be more expensive. Independent garages, especially those with a good reputation, can offer comparable quality parts and service at a more competitive price. The key is finding a reputable workshop you trust, regardless of whether it's a dealer or independent.

Conclusion

The next time a garage tells you your i-VTEC's front brake discs or pads need replacing, remember your newfound knowledge. A healthy dose of skepticism, combined with a basic understanding of brake wear and the ability to perform a simple visual inspection, can save you from unnecessary expenditure. Always question urgent recommendations, seek a second opinion if in doubt, and empower yourself to make informed decisions about your vehicle's maintenance. Your safety is paramount, but so is your wallet, and with a bit of knowledge, you can ensure both are well protected.
