Troubleshooting Your Non-Starting Honda GC160

Few things are as frustrating as pulling the starter cord on your Honda GC160-powered equipment, only to be met with silence or a weak cough. Whether it's a lawnmower, pressure washer, or generator, the GC160 is a stalwart of reliability for many British households and tradespeople. However, even the most dependable engines can encounter issues. Before you resign yourself to costly repairs or a new purchase, let's delve into the most common reasons why your GC160 might not be sparking into life and how you can get it running smoothly again.

Understanding the basics of how your engine works – requiring fuel, air, spark, and compression – is key to effective troubleshooting. Most issues can be traced back to one of these fundamental elements. We'll guide you through a systematic approach, starting with the simplest checks and progressing to more involved diagnostics. Remember, safety first: always ensure the engine is off, cool, and the spark plug lead is disconnected before undertaking any work.

The Fuel System: The Lifeblood of Your Engine

A significant percentage of engine starting problems originate in the fuel system. Without clean, fresh fuel reaching the combustion chamber in the correct proportions, your engine simply won't run.

1. Check the Fuel Level and Condition

It might sound obvious, but ensure there's enough fuel in the tank. Beyond just quantity, the quality of the fuel is paramount. Petrol can degrade over time, especially when left stagnant for months. Stale fuel can lead to varnish and gum deposits that clog vital components.

• Action: If the fuel has been sitting for more than a month or two, drain the tank and refill it with fresh, unleaded petrol. Consider using a fuel stabiliser if you store the equipment for extended periods.

2. Inspect the Fuel Filter

A small, often overlooked component, the fuel filter prevents dirt and debris from reaching the carburettor. A clogged filter restricts fuel flow, starving the engine.

• Action: Locate the in-line fuel filter (if present) between the fuel tank and the carburettor. If it looks dirty or discoloured, or if fuel isn't flowing freely through it, replace it. They are inexpensive and easy to swap.

3. Examine the Fuel Line and Shut-off Valve

Fuel lines can become kinked, cracked, or blocked internally. Many GC160 engines also feature a fuel shut-off valve, often located at the base of the fuel tank or on the fuel line itself.

• Action: Ensure the fuel shut-off valve is in the 'open' or 'on' position. Visually inspect the fuel line for any obvious damage. If you suspect a blockage, you can carefully disconnect the line from the carburettor (with a container underneath to catch fuel) and check for fuel flow.

4. Carburettor Issues: The Most Common Culprit

The carburettor mixes air and fuel in the correct ratio for combustion. It's often the primary cause of starting issues, especially after a period of inactivity, due to fuel evaporating and leaving deposits.

• Symptoms: Engine cranks but doesn't start, starts and immediately dies, or only runs on choke.
• Action:
• Initial Check: Ensure the choke lever is in the correct 'choke' or 'start' position when attempting to start a cold engine.
• Cleaning: For minor clogs, a carburettor cleaner spray can sometimes help. With the engine off and cool, remove the air filter, spray cleaner into the carburettor throat, and let it sit for a few minutes before attempting to start.
• Draining the Float Bowl: Many carburettors have a drain screw on the float bowl (the cup at the bottom). Draining this can remove old fuel and sediment.
• Deeper Clean/Rebuild: If the above steps fail, the carburettor likely needs a thorough cleaning or a rebuild kit. This involves disassembling the carburettor, cleaning all passages with carburettor cleaner and compressed air, and replacing gaskets and jets. This can be complex, and if you're uncomfortable, it's best left to a professional.

The Ignition System: Sparking Life

Even with perfect fuel delivery, your engine won't start without a strong, consistent spark.

1. Check the Spark Plug

The spark plug ignites the fuel-air mixture. A fouled, damaged, or incorrectly gapped spark plug is a frequent cause of no-start conditions.

• Action:
• Removal: Disconnect the spark plug cap, then use a spark plug spanner to carefully remove the plug.
• Inspection:
• Colour: A healthy plug should have light tan or grey deposits. Black, sooty deposits indicate a rich fuel mixture or a clogged air filter. Oily deposits mean oil is entering the combustion chamber.
• Condition: Check for cracked porcelain, bent electrodes, or excessive wear.
• Wetness: If the plug is wet with fuel, it means fuel is getting to the cylinder but isn't igniting (possibly due to lack of spark or too much fuel).
• Cleaning/Gapping: If merely sooty, you can gently clean it with a wire brush. Check the gap between the electrodes using a feeler gauge (refer to your GC160 manual for the precise specification, typically around 0.7-0.8mm). Adjust if necessary by carefully bending the outer electrode.
• Replacement: If the plug is heavily fouled, damaged, or worn, replace it with a new one of the correct type (e.g., NGK BPR6ES or equivalent).

2. Test for Spark

Once the spark plug is clean or replaced, you need to confirm it's actually producing a spark.

• Action:
• Safety First: Ensure the spark plug lead is firmly connected to the spark plug. Hold the insulated spark plug cap (not the metal part of the plug) and touch the metal body of the spark plug to a clean, unpainted metal part of the engine block.
• Crank the Engine: Pull the starter cord briskly. You should see a strong, blue spark jump across the plug's electrodes.
• No Spark? If there's no spark, double-check the kill switch (if present) and the spark plug connection. If still no spark, the issue could be the ignition coil (less common but possible) or a faulty low-oil sensor/switch preventing spark.

The Air System: Breathing Room

Just like fuel, your engine needs a clean supply of air for proper combustion.

1. Check the Air Filter

A dirty or clogged air filter restricts airflow, causing the engine to run rich (too much fuel, not enough air) and potentially preventing it from starting.

• Action: Remove the air filter cover and inspect the filter element. If it's heavily soiled with dirt, dust, or debris, clean or replace it. Foam filters can often be washed and re-oiled, while paper filters generally need replacement.

Other Critical Checks

1. Engine Oil Level and Low Oil Sensor

The Honda GC160, like many small engines, features a low oil sensor that prevents the engine from starting or running if the oil level is too low, protecting it from severe damage.

• Action: Check the engine oil dipstick. Ensure the oil level is between the 'min' and 'max' marks. If it's low, top it up with the recommended oil type (typically SAE 10W-30). A non-starting engine due to low oil is a common, and easily rectifiable, issue.

2. Engine Compression

While less common for a sudden no-start, lack of adequate compression means the engine can't build up enough pressure to ignite the fuel-air mixture effectively. This could indicate worn piston rings, sticking valves, or a blown head gasket.

• Action: If all other checks fail, you might need to perform a compression test using a specialised gauge. A healthy GC160 should typically have around 60-90 PSI during cranking. Low compression often requires professional intervention.

3. Flywheel Key

The flywheel key aligns the flywheel with the crankshaft. If the engine experiences a sudden impact (e.g., hitting a hard object with a lawnmower blade), this key can shear, causing the engine to lose its correct ignition timing.

• Symptoms: Engine cranks but doesn't start, or backfires.
• Action: This is a more involved repair requiring removal of the flywheel, and it's often best left to a qualified technician.

Troubleshooting Flowchart: Symptoms and Solutions

Frequently Asked Questions (FAQs)

Q1: Why does my Honda GC160 only run with the choke on?

This is a classic symptom of a lean fuel mixture, almost always pointing to a dirty or partially clogged carburettor. The choke enriches the mixture by restricting air, compensating for the lack of fuel flow through the clogged passages. A thorough carburettor cleaning, focusing on the main jet and idle circuit, is usually the solution.

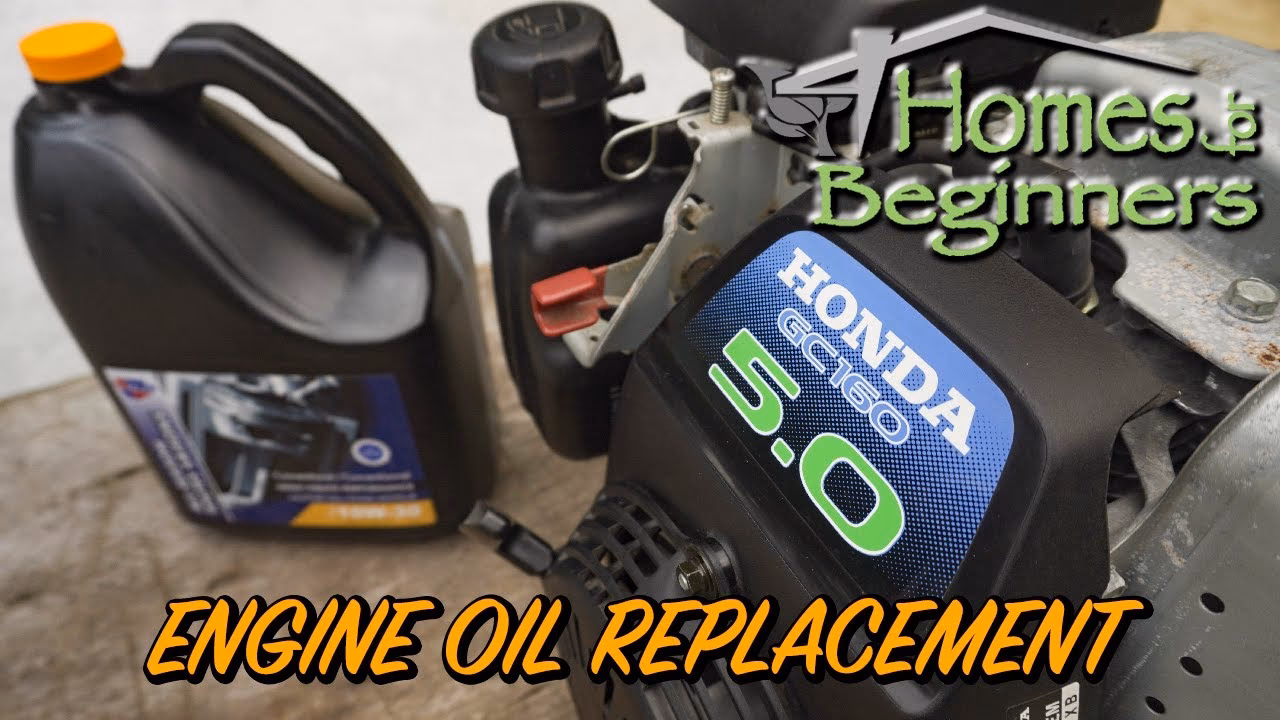

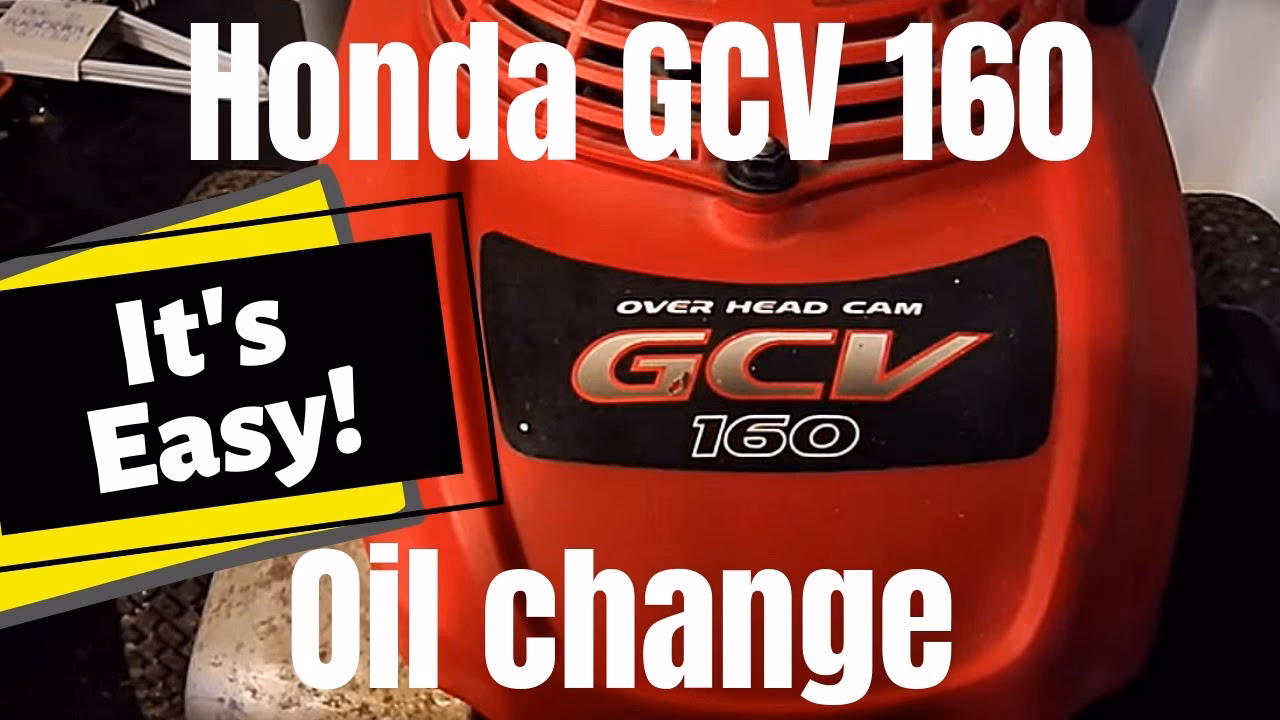

Q2: How often should I change the oil in my GC160?

For typical home use, it's recommended to change the oil every 50 hours of operation or at least once a season (annually), whichever comes first. If used in dusty conditions or for heavy-duty commercial work, more frequent changes are advised. Always refer to your specific Honda GC160 owner's manual for precise recommendations.

Q3: What type of fuel should I use in my Honda GC160?

Your Honda GC160 engine is designed to run on unleaded petrol with an octane rating of 86 or higher (Research Octane Number, RON). Avoid using E10 petrol (containing up to 10% ethanol) if possible, as ethanol can degrade fuel lines and carburettor components over time. If E10 is your only option, ensure you use a fuel stabiliser, especially during storage.

Q4: My engine backfires when I try to start it. What could be wrong?

Backfiring often indicates incorrect ignition timing. The most common cause for this in a small engine like the GC160, especially after hitting something, is a sheared flywheel key. This throws off the timing, causing the spark to occur at the wrong point in the engine cycle. It requires flywheel removal to inspect and replace the key.

Q5: Is it safe to use starting fluid (ether) to get my GC160 going?

While a very small, controlled spray of starting fluid can sometimes help diagnose a fuel delivery issue (if it fires briefly, you know you have spark and compression), it's generally not recommended for regular use. Starting fluid is extremely volatile and can cause damage to the engine, particularly if used excessively or in engines with low oil sensors. It's better to address the root cause of the fuel delivery problem.

By systematically working through these troubleshooting steps, you'll likely identify and resolve the issue preventing your Honda GC160 from starting. Patience and a methodical approach are your best tools. If after trying these solutions your engine still refuses to cooperate, it might be time to consult a qualified small engine mechanic. However, for most common problems, a little DIY effort can save you time and money, getting your reliable Honda GC160 back to work.
