EP3 Type R Suspension & Alignment Guide

The Honda Civic EP3 Type R is a legendary hot hatch, renowned for its engaging driving dynamics and rev-happy K20 engine. While it offers a fantastic driving experience straight from the factory, there's always room for improvement, particularly in the suspension and alignment departments. Upgrading these areas can transform your EP3, making it even more precise, responsive, and enjoyable on both the road and the track. This guide will delve into the various options available for EP3 Type R suspension and alignment upgrades, helping you make informed decisions to tailor your car to your specific needs and driving style.

Understanding Your EP3 Suspension

Before diving into upgrades, it's crucial to understand the stock EP3 suspension setup. Honda engineers did a commendable job with the original design, featuring a MacPherson strut front suspension and a multi-link rear suspension. The car is known for its balanced handling and respectable body control. However, like many factory setups, it prioritises comfort to a degree, leaving room for enhanced performance through aftermarket modifications.

The key components of your EP3's suspension include:

• Springs: Determine the ride height and stiffness.
• Shock Absorbers (Dampers): Control the spring's oscillations, managing body roll and maintaining tyre contact.
• Anti-Roll Bars (Sway Bars): Reduce body roll during cornering.
• Bushings: Rubber components that absorb vibration and allow for controlled movement. Worn bushings can significantly degrade handling.
• Control Arms: Connect the wheel hub to the chassis, influencing alignment.

Suspension Upgrades Explained

When it comes to suspension upgrades, the goal is typically to improve handling, reduce body roll, increase grip, and potentially lower the car's centre of gravity. Here are the most common and effective upgrades for the EP3 Type R:

Coilovers

Coilovers are arguably the most popular suspension upgrade for performance-oriented vehicles like the EP3. A coilover system replaces the factory springs and shock absorbers with an integrated unit, offering several advantages:

• Adjustable Ride Height: Allows you to lower the car to your desired level, improving aesthetics and lowering the centre of gravity.
• Adjustable Damping: Many coilovers offer adjustable damping (rebound and compression), enabling you to fine-tune the stiffness to suit different driving conditions or preferences. This is a significant advantage over fixed-stiffness springs.
• Improved Handling: Generally provide firmer damping and spring rates, leading to reduced body roll and a more connected feel to the road.
• Corner Balancing: With four independently adjustable spring perches, coilovers allow for precise corner balancing, optimising weight distribution for maximum grip.

Popular Coilover Brands for the EP3 Type R include:

When choosing coilovers, consider your budget, intended use (street, track, or a mix), and desired adjustability. It's often worth investing in a reputable brand for better durability and performance.

Lowering Springs

A more budget-friendly option than full coilovers, lowering springs replace the factory springs with shorter, stiffer units. This lowers the car's centre of gravity and reduces body roll. However, they are typically paired with the factory shock absorbers, which may not be optimally matched to the stiffer springs, potentially leading to a harsher ride or reduced shock absorber lifespan if not chosen carefully.

• Benefits: Lower ride height, reduced body roll, improved aesthetics, more affordable than coilovers.
• Considerations: Less adjustability, potential for a harsher ride, shock absorber compatibility.

Popular Lowering Spring Brands: Eibach, H&R, Apex.

Upgraded Anti-Roll Bars (Sway Bars)

The EP3 Type R already has a decent anti-roll bar setup, but upgrading to thicker, stiffer bars can further minimise body roll during cornering, leading to a flatter cornering attitude and improved steering response. You can opt for front, rear, or both.

• Benefits: Significantly reduces body roll, improves turn-in response, can be used independently or in conjunction with other suspension mods.
• Considerations: Can make the ride slightly firmer, especially over uneven surfaces. Adjustable bars offer more tuning potential.

Popular Anti-Roll Bar Brands: Eibach, Whiteline, H&R.

Upgraded Bushings

The rubber bushings in your suspension wear out over time, leading to slop and imprecise handling. Replacing them with stiffer polyurethane or even more solid spherical bearings can dramatically improve the car's feel and responsiveness. This is often an overlooked but highly effective upgrade.

• Benefits: Restores crispness to the handling, improves steering feel, reduces unwanted suspension movement.
• Considerations: Can introduce more NVH (Noise, Vibration, and Harshness) into the cabin, especially with stiffer materials.

Key areas for bushing upgrades: Control arm bushings, anti-roll bar bushings, subframe bushings.

Strut Braces

Strut braces (or strut tower bars) connect the tops of the front (and sometimes rear) suspension towers. They help to stiffen the chassis by preventing the towers from flexing under load, which can improve steering accuracy and feedback.

• Benefits: Chassis stiffening, improved steering precision.
• Considerations: Can be less impactful on a chassis that is already quite stiff, but still a worthwhile addition.

Popular Strut Brace Brands: Ultra Racing, Eibach.

Alignment Upgrades

Suspension and alignment go hand-in-hand. Even with the best suspension components, an improper alignment will prevent you from realising your car's full potential. The EP3 Type R, particularly when modified, can benefit greatly from a performance-oriented alignment. Key alignment parameters include:

• Camber: The inward or outward tilt of the wheel when viewed from the front. More negative camber (top of the wheel tilted inwards) improves cornering grip by keeping the tyre more perpendicular to the road surface under lateral G-force.
• Caster: The angle of the steering axis when viewed from the side. More positive caster improves straight-line stability and steering self-centring.
• Toe: The inward or outward angle of the wheels when viewed from above. Toe-in generally improves stability, while toe-out improves turn-in response.

Achieving Performance Alignment

The EP3 Type R's stock alignment is geared towards everyday usability. For spirited driving or track use, you'll likely want to adjust these parameters:

• Negative Camber: Increasing negative camber, especially on the front, is crucial for improving cornering grip. The EP3 has limited factory adjustment for camber, so aftermarket options like adjustable top mounts (often included with coilovers) or adjustable control arms are often necessary to achieve significant negative camber. A common target for track use is around -2.0 to -2.5 degrees of front camber.
• Caster: Increasing caster can improve steering feel and stability. The EP3 has decent factory caster, but some aftermarket control arms can offer further adjustment.
• Toe: For a performance setup, a slight amount of toe-out on the front wheels (e.g., 0-1mm total) can enhance turn-in response. The rear can be set to a slight toe-in (e.g., 1-2mm total) for stability.

Important Considerations for Alignment:

• Tyre Wear: Aggressive alignments, especially with excessive negative camber or toe, can lead to increased and uneven tyre wear.
• Steering Effort: More negative camber and caster can increase steering effort, particularly at lower speeds.
• Intended Use: Your alignment settings should reflect how you use the car. A track-focused alignment will be different from one optimised for fast road driving.
• Professional Setup: Always have your alignment carried out by a reputable workshop with a modern alignment rig. Discuss your intended use with the technician to achieve the best results.

Adjustable Suspension Arms

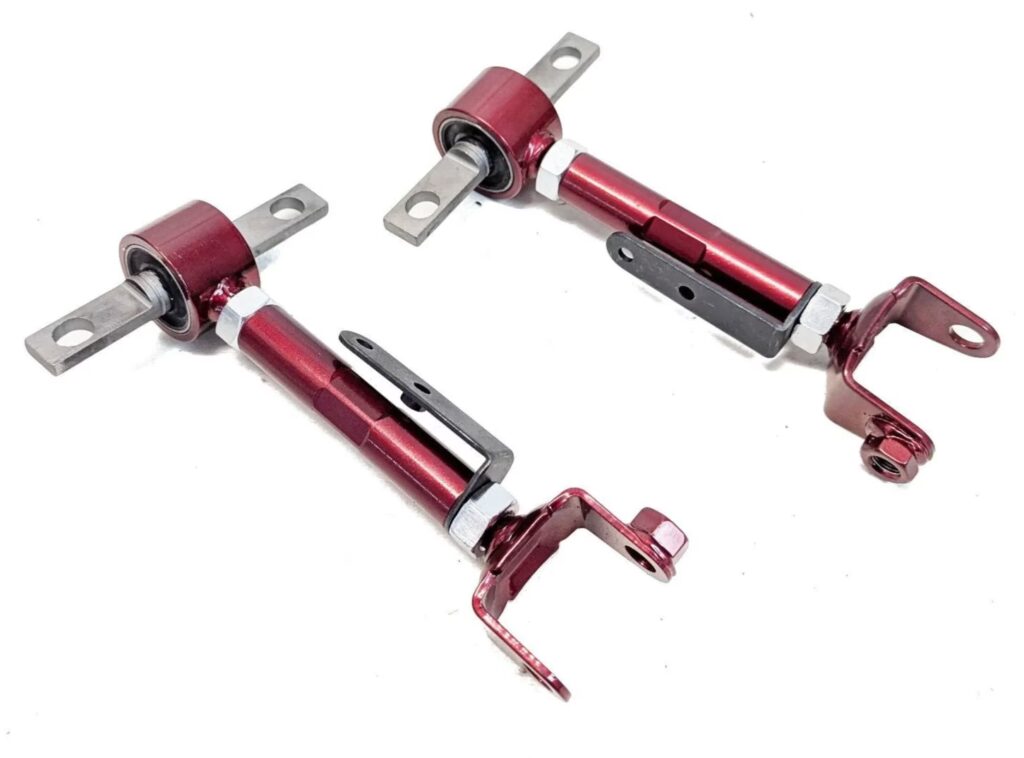

To achieve optimal alignment settings, especially for negative camber, you might need adjustable suspension arms:

• Adjustable Camber Arms: These allow for precise adjustment of the front camber angle, essential for dialling in negative camber for track use.
• Adjustable Tie Rods: Can be used to adjust toe settings.

Popular Adjustable Arm Brands: Hardrace, Eibach, K-Tuned.

Putting It All Together: Common Setups

Here are a few common approaches to EP3 Type R suspension and alignment upgrades:

1. Fast Road / Occasional Track Day

• Suspension: Quality coilovers (e.g., BC Racing BR Series, Tein Flex Z) with a moderate spring rate, potentially paired with stiffer anti-roll bars.
• Alignment: Slightly increased negative front camber (e.g., -1.5 to -2.0 degrees), zero or slight front toe-out, slight rear toe-in.

2. Dedicated Track Car

• Suspension: High-performance coilovers with stiffer spring rates and more aggressive damping adjustment (e.g., BC Racing ER/ZR Series, Ohlins if budget allows). Polyurethane or spherical bushings throughout. Thicker adjustable anti-roll bars.
• Alignment: Maximum practical negative front camber (e.g., -2.0 to -3.0 degrees), front toe-out, rear toe-in. Caster adjusted for maximum stability.

3. Budget-Friendly Handling Improvement

• Suspension: Good quality lowering springs (e.g., Eibach Pro-Kit) paired with uprated dampers (e.g., Koni Sport) or even well-maintained OEM dampers. New, stiffer anti-roll bar bushings.
• Alignment: Focus on correcting any worn components and setting a mild performance alignment within the factory adjustment capabilities, or with minimal aftermarket parts.

Frequently Asked Questions

Q1: Will coilovers make my EP3 Type R ride too harsh?
It depends on the coilover's spring rates and damping settings. Many quality coilovers offer adjustable damping, allowing you to soften the ride for daily driving and stiffen it for spirited use. Choosing a reputable brand with appropriate spring rates for your needs is key.

Q2: How much negative camber can I run on my EP3 Type R?
Without adjustable arms, factory camber is limited. With adjustable top mounts or camber arms, you can typically achieve -2.0 to -2.5 degrees on the front for good track performance. Exceeding this can lead to excessive tyre wear and reduced braking performance if not managed correctly.

Q3: Should I upgrade my anti-roll bars?
Yes, upgrading the anti-roll bars is a very effective way to reduce body roll and improve the car's cornering stability. It's often one of the most noticeable handling improvements you can make.

Q4: What's the difference between toe-in and toe-out?
Toe-out (front) means the front of the wheels point slightly outwards, improving turn-in response. Toe-in means the front of the wheels point slightly inwards, improving straight-line stability. The rear is typically set to toe-in for stability under cornering.

Q5: Is it worth upgrading the suspension bushings?
Absolutely. Worn bushings are a common cause of vague handling and reduced steering precision. Replacing them with stiffer polyurethane bushings can significantly restore and improve the car's feel and responsiveness.

Conclusion

Upgrading the suspension and alignment on your EP3 Type R is a rewarding process that can dramatically enhance its already impressive handling characteristics. Whether you're aiming for a sharper daily driver, a capable track day machine, or something in between, there are a wealth of options available. By understanding the components, considering your intended use, and choosing quality parts, you can unlock the full potential of this iconic hot hatch and enjoy a truly connected driving experience. Remember to always consult with experienced professionals when making significant modifications to ensure safety and optimal performance.
