Unveiling the Honda CB750 SOHC Engine

The Honda CB750 SOHC engine is more than just a power unit; it's a cornerstone of motorcycling history, a technological marvel that redefined performance and reliability for the masses. Launched in 1969, this revolutionary inline-four, single overhead camshaft (SOHC) engine propelled the Honda CB750 into an unprecedented league, earning it the moniker "Superbike" and forever changing the landscape of two-wheeled transport. For owners in the UK, from the early 1969 models to the 1976 iterations, understanding this engine is key to its maintenance and appreciation, especially when considering replacement parts.

The Genesis of a Legend: What Made the SOHC Special?

Before the CB750, high-performance motorcycles were often temperamental, prone to leaks, and required frequent, intricate maintenance. Honda, a company already known for its engineering prowess, aimed to change this with the CB750. Its heart, the 736cc SOHC inline-four engine, was a revelation.

At its core, the CB750 SOHC engine featured an air-cooled, transversely mounted inline-four cylinder design. This configuration, previously seen only on exotic racing machines, brought unparalleled smoothness and power delivery to the consumer market. With a single overhead camshaft actuating two valves per cylinder, it was a relatively simple yet highly effective design for mass production. This engine was capable of producing around 67 horsepower, pushing the CB750 to speeds approaching 120 mph – truly phenomenal for its era. But it wasn't just about raw power; it was about the way it delivered it: smoothly, reliably, and without the vibrations often associated with larger displacement engines of the time.

Beyond the engine itself, Honda packaged this powerhouse with other groundbreaking features. The CB750 was one of the first production motorcycles to feature an electric starter, making it incredibly convenient for daily use. It also boasted a hydraulic front disc brake, a significant safety and performance upgrade from the drum brakes commonly found on bikes of the period. These innovations, combined with the engine's inherent reliability, made the CB750 an instant hit and solidified Honda's reputation as a serious force in the global motorcycle market.

Evolution Within the SOHC Era (1969-1978)

While the core SOHC engine design remained consistent, Honda introduced several iterations of the CB750 throughout its production run, from the early K0 models (often considered the most desirable by collectors) through to the K1, K2, K3, K4, K5, K6, K7, K8, and the sportier F1 and F2 models. Each revision brought minor tweaks to carburetion, exhaust systems, and styling, but the fundamental SOHC engine architecture remained Honda's reliable workhorse. Owners of these classic machines often seek out specific replacement parts for their respective years, highlighting the enduring appeal and maintainability of these vintage bikes. Whether you own a 1969 K0 or a 1976 K6, the principles of the SOHC engine remain consistent.

The Shifting Tides: Why a Legend Needed a Successor

For a decade, the CB750 reigned supreme, but the motorcycle industry is relentless. By the early 1980s, Honda's competitors, particularly other Japanese manufacturers, had caught up and even surpassed the CB750's ageing design. The air-cooled SOHC engine, while reliable, was reaching its performance limits against newer, liquid-cooled, multi-valve DOHC designs. Honda's dominance was waning, and a bold new direction was needed to reclaim its position at the forefront of motorcycle innovation.

The answer came not as another inline-four, but as a completely new platform: the V4. This radical shift was partly driven by changing racing regulations, specifically the American Motorcycle Association's (AMA) Superbike class, which in 1983 limited four-cylinder bikes to 750cc and mandated the use of production models with stock chassis. Honda's response was the remarkable VF750F Interceptor, a machine that would redefine the sport bike segment.

The Dawn of a New Era: The VF750F Interceptor Engine

The VF750F Interceptor, launched in 1983, was a stark departure from the CB750 SOHC. While the CB750 was a general-purpose, high-performance machine, the Interceptor was a true race replica, designed for the track but legal for the road. Its engine was a completely different beast:

Powering the Interceptor was a liquid-cooled, 748cc, 16-valve, DOHC (Double Overhead Camshaft), 90-degree V4 engine. This V4 configuration offered a much narrower engine profile, aiding in lean angles and chassis design. Unlike the SOHC's air-cooling, the liquid-cooling system provided more consistent operating temperatures, leading to better performance, efficiency, and longevity. The DOHC setup, with four valves per cylinder, allowed for significantly improved breathing and higher revving capabilities compared to the SOHC's two valves per cylinder. The gear-driven cams further ensured precise valve timing, even at high RPMs.

Fed by four 30mm Keihin carburettors, this V4 engine produced a claimed 86 horsepower at 10,000 rpm and 52 ft-lbs of torque at 7,500 rpm. This represented a substantial increase in power output and rev range compared to the older SOHC unit. Furthermore, the VF engine was mounted directly to the chassis, offering a more rigid and responsive feel than the predecessor's rubber-mounted setup, contributing to the Interceptor's sharp handling characteristics.

Beyond the Engine: Interceptor's Revolutionary Chassis

The Interceptor wasn't just about a new engine; it was a holistic design revolution. It was built around a competition-derived twin-spar alloy frame, a rigid structure that provided exceptional handling. The cross-braced front-end and cast alloy swing-arm further enhanced its stability and cornering prowess. It sported ComStar aluminium alloy wheels, with a then-innovative 16-inch unit at the front, designed to quicken steering. Braking was handled by dual-piston calipers biting floating discs, a significant upgrade in stopping power and feel.

Suspension components, developed by Showa and Honda, were equally advanced. Air-assist forks incorporated Honda's TRAC (Torque Reactive Anti-dive Circuit) system, which mitigated fork dive under braking. At the rear, Honda's Pro-Link setup was paired with a Showa air-assist shock. Both ends were fully adjustable, allowing riders to fine-tune the suspension for specific riding conditions or track requirements – a feature unheard of on most production bikes just a few years prior.

Performance, Reception, and Legacy

The VF750F Interceptor immediately proved its worth on the racetrack, dominating the AMA Superbike series in its debut season, winning eight of fourteen Nationals in 1983. This on-track success translated directly to sales, as the VFs available in showrooms were remarkably similar to the factory race machines. This "race replica" concept was a major selling point and a genre of motorcycle Honda continues to produce to this day.

Public and media reception for the Interceptor was overwhelmingly positive. Reviewers lauded its precise handling, ample power, and aggressive, race-inspired appearance. It was seen as a true "race bike for the streets," pushing the boundaries of what a production motorcycle could be. While the CB750 SOHC laid the foundation for the modern superbike, the VF750F Interceptor ushered in the era of the high-performance, track-focused sport bike, setting new benchmarks for performance, handling, and technological sophistication.

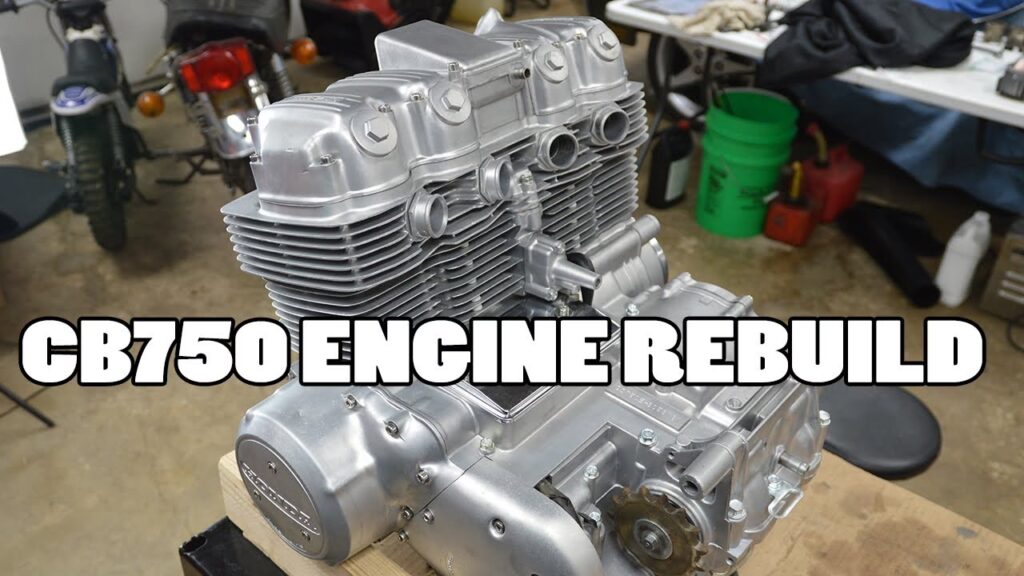

Maintaining Your Classic CB750 SOHC Engine

For enthusiasts and owners of the venerable Honda CB750 SOHC, maintaining these historic engines is a labour of love. Given that models from 1969 and 1976 are still highly sought after, finding suitable replacement parts is crucial. The simplicity of the SOHC design, compared to its DOHC successors, often makes it more approachable for home mechanics.

• Regular Oil Changes: Essential for the longevity of any engine, particularly air-cooled units. Use high-quality motorcycle-specific oil.
• Valve Clearances: The SOHC engine requires periodic valve clearance adjustments. This is a crucial maintenance item to ensure optimal performance and prevent wear.
• Carburettor Synchronisation: With four carburettors, proper synchronisation is vital for smooth running and fuel efficiency.
• Ignition System: Points and condensers (on earlier models) or electronic ignition systems need regular checking and maintenance.
• Cam Chain Tensioner: Check and adjust the cam chain tensioner to prevent excessive noise and wear.
• Gaskets and Seals: Over time, gaskets and seals can degrade, leading to oil leaks. Replacing these is a common task for older engines.

While complete replacement engines for specific years like 1969 or 1976 can be rare finds, many internal components and parts for the SOHC engine remain available, either as new old stock (NOS) or through aftermarket suppliers, ensuring these classics can continue to grace our roads.

SOHC vs. DOHC V4: A Comparative Glance

To better understand the evolution, here’s a quick comparison:

Frequently Asked Questions About the Honda CB750 SOHC

Q: What does SOHC stand for?
A: SOHC stands for Single Overhead Camshaft. This refers to the engine design where a single camshaft operates both the intake and exhaust valves for each cylinder bank.

Q: Why was the Honda CB750 SOHC so important?
A: It was revolutionary because it brought race-level performance, an inline-four engine, electric start, and a front disc brake to the mass market in a reliable and affordable package. It essentially created the "superbike" category.

Q: Are Honda CB750 SOHC engines reliable?
A: Yes, they are renowned for their robustness and reliability, especially for their era. With proper maintenance, many are still running perfectly today, decades after they were built.

Q: Can I still find parts for a Honda CB750 SOHC?
A: Absolutely. While some parts, especially specific year-dependent components, can be harder to source, a thriving aftermarket and New Old Stock (NOS) community exist to support these classic bikes. Complete replacement engines for specific years like 1969 or 1976 might require dedicated searching, but general engine parts are often available.

Q: What's the main difference between SOHC and DOHC engines?
A: The primary difference is the number of camshafts. SOHC engines use one camshaft per cylinder bank, while DOHC (Double Overhead Camshaft) engines use two camshafts per cylinder bank (one for intake valves, one for exhaust valves). DOHC typically allows for higher revs, more precise valve timing, and often more power, especially with multiple valves per cylinder.

Q: What replaced the Honda CB750 SOHC?
A: While the SOHC version was eventually updated to a DOHC inline-four (the CB750F/K DOHC models in the late 70s), the spirit of Honda's performance flagship was truly reborn with the V4 platform, specifically the VF750F Interceptor in 1983. This marked a significant technological leap.

Conclusion: A Legacy That Endures

The Honda CB750 SOHC engine is a titan of motorcycling history. It wasn't just an engine; it was the heart of a machine that democratised performance, reliability, and innovation, setting the stage for the modern motorcycle era. While eventually superseded by more technologically advanced designs like the DOHC V4 of the Interceptor, its legacy remains undisputed. For enthusiasts and mechanics alike, understanding and maintaining this iconic engine, especially for specific years such as 1969 and 1976, is a testament to its enduring appeal and impact on the world of two wheels. The spirit of the SOHC lives on in every inline-four road bike that followed, a powerful reminder of Honda's groundbreaking vision.
