Where is Your Car's ECU Map Stored?

In the intricate world of modern automotive engineering, the Engine Control Unit, or ECU, stands as the central nervous system of your vehicle. It’s the sophisticated computer that manages virtually every aspect of the engine's operation, from fuel delivery and ignition timing to turbocharger boost pressure and emission controls. At the heart of the ECU's functionality lies what technicians and enthusiasts commonly refer to as the 'map' – a comprehensive set of data tables and parameters that dictate how the engine performs under various conditions. But if this 'map' is so crucial, a fundamental question often arises: where exactly is it stored within the ECU, and how can it be accessed and modified?

Understanding the location and accessibility of this digital blueprint is key to appreciating the process of engine remapping, also known as chip tuning. This procedure involves carefully modifying these operating parameters to unlock a vehicle's true potential, whether that's for increased power, improved fuel efficiency, or a balanced blend of both. Let's delve into the digital vault where these vital instructions reside and explore the methods employed by specialists to interact with them.

The Brain of Your Car: Understanding the ECU

Before we pinpoint the map's location, it’s essential to grasp the fundamental role of the ECU. Think of it as the vehicle's brain. It constantly receives data from numerous sensors located throughout the engine and drivetrain – sensors monitoring airflow, engine speed, oxygen levels, throttle position, and many more. Based on this incoming data, the ECU makes real-time calculations and sends commands to actuators, such as fuel injectors, spark plugs, and variable valve timing mechanisms, ensuring the engine runs optimally for the prevailing conditions.

Every manufacturer designs their vehicles with a specific set of parameters, often a compromise to accommodate various factors like global emission regulations, different fuel qualities, component longevity, and driving conditions. This factory-set data is what constitutes the 'original map' or 'stock map'. While robust, this map rarely represents the absolute peak performance or efficiency the engine is capable of achieving, as it must cater to a broad range of scenarios and user types.

Decoding the 'Map': What It Is and Why It Matters

The 'map' itself isn't a single file in the traditional sense, but rather a collection of interconnected data tables. These tables contain specific instructions for various engine functions. For instance, there might be a fuel map dictating how much fuel to inject at different engine speeds and loads, an ignition timing map specifying when to ignite the air-fuel mixture, and a boost map controlling turbocharger pressure. Other maps might govern throttle response, torque limits, exhaust gas recirculation (EGR), and even diagnostic trouble codes.

When a vehicle is remapped, it's these specific parameters within these tables that are meticulously adjusted. For example, by altering the fuel and ignition timing maps, a tuner can optimise combustion for more power. Similarly, adjusting boost pressure maps can yield significant torque gains. The goal is to fine-tune these parameters beyond the factory settings, safely unlocking additional performance or economy without compromising reliability.

The Digital Vault: Where the Map Resides

The digital 'map' is physically stored within a specific type of memory chip inside the ECU casing. Historically, these chips were often erasable programmable read-only memory (EPROM) chips, which required physical removal for reprogramming. However, modern ECUs predominantly utilise Flash Memory (NAND or NOR flash) or EEPROM (Electrically Erasable Programmable Read-Only Memory) for storing the operational software and calibration data. Flash memory is non-volatile, meaning it retains its data even when power is removed, making it ideal for this application.

These memory chips are typically soldered directly onto the ECU's circuit board. While the map is stored on these chips, accessing and modifying it isn't as simple as plugging in a USB stick. Specialist tools and protocols are required, and the method of access often depends on the specific vehicle model, ECU type, and its generation.

Accessibility - Method 1: On-Board Diagnostics (OBD) Port Remapping

For many vehicles, particularly those manufactured in the last two decades, the most common and least invasive method of accessing the ECU map is via the On-Board Diagnostics (OBD) port. This port, standardised as OBD-II in the UK and Europe, is typically located under the dashboard, often near the steering column, though its exact position can vary between models.

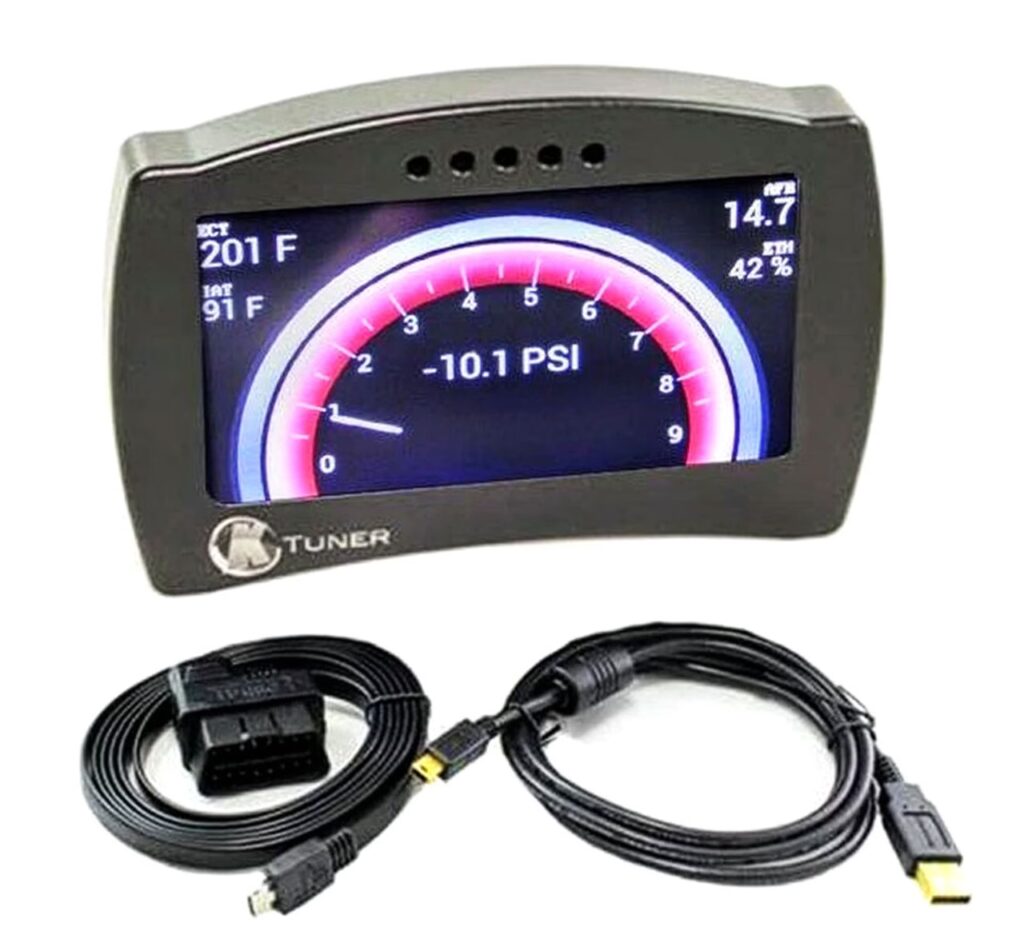

The OBD port was originally designed for diagnostic purposes, allowing technicians to read fault codes and monitor live engine data. However, with the right specialised programming tools, it can also be used to communicate directly with the ECU and read/write the entire software map. This method is often preferred as it doesn't require removing the ECU from the vehicle, making the process quicker and less intrusive.

Accessibility - Method 2: Bench Tuning (ECU Removal)

While the OBD method is convenient, it's not universally applicable. Newer vehicle models, and particularly those with advanced anti-tuning protection, often have ECUs that cannot be accessed or written to via the OBD port. In such cases, a process known as Bench Tuning (or 'Boot Mode' / 'BDM' / 'JTAG' programming) becomes necessary.

Bench tuning involves physically removing the ECU from the vehicle. Once removed, the casing is carefully opened to expose the internal circuit board. Specialist tools are then connected directly to specific pins or 'boot pads' on the ECU's processor chip or board. This direct connection bypasses the ECU's internal security protocols, allowing technicians to read the original map straight from the processing chip and write the modified software.

This method requires a higher level of technical expertise and precision, as it involves delicate handling of sensitive electronic components. However, it provides full access to the ECU's memory, making it the only viable option for many modern, highly protected ECUs.

Table Comparison: OBD Remapping vs. Bench Tuning

The Remapping Process: From Reading to Re-Writing

Regardless of whether the map is accessed via the OBD port or through Bench Tuning, the subsequent steps in the remapping process generally follow a similar pattern:

1. Reading the Original Map: A technician uses specialised equipment to download the existing 'stock' map from your vehicle's ECU. This original file is crucial and is always saved as a backup.
2. Map Analysis and Modification: The original map is then uploaded to a team of experienced map writers. These specialists meticulously analyse the data and, based on the client's requirements (e.g., more power, better fuel economy, or a blend), adjust the various parameters within the map. This is where expertise truly comes into play, ensuring safe and effective optimisation without compromising engine longevity.
3. Writing the Modified Map: Once the new, optimised map is ready, it is then uploaded back into your vehicle's ECU using the same access method (OBD or bench).
4. Testing and Verification: After the new map is written, the vehicle is typically tested to ensure everything is functioning correctly and the desired improvements have been achieved.

The entire process, from initial reading to final re-writing, can often be completed within an hour, depending on the vehicle and the complexity of the ECU. The crucial aspect is the precision and knowledge of the technicians and map writers involved.

Ensuring Quality and Reversibility

A key aspect of professional remapping services is the commitment to quality and the provision of a safety net. Because the original map is always backed up, it offers a vital layer of security. If, for any reason, you wish to return your vehicle's ECU to its default factory settings – perhaps due to selling the car, warranty concerns, or personal preference – this can be done easily and, with reputable providers, typically free of charge.

The expertise of the technicians involved is paramount. Accessing and modifying the Flash Memory within an ECU requires not only the right tools but also an in-depth understanding of engine mechanics and software programming. Trusting your vehicle to experienced professionals ensures that the remapping process is conducted safely, effectively, and with the utmost care for your engine's longevity.

Frequently Asked Questions (FAQs)

Q1: Is remapping safe for my engine?

When performed by experienced and reputable specialists using high-quality software and tools, remapping is generally safe. Professional tuners ensure that modifications stay within safe operating limits, avoiding excessive stress on engine components. They do not push the engine beyond its mechanical capabilities. It's crucial to choose a provider with a proven track record and positive customer reviews.

Q2: Will remapping void my car's warranty?

Officially, any modification to your vehicle's software or hardware can potentially void your manufacturer's warranty. While remapping is often undetectable during routine servicing, if a major engine or drivetrain issue arises and the manufacturer can prove that the remapping caused the fault, they may refuse warranty claims. It's always advisable to consider this risk, especially with newer vehicles still under warranty.

Q3: How long does the remapping process take?

The duration can vary depending on the vehicle model and the method of ECU access. For OBD port remapping, it can often be completed in under an hour. Bench Tuning might take a bit longer due to the time required for ECU removal and reinstallation, but typically the entire process is completed within a few hours.

Q4: Can I revert my car back to its original factory settings after a remap?

Yes, absolutely. A professional remapping service will always save a copy of your vehicle's original 'stock' software. This allows you to revert the ECU back to its factory settings easily and typically free of charge at any time. This offers peace of mind and flexibility.

Q5: What specific parameters are changed in the ECU map?

The 'map' contains numerous parameters. During remapping, common adjustments include fuel injection quantity and timing, ignition timing, turbocharger boost pressure (if applicable), throttle response, torque limiters, and sometimes even settings related to exhaust gas recirculation (EGR) or diesel particulate filters (DPF) for off-road or track use (where legal and appropriate). The goal is to optimise the engine's combustion and power delivery.

Q6: How do I know if my car needs OBD or bench tuning?

This is determined by the year, make, model, and specific ECU type of your vehicle. Reputable remapping specialists have extensive databases and diagnostic tools to identify the correct access method for your car. They will inform you whether your ECU can be remapped via the OBD port or if it requires Bench Tuning.

Conclusion

The 'map' within your car's ECU is a complex set of instructions stored primarily on Flash Memory chips, acting as the digital brain controlling your engine's performance. Accessing and modifying this map is a highly specialised process, typically carried out either non-invasively via the OBD port or through the more intricate Bench Tuning method requiring ECU removal. Understanding where this crucial data resides and how it's accessed demystifies the remapping process, highlighting the precision and expertise required to unlock your vehicle's hidden potential safely and effectively.
