Brake Pad Swap: No Caliper Removal Explained

Ensuring your vehicle's braking system is in peak condition is paramount for road safety. Worn brake pads compromise stopping power, increase stopping distances, and can lead to dangerous situations. While many assume changing brake pads always involves fully removing the brake caliper, there's a specific technique that, for certain vehicles, allows you to swap out pads without this more extensive step. This method can save time and effort, but it's crucial to understand when it's applicable and how to execute it safely and correctly.

This guide will walk you through the process of replacing brake pads without detaching the caliper from its mounting bracket. We'll delve into the types of brake systems where this is feasible, the necessary tools, and a comprehensive step-by-step procedure to help you get the job done right. Remember, while this method can be quicker, it still requires precision and attention to detail to ensure your brakes function perfectly.

When Is No-Caliper-Removal Possible? Understanding Your Brake System

The ability to change brake pads without removing the caliper largely depends on the design of your vehicle's braking system. This method is primarily suited for vehicles equipped with floating caliper designs. A floating caliper moves relative to the brake disc, typically sliding on guide pins. This design allows the brake pads to be inserted or slid out from the caliper assembly once the retaining pins or clips are removed.

In contrast, fixed calipers, which are rigidly mounted to the steering knuckle or axle housing and feature pistons on both sides of the brake disc, almost always require complete removal to access and replace the pads. Attempting this method on a fixed caliper system is impractical and potentially damaging. Always consult your vehicle's service manual or a reputable repair guide to identify your brake system type before proceeding.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and more efficient:

• Hydraulic jack and jack stands
• Wheel chocks
• Lug wrench
• C-clamp or brake piston compression tool
• Wire brush
• Brake cleaner spray
• High-temperature brake grease (synthetic, silicone-based)
• New brake pads (ensure they are the correct fit for your vehicle)
• Ratchet and socket set (for wheel nuts and possibly caliper guide pins)
• Flat-head screwdriver or pry tool
• Safety glasses and gloves

Safety First: Non-Negotiable Preparations

Working on your vehicle's braking system demands utmost caution. Neglecting safety steps can lead to serious injury or costly damage. Always prioritise safety:

1. Park on a Level Surface: Ensure your vehicle is on a flat, stable surface.
2. Engage Parking Brake: Firmly apply the parking brake.
3. Chock the Wheels: Place wheel chocks behind the wheels that will remain on the ground (e.g., if working on the front, chock the rear wheels).
4. Loosen Lug Nuts: While the vehicle is still on the ground, slightly loosen the lug nuts on the wheel you'll be removing.
5. Jack Up and Secure: Use a hydraulic jack to lift the vehicle. Once lifted, immediately place sturdy safety stands under the designated jacking points. Never rely solely on the jack.
6. Remove the Wheel: Fully remove the lug nuts and carefully take off the wheel.

Step-by-Step Guide: Changing Pads Without Caliper Removal

With safety measures in place and your tools ready, you can now proceed with the brake pad replacement.

1. Initial Inspection and Accessing the Pads

Once the wheel is off, you'll have a clear view of the brake caliper, disc, and pads. Take a moment to inspect the entire assembly for any other obvious issues like leaky brake lines, damaged dust boots, or excessive disc wear. Note the orientation of the existing pads and any anti-rattle clips or shims.

Locate the retaining pins or clips that hold the brake pads in place. These are typically small metal pins that slide through the caliper and the brake pads, secured by spring clips or R-clips. Carefully remove these clips and then slide out the retaining pins. You might need a punch or a small hammer to gently tap them out.

2. Removing the Old Pads and Retracting the Piston

With the retaining pins out, the old brake pads should now be loose. You might need to use a flat-head screwdriver to gently pry them away from the rotor, especially if they are stuck due to rust or dirt. Remove the outer brake pad first. This creates crucial space for the next step.

Now for the critical part: retracting the caliper piston. This is where the method of *not* removing the caliper truly comes into play. Instead of using a dedicated piston compression tool that might require more space or access, you can utilise a C-clamp (or a large G-clamp) and the *inner* old brake pad. Leave the inside pad in place. Position the C-clamp with its fixed end against the caliper body (or the bolt on the inside of the brake as described in the user's information) and the screw end against the old inner brake pad. Slowly and steadily tighten the C-clamp, pushing the caliper piston back into its bore. This process requires patience and a watchful eye. As you compress the piston, the brake fluid level in the master cylinder reservoir will rise. Ensure it doesn't overflow; if it's close, you may need to siphon off a small amount of fluid (use a clean turkey baster or syringe, and dispose of fluid properly). Crucially, ensure you are compressing the piston straight back, not at an angle, to avoid damage to the piston or its seal. Once fully retracted, remove the C-clamp and then the old inner brake pad.

3. Cleaning and Lubrication

With the old pads out and the piston retracted, thoroughly clean the caliper mounting points, the guide pins (if removable), and any pad contact points using a wire brush and brake cleaner spray. This removes brake dust, rust, and old grease that can cause new pads to bind or squeal. Ensure all surfaces are clean and dry.

Apply a thin, even layer of high-temperature brake grease to the caliper guide pins (if applicable) and the contact points where the brake pads slide within the caliper. Avoid getting grease on the brake pad friction material or the brake disc. This lubrication is vital to prevent squealing and ensure smooth pad movement.

4. Installing the New Pads

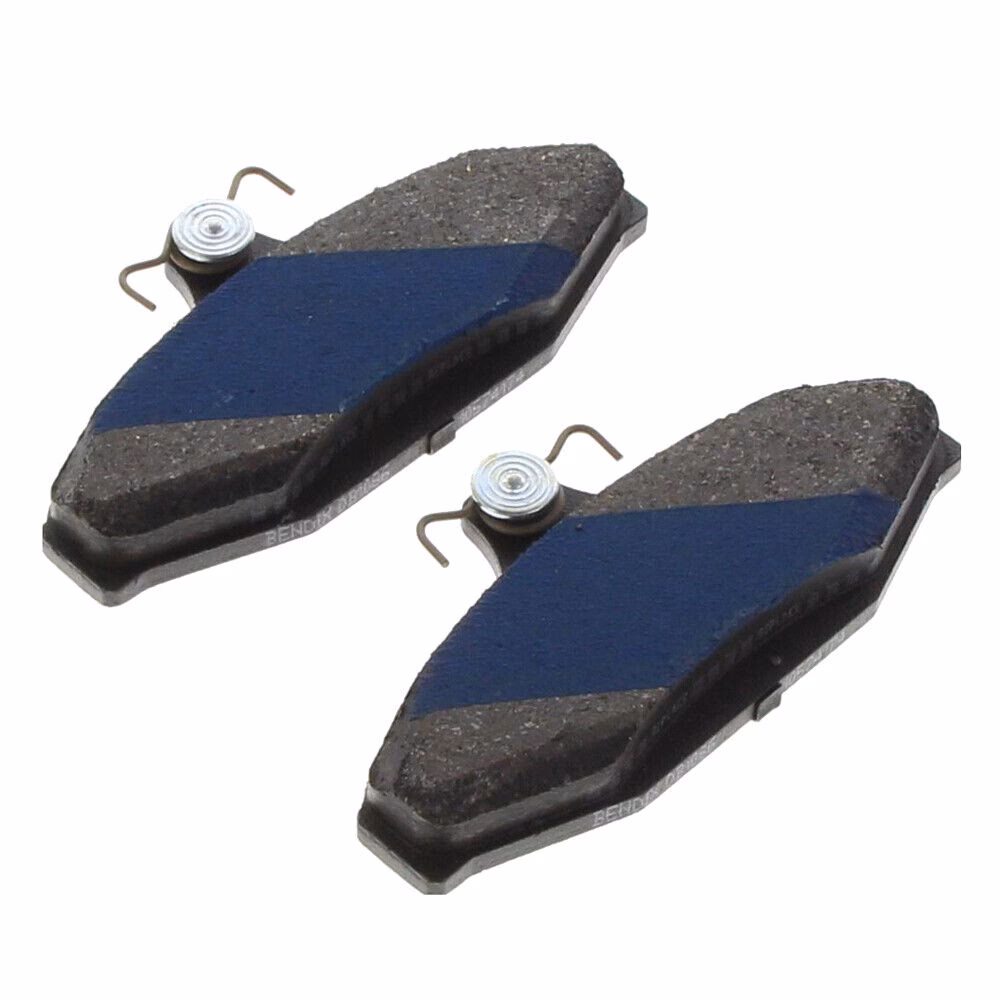

Carefully unpack your new brake pads. Many new pads come with anti-squeal shims. If yours do, ensure they are correctly installed on the back of the pads according to the manufacturer's instructions. Some shims are adhesive-backed, while others simply clip on. A thin smear of brake grease on the back of the shims (where they contact the piston or caliper body) can further help prevent noise.

Slide the new inner brake pad into place, ensuring it sits correctly against the piston. Then, insert the new outer brake pad. Make sure both pads are seated properly and align with the holes for the retaining pins.

5. Reassembly

Reinsert the retaining pins through the caliper and the new brake pads. Ensure they pass through all the correct holes. Secure the pins with their respective clips or R-clips. Give the pads a gentle push to ensure they move freely within the caliper.

Double-check that all components are correctly installed and tightened. There should be no loose parts. Once satisfied, reinstall the wheel, hand-tighten the lug nuts, and then lower the vehicle until the tyre just touches the ground. Fully tighten the lug nuts in a star pattern to the manufacturer's specified torque. Finally, lower the vehicle completely and remove the jack and stands.

Post-Installation Checks and Bedding In

Before driving, there are two crucial steps:

1. Pump the Brake Pedal: Get into the vehicle and slowly pump the brake pedal several times until it feels firm. This pushes the caliper pistons back out, seating the new pads against the disc and restoring proper pedal feel. Never drive the vehicle without doing this!
2. Check Brake Fluid Level: Verify the brake fluid level in the master cylinder reservoir. It should be between the 'min' and 'max' marks. Top up with the correct DOT fluid if necessary.
3. Test Drive and Bedding In: Drive the vehicle cautiously at low speeds in a safe area to confirm the brakes are working correctly. Listen for any unusual noises. The new brake pads will need a 'bedding-in' period to achieve optimal performance. This typically involves a series of moderate stops from increasing speeds (e.g., 5-6 stops from 30 mph down to 5 mph, then 2-3 stops from 50 mph down to 5 mph), allowing the brakes to cool slightly between stops. Avoid harsh braking during this period. This process transfers a thin layer of friction material to the disc, improving braking efficiency and reducing noise.

Advantages and Disadvantages of This Method

Advantages:

• Time-Saving: Generally quicker as you avoid disconnecting brake lines, bleeding the system, and wrestling with caliper bolts.
• Cleaner Process: Less chance of spilling brake fluid, which can damage paintwork.
• Reduced Risk of Damage: Lower likelihood of stripping caliper mounting bolts or damaging brake hoses.

Disadvantages:

• Limited Applicability: Only works on certain floating caliper designs.
• Less Thorough Cleaning: Can be harder to thoroughly clean and inspect the caliper piston and bore.
• Potential for Binding: If not cleaned and lubricated properly, new pads might bind or stick.
• Piston Retraction Difficulty: Can be challenging to retract the piston straight without a dedicated tool, especially if seized.

Troubleshooting Common Issues

Even with careful installation, you might encounter some common issues:

• Brake Squeal: Often caused by improper lubrication, missing anti-squeal shims, or poor bedding in. Re-check lubrication and consider adding shims.
• Spongy Pedal: Usually indicates air in the brake lines. While less common with this method, it can happen if the piston was retracted too quickly or if the fluid level dropped too low. If persistent, bleeding the brakes might be necessary.
• Grinding Noise: A serious issue, often meaning the pads are completely worn down to the backing plate or there's debris caught in the caliper. Stop driving immediately and inspect.

Frequently Asked Questions (FAQs)

Here are some common questions related to brake pad replacement:

Q: How do I fix a broken brake pad?

A: You don't 'fix' a broken brake pad; you replace it. If a brake pad is broken, cracked, or has separated from its backing plate, it's severely compromised and must be replaced immediately. Driving with a broken brake pad is extremely dangerous and can lead to complete brake failure, severe damage to your brake disc, and potentially an accident. The information provided in the original query about 'fixing a broken brake pad' by clamping is actually a technique for retracting the piston using the *old* inner pad as a buffer, not for repairing a damaged pad itself.

Q: Can I change just one brake pad?

A: No. Brake pads should always be replaced in complete sets for an axle (i.e., both front wheels or both rear wheels). Replacing only one pad will lead to uneven braking, premature wear on the new pad, and potentially dangerous handling characteristics due to imbalanced stopping power.

Q: How often should brake pads be replaced?

A: The lifespan of brake pads varies significantly based on driving style, vehicle type, and pad material. Generally, front pads might last between 20,000 and 60,000 miles, while rear pads often last longer. It's best to inspect them regularly (e.g., during tyre rotations) and replace them when the friction material is worn down to approximately 3mm or less, or if the wear indicator light illuminates.

Q: Do I need to bleed the brakes after changing pads without removing the caliper?

A: Typically, no. If you don't open the brake lines or disconnect the caliper, you won't introduce air into the hydraulic system. The main reason for bleeding is to remove air. However, always pump the brake pedal multiple times after installation to ensure the piston extends and seats the pads against the disc, restoring pedal pressure.

Q: What's the difference between ceramic, semi-metallic, and organic brake pads?

A:

• Organic: Quieter and produce less dust, but wear faster and offer less performance under heavy braking.
• Semi-Metallic: Good all-around performance, better heat dissipation, but can be noisier and produce more dust.
• Ceramic: Excellent performance, very low dust, quiet operation, and long-lasting, but generally more expensive.

Choose pads appropriate for your driving style and vehicle's specifications.

Q: What if the caliper piston won't retract?

A: If the piston is extremely difficult or impossible to retract, it might be seized. This indicates a faulty caliper that needs to be replaced, not just the pads. Forcing a seized piston can damage the caliper or brake lines. At this point, it's best to consult a professional mechanic.

Comparative Table: No Caliper Removal vs. Full Caliper Removal

Changing your brake pads without removing the caliper is a viable and often efficient method for many vehicles. By understanding your brake system, following safety protocols, and meticulously performing each step, you can successfully replace your brake pads and ensure your vehicle remains safe and reliable on the road. Always remember, when in doubt, it's best to consult a qualified mechanic to ensure your braking system is handled with expert care.
