Transmission Fluid Change Pitfalls

Embarking on a transmission fluid change can seem like a straightforward maintenance task, but it's a process that, if not executed with precision, can lead to a cascade of unwelcome issues. Many vehicle owners opt for DIY fluid changes to save on costs, but a common oversight can significantly impact your transmission's health: underfilling. This seemingly minor error can have substantial consequences, leading to a range of problems that can be both frustrating and expensive to rectify. This article delves into the intricacies of transmission fluid changes, focusing on the repercussions of an insufficient fluid level and other common mistakes that can plague your gearbox after this vital service.

The Perils of Underfilling Your Transmission

Underfilling a transmission during a fluid change is akin to running an engine with insufficient oil – a recipe for disaster. The primary role of transmission fluid is to lubricate, cool, and maintain hydraulic pressure within the transmission. When the fluid level is too low, these critical functions are compromised.

Lubrication Breakdown

The gears, bearings, and clutch packs within your transmission rely on a constant film of fluid to prevent metal-on-metal contact. With an underfilled system, this protective film becomes thin or non-existent in certain areas, leading to increased friction and accelerated wear on these vital components. This can manifest as grinding noises, rough shifting, and, in severe cases, catastrophic mechanical failure.

Overheating Woes

Transmission fluid also plays a crucial role in dissipating heat generated by the friction of moving parts. Insufficient fluid means less fluid circulating through the transmission's cooling passages and potentially the external cooler. This leads to a rise in operating temperature, which can degrade the fluid's properties, damage seals, and warp metal components. An overheated transmission will not only perform poorly but will also have a significantly shortened lifespan.

Hydraulic Pressure Imbalance

Automatic transmissions, in particular, rely on hydraulic pressure generated by the transmission pump to engage clutches and shift gears. An underfilled transmission will likely result in the pump drawing in air along with the fluid, leading to a loss of hydraulic pressure. This can cause symptoms like delayed engagement, slipping gears, and an inability to shift into certain gears, often accompanied by a "jerking" sensation.

Common Causes of Transmission Problems After a Fluid Change

While underfilling is a significant concern, other errors during a transmission fluid change can also precipitate problems:

1. Incorrect Fluid Type

Transmissions are designed to work with specific types of fluids. Using a fluid that is not manufacturer-specified can lead to serious issues. Different fluids have varying viscosity, friction modifiers, and additive packages. Using the wrong fluid can:

• Cause clutch slippage due to incorrect friction characteristics.
• Damage seals and gaskets due to chemical incompatibility.
• Lead to poor shifting performance and increased wear.

It is paramount to consult your vehicle's owner's manual or a trusted mechanic to identify the correct transmission fluid for your specific make and model.

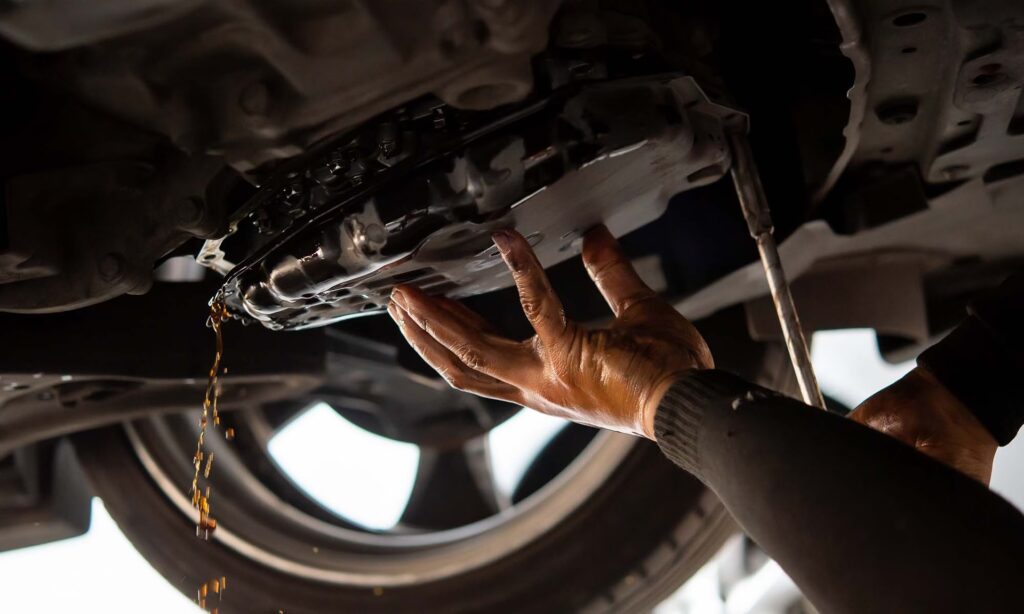

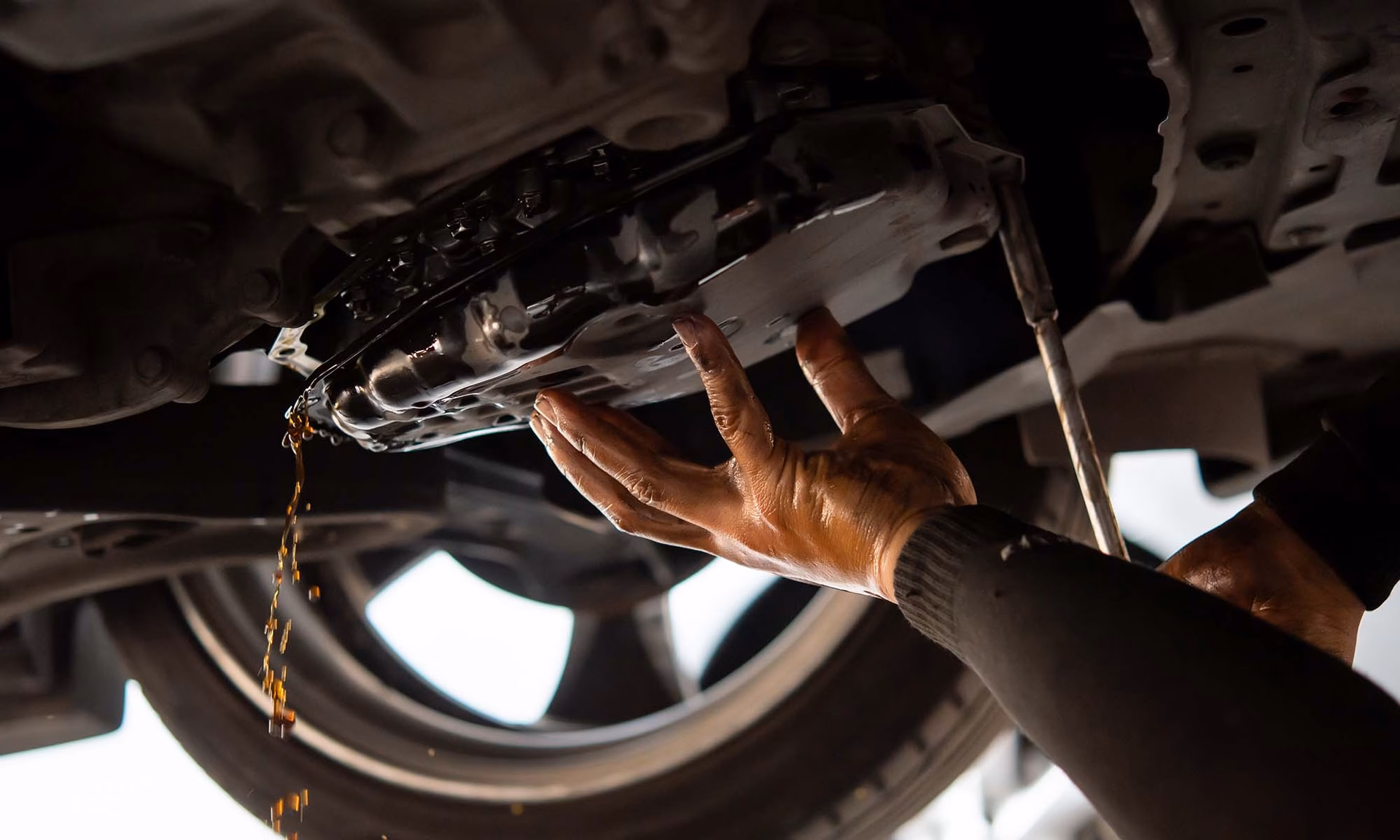

2. Incomplete Fluid Draining

When draining old transmission fluid, it's important to remove as much of the old, degraded fluid and accumulated contaminants as possible. If old fluid is left behind, it mixes with the new fluid, diluting its effectiveness and potentially carrying harmful debris throughout the system. This is particularly true if the transmission filter was not replaced during the service.

3. Clogged or Old Transmission Filter

The transmission filter is designed to trap debris and contaminants, preventing them from circulating and damaging internal components. If the filter is old and clogged, it restricts fluid flow, reducing lubrication and cooling efficiency. Replacing the filter during a fluid change is highly recommended, as a clogged filter can exacerbate problems, even with fresh fluid.

4. Air Pockets and Incomplete Bleeding

After a fluid change, especially if the system was flushed, air can become trapped within the transmission lines and torque converter. This trapped air can disrupt hydraulic pressure regulation, leading to symptoms like slipping, shuddering, or erratic shifting. Proper bleeding procedures, often involving running the engine and cycling through gears, are essential to remove these air pockets.

5. Debris from Installation

Carelessness during the fluid change process can introduce foreign debris, such as gasket material or metal shavings, into the transmission system. These contaminants can block fluid passages, damage delicate components, or interfere with the proper functioning of the valve body.

6. Leaks After Refilling

Loose fittings, improperly sealed drain plugs, or damaged gaskets can lead to leaks after a fluid change. Even a small leak can result in a gradual loss of fluid, eventually leading to the underfilling scenario discussed earlier, with all its associated problems.

Symptoms to Watch For After a Transmission Fluid Change

If you've recently had your transmission fluid changed, be vigilant for the following symptoms:

Transmission Jerks After Fluid Change

Jerking or harsh shifting is often a tell-tale sign of incorrect fluid levels (either too low or too high) or air trapped in the system. Ensure the fluid level is accurate according to the manufacturer's specifications. If the issue persists, air in the system or a malfunctioning valve body could be to blame.

Automatic Transmission Slipping After Fluid Change

Slipping gears, where the engine revs up but the vehicle doesn't accelerate proportionally, is commonly caused by low fluid levels, air pockets, or the wrong type of fluid. The transmission isn't receiving adequate hydraulic pressure to engage the clutches properly.

Transmission Whining After Fluid Change

A whining noise can indicate issues with the transmission pump, worn bearings, or air in the system. Air ingress, particularly, can cause the pump to cavitate, producing a distinct whining sound. Ensure the fluid level is correct and that the system has been properly bled.

Problems After Replacing Transmission

While not strictly a fluid change issue, if a transmission was recently replaced, problems like improper shifting, leaks, or a whining noise can stem from incorrect installation, faulty new parts, or programming errors. Always ensure the fluid level and type are correct post-replacement.

What to Do After Replacing Transmission Fluid?

Once the transmission fluid has been changed, a few steps are crucial to ensure everything is functioning correctly:

1. Test Drive: Take your vehicle for a test drive of at least 15-20 minutes. Pay close attention to how the transmission shifts, listen for any unusual noises, and check for any signs of slipping or jerking.
2. Check Fluid Level Again: After the test drive, allow the transmission to cool slightly and re-check the fluid level. This is especially important for automatic transmissions, as the fluid level can change as it circulates and heats up.
3. Monitor for Leaks: Keep an eye out for any puddles under your vehicle, which could indicate a leak from the drain plug, pan gasket, or cooler lines.
4. Break-in Period: Some manufacturers recommend a brief break-in period for new transmission fluid, especially if the filter was also replaced. This usually involves a mix of city and highway driving to allow the new fluid to circulate properly and condition the internal components.
5. Record Keeping: Note the date of the fluid change and the type of fluid used. This is essential for tracking future maintenance schedules and ensuring the correct fluid is used next time.

Can Flushing Your Transmission Cause Problems?

Transmission flushing is a more intensive service than a simple drain and fill. While it can be beneficial for removing more contaminants, it also carries a higher risk if not performed correctly:

• Dislodging Debris: A powerful flush can dislodge sludge and debris from areas that might not have been reached by a simple drain, potentially clogging narrower passages or the filter.
• Seal Damage: Older, hardened seals can be sensitive to the pressure and detergents sometimes used in flushing. An aggressive flush could potentially damage these seals, leading to leaks.
• Incorrect Fluid: Using the wrong fluid during a flush is particularly detrimental, as it circulates throughout the entire system, potentially causing widespread damage.

For these reasons, it's often recommended to stick to a simple drain and fill for vehicles with higher mileage or those with a history of less-than-perfect maintenance, unless a flush is specifically recommended by the manufacturer. Always use a reputable workshop if opting for a flush.

Can Wrong Transmission Fluid Cause Problems?

Absolutely. As touched upon earlier, using the incorrect transmission fluid is a significant risk. Modern transmissions rely on precise fluid characteristics. For instance:

Using a fluid that isn't specifically approved for your vehicle can lead to a host of issues, from minor performance degradations to severe internal damage. Always prioritise the manufacturer's recommendation.

A Note on Longevity: 300,000 Miles Without a Fluid Change?

While some anecdotal evidence suggests vehicles can reach very high mileage without a transmission fluid change, this is generally not advisable. Transmission fluid degrades over time due to heat and contamination. Old, degraded fluid loses its lubricating and cooling properties, leading to increased wear. While a transmission might survive for a long time without a change, its internal components will likely experience accelerated wear. Conversely, performing a fluid change, even at high mileage, can often restore performance, smoother shifting, and potentially improve fuel economy by ensuring optimal lubrication and cooling. The key is regular maintenance.

Conclusion

Performing a transmission fluid change is a vital aspect of vehicle maintenance. However, it's a task that demands attention to detail. Underfilling, using the wrong fluid, neglecting the filter, or failing to address air pockets can all lead to significant transmission problems. By understanding the potential pitfalls and following best practices – consulting your owner's manual, using the correct fluids, replacing the filter, and carefully checking fluid levels – you can ensure your transmission remains healthy and performs optimally for years to come. If you're unsure about any part of the process, entrusting this job to a qualified mechanic is always the safest bet.
