Spark Plug Thread Repair: Your Definitive UK Guide

Few things are as frustrating for a vehicle owner as a damaged spark plug thread. Whether it's the dreaded 'spark plug blowout', the sickening feeling of cross-threading during installation, or a plug stubbornly seized in place, these issues can quickly lead to misfires, loss of compression, and potentially more severe engine damage. While the immediate reaction might be panic, there are effective solutions to restore your engine's integrity, provided you know the right approach. This comprehensive guide will walk you through the do's and don'ts of spark plug thread repair, helping you achieve a lasting fix and avoid costly mistakes.

Understanding Spark Plug Thread Damage: Why It Happens

Spark plug threads, typically found in the cylinder head, are crucial for sealing the combustion chamber and securing the spark plug. When these threads become compromised, it's often due to a combination of factors:

• Vibration and Looseness: Over time, spark plugs can gradually loosen due to engine vibration. If left unchecked, this can lead to the plug being ejected from the cylinder head, a phenomenon often referred to as a 'blowout'. This event can severely damage the delicate aluminium threads.
• Cross-Threading: This common error occurs when a spark plug is installed at an angle, causing the threads of the plug to cut into the cylinder head threads incorrectly. The initial resistance might be mistaken for tightness, but it results in irreversible damage.
• Dissimilar Metals and Seizing: Cylinder heads are frequently made from aluminium, while spark plugs are typically steel. When these two metals are in contact, especially under high temperatures and without proper care, they can react (galvanic corrosion), leading to the plug 'seizing' in the head. This makes removal extremely difficult and often results in thread damage. Ford's 3V engines, for example, are notorious for seized spark plugs that can break during removal.
• Over-Torquing: Applying excessive torque during installation can strip or stretch the aluminium threads, compromising their integrity.

Regardless of the cause, damaged threads necessitate a repair. Ignoring the problem will only lead to further complications, including reduced engine performance, increased emissions, and potential damage to other engine components.

The Pitfalls: What NOT to Do When Repairing Spark Plug Threads

Before diving into effective repair methods, it's crucial to understand the common mistakes that can turn a manageable problem into an engine-threatening disaster. Avoiding these pitfalls is key to a successful, long-lasting repair.

Avoid Parts Store Repair Kits – They're Often Temporary

One of the most common errors is to reach for readily available, inexpensive repair kits from general automotive parts stores. Brands like Dorman, Helicoil, and Save-Thread are widely available, but in our experience, they often provide only a temporary fix. These kits frequently rely on 'self-tapping' inserts or require striking the insert from the top to expand it, which can:

• Make Holes Bigger: The self-tapping action can remove too much material, creating a larger, less stable hole.
• Lead to Repeat Failures: Inserts that expand by striking are prone to loosening and being ejected due to engine expansion and contraction cycles. This inevitably leads to another blowout, often requiring an even larger, more complex repair.
• Compromise Compression: A poorly sealed insert can leak compression, further eroding the surrounding material and making a proper fix much harder.

If you've already tried one of these temporary solutions and it's failed, don't despair; permanent repair options are still likely available.

Don't Work on Open Valves

Before attempting any work on the spark plug hole, always ensure the engine's valves for that cylinder are closed. Working with open valves can lead to:

• Tool Damage: Tools used for reaming or tapping can strike and damage an open valve.
• Debris Ingress: When blowing out metal shavings or debris from the repair process, open valves can allow these particles to enter the combustion chamber and potentially further into the engine, causing significant internal damage.

Steer Clear of Anti-Seize on Spark Plug Threads

While anti-seize might seem like a good idea to prevent future seizing, applying it to spark plug threads is generally not recommended, especially for modern vehicles. The reason is simple:

• Altered Torque Specifications: Anti-seize acts as a lubricant, significantly reducing the friction between the threads. This means that the spark plug will turn much easier, and applying the manufacturer's specified torque will result in over-tightening. Over-tightening can strip threads or even break the spark plug.
• Thermal Conductivity: Anti-seize can also interfere with the spark plug's ability to transfer heat effectively to the cylinder head, potentially leading to overheating of the plug.

Most modern spark plugs are designed with a special coating that provides adequate protection against seizing, rendering anti-seize unnecessary and potentially detrimental.

Don't Accept Premature Cylinder Head Replacement

If a garage suggests that a damaged spark plug thread necessitates replacing the entire cylinder head, always seek a second opinion. While severe damage can occur, many 'too big' holes resulting from failed temporary repairs or extensive erosion can still be effectively repaired with specialised oversize kits. These precision kits are designed to tackle significant damage, often providing a repair that is stronger than the original threads.

A Thread Chaser Isn't Enough for a Blowout

If a spark plug has blown out, simply using a thread chaser to clean up the existing threads and reinstalling the plug will almost certainly lead to a repeat blowout. The fact that the plug blew out indicates significant material loss and damage. A thread chaser is only suitable for cleaning slightly fouled or corroded threads, not for repairing structural damage where material is missing.

Never Drive with a Spark Plug Blowout or Leaking Insert

Driving your vehicle with a blown spark plug or a compression-leaking insert from a temporary repair is highly risky. This can lead to:

• Further Thread Erosion: Hot combustion gases escaping through damaged threads will rapidly erode the surrounding aluminium.
• Catalytic Converter Damage: Unburnt fuel from the affected cylinder can enter the exhaust system, damaging the catalytic converter.
• Engine Damage: In extreme cases, debris from the failing threads or insert can enter the combustion chamber, causing internal engine damage.

In emergency situations, some have driven short distances with the coil and injector for that cylinder unplugged, but this should be avoided if at all possible.

The Right Approach: Best Practices for Permanent Spark Plug Thread Repair

For a reliable and long-lasting fix, a more robust approach is required. This involves using high-quality, permanent repair kits and following precise procedures.

Consult Specialists Before Starting

Before throwing in the towel or attempting a repair, it's always best to consult with specialists who deal with thread repairs regularly. They can assess the extent of the damage (even from previous failed repairs) and recommend the correct kit for your specific application. Oversize repairs are available for even significantly damaged holes.

Thorough Preparation is Key

Having all the necessary tools and preparing properly will make the job much smoother and increase the chances of success:

• Read Instructions Carefully: Each kit will have specific instructions. Deviating from them can lead to failure.
• Gather All Tools: You'll typically need an air compressor, an air ratchet, an air blower, a good light source, and standard mechanics' tools.
• Brake Cleaner: This is helpful for carrying out shavings from the repair area. Remember to change the engine oil afterwards, as some brake cleaner may bypass the piston rings and contaminate the crankcase.
• Ensure Valves are Closed: Double-check that the valves for the cylinder you're working on are completely closed to prevent damage and debris ingress.

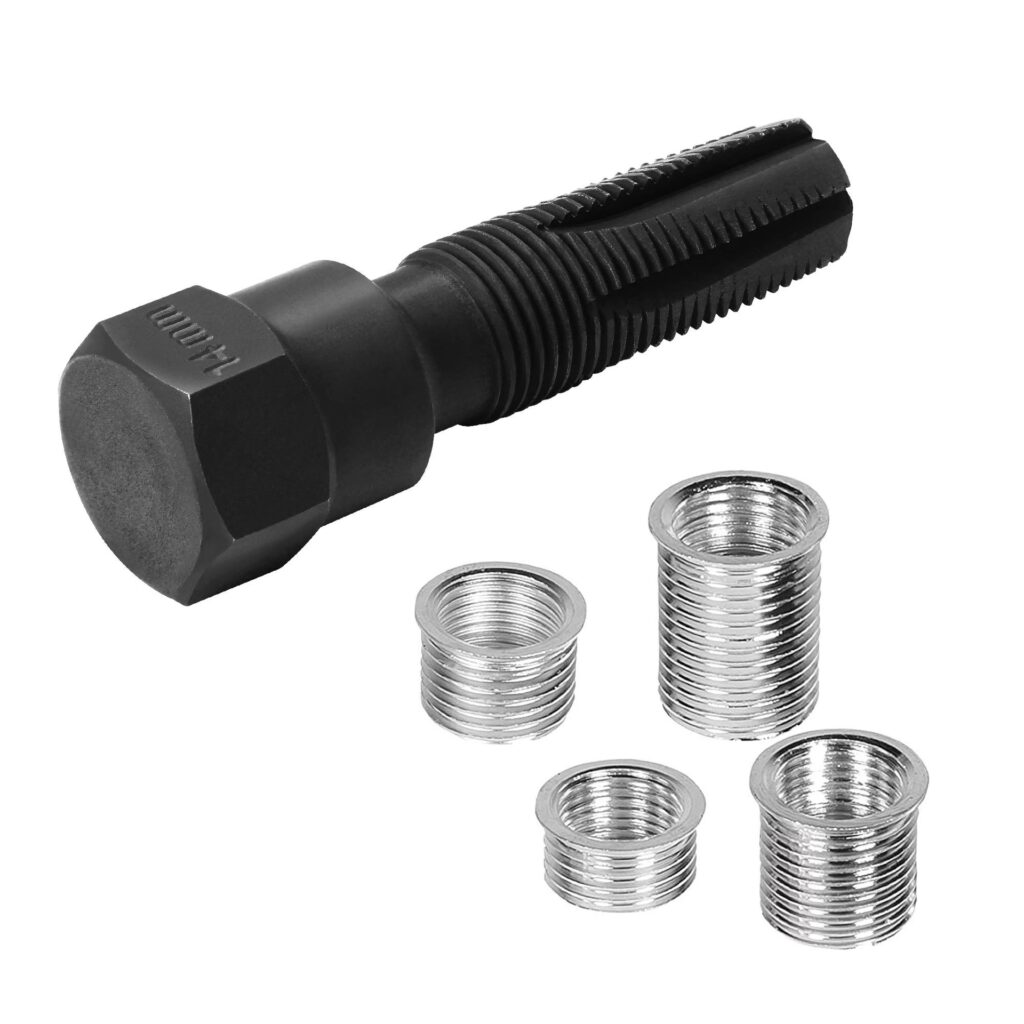

The "Bushing Type Insert" Method

The most effective permanent repair kits utilise a bushing-type insert. The general procedure involves:

1. Reaming: The damaged threads are reamed out to create a clean, uniformly sized hole.
2. Tapping: New, larger threads are tapped into the reamed hole.
3. Installing the Insert: A high-quality, typically steel alloy, insert (bushing) is threaded into the newly tapped hole.
4. Expanding the Insert: A specialised tool is then used to expand the bottom threads of the insert, securely locking it into place within the cylinder head. This creates a stronger and more durable thread than the original aluminium.

Recommended Permanent Repair Kits for Ford Engines

Ford 4.6, 5.4, and 6.8-litre engines are particularly prone to spark plug thread issues. Several highly regarded permanent repair kits are available for these applications:

TIME SERT 5553

• Key Feature: Ideal for specific Ford applications.
• Specifications: The Outside Diameter (O.D.) of the Big Sert insert is 0.70 inches, and this kit can repair holes up to 0.66 inches.

TIME-SERT 5600

• Key Feature: Designed for larger repairs, often used when other kits (like Cal-Van) have failed, usually due to incorrect application of thread adhesive.
• Specifications: The O.D. of the largest insert is 0.77 inches. This kit can repair holes up to approximately 0.73 inches.

CAL-VAN 38900

• Key Feature: A more cost-effective option suitable for many 4.6, 5.4, and 6.8-litre Ford engines.
• Specifications: The insert measures 0.73 inches, with a lip measuring 0.85 inches, which can aid in sealing. It's recommended for holes up to approximately 0.68 inches.

These kits offer a durability that far surpasses temporary solutions, often making the repaired threads stronger than the original aluminium ones.

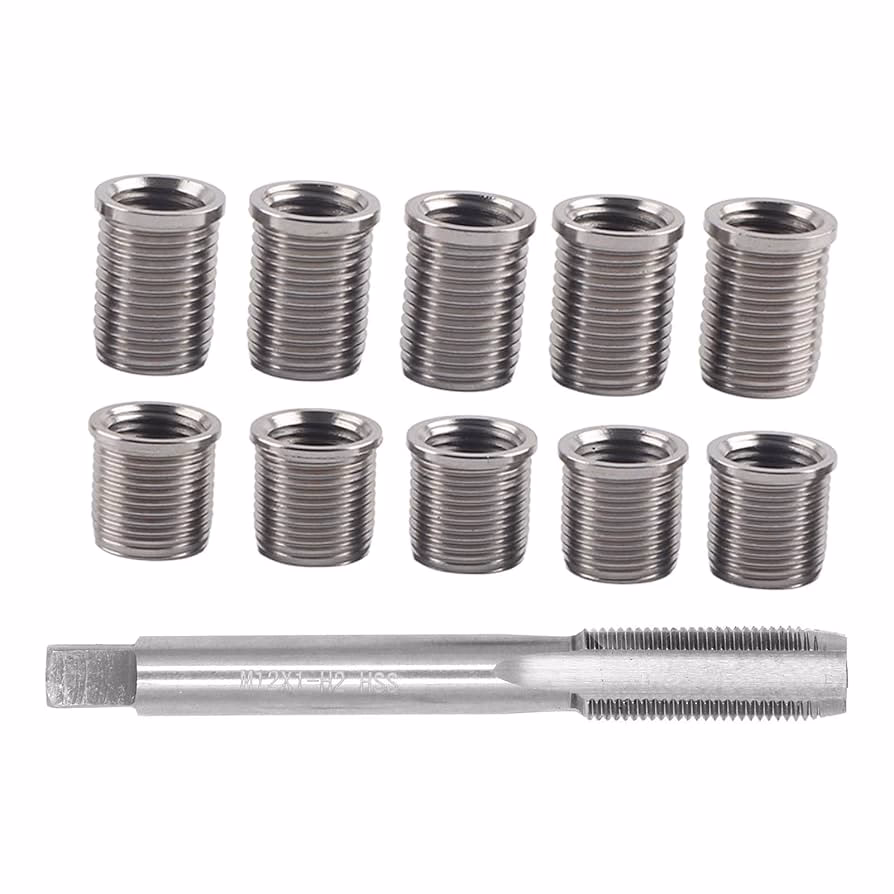

Spark Plug Thread Repair for Motorcycles

The procedure for repairing spark plug threads in a motorcycle engine is fundamentally the same as for a car or truck. The core principle remains: ream out the damaged threads, tap new threads, and install a bushing-type insert. Finally, use a threaded installer to expand and secure the insert's bottom threads.

Common spark plug sizes in motorcycles are typically 10mm, 12mm, and sometimes 14mm. Just as with cars, it is imperative to avoid the temporary, parts-store type kits and invest in a permanent repair solution for lasting reliability. For specific details on Harley Davidson spark plug thread repair, dedicated articles are available that delve into model-specific nuances.

Cost of Spark Plug Thread Repair

The cost of spark plug thread repair can vary significantly, ranging from as little as £20 for a basic, temporary kit to over £1,000 if a professional workshop performs a complex repair, potentially including cylinder head removal. However, for a permanent, high-quality repair using specialist kits, the average cost for DIY enthusiasts tackling Ford 4.6, 5.4, and 6.8 engines typically falls between a couple of hundred pounds and around £500 for the kit itself.

Many 'do-it-yourselfers' successfully perform these repairs themselves, saving considerable money on labour costs while achieving a quality, permanent fix. The initial investment in a proper kit is often quickly recouped compared to professional repair bills.

Ford's Spark Plug Thread Issues – A Closer Look

Ford engines, particularly the 2V (e.g., 4.6L, 5.4L) and 3V (e.g., Triton 5.4L) variants, are well-known for specific spark plug problems. The 2V engines often suffer from the 'spark plug blowout problem' where plugs eject from the head due to insufficient thread engagement and vibration. The 3V engines, conversely, are infamous for spark plugs that seize in the cylinder head and frequently break during removal.

Despite the prevalence of these issues, there has never been a recall from Ford regarding spark plug blowouts or thread failures. Ford did revise the torque specification for spark plugs, increasing it to around 20 ft-lbs, which may help mitigate some failures, but it's not a complete solution.

The most effective and proven fix for these Ford issues is to use one of the specialist thread repair kits mentioned earlier. These kits upgrade the thread material to a steel alloy, which is significantly stronger and more durable than the original aluminium, providing a permanent solution with an excellent track record.

Comparison Table: Temporary vs. Permanent Repair Kits

To help you make an informed decision, here's a comparison of temporary (parts store) and permanent (specialist) spark plug thread repair kits:

Frequently Asked Questions (FAQs)

How do I use a spark plug thread repair kit I bought at Autozone or a similar parts store?

The short answer is: don't. Kits purchased at general parts stores are typically temporary fixes. Their tooling is often too short or requires hitting the insert to expand it, which can cause the insert to loosen and be ejected due to engine heat cycles. This usually results in a larger hole and a need for a more substantial, permanent repair.

How much does a spark plug thread repair cost?

Costs vary widely. For a DIY repair using a temporary parts store kit, it might be £20-£50. However, for a permanent, high-quality repair using a specialist kit, expect to pay between £200-£500 for the kit. Professional shop repairs can range from a few hundred to over a thousand pounds, depending on the complexity and whether the cylinder head needs removal. Many DIY enthusiasts successfully use permanent kits to save on labour costs.

How do I repair spark plug threads in a motorcycle?

The repair procedure for motorcycle spark plug threads is essentially the same as for cars and trucks. It involves reaming out the damaged threads, tapping new threads, installing a bushing-type insert, and then expanding the insert's bottom threads to secure it. Common motorcycle plug sizes are 10mm, 12mm, and 14mm. Always avoid temporary kits and opt for a permanent solution.

How do I use a Helicoil thread repair kit?

Helicoil kits typically involve tapping new threads and then screwing in a wire coil insert. Some older or specific Helicoil-style kits for spark plugs might involve a 'swedge-type' tool that requires striking the top of the insert with a hammer. This striking method is precisely what makes many temporary inserts prone to failure and is generally avoided in favour of more robust, mechanically locked inserts.

Do you have an over-size insert to fix the threads?

Yes, specialist suppliers offer various options for larger repairs, including oversize inserts that still allow you to use the original size spark plug. Kits like the TIME SERT 5553 and TIME-SERT 5600, or the CAL-VAN 38900, provide solutions for significantly damaged holes. It's always best to consult with a specialist to ensure you get the correct kit for your specific damage.

Is there a recall on Ford blowing out spark plugs?

No, there has never been an official recall from Ford regarding spark plug blowouts. While Ford did revise the torque specification to around 20 ft-lbs, this was a service bulletin, not a recall. The best and most permanent fix for Ford's problematic spark plug threads is to use a proven thread repair kit that upgrades the threads to a much stronger steel alloy.

Can spark plugs damage cylinder head threads?

Yes, spark plugs can absolutely damage cylinder head threads. This can happen in several ways: if a plug is left in place for too long, it can seize due to corrosion or dissimilar metal reactions, leading to thread damage upon removal. Conversely, a loose plug can vibrate and eventually blow out, severely mauling the threads. Finally, cross-threading a plug during installation is a common cause of irreparable thread damage.

Conclusion

Dealing with damaged spark plug threads can be a daunting prospect, but with the right knowledge and tools, it's a repair that can be successfully undertaken, often by the home mechanic. The key is to avoid the lure of quick, temporary fixes and instead invest in a permanent solution that provides stronger, more durable threads than the original. By following best practices, using high-quality kits, and preparing thoroughly, you can ensure your engine runs reliably for many years to come, saving you both money and future headaches. Don't let damaged threads sideline your vehicle; choose the path to a lasting repair.
