Hermetic Reciprocating Compressors Explained

In the realm of mechanical systems, particularly within refrigeration and air conditioning, compressors play a pivotal role. Among the various types, the hermetic reciprocating compressor stands out due to its unique design and operational characteristics. This article delves into what a hermetic reciprocating compressor is, exploring its construction, how it functions, its advantages, and where it is most commonly employed. Understanding these compressors is crucial for anyone involved in the maintenance, repair, or design of cooling systems, whether in automotive applications or larger HVAC installations.

Understanding the Reciprocating Compressor

Before we focus on the 'hermetic' aspect, it's important to grasp the fundamental operation of a reciprocating compressor. This type of compressor operates similarly to an internal combustion engine's piston system. It uses a crankshaft, connecting rod, and piston assembly housed within a cylinder. The process involves:

• Suction: As the piston moves downwards, the volume within the cylinder increases, creating a low-pressure area. This causes the suction valve to open, allowing refrigerant gas to enter the cylinder.
• Compression: The piston then moves upwards, reducing the cylinder's volume and increasing the pressure of the refrigerant gas. Both suction and discharge valves are closed during this phase.
• Discharge: Once the gas reaches a sufficient pressure, it forces the discharge valve open, and the compressed gas is expelled from the cylinder into the high-pressure side of the system.

This cycle of suction, compression, and discharge repeats, continuously moving the refrigerant through the cooling cycle.

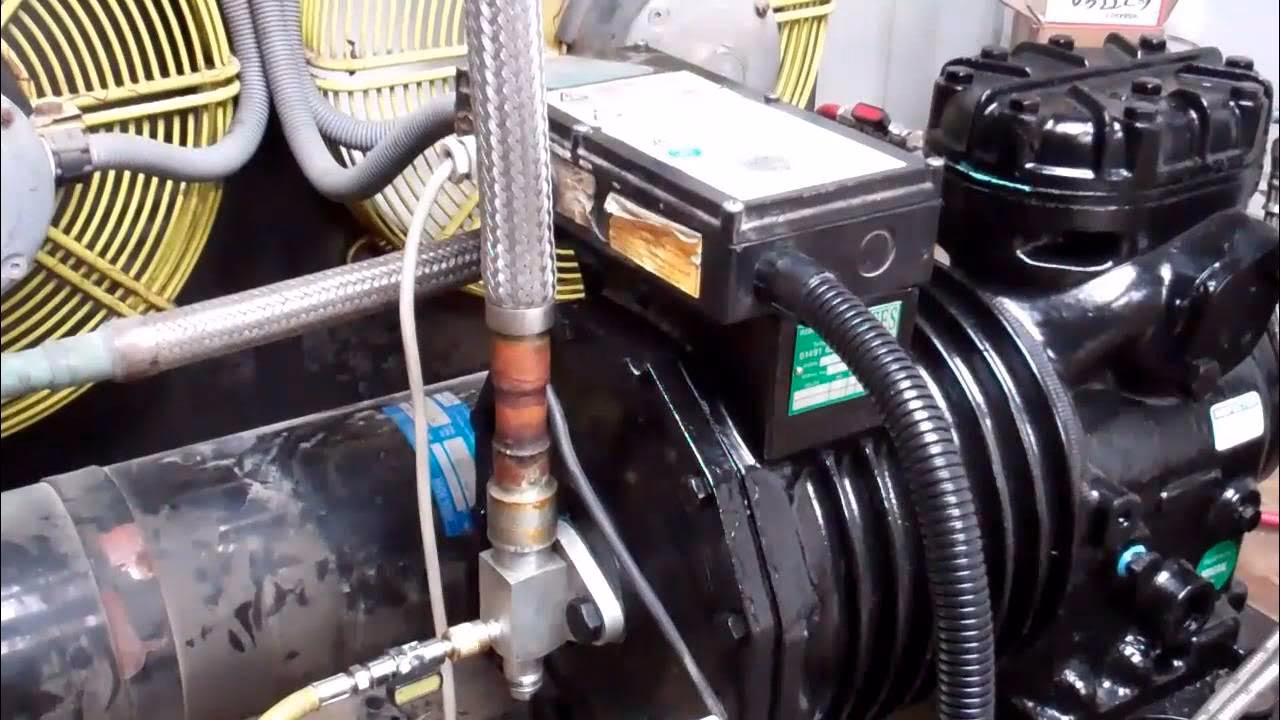

The "Hermetic" Advantage

The term "hermetic" in "hermetic reciprocating compressor" refers to its sealed construction. In a hermetic design, the compressor and its driving motor are enclosed within a single, sealed casing. This casing is typically made of welded steel, making it airtight and preventing any leakage of the refrigerant or the internal lubricating oil. This integration offers several key benefits:

Key Features of Hermetic Compressors:

• Integrated Motor and Compressor: The compressor and the electric motor that drives it are directly coupled and housed together in one unit. This eliminates the need for external belts or couplings, which are common in 'open drive' or 'semi-hermetic' designs.
• Elimination of Shaft Seals: A significant advantage of the hermetic design is the absence of a crankshaft seal. In open or semi-hermetic compressors, a seal is required where the motor shaft enters the compressor casing to prevent refrigerant leakage. Hermetic compressors circumvent this by having the motor and compressor share the same shaft within the sealed enclosure. This significantly reduces potential points of failure and leakage.
• Compact and Lightweight: The all-in-one design results in a more compact and often lighter unit compared to its counterparts with external drive mechanisms. This makes them easier to install and handle.
• Airtight Integrity: The welded steel casing ensures that the compressor is completely airtight. This is critical for systems using refrigerants, as even small leaks can lead to loss of cooling capacity and environmental concerns.

Hermetic vs. Semi-Hermetic vs. Open Drive Compressors

To fully appreciate the hermetic compressor, it's useful to compare it with other common compressor configurations:

Lubrication in Hermetic Compressors

A key consideration for any compressor is lubrication. In hermetic reciprocating compressors, the motor and compressor share the same crankcase, meaning the motor windings are immersed in the same oil that lubricates the compressor's moving parts. This has several implications:

• Oil Compatibility: The lubricating oil must be compatible with the refrigerant being used. Different refrigerants require different types of oils (e.g., mineral oil, alkylbenzene, or polyolester). Using the wrong oil can lead to poor lubrication, motor winding damage, and system failure.
• Oil Carryover: Some oil will inevitably be carried over with the refrigerant gas. While some oil carryover is necessary to lubricate the expansion valve and evaporator, excessive carryover can reduce heat transfer efficiency in the evaporator and the overall performance of the system. Manufacturers design systems to manage this oil return.
• No External Lubrication System: Unlike some larger compressors, hermetic units do not have separate oil pumps or external lubrication systems. The oil circulates naturally within the crankcase due to the compressor's motion.

Applications of Hermetic Reciprocating Compressors

Hermetic reciprocating compressors are widely used in applications where reliability, compactness, and cost-effectiveness are paramount. Their sealed nature makes them ideal for systems where refrigerant containment is critical.

Common Use Cases:

• Domestic Refrigeration: Virtually all household refrigerators and freezers utilize hermetic compressors. Their quiet operation and low maintenance requirements are well-suited for this environment.
• Residential Air Conditioning: Many residential split-system air conditioners employ hermetic reciprocating compressors in the outdoor unit.
• Small Commercial Systems: Smaller commercial refrigeration units, such as those found in convenience stores or restaurants, often use hermetic compressors.
• Automotive Air Conditioning: While modern automotive AC systems often use scroll or variable-displacement compressors, older systems and some current designs may utilize hermetic reciprocating compressors. The compact size and robustness are advantageous in the often-vibrating automotive environment.

Maintenance and Troubleshooting

Due to their sealed construction, hermetic compressors are generally considered non-serviceable in the field. If a hermetic compressor fails, the common practice is to replace the entire unit rather than attempt repairs on the internal components. This approach minimizes the risk of refrigerant leaks and ensures a reliable fix.

Common Failure Points:

• Motor Burnout: This is one of the most frequent failures. It can be caused by electrical issues (voltage fluctuations, short circuits), overheating due to poor ventilation or low refrigerant charge, or using incompatible lubricating oil. A burnout often contaminates the system with acidic by-products, requiring thorough flushing.
• Mechanical Failure: Worn bearings, broken valves, or damaged pistons can lead to a loss of compression.
• Refrigerant Leaks: Although designed to be sealed, leaks can occur over time, particularly at the electrical connection terminals or through micro-cracks in the casing.
• Contamination: If the system is not properly flushed after a burnout or if moisture enters the system, it can lead to internal corrosion and compressor damage.

Advantages Summarised

The popularity of hermetic reciprocating compressors stems from a combination of factors:

• Cost-Effectiveness: Mass production and simpler construction make them relatively inexpensive.
• Compact Size: Ideal for space-constrained applications.
• Reliability: The absence of external seals reduces a major source of potential leaks and failures.
• Ease of Installation: Being a single, integrated unit simplifies installation.
• Quiet Operation: Compared to some other compressor types, they can offer relatively quiet performance.

Are Hermetic Compressors Always Reciprocating?

It's important to note that the term "hermetic" describes the construction (sealed unit) and can apply to other compressor types as well, such as hermetic centrifugal compressors or hermetic scroll compressors. However, when discussing traditional cooling systems and automotive applications, the hermetic reciprocating compressor is a very common and historically significant type.

Conclusion

The hermetic reciprocating compressor is a cornerstone of modern refrigeration and air conditioning technology. Its design, which integrates the motor and compressor within a sealed casing, offers significant advantages in terms of reliability, compactness, and cost. While typically replaced rather than repaired, understanding their function and common failure modes is essential for technicians and enthusiasts alike. From keeping our food cold to ensuring comfortable indoor temperatures, these hardworking units play an indispensable role.

Frequently Asked Questions (FAQs)

Q1: Can a hermetic compressor be repaired?

A1: Generally, hermetic compressors are not designed for field repair. If a failure occurs, the standard procedure is to replace the entire unit. Attempting to open a hermetic compressor can be dangerous and often leads to further contamination or leakage.

Q2: What type of oil is used in a hermetic compressor?

A2: The type of oil depends on the refrigerant. Common types include mineral oil (for older refrigerants like R-12), alkylbenzene (for HCFC refrigerants like R-22), and polyolester (POE) or polyalkylene glycol (PAG) oils (for HFC refrigerants like R-134a and R-410A). It is crucial to use the oil specified by the compressor manufacturer for the particular refrigerant.

Q3: What causes a hermetic compressor to fail?

A3: Common causes include electrical faults (overheating, voltage spikes), loss of refrigerant charge leading to overheating, contamination within the system (moisture, debris), improper lubrication (wrong oil type or low oil level), and mechanical wear and tear over time.

Q4: How do I know if my hermetic compressor has failed?

A4: Symptoms of compressor failure include the unit not cooling, unusual noises (grinding, knocking), the compressor not running at all, or tripping circuit breakers repeatedly. A technician will typically perform electrical and pressure tests to confirm compressor failure.

Q5: Are hermetic compressors efficient?

A5: Hermetic reciprocating compressors offer good efficiency for their size and cost, especially in smaller capacity applications. However, newer technologies like variable-speed scroll or rotary compressors can offer higher efficiencies in certain operating ranges.
