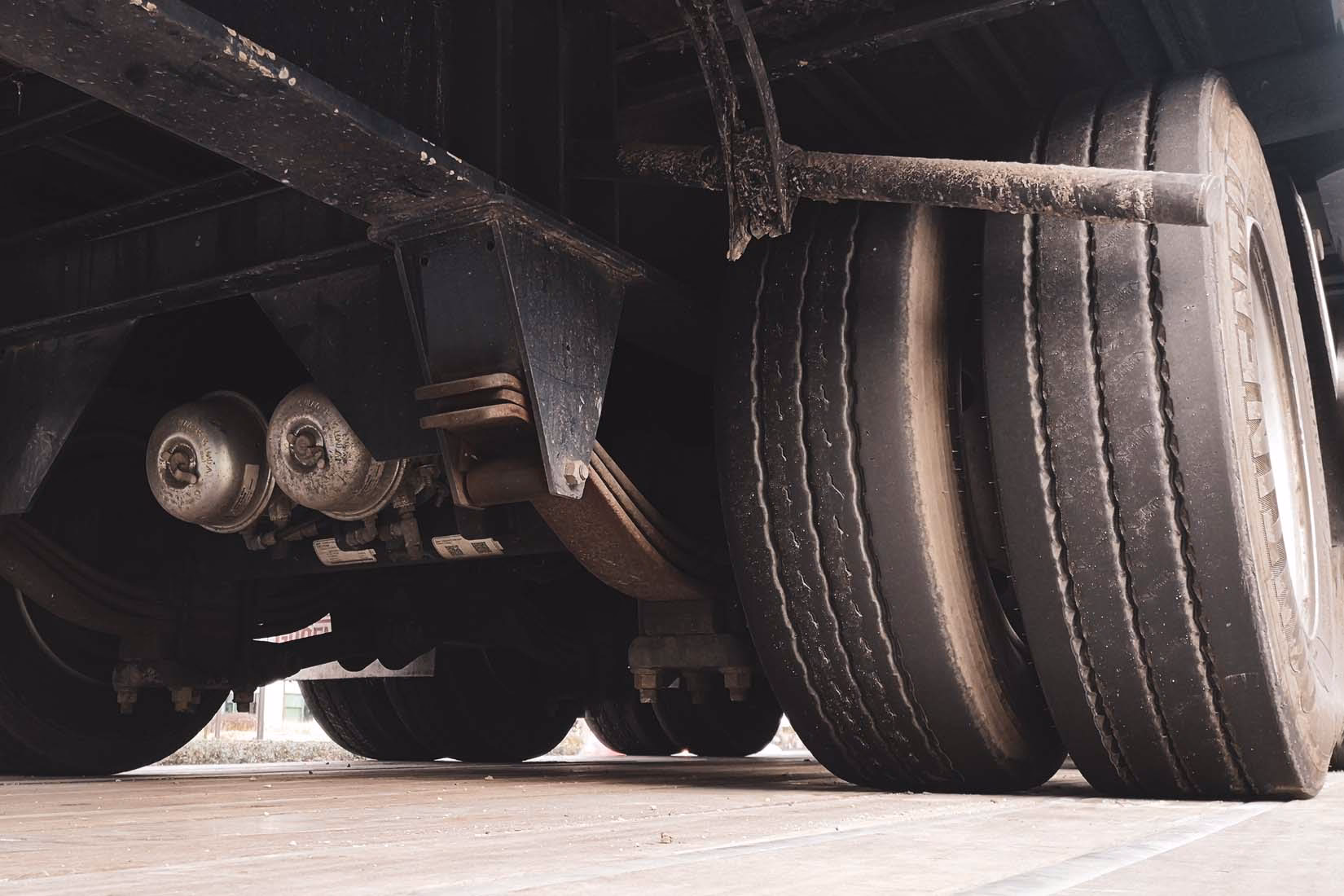

Heavy-Duty Truck Suspension Systems

The suspension system of a heavy-duty truck is a marvel of engineering, tasked with a complex and often conflicting set of duties. It must not only support the immense weight of the vehicle and its cargo but also provide a degree of ride comfort for the driver and passengers, isolate the chassis from road shocks, and maintain tyre contact with the road surface for effective braking and steering, even under extreme loads and on uneven terrain. The development in this area has been significant, with manufacturers constantly refining designs to meet the ever-increasing demands of modern logistics and vocational applications. This article delves into the various types of suspension systems employed in heavy-duty trucks, their inherent characteristics, and the applications for which they are best suited, with a particular focus on the prevalent leaf spring systems, while also acknowledging the growing importance of alternative technologies like air, rubber, and torsion bar suspensions.

The Crucial Role of Truck Suspensions

At its core, a heavy-duty truck suspension system is designed to manage forces that would otherwise be transmitted directly to the vehicle's chassis, cargo, and occupants. These forces arise from a variety of sources, including the weight of the vehicle itself (static load), the dynamic forces generated during acceleration, braking, and cornering, and the unevenness of the road surface. A well-designed suspension system acts as a buffer, absorbing and dissipating these energies. This protection is vital for several reasons:

• Vehicle Longevity: By reducing the impact of shocks and vibrations, the suspension system helps to prevent premature wear and tear on the chassis, driveline, and other critical components.
• Cargo Integrity: For many types of cargo, especially those that are fragile or sensitive to vibration, a stable and smooth ride is paramount. The suspension plays a direct role in ensuring the cargo arrives at its destination undamaged.
• Driver Comfort and Safety: A comfortable driver is a more alert and productive driver. Furthermore, by maintaining tyre contact with the road, the suspension system is fundamental to the vehicle's ability to steer, brake, and remain stable, directly impacting safety.
• Handling and Stability: The suspension dictates how the truck responds to steering inputs and side forces. A robust suspension ensures predictable handling and prevents excessive body roll, which can be dangerous at speed or during cornering.

Types of Heavy-Duty Truck Suspension Systems

The market for heavy-duty trucks sees a variety of suspension designs, each with its own advantages and disadvantages. While leaf springs remain a dominant force, other technologies have gained significant traction due to their performance characteristics.

Leaf Spring Suspensions

The leaf spring is arguably the most traditional and widely used suspension component in heavy-duty trucks. It consists of several layers, or leaves, of steel, which are curved and stacked together. When the wheel encounters a bump, the leaves flex, absorbing the energy. The primary advantages of leaf spring suspensions include their:

• Robustness and Durability: They are inherently strong and can withstand significant loads and harsh operating conditions.
• Simplicity and Cost-Effectiveness: Their design is relatively simple, making them less expensive to manufacture and maintain compared to some more complex systems.
• Load Carrying Capacity: They are excellent at supporting heavy static loads.

However, leaf springs also have drawbacks:

• Ride Quality: They can provide a harsher ride, especially when the truck is unloaded, as the stiffness required for heavy loads can lead to significant bouncing and vibration.
• Weight: The multiple steel leaves can add considerable weight to the vehicle.
• Maintenance: While simple, they require periodic lubrication and inspection for broken or fatigued leaves.

Leaf springs are often used in both front and rear axle applications for trucks designed for heavy hauling and construction, where durability and load capacity are prioritized over ultimate ride comfort.

Air Suspension Systems

Air suspension systems utilise compressed air stored in bellows or air springs to support the vehicle's load. An air compressor, controlled by height sensors and levelling valves, constantly adjusts the air pressure to maintain a consistent ride height and provide a significantly smoother ride. The benefits of air suspension are:

• Superior Ride Comfort: They offer a much more compliant ride, absorbing road imperfections effectively, whether the truck is loaded or unloaded.
• Adjustable Ride Height: This allows for easier loading and unloading, as well as improved aerodynamics and ground clearance when needed.
• Load Levelling: They automatically maintain a level vehicle chassis, regardless of load distribution, which aids in stability and handling.
• Reduced Vibration: This protects both the cargo and the vehicle components from excessive vibration.

The primary considerations for air suspension are:

• Cost: They are generally more expensive to purchase and maintain than leaf spring systems.
• Complexity: The system involves more components (compressor, air lines, bellows, valves, sensors), increasing potential points of failure.
• Vulnerability: Air lines and bellows can be susceptible to damage from road debris or extreme temperatures.

Air suspensions are increasingly popular in long-haul trucking, where driver comfort and cargo protection are critical for profitability, and in vocational trucks where adjustable ride height offers practical advantages.

Torsion Bar Suspensions

A torsion bar is essentially a long metal bar that twists along its axis when a load is applied. One end of the bar is attached to the vehicle's chassis, and the other end is connected to a suspension arm that supports the wheel. As the wheel moves up and down, the torsion bar twists, providing a springing action. Their advantages include:

• Compact Design: Torsion bars are relatively compact, allowing for more flexible chassis design.
• Good Handling: They can offer good road holding and control body roll.
• Durability: When properly designed and manufactured, they can be very durable.

However, they are less common in heavy-duty trucks compared to leaf or air springs, often found in specific applications or as part of more complex independent suspension systems. Their load-carrying capacity for very heavy trucks can be a limiting factor, and adjustment can be more complex.

Rubber Suspension Systems

Rubber suspension systems, often referred to as rubber block or bushing suspensions, use specially formulated rubber compounds designed to compress and rebound. They are typically used as part of a larger suspension assembly, often in conjunction with other spring types or as shock absorbers. Their benefits include:

• Vibration Damping: Rubber is excellent at absorbing high-frequency vibrations.
• Simplicity: They are relatively simple and require little maintenance.
• Cost-Effective: Often used as a more affordable alternative or supplement to other spring types.

While good for damping, rubber suspensions alone often lack the load-carrying capacity and the long-travel characteristics required for heavy-duty truck primary suspension. They are more commonly found in smaller commercial vehicles or as secondary damping elements.

Solid Mount Suspensions

While not a 'suspension' in the traditional sense of providing articulation and damping, some heavy-duty applications may utilise what could be termed solid mount systems where the body or a specific component is rigidly attached to the chassis. This is usually only for very specific, static loads or components where movement is not desired. In the context of a mobile truck, this is rare for the main suspension system as it would lead to extreme discomfort and damage. However, specific mounting points for auxiliary equipment might be solid.

Suspension for Vocational Trucks: Customisation and Flexibility

Vocational trucks, designed for specific tasks such as construction, refuse collection, or firefighting, often face unique operational demands. Modifying and customising their suspension systems is crucial to optimise performance for these specialized roles. Simard Suspensions, for instance, offers all-wheel drive (AWD) conversions for heavy-duty trucks, which can significantly enhance traction and maneuverability in off-road or challenging conditions. These custom-engineered AWD conversions can be applied to a wide range of medium and heavy-duty chassis. By working with certified installers and reputable axle and transfer case suppliers, these modifications can be tailored to the specific needs of a vocational truck, allowing for greater flexibility and improved capability. This can involve adapting existing suspension components or integrating new ones to handle the specific stresses and requirements of the job.

Choosing the Right Suspension

The selection of a suspension system for a heavy-duty truck depends heavily on its intended application. A truck primarily used for long-haul highway transport might benefit most from the ride comfort and load-levelling capabilities of an air suspension. Conversely, a truck operating in severe off-road or construction environments where durability and simplicity are paramount might be better served by a robust leaf spring system. Vocational trucks often present a middle ground, requiring a balance of load capacity, durability, and sometimes, specialized features like adjustable ride height or enhanced traction, which might lead to bespoke or hybrid suspension solutions.

Maintenance and Longevity

Regardless of the type of suspension system, regular maintenance is key to ensuring its longevity and optimal performance. This includes:

• Inspection: Regularly checking for signs of wear, damage, or leaks in springs, shock absorbers, air bellows, and mounting hardware.
• Lubrication: For leaf springs and certain pivot points, proper lubrication is essential to prevent friction and corrosion.
• Alignment: Ensuring the wheels are properly aligned is critical for tyre wear and handling, and this is directly influenced by the suspension.
• Component Replacement: Worn-out shock absorbers, damaged air springs, or fatigued leaf springs should be replaced promptly to prevent further damage and maintain safety.

Frequently Asked Questions

Q1: What is the main difference between leaf spring and air suspension?

A1: Leaf springs use flexible steel leaves to absorb shocks, offering durability and high load capacity but a stiffer ride. Air suspensions use compressed air in bellows, providing superior ride comfort, adjustable height, and load levelling, but at a higher cost and complexity.

Q2: Can I convert my truck from leaf springs to air suspension?

A2: Yes, conversion kits are available, and many specialised shops can perform this modification. However, it is a significant undertaking that requires careful planning and professional installation to ensure safety and proper function.

Q3: How often should I inspect my truck's suspension?

A3: It's recommended to inspect the suspension at least during every scheduled maintenance service. Any unusual noises, changes in handling, or visible damage should prompt an immediate inspection.

Q4: Are torsion bar suspensions common in heavy-duty trucks?

A4: While used in some heavy-duty applications, particularly for front suspensions or in independent suspension setups, they are less common as the primary rear suspension compared to leaf springs or air springs due to load capacity and design considerations for the heaviest trucks.

Q5: What are the benefits of custom suspension modifications for vocational trucks?

A5: Custom modifications can enhance a vocational truck's specific capabilities, such as improving traction with AWD conversions, increasing load capacity, or optimising ride height for particular tasks, leading to improved performance, safety, and efficiency in demanding applications.
