Car Heater Core Replacement Guide

Reviving Your Vehicle's Warmth: A Comprehensive Heater Core Replacement Guide

The comfort of your car's cabin during chilly weather hinges significantly on a well-functioning heater core. This often-overlooked component, essentially a miniature radiator nestled within your vehicle's dashboard, plays a pivotal role in circulating warm engine coolant to heat the air that eventually reaches you through the vents. When this vital part begins to fail, the consequences can range from a mere lack of warmth to a persistent, sweet smell and foggy windows. Replacing a heater core is a task that, while potentially daunting, is achievable for the determined DIY mechanic and can save you a considerable amount of money compared to professional replacement. This guide will walk you through the entire process, from identifying the symptoms of a failing heater core to the final steps of refilling and bleeding your cooling system.

Understanding the Heater Core: Your Cabin's Personal Radiator

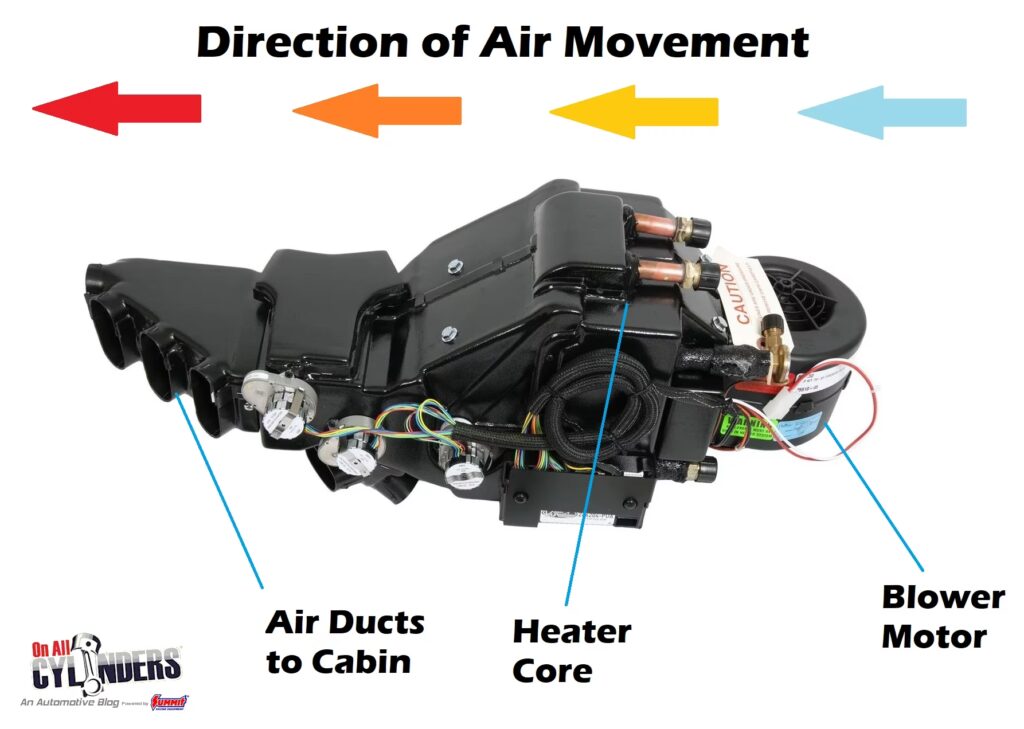

At its core, the heater core is a heat exchanger. It's connected to your engine's cooling system via two hoses, allowing hot coolant to flow through its intricate network of small tubes and fins. When you turn on your car's heater, the blower motor pushes air across these hot surfaces. This process transfers heat from the coolant to the air, which is then directed into the cabin. The coolant, having given up some of its heat, circulates back to the engine to be reheated. This continuous cycle is what provides you with warmth. It's also why you don't get immediate heat on a cold morning; the engine needs to reach its optimal operating temperature for the coolant to be sufficiently hot to warm the air effectively.

Spotting the Signs: When Your Heater Core Needs Attention

Recognising the symptoms of a failing heater core is the first step towards addressing the problem. Ignoring these signs can lead to more significant issues within your cooling system. Here are the most common indicators:

• Reduced Heat Output: The most obvious symptom is a noticeable decrease in the amount of heat your car's vents produce. Even on the highest setting, the air might feel lukewarm or simply not warm enough to combat the cold.
• Cold Air Blowing: In more severe cases, you might find that only cold air is being blown through the vents, regardless of your heater settings.
• Sweet Smell in the Cabin: This is a classic sign of a coolant leak. As the coolant escapes the heater core, its sweet, syrupy aroma can permeate the cabin.
• Foggy or Frosted Windshield: A leaking heater core can release moisture into the cabin, causing the inside of your windshield to fog up or even frost over, especially when the defroster is engaged. This is often accompanied by a greasy residue on the glass.
• Coolant Leaks in the Footwells: You might discover damp carpets or even puddles of coolant, typically in the passenger or driver's side footwells, directly beneath the dashboard where the heater core is housed.
• Overheating Engine: While less direct, a significant leak from the heater core can lead to a gradual loss of coolant, potentially causing your engine to overheat if the level drops too low.

Essential Tools and Materials for the Job

Before you begin, ensure you have the necessary tools and materials to complete the job safely and efficiently. Having everything ready will prevent frustrating interruptions:

Step-by-Step: The Heater Core Replacement Process

Replacing a heater core is a labour-intensive task that requires patience and attention to detail. The exact procedure can vary significantly between vehicle models, so always consult your vehicle's specific service manual for precise instructions.

1. Safety First: Preparation is Key

Before you begin any work, ensure your vehicle is parked on a level surface and the parking brake is firmly engaged. Crucially, allow the engine to cool down completely. Working with a hot engine or hot coolant can lead to severe burns. Wear your gloves and safety glasses throughout the process.

2. Disconnect the Battery

To prevent any accidental electrical shorts, it's best practice to disconnect the negative (-) battery terminal using an appropriate wrench. Tuck the cable away so it cannot accidentally come into contact with the terminal.

3. Drain the Cooling System

Position your coolant drain pan beneath the radiator. Locate the radiator drain plug (usually at the bottom of the radiator) and carefully open it to allow the old coolant to drain completely. Some vehicles may have a separate drain petcock on the engine block as well. Once drained, close the drain plug securely.

4. Accessing the Heater Core: The Dashboard Removal

This is often the most time-consuming part of the job. The heater core is typically located behind the dashboard, often integrated into the HVAC (Heating, Ventilation, and Air Conditioning) unit. You will need to consult your vehicle's service manual for the specific steps involved in removing the dashboard. This generally involves:

• Removing trim panels, often held in place by clips and screws.
• Unscrewing and disconnecting various components attached to the dashboard, such as the instrument cluster, radio, and climate controls.
• Carefully detaching the dashboard itself, which may require support to prevent it from falling unexpectedly.

Be methodical and keep track of all screws, bolts, and clips you remove, perhaps by using labelled containers or a magnetic tray. Taking photos as you disassemble can be incredibly helpful for reassembly.

5. Disconnecting the Heater Core Hoses

Once the dashboard is sufficiently out of the way, you should be able to locate the heater core and its associated coolant hoses. These hoses typically enter the cabin through the bulkhead (firewall). Use pliers to loosen the hose clamps and carefully disconnect the hoses from the heater core nipples. Be prepared for a small amount of residual coolant to spill, so have your rags ready. It's a good idea to plug the hoses or cap the heater core nipples to prevent further spillage and contamination.

6. Removing the Old Heater Core

The heater core itself will be secured within its housing by brackets, clips, or screws. Carefully remove these fasteners. Once unfastened, gently manoeuvre the old heater core out of its mounting location. It might be snug, so avoid forcing it, which could damage surrounding components. Inspect the old unit for obvious signs of damage or leaks.

7. Installing the New Heater Core

Before installing the new heater core, it's a good opportunity to clean the area around its housing. Carefully position the new heater core into its designated spot, ensuring it is seated correctly. Reinstall any brackets, clips, or screws that hold it in place, tightening them securely but without overtightening.

8. Reconnecting the Heater Core Hoses

Reconnect the coolant hoses to the new heater core's inlet and outlet nipples. Ensure the hose clamps are positioned correctly and tightened firmly to prevent any leaks. It's advisable to replace old, brittle hoses if they show any signs of wear or cracking.

9. Reinstalling the Dashboard

This is essentially the reverse of the removal process. Carefully refit the dashboard, reconnecting all electrical connectors and securing all screws, bolts, and trim panels. Double-check that everything is properly aligned and fastened.

10. Refilling the Cooling System

With the new heater core in place and the dashboard reassembled, it's time to refill the cooling system. Refer to your vehicle's manual for the correct type and mixture of coolant (e.g., 50/50 antifreeze and distilled water). Slowly fill the radiator until the coolant level reaches the 'cold fill' mark. Do not overfill.

11. Bleeding the Cooling System: Removing Air Pockets

Air trapped in the cooling system, particularly in the heater core, can significantly impede heating performance. This process is called bleeding the system.

• Start the engine and let it idle.
• Turn the heater control to the highest heat setting and the fan to a low speed.
• As the engine warms up and the thermostat opens, the coolant will begin to circulate. You may hear gurgling sounds as air is pushed through the system.
• Some vehicles have specific bleed screws on the engine block or heater hoses. Consult your manual for their location and follow the instructions to release trapped air.
• You can also try gently squeezing the heater hoses (once they are warm) to help dislodge any air bubbles.
• Continue to monitor the coolant level in the radiator and top it up as needed until no more air bubbles are visible and the heater is blowing warm air.

12. Final Checks and Reconnection

Once the system is bled and the heater is working correctly, allow the engine to cool down slightly. Reconnect the negative battery terminal. Start the engine again and let it reach operating temperature. Carefully check all coolant hose connections and the radiator drain plug for any signs of leaks. Keep an eye on the temperature gauge to ensure the engine is not overheating.

Troubleshooting Common Issues

Even with careful work, you might encounter a few snags. Here are some common troubleshooting tips:

• Persistent Leaks: If you notice leaks around the heater core hoses after reassembly, ensure the hose clamps are fully tightened. If the hoses are old or damaged, they may need to be replaced.
• No Heat or Insufficient Heat: If you've replaced the heater core and still have no heat, the issue might lie elsewhere. Double-check that the heater control valve (if your vehicle has one) is functioning correctly, that the thermostat is opening, or that there isn't another blockage in the cooling system. Air trapped in the heater core is also a common culprit, so re-bleeding the system might be necessary.
• Continued Fogging/Residue: If the windshield continues to fog up or shows a greasy residue, it's possible that the heater core housing was not sealed properly during reinstallation, allowing coolant vapour to escape into the cabin, or that the old residue is still present on the glass.

Frequently Asked Questions

1. How long does it typically take to replace a heater core?
   The time required can vary significantly based on your vehicle's make and model and your mechanical experience. For most DIYers, it can take anywhere from 3 to 8 hours. Some vehicles have much more accessible heater cores than others.
2. Can I really do this myself?
   Yes, with the right tools, a good service manual for your vehicle, patience, and a willingness to tackle a complex job, you can replace a heater core yourself. However, if you're not comfortable removing large portions of your car's interior or dealing with the cooling system, it's best to seek professional help.
3. How often should a heater core be replaced?
   Heater cores are generally very durable components and do not have a set replacement interval. They typically only need replacement if they fail due to corrosion, damage, or a blockage, which can happen due to poor cooling system maintenance or age.
4. What are the most definitive signs of a bad heater core?
   The most telling signs are a sweet smell in the cabin (coolant leak) and coolant found on the passenger-side floor mats. Reduced heat output is also a strong indicator.
5. What is the average cost of a heater core replacement?
   At a professional mechanic's shop, the cost can range from approximately £400 to £800 (or $500 to $1000 USD), largely depending on the complexity of the job for your specific vehicle and local labour rates. Doing it yourself can save you hundreds of pounds/dollars.

Replacing your car's heater core is a significant undertaking, but by understanding the symptoms, preparing with the right tools, and following these detailed steps, you can successfully restore warmth and comfort to your vehicle's cabin. Remember, consulting your vehicle's specific service manual is paramount for a smooth and accurate repair.
