Harley Sportster Transmission Fluid Change

How to Tackle Your Harley Sportster Transmission Fluid

For many Harley-Davidson enthusiasts, the open road calls, but sometimes, the mechanical side of these iconic machines can seem a little daunting. While larger Harley models often feature separate compartments for engine oil, primary fluid, and transmission fluid, the 883 Sportster presents a slightly different, yet ultimately simpler, setup. It houses its engine oil and primary/transmission fluid in two distinct, yet interconnected, systems. Many DIYers find themselves scratching their heads when it comes to the primary/transmission fluid change, but fear not! With the right tools and a little guidance, you can successfully complete this essential maintenance task yourself, keeping your Sportster running smoothly.

Understanding Your Sportster's Fluid Systems

The beauty of the Sportster's design, particularly models like the 883, lies in its integrated primary and transmission lubrication. Unlike some of the bigger V-twins that require separate fluid changes for the transmission, the Sportster uses its primary chaincase to lubricate both the primary drive components and the transmission gears. This means you're typically dealing with a single fluid fill point for both functions. It’s crucial to use the correct type of fluid to ensure proper lubrication and prevent premature wear on these vital components. Using the wrong fluid can lead to shifting issues, increased noise, and potentially significant damage.

What Fluid Should You Be Using?

This is a common point of confusion, and the advice you read online can sometimes be contradictory. For your Harley-Davidson Sportster 883, it’s generally recommended not to use standard automotive gear oil. Gear oils often contain extreme pressure (EP) additives that can be too harsh for the bronze and brass components found in Harley transmissions, potentially causing corrosion or damage over time. Similarly, using your engine oil directly in the transmission is usually not the ideal solution either, as engine oils are formulated with different viscosity and additive packages than dedicated transmission fluids.

The most recommended fluids for a Harley Sportster transmission are specifically formulated primary/transmission fluids or dedicated Harley-Davidson transmission fluids. These are designed to provide the correct lubrication, friction characteristics, and compatibility with the materials used in your Sportster’s drivetrain. Look for products that explicitly state they are suitable for Harley-Davidson Sportster transmissions. Some popular choices include:

Always consult your Harley-Davidson owner's manual for the specific fluid type and viscosity recommended for your particular model year. If you're unsure, contacting a Harley-Davidson dealership or a reputable independent motorcycle mechanic is the safest bet.

Tools You'll Need for the Job

Gathering the right tools before you start will make the process much smoother. Here’s a list of items you’ll typically require:

• Hex head socket set: For removing the drain plug. Common sizes for Harley drain plugs are 5/8" or 16mm.
• Socket wrench: To use with your socket set.
• Catch basin or container: A container large enough to hold at least a quart of fluid, to safely collect the old transmission fluid.
• Shop towels or rags: For cleaning up spills and wiping components.
• Torx driver set: Specifically, you'll need a Torx bit or driver for the derby cover bolts. The size can vary, but T27 is common.
• New transmission fluid: The correct type and amount as specified by your owner's manual.
• Anti-seize compound: A small amount to apply to the derby cover bolts to prevent them from seizing in the primary cover.
• Gloves: To keep your hands clean.
• Safety glasses: Always protect your eyes.

Step-by-Step Guide to Changing Your Sportster's Transmission Fluid

With your tools and fluids ready, you can proceed with the fluid change. Remember to always work on a level surface and allow the engine and transmission to cool down if the bike has been recently ridden, but slightly warm fluid drains better than cold.

Step 1: Locate and Drain the Old Fluid

Park your Sportster on a level surface. Locate the drain plug for the primary/transmission fluid. This is typically found on the underside of the primary chaincase, near the rear of the engine.

Place your catch basin directly beneath the drain plug. Using the appropriate hex head socket and your socket wrench, carefully loosen and remove the drain plug bolt. Be prepared for the fluid to start draining immediately. Allow all the old fluid to drain completely. This might take several minutes until it reduces to a slow, thin trickle.

Once the fluid has stopped draining, wipe the drain plug and the area around the plug hole with a clean shop towel. Reinstall the drain plug bolt. Tighten it firmly, but be careful not to overtighten, as this can strip the threads in the primary cover. A snug fit is usually sufficient; consult your manual for torque specifications if you have a torque wrench.

Step 2: Access the Fill Port

The fill port for the primary/transmission fluid is located behind the derby cover. This is the round cover on the primary chaincase, usually on the right side of the motorcycle, towards the front of the engine.

Using your Torx driver, carefully remove the bolts securing the derby cover. Keep track of the bolt lengths, as they can sometimes vary. Once the bolts are removed, gently pull the derby cover away from the primary cover. You may need to pry it slightly if it’s stuck due to the gasket. Remove the old gasket as well.

Step 3: Add the New Fluid

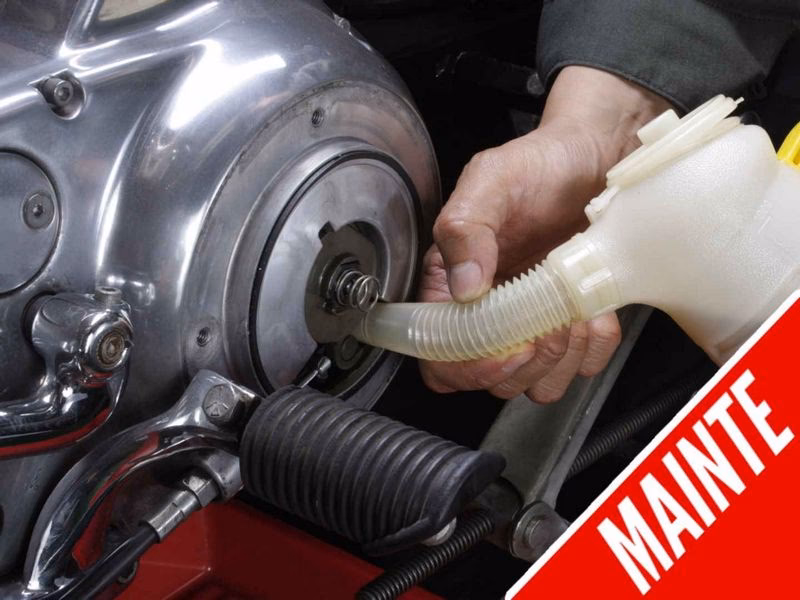

With the derby cover removed, you can now add the fresh transmission fluid. Using a funnel if necessary, carefully pour the new fluid into the primary chaincase through the derby cover hole. The amount of fluid required is crucial. For most Sportster 883 models, the capacity is typically around 2.5 to 3 U.S. pints (approximately 1.2 to 1.4 litres). Again, always refer to your owner's manual for the exact capacity.

Continue filling until the fluid level reaches the base of the clutch assembly. You should be able to see the clutch basket within the primary. The fluid level should come up to just below the bottom of the clutch plates. Overfilling can cause shifting problems and other issues, so it’s better to be slightly under than over.

Step 4: Reassemble the Derby Cover

Before reinstalling the derby cover, ensure the mating surfaces on both the cover and the primary case are clean. Fit a new gasket onto the primary cover or the derby cover itself, according to the gasket’s design.

Apply a small amount of anti-seize compound to the threads of the derby cover bolts. This will make them easier to remove in the future. Reinstall the derby cover, making sure the gasket is seated correctly. Then, thread in the derby cover bolts and tighten them evenly in a star pattern. Again, do not overtighten. Snug is good.

Step 5: Final Checks and Clean-up

Once the derby cover is securely in place, wipe away any spilled transmission fluid from the primary cover or surrounding areas with a shop towel. Start the motorcycle and let it run for a few minutes. Shift through the gears (while stationary, if possible, or on a short, safe ride). Listen for any unusual noises and check for leaks around the drain plug and derby cover.

Dispose of the old transmission fluid responsibly. Most auto parts stores accept used motor oil and transmission fluid for recycling. Never pour used fluid down drains or onto the ground.

Frequently Asked Questions

Q1: How often should I change my Sportster's transmission fluid?
It’s generally recommended to change the primary/transmission fluid every 5,000 to 10,000 miles or annually, whichever comes first. However, always check your owner's manual for the manufacturer's specific recommendations, as this can vary based on your model year and riding conditions.

Q2: Can I use a different brand of fluid than Harley-Davidson recommends?
Yes, you can use reputable aftermarket brands, provided the fluid is specifically formulated for Harley-Davidson transmissions and meets or exceeds the specifications outlined in your owner's manual. Avoid generic gear oils unless explicitly stated as suitable.

Q3: My Sportster is shifting hard after the fluid change. What could be wrong?
This could be due to several reasons: the fluid level might be too high or too low, you might have used the wrong type of fluid, or there could be an issue with the clutch adjustment. Double-check the fluid level and the type of fluid used. If the problem persists, it might be worth checking your clutch adjustment or consulting a mechanic.

Q4: Is it normal for the transmission fluid to look dirty?
Yes, it's normal for the transmission fluid to become discoloured and contain some metallic particles over time. This is due to the normal wear and tear of the gears and bearings. However, if you find a significant amount of metal shavings or the fluid smells burnt, it could indicate a more serious internal problem.

Q5: What is the capacity for a 2006 883 Sportster transmission fluid?
For a 2006 Harley-Davidson 883 Sportster, the primary/transmission fluid capacity is typically around 2.5 U.S. pints (approximately 1.2 litres). Always confirm with your owner's manual, as capacities can vary slightly between specific models and sub-models.

Performing regular maintenance like changing your transmission fluid is key to the longevity and performance of your Harley-Davidson Sportster. By following these steps and using the correct fluids, you can confidently keep your machine running at its best.
