Harley-Davidson Fuel Injector Replacement Guide

Do you own a Harley-Davidson bike, and you are looking to replace the fuel injectors but don’t know how to? If yes, then you are definitely in the right place. To replace fuel injectors on a Harley, you'll need to carefully remove the fuel tank, disconnect the injector wiring, and then remove the injector rail. After pulling out the old injectors, you can install the new ones, reconnect the wiring, and finally reinstall the fuel tank. It's absolutely crucial to ensure proper sealing and that there are no fuel leaks before attempting to start the engine. In this comprehensive article, you will get to know all about Harley-Davidson's fuel injector systems, a detailed guide on how to replace fuel injectors on your Harley-Davidson, how to properly test the new fuel injector, and much more. Continue reading to get all the answers that you are looking for.

Understanding Your Harley's Fuel System: What is the Electronic Fuel Injection System?

In simple terms, an electronic fuel injection (EFI) system is essentially a highly sophisticated, computer-controlled fuel delivery system. At the heart of this system is the Electronic Control Unit (ECU), which acts as the 'brain' of your bike's engine management. The ECU constantly reads data from various sensors strategically located throughout the vehicle. Based on this real-time information, it makes precise determinations about how much fuel should be delivered to the engine for optimal performance and efficiency.

The computer achieves this by opening and closing the fuel injectors with incredible speed and precision, allowing a metered amount of petrol into the engine. This process is entirely dependent on the sensor inputs and the detailed fuel map programmed into the system. The different sensors – including engine temperature, RPM (Revolutions Per Minute), air temperature, manifold pressure, throttle position, and crankshaft position – all provide vital information on the engine's current operating conditions and the load it is under. This intricate network ensures your Harley receives exactly the right amount of fuel at any given moment.

One of the major differences between various fuel injection systems lies in how the bike senses the amount of load placed on the engine. This load can be sensed by how far the rider has twisted the throttle (Throttle Position Sensor, or TPS) or by measuring the Manifold Absolute Pressure (MAP). EFI systems that sense the engine load primarily using the throttle or throttle position sensor are referred to as an Alpha-N system. Conversely, EFI systems that determine engine load by utilising a MAP sensor are known as a Speed-Density system.

Harley-Davidson, as a brand, has made use of both types of EFI systems on its bikes, evolving with technology and performance demands. While many of the individual sensors are common to both types of systems, there’s a significant difference in the fundamental way these two systems determine what the actual load on the engine is. Understanding which system your Harley employs is crucial for diagnostics and performance tuning.

Historically, the Magneti-Marelli system was employed on Twin Cam FLH models and EVOs until 2001, and Buell XL engines also utilised an Alpha-N EFI system. On these motorcycles, engine load sensing is primarily determined by the throttle position. The newer Delphi EFI system, found on current Twin Cam engines, is essentially a Speed Density system. This more modern system determines the engine load based on the intake manifold vacuum, offering a different approach to fuel metering.

Benefits of Different Types of Fuel Injection Systems

There are distinct benefits to each of these EFI systems, and the choice of system is often dictated by the specific vehicle design and its intended usage. When considering the Harley-Davidson Magneti-Marelli EFI system, its simplicity in using the throttle position sensor for determining engine load was a key factor in its adoption as the first OEM EFI system. This straightforward approach made it reliable for early fuel-injected models.

A Speed Density EFI system, on the other hand, requires a steady vacuum signal from the MAP sensor for the ECU to accurately determine the fuel mixture. If you have ever tried to read a vacuum gauge connected to a V-twin engine and observed the needle bounce erratically, you will better understand why a Speed Density EFI system wasn’t the first choice for Harley-Davidson engines, especially those with long-duration cams or individual intake runners which inherently produce less stable vacuum signals. Despite what might seem like an insurmountable problem with creating steady vacuum readings, modern engineering has provided many mechanical and electronic ways of calming these MAP readings for the ECU to utilise effectively.

The Delphi EMS system, which uses the manifold pressure from the Harley-Davidson intake, represents a significant leap forward. This system allows the bike to determine the load on the engine more accurately based on the vacuum in the manifold, rather than solely relying on the position of the throttle. The Delphi unit offers a higher level of sophistication and, crucially, provides enhanced ability to customise fuel maps in the field, making it highly adaptable for performance modifications and fine-tuning. This adaptability is one reason why it has become the prevalent system in more recent Harley-Davidson models.

Why Replace Fuel Injectors? Understanding the Symptoms

Fuel injectors are a critical component of your bike’s fuel system, responsible for delivering a precise, atomised amount of fuel into the engine's combustion chambers. Over time, these vital components can become clogged with deposits from fuel, or they may simply fail due to normal wear and tear and continuous operation under high pressure and temperature. When that happens, it’s absolutely essential to replace the faulty injector to ensure your engine is running effectively, efficiently, and reliably.

Ignoring a failing fuel injector can lead to a cascade of problems for your Harley. Common symptoms include a noticeable decrease in fuel economy, as the engine struggles to get the right fuel-air mixture. You might experience misfires, which manifest as a rough idle or a noticeable hesitation during acceleration, particularly at lower RPMs. The engine might feel sluggish, lacking its usual power, or you could observe a strong fuel smell if an injector is leaking. In some cases, a faulty injector can even trigger your check engine light, indicating a lean or rich condition in specific cylinders. Timely replacement not only restores performance but also prevents potential damage to other engine components, such as catalytic converters, which can be affected by unburnt fuel.

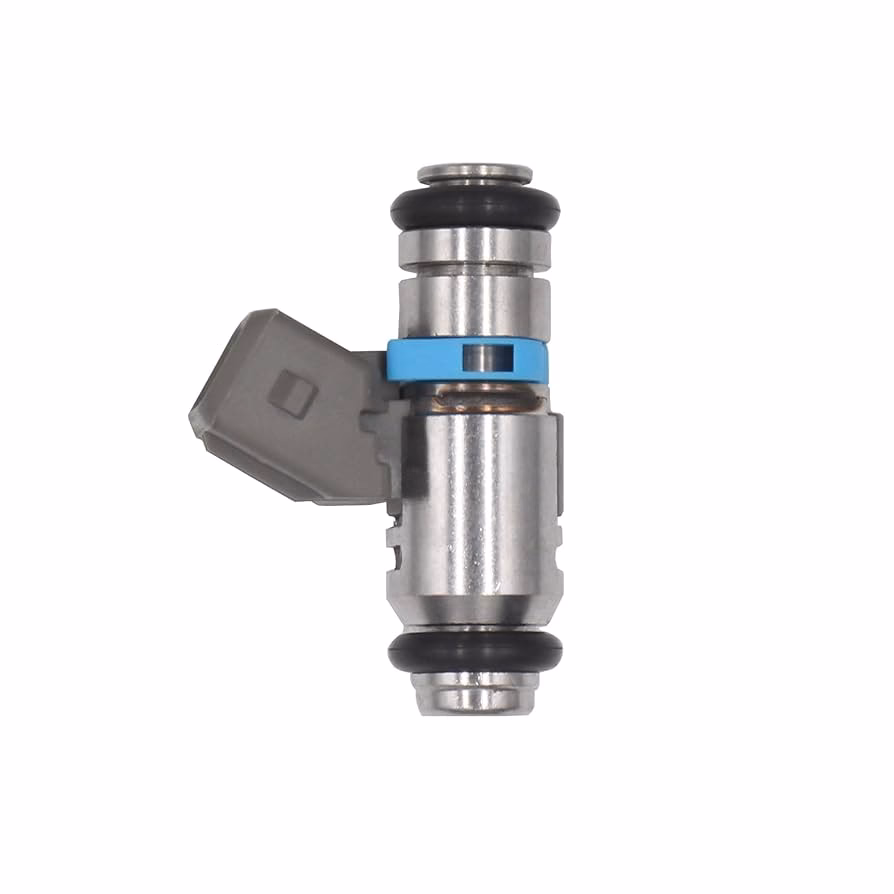

How to Replace Fuel Injectors on Harley-Davidson: A Step-by-Step Guide

Replacing a fuel injector on your Harley-Davidson might seem like a daunting task, but with the right tools, careful preparation, and a methodical approach, it's a job many home mechanics can confidently undertake. Before you begin, familiarise yourself with the process and gather all necessary items. Remember, safety first – always work in a well-ventilated area and be mindful of fuel fumes.

Tools and Materials Required

Before you get started, you should ensure that you have these essential tools and materials:

• New fuel injector(s) (ensure they are the correct part number for your specific Harley model)
• Socket set (metric and imperial may be needed for older models)
• Wrench set
• Fuel line disconnect tool (specific types may be required for Harley quick-disconnects)
• Screwdriver set (Phillips and flathead)
• Clean rags
• Torque wrench (crucial for proper reassembly)
• Safety glasses and gloves
• Container for draining residual fuel
• Dielectric grease (for electrical connectors)
• Fuel injector O-ring lubricant (or clean engine oil)

You might also require additional tools and materials specific to your bike’s year and model. It’ll be a good idea to consult your owner’s manual or a dedicated repair manual for precise instructions and torque specifications for your specific Harley-Davidson model. This can prevent damage and ensure a proper, leak-free installation.

Step 1: Prepare Your Bike for Fuel Injector Replacement

Before you start replacing the fuel injector, you will have to thoroughly prepare your Harley-Davidson bike. First, ensure you've got ample space to work safely and comfortably. It's often beneficial to lift the vehicle using a motorcycle jack and secure it using appropriate jack stands for stability. Disconnect the negative terminal of your battery to prevent accidental electrical issues. Then, gather all the tools and materials listed above and keep them within easy reach, as this will streamline the process.

Next up, and this is a critical safety step, you will have to relieve the pressure in the fuel injection system. This is absolutely essential for preventing fuel from spraying out when you are removing the fuel injector, which is not only messy but also a significant fire hazard. Consult your owner’s manual or the repair manual for specific instructions on how to relieve pressure in the fuel system of your bike. Common methods include pulling the fuel pump fuse and running the engine until it stalls, or locating a fuel pressure relief valve. You might have to use a fuel pressure gauge for checking the pressure and releasing it as needed. Once the pressure in the fuel system is relieved, you will be ready to start the fuel injector replacement process.

Step 2: Identifying and Locating the Fuel Injector

The first practical step when replacing a fuel injector will be identifying which one needs to be replaced. This can often be done by visually inspecting the injectors and looking for any obvious signs of wear or tear, such as visible leaks, cracks in the plastic body, or corrosion around the connectors. Alternatively, and more accurately, you can make use of diagnostic tools, such as an OBD-II scanner, for pinpointing the faulty injector by checking for specific fault codes (e.g., misfire codes tied to a particular cylinder). Consult your owner’s manual or the repair manual for specific instructions on how to use diagnostic tools on your specific bike.

Once you have identified the faulty fuel injector, the next step would be to locate it physically on the engine. In most Harley-Davidson bikes, the fuel injectors will be located near the intake manifold, typically nestled within the engine's V-twin configuration. They might be partially hidden by other components, such as the fuel tank, air cleaner assembly, or wiring harnesses, so you might have to carefully remove a few parts for accessing them. Remember to label any disconnected wires or hoses to ensure correct reassembly.

Step 3: Disconnect the Fuel Line

Once you have identified and located the fuel injector, and the fuel system pressure has been relieved, it will be time to begin the removal process. The fuel injector is directly connected to the main fuel line, so you will have to disconnect it. Use the appropriate fuel line disconnect tool for loosening the clamp or clip that is holding the fuel line in place. Harley-Davidson often uses quick-disconnect fittings, which require a specific tool or method to release. After that, pull the fuel line away from the fuel injector gently but firmly. Be extremely careful that you do not damage the fuel line or spill any residual fuel. Have rags ready to catch any drips, and consider placing a small container underneath.

Step 4: Remove the Mounting Hardware

The fuel injector itself, or the fuel rail that holds the injectors, is generally held in place with screws or bolts. These can vary in size and type depending on your specific Harley model. Use the appropriate wrench or socket for removing this mounting hardware. Keep track of all bolts and screws, perhaps by placing them in a labelled container or on a magnetic tray, to ensure nothing gets lost and that they can be reinstalled correctly.

Step 5: Remove the Old Fuel Injector

Once you have disconnected the fuel line and removed the mounting hardware, the old fuel injector will be loose. Carefully, you should pull it out of its mounting location. Be gentle but firm, taking care that you aren’t damaging any surrounding components, especially the delicate O-rings that seal the injector. In case the fuel injector is stuck, you might have to gently wiggle it back and forth or twist it slightly to loosen it from its seat. Avoid prying forcefully, as this can damage the injector bore or fuel rail. Once the fuel injector is removed, set it aside – it's often a good idea to compare the old injector with the new one to ensure they are identical.

Step 6: Clean the Mounting Location

Once the old fuel injector is removed, it will be time to prepare for the installation of the new fuel injector. Before installing the new unit, it’s critically important to clean the mounting location thoroughly. Use a clean rag to wipe away any dirt, debris, carbon deposits, or old O-ring residue that might have accumulated in the injector bore or around the fuel rail connection. This cleaning step is vital to help you ensure that there’s a proper, leak-free seal with the new injector and to prevent any debris from entering the fuel system, which could immediately cause issues with the new injector or even the engine itself.

Step 7: Install the New Fuel Injector

Now, carefully insert the new fuel injector into its mounting location. Before insertion, it's highly recommended to lightly lubricate the new O-rings on the injector with a small amount of clean engine oil or a suitable O-ring lubricant. This helps the injector slide in smoothly and prevents the O-rings from tearing or rolling, which could lead to a fuel leak. Ensure that the injector is seated properly and fully within its bore. After that, replace the mounting hardware you removed earlier, and then tighten it by making use of an appropriate wrench or socket. If you have access to a torque wrench, use the manufacturer’s specified torque settings (from your repair manual) to tighten these bolts. This prevents over-tightening, which can damage the injector or rail, and under-tightening, which can lead to leaks.

Step 8: Reconnect the Fuel Line and Electrical Connector

Once the new fuel injector has been securely installed, it’ll be time to reconnect the fuel line. Use the fuel line disconnect tool (or simply push the quick-disconnect fitting until it clicks) for securely attaching the fuel line to the new fuel injector. After that, double-check to ensure that the fuel line is properly secured and that there are no leaks. Don't forget to reconnect the electrical connector to the new fuel injector. Ensure it clicks into place and is firmly seated. A loose electrical connection can cause the injector to malfunction or not fire at all, leading to engine problems.

Step 9: Reinstall Components and Test the New Fuel Injector

Before you start riding your Harley-Davidson bike, it is absolutely important to test the new fuel injector to ensure that it is working properly and that there are no leaks. Reinstall any components you removed to gain access, such as the air cleaner assembly and, most importantly, the fuel tank. Connect the battery’s negative terminal. Consult your owner’s manual or repair manual to get specific instructions on how to test the new fuel injector on your bike. You might have to cycle the ignition several times (without starting the engine) to prime the fuel system and build pressure. Listen for the fuel pump engaging and check immediately for any signs of fuel leaks around the new injector before starting the engine. If there are no leaks, proceed to start the engine. Observe the fuel system for any issues, listening for smooth engine operation.

If the fuel injector has passed the visual leak check and the engine starts smoothly, you will be ready to move to the next step. If not, you might have to troubleshoot the issue or carefully repeat the installation process, paying close attention to the sealing O-rings and connections.

How to Test a New Fuel Injector After Installation

Once you have installed the new fuel injector, it will be important to thoroughly test it to ensure that it is working properly and that your Harley is ready for the road. You need to follow these crucial steps for testing your new fuel injector:

Step 1: Check for Any Leaks

The first and most immediate step to testing the new fuel injector would be to perform a meticulous check for any leaks. After reinstalling the fuel tank and reconnecting the battery, turn the ignition key to the 'on' position without starting the engine. This will usually activate the fuel pump, which primes the system and builds pressure. Carefully inspect the new fuel injector and the surrounding area for any potential fuel leaks. Pay close attention to the fuel line connection and where the injector seats into the manifold. In case you spot even the slightest leak, immediately shut off the engine (if running) or turn off the ignition. Then, tighten the mounting hardware and fuel line as necessary, ensuring all connections are secure. After making adjustments, you should re-test the fuel injector by priming the system again and re-inspecting for leaks.

Step 2: Check the Fuel Pressure

Next up, you will want to check the fuel pressure to ensure that it is within the proper range for your Harley-Davidson. Consult your owner’s manual or a specific repair manual for the exact fuel pressure range recommended for your bike’s model and year. Make use of a fuel pressure gauge, connecting it to the fuel system test port (if available) or inline with the fuel line. Compare the reading on the gauge to the recommended range. If the fuel pressure is too low or too high, there might be an issue not only with the new fuel injector but potentially with the fuel pump, fuel pressure regulator, or the fuel filter system as a whole. Incorrect fuel pressure can lead to poor performance or even damage.

Step 3: Test Drive Your Bike

The final and most practical step in testing the new fuel injector would be to take your Harley-Davidson bike for a test drive. During this drive, pay very close attention to how the engine is running. Listen for any unusual noises, such as misfires, knocking, or sputtering. Observe the throttle response – does it accelerate smoothly without hesitation? Is the idle stable and consistent? If the engine is running smoothly, responsively, and there aren’t any issues like the check engine light illuminating, it means that the new fuel injector is installed successfully and functioning correctly. If you notice any persistent issues, such as rough running, poor acceleration, or the check engine light reappearing, you might have to troubleshoot the issue further or, if necessary, repeat the entire installation process, ensuring every step was followed meticulously. Sometimes, a diagnostic scan after a test drive can reveal residual codes that need clearing or indicate other underlying problems.

By following these detailed steps, you will be confident that the new fuel injector is working properly and that your Harley-Davidson bike is running efficiently and reliably, ready for many more miles on the open road.

Frequently Asked Questions (FAQs)

Q1: How often should I replace fuel injectors on my Harley-Davidson?

Fuel injectors don't have a strict replacement schedule. They are typically replaced when symptoms of failure appear, such as misfires, rough idle, poor fuel economy, or a check engine light indicating a fuel-related issue. With proper maintenance and using quality fuel, they can last for many tens of thousands of miles. However, consistent use of low-quality fuel or prolonged periods of storage can lead to clogging or deterioration.

Q2: Can I clean my fuel injectors instead of replacing them?

For minor clogs, using a high-quality fuel system cleaner added to your fuel tank can sometimes help. However, for heavily clogged or mechanically failing injectors, professional ultrasonic cleaning or replacement is usually necessary. Cleaning is a viable option if the injector is just dirty, but if the internal components are worn or damaged, replacement is the only effective solution.

Q3: What are the common signs of a bad fuel injector on a Harley?

Common signs include a noticeable drop in fuel economy, engine misfires (especially under load), rough or erratic idle, hesitation or sluggish acceleration, a strong fuel smell (indicating a leak), and the illumination of the check engine light with codes related to fuel trim or misfires in specific cylinders.

Q4: Is it difficult to replace fuel injectors on a Harley-Davidson?

While not overly complex, it requires mechanical aptitude, specific tools (like a fuel line disconnect tool), and careful attention to detail. Relieving fuel pressure and ensuring no leaks are critical safety aspects. If you're comfortable with basic motorcycle maintenance, it's a manageable DIY task, but if unsure, professional assistance is recommended.

Q5: Do I need to tune my ECU after replacing injectors?

If you're replacing injectors with identical OEM (Original Equipment Manufacturer) parts, a tune is generally not strictly required, as the ECU's existing fuel map should still be appropriate. However, if you're installing aftermarket injectors with different flow rates, or if you've made other engine modifications, a professional ECU tune (often called a 'flash' or 're-map') is highly recommended. This ensures the engine runs optimally with the new injectors, preventing lean or rich conditions that can lead to poor performance or engine damage. For any significant changes, a dyno tune is the best way to maximise performance and reliability.

Q6: What is the average cost to replace Harley fuel injectors?

The cost varies significantly depending on whether you do it yourself or have a professional mechanic. The injectors themselves can range from £80 to £200+ per injector, depending on the model and whether they are OEM or aftermarket. If you hire a mechanic, labour costs can add several hours of shop time, typically ranging from £200 to £500 or more, making the total cost considerably higher.
