Harley Davidson 103 Oil Change Guide

The Harley-Davidson 103 engine is a powerhouse, but like any high-performance machine, it requires regular and correct maintenance to ensure longevity and optimal performance. Among the most crucial services you can perform yourself is the engine oil and filter change. This isn't just about keeping your engine clean; it's about protecting vital components from wear, managing heat, and ensuring smooth operation. While it might seem daunting at first, with the right information and a few basic tools, you can confidently tackle this essential task. This guide will walk you through the process, highlighting key steps and considerations for your HD 103.

Why Regular Oil Changes Matter for Your HD 103

Engine oil is the lifeblood of your motorcycle. For the robust Harley-Davidson 103, its role is even more critical. Over time, engine oil degrades due to heat, contamination, and shear forces. This degradation leads to:

• Reduced Lubrication: Worn-out oil loses its ability to create a protective film between moving parts, increasing friction and wear.
• Increased Heat: Oil helps dissipate heat generated by combustion and friction. Degraded oil is less effective, potentially leading to overheating.
• Sludge and Deposit Buildup: Contaminants and degraded oil can form sludge, which can clog oil passages and starve vital engine components of lubrication.
• Corrosion: Byproducts of combustion can contaminate the oil, making it acidic and corrosive to internal engine parts.

Regularly changing your oil and filter removes these contaminants and replenishes the oil with fresh, high-quality lubricant, ensuring your HD 103 continues to perform at its best.

Tools and Supplies You'll Need

Before you begin, gather all the necessary tools and supplies. Having everything ready will make the process smoother and more efficient.

Step-by-Step Oil and Filter Change Procedure

Follow these steps carefully to perform a successful oil and filter change on your Harley Davidson 103.

1. Prepare the Motorcycle

Warm up the engine for a few minutes. This helps the oil flow more easily, allowing more contaminants to be drained. However, be cautious – the oil and engine components will be hot. Park the motorcycle on a level surface. If you're lifting the bike, ensure it's stable and secure.

2. Locate and Loosen the Fill Plug

Find the oil fill cap on your engine. Loosen it, but don't remove it completely just yet. Leaving it slightly loose allows for venting as the oil drains, preventing a vacuum from forming. This also acts as a temporary barrier against debris falling into the engine.

3. Drain the Old Oil

Position your drain pan beneath the oil drain plug. Using the appropriate socket or wrench, carefully loosen and remove the drain plug. Allow the old oil to drain completely. This can take several minutes. While the oil is draining, inspect the drain plug and its threads for any signs of damage. Clean the drain plug thoroughly.

4. Remove the Old Oil Filter

While the oil is draining, turn your attention to the oil filter. Locate the oil filter. Place your drain pan underneath it, as some residual oil will spill out when the filter is removed. Use your oil filter wrench to loosen the old filter. Be gentle and try not to disturb any surrounding wiring or sensors. Once loosened, unscrew the filter by hand. Carefully remove the old filter, keeping it upright as much as possible to minimize spillage. Ensure you also remove the old rubber gasket from the filter mounting surface – this is a common mistake that can lead to leaks.

5. Prepare and Install the New Oil Filter

Before installing the new filter, it's good practice to pre-fill it with a small amount of new oil (about 1/3 to 1/2 quart). This helps to get oil circulating faster upon startup. Also, lightly lubricate the rubber gasket on the new filter with a thin film of new oil. This ensures a good seal and makes future removal easier. Screw the new filter onto the mounting point by hand until the gasket makes contact. Then, tighten it an additional 3/4 to 1 full turn by hand, or as per the filter manufacturer's instructions. Hand-tightening is crucial; over-tightening can damage the filter or the mounting surface.

6. Replace the Drain Plug

Clean the drain plug thoroughly. Remove the old washer or gasket from the drain plug and replace it with a new one. Apply a small amount of Teflon paste or thread sealant to the drain plug threads, if recommended by your service manual. This helps create a better seal and prevents the plug from seizing. Carefully thread the drain plug back into the oil pan by hand to avoid cross-threading. Once it's snug, use your torque wrench to tighten it to the manufacturer's specified torque. For many Harley-Davidson models, this is typically in the range of 14-21 foot-pounds (ft-lbs), but always refer to your specific service manual.

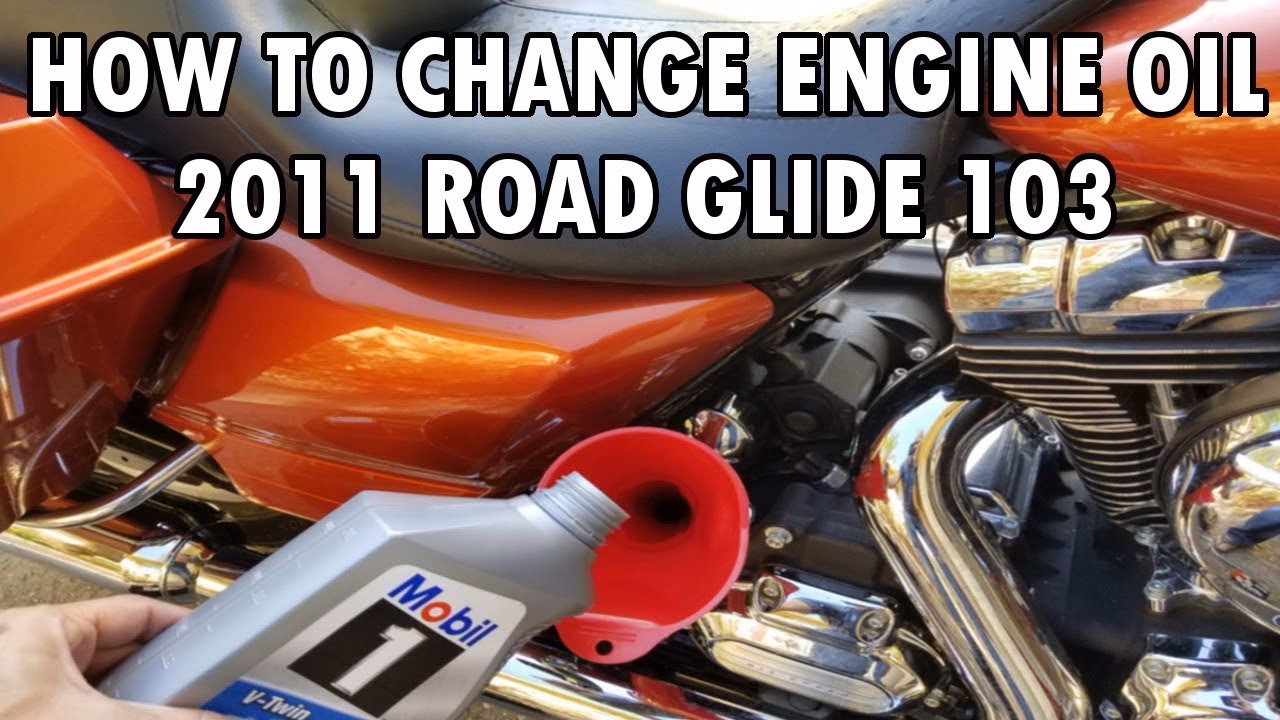

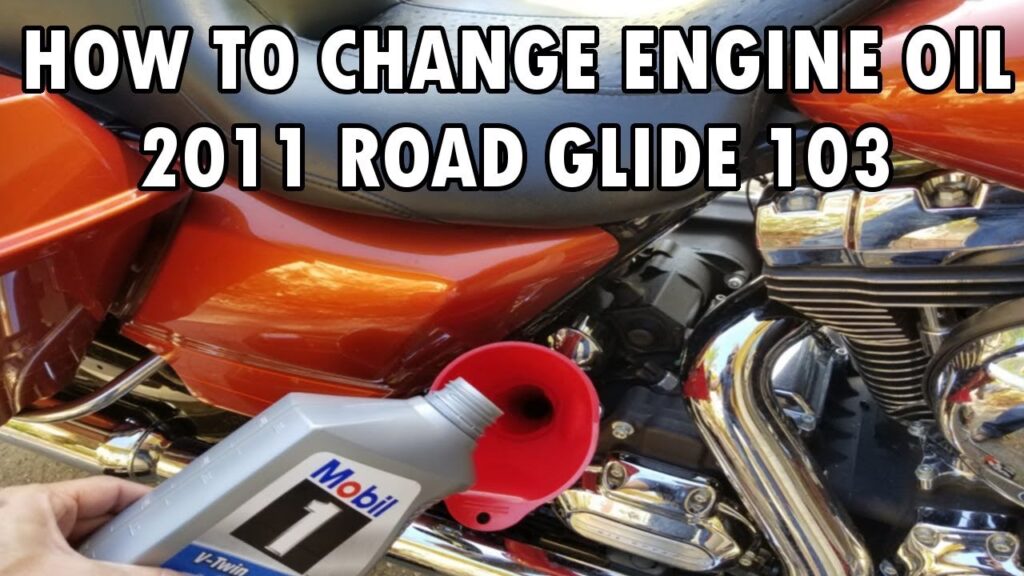

7. Refill with New Oil

Remove the loosened fill plug completely. Insert a clean funnel into the fill opening. Pour in the recommended amount of new engine oil. For the HD 103, this is typically around three quarts initially, but always verify your motorcycle's specific capacity. Do not overfill.

8. Check the Oil Level

After adding the initial amount of oil, replace the fill plug. Start the engine and let it run for a few minutes. This allows the new oil to circulate through the engine and fill the new oil filter. Shut off the engine and wait a few minutes for the oil to settle back into the oil pan. Locate the oil dipstick. Remove it, wipe it clean, reinsert it fully, and then remove it again to check the oil level. The oil level should be between the 'Add' and 'Full' marks, or within the designated hash marks on the dipstick. Check the level with the motorcycle on its kickstand, or ideally, standing level, as specified in your manual.

9. Final Adjustments and Checks

If the oil level is low, add small amounts of oil (a few ounces at a time), run the engine briefly, and recheck the level until it is within the correct range. Overfilling can cause significant damage to your engine, so be patient and precise. Once the oil level is correct, ensure the fill plug is securely tightened. Wipe away any spilled oil from the engine casing and surrounding areas. It's also a good idea to run the engine for a short period and then check for any leaks around the drain plug and oil filter. A final check of the oil level after a short ride is also recommended.

Common Pitfalls and How to Avoid Them

Even with a straightforward procedure, there are a few common mistakes that can lead to problems. Being aware of these can save you headaches:

• Forgetting the Old Filter Gasket: This is perhaps the most common error. Always ensure the old gasket is removed with the old filter. If it remains stuck to the engine, a new gasket will be installed on top of it, leading to a massive oil leak.
• Over-tightening the Drain Plug or Filter: Overtightening can strip threads on the oil pan or damage the oil filter, leading to leaks or making future removal extremely difficult. Always use a torque wrench for the drain plug and follow filter installation guidelines.
• Overfilling the Oil: Too much oil can cause the crankshaft to whip the oil into a froth, reducing its lubricating properties and potentially leading to foaming and increased pressure. It can also cause oil to be forced past seals and gaskets.
• Using the Wrong Oil: Always use oil that meets the specifications recommended by Harley-Davidson for your HD 103. Using the wrong viscosity or type can lead to improper lubrication and potential engine damage.
• Not Replacing the Drain Plug Washer: The crush washer or gasket on the drain plug is designed to deform and create a seal. Reusing an old, hardened washer significantly increases the risk of leaks.

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil and filter on my HD 103?
It's generally recommended to change the oil and filter every 5,000 miles or annually, whichever comes first. However, always consult your Harley-Davidson service manual for the most accurate interval based on your riding conditions.

Q2: Can I use a different brand of oil filter?
Yes, you can use reputable aftermarket oil filters, but ensure they are specifically designed for your Harley-Davidson 103 engine. Harley-Davidson branded filters are always a safe bet.

Q3: What kind of oil is best for my HD 103?
Harley-Davidson typically recommends specific weights and types of oil (e.g., SYN3 or V-Twin specific oils). Check your owner's manual for the exact specifications. Using oil that meets or exceeds these specifications is crucial.

Q4: My new oil filter leaked. What could be wrong?
This is most likely due to either the old gasket not being removed, the new gasket not being lubricated, or the filter not being tightened correctly. Double-check these points.

Q5: Is it okay to leave the fill cap off while the engine is running?
No, never leave the fill cap off while the engine is running. It should be removed only for adding oil and then replaced immediately once the level is checked or adjusted. It also prevents debris from entering the engine.

Conclusion

Changing the oil and filter on your Harley-Davidson 103 is a fundamental maintenance task that directly impacts your motorcycle's performance and lifespan. By following these detailed steps, using the correct tools and supplies, and paying close attention to detail, you can ensure this vital service is performed correctly every time. Regular maintenance like this will keep your beloved HD 103 running smoothly for many miles to come, offering you the freedom and reliability that Harley-Davidson is known for. Remember, if you're ever unsure about any step, consulting your service manual or a qualified technician is always the best course of action.
