Diesel Priming Tools: Your Essential Guide

For any diesel vehicle owner, understanding the intricacies of the fuel system is crucial for smooth operation and longevity. One often overlooked yet incredibly vital component in maintaining a healthy diesel engine, especially after certain maintenance tasks, is the diesel fuel pump priming tool. This unassuming device plays a critical role in ensuring your engine receives a consistent, air-free supply of fuel, preventing potential damage and frustrating starting issues.

In essence, a diesel fuel pump priming tool is designed to remove air from the fuel lines and fuel pump, a process known as 'priming' or 'bleeding' the fuel system. Unlike petrol engines, diesel systems are highly sensitive to air. Even small pockets of air can disrupt fuel delivery, leading to misfires, rough idling, or a complete failure to start. This guide will delve into why these tools are indispensable, how they work, the different types available, and how to use them effectively to keep your diesel running flawlessly.

Why Priming is Absolutely Essential for Diesel Engines

Diesel engines rely on precise fuel injection under high pressure. For this to happen correctly, the fuel system must be completely free of air. Air, being compressible, prevents the fuel pump from building up the necessary pressure to deliver fuel efficiently to the injectors. This phenomenon is commonly referred to as an airlock. Several scenarios can introduce air into your diesel fuel system, making priming a necessary procedure:

• Fuel Filter Replacement: This is perhaps the most common reason for needing to prime. When the old fuel filter is removed and a new one installed, air inevitably enters the filter housing and the surrounding fuel lines.
• Running Out of Fuel: Accidentally running your diesel tank dry is a sure-fire way to introduce air into the entire fuel system, from the tank to the engine.
• Fuel System Repairs: Any work that involves opening the fuel lines, such as replacing a fuel pump, injectors, or fuel lines themselves, will allow air to enter.
• Leaking Fuel Lines: Small leaks in fuel lines can draw air into the system, particularly if the leak is on the suction side of the fuel pump.

Ignoring the need for priming can lead to significant problems. Beyond just failing to start, repeated attempts to start an unprimed engine can cause strain and damage to the fuel pump and injectors, leading to costly repairs. A properly primed system ensures immediate and smooth fuel delivery, protecting these vital components.

How a Diesel Fuel System Operates (A Quick Overview)

To fully appreciate the priming tool, it's helpful to understand the basic flow of fuel in a diesel engine. Fuel is drawn from the fuel tank by a lift pump (which might be in the tank or an external unit) and then passes through a fuel filter to remove contaminants. From there, it goes to the high-pressure fuel pump (often referred to simply as the fuel pump), which pressurises the fuel to extremely high levels. This high-pressure fuel is then delivered to the injectors, which atomise and spray it into the combustion chambers at precisely the right moment.

The priming tool's job is to ensure that the entire path from the tank, through the filter, and up to the high-pressure pump is filled solely with diesel fuel, completely free of air bubbles, before the engine attempts to start. If air is present, the high-pressure pump can't build pressure, and the injectors won't fire.

Decoding the Different Types of Diesel Priming Tools

Priming tools come in various forms, each suited to different vehicle designs and user preferences. Understanding the options will help you choose the right tool for the job.

1. Manual Hand Priming Pumps (Bulb or Lever Type)

These are perhaps the most common and traditional priming tools. They are simple, effective, and require no external power.

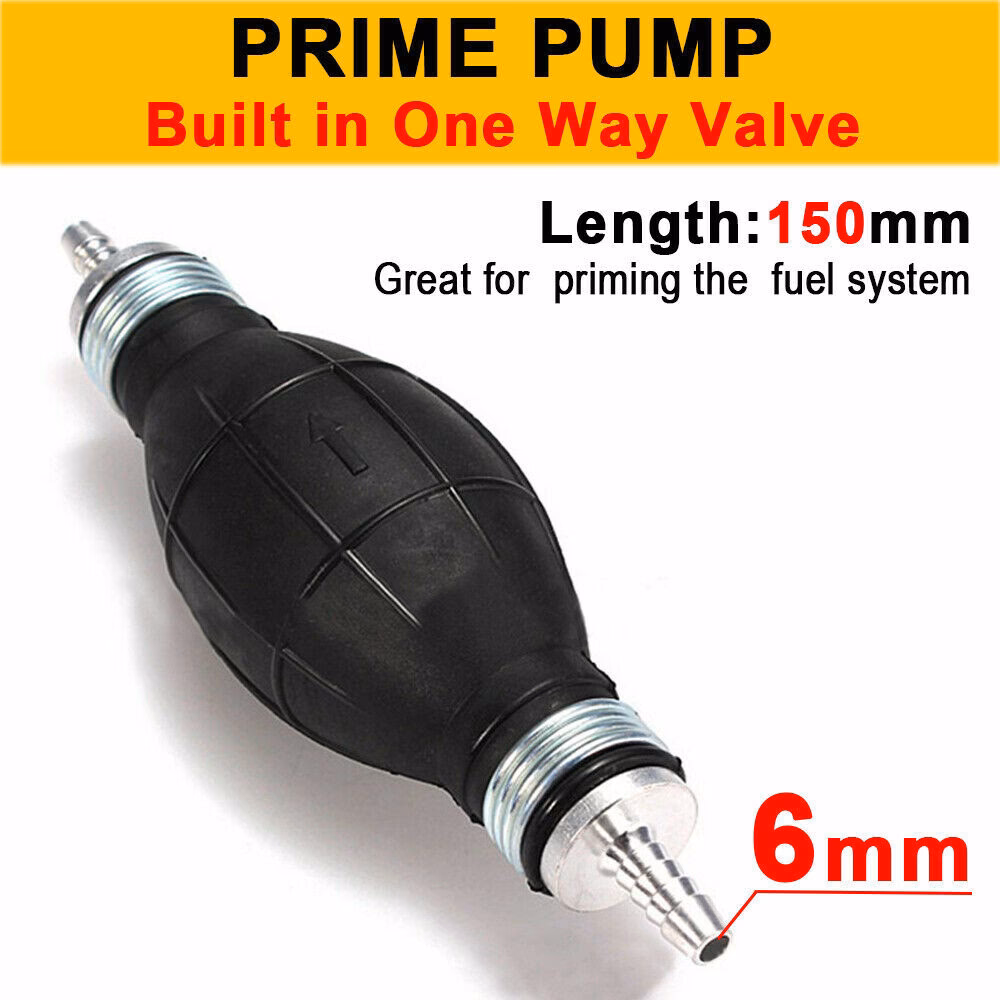

• Rubber Bulb Pumps: Often found as an inline component in the fuel line, particularly on older vehicles or as an aftermarket addition. You simply squeeze the bulb repeatedly to draw fuel and expel air.
• Lever-Operated Pumps: Some fuel filter housings or standalone lift pumps feature a small lever that you pump up and down manually to prime the system. These are common on commercial vehicles and some older passenger cars.

Pros: Inexpensive, easy to use, no power required. Cons: Can be physically tiring, slower than electric options, may not provide enough pressure for all modern systems.

2. Electric Priming Pumps

These tools take the physical effort out of priming and are often more efficient, especially for larger or more complex systems.

• Inline Electric Pumps: These are temporary pumps that connect into the fuel line. They run on a 12V power supply (e.g., from a car battery) and rapidly push fuel through the system, forcing air out.
• Vehicle-Integrated Electric Pumps: Many modern diesel vehicles have an electric lift pump within the fuel tank or near the fuel filter. These can often be activated by turning the ignition to the 'on' position (without starting the engine) for a few seconds, or through diagnostic equipment.

Pros: Fast, requires less effort, can build higher pressure. Cons: Requires a power source, generally more expensive, might need specific connectors.

3. Vacuum/Pressure Priming Tools

These are more professional tools, often used by mechanics, that can both draw a vacuum to pull fuel through the system or apply pressure to push it.

• These versatile tools can be used for various diagnostic tasks as well as priming. They connect to specific points in the fuel system.

Pros: Highly effective, versatile for diagnostics, precise control. Cons: More complex to use, significantly more expensive, typically for professional use.

How to Use a Diesel Fuel Pump Priming Tool: A Step-by-Step Guide

While the exact procedure may vary slightly depending on your vehicle and the tool, the general principles remain the same. Always consult your vehicle's service manual for specific instructions.

Preparation and Safety First

1. Read Your Manual: Your vehicle's manual will provide the most accurate information on its specific priming procedure and any unique requirements.
2. Safety Gear: Wear appropriate personal protective equipment, including gloves and eye protection. Diesel fuel can be an irritant.
3. Ventilation: Work in a well-ventilated area to avoid inhaling fuel fumes.
4. Cleanliness: Ensure the area around the fuel system components is clean to prevent contaminants from entering the system.

The Priming Process

1. Locate the Priming Point: This is typically on or near the fuel filter housing. It might be a small hand pump, a bleeder screw, or a quick-connect fitting for an external priming tool.
2. Connect the Tool (if external): If using an external manual or electric priming pump, you'll usually connect it inline between the fuel tank and the fuel filter, or at a designated priming port. Ensure connections are secure to prevent leaks and further air ingress.
3. Operate the Priming Tool:
   • Manual Pump: Pump the bulb or lever repeatedly. You'll initially feel less resistance as air is pushed through.
   • Electric Pump: Activate the pump (e.g., connect to 12V supply).
   • Vehicle's Electric Pump: Turn the ignition to the 'on' position (without starting the engine) for 10-20 seconds. Repeat this a few times.
4. Monitor for Fuel Flow and Air Bubbles: Many fuel filter housings have a clear section or a bleeder screw. As you prime, observe for clear fuel flow and the absence of air bubbles. Continue priming until only solid, bubble-free fuel emerges. If there's a bleeder screw, open it slightly while priming until fuel, not air, comes out, then tighten it.
5. Bleed the Injector Lines (if necessary): On some older or more stubborn systems, you might need to loosen the fuel lines at the injectors one by one (starting from the one closest to the fuel pump) while cranking the engine, until fuel squirts out. This is a last resort and should be done with extreme caution due to high-pressure fuel. Modern common rail systems typically self-bleed.
6. Start the Engine: Once you're confident the system is primed, try to start the engine. It might crank a bit longer than usual initially, but should then fire up. If it runs roughly, let it idle for a few minutes to allow any remaining tiny air bubbles to work their way out.
7. Check for Leaks: After the engine is running, carefully inspect all connections for any fuel leaks.

The Undeniable Benefits of Proper Priming

Utilising a diesel fuel pump priming tool correctly offers numerous advantages:

• Prevents Engine Damage: By ensuring air-free fuel delivery, you protect delicate and expensive components like the high-pressure fuel pump and injectors from running dry or being subjected to air cavitation.
• Ensures Reliable Starts: A properly primed system means your engine will start quickly and consistently, reducing wear on the starter motor and battery.
• Maintains Performance: Air in the fuel system can lead to poor engine performance, reduced power, and increased fuel consumption. Priming restores the fuel system's fuel system integrity.
• Saves Time and Money: Avoiding the need for professional assistance to bleed an airlocked system, or worse, repairing damaged components, saves both time and significant expense.

Common Mistakes to Steer Clear Of

Even with the right tool, missteps can occur. Be aware of these common errors:

• Not Priming Enough: The most frequent mistake. It's better to over-prime slightly than to under-prime. Air must be completely expelled.
• Over-Priming (Manual Pumps): While less critical than under-priming, excessive manual pumping can sometimes put unnecessary strain on the fuel filter or lines if there's no relief valve.
• Ignoring Air Bubbles: Don't assume a little air is okay. If you see bubbles, keep priming.
• Using the Wrong Tool: Ensure the priming tool is compatible with your vehicle's fuel system and connections.
• Introducing Contaminants: Always work in a clean environment to prevent dirt or debris from entering the open fuel system.

Frequently Asked Questions About Diesel Priming Tools

Q: Can I start my diesel engine without priming after a fuel filter change?

A: It is highly unadvisable. While some modern systems are designed to be "self-priming" to a degree (meaning they have an electric lift pump that runs for a few seconds when the ignition is turned on), relying solely on this can still leave air in the system. Always follow the manufacturer's priming procedure to avoid potential damage to the fuel pump and injectors.

Q: How often do I need to prime my diesel fuel system?

A: You only need to prime the system when air has entered it. This typically occurs after replacing the fuel filter, running out of fuel, or performing other maintenance that opens the fuel lines. It's not a regular maintenance item unless you have an underlying issue causing air ingress.

Q: What if my car doesn't seem to have a manual priming pump?

A: Many modern diesel vehicles rely on an electric lift pump within the fuel tank to prime the system. In such cases, turning the ignition key to the 'on' position (without starting the engine) for 10-20 seconds a few times will usually activate this pump and prime the system. Consult your vehicle's manual for the exact procedure. Some may also require a diagnostic tool to activate the pump.

Q: Can I use a universal priming tool, or do I need a specific one for my car?

A: Many manual hand priming bulbs or inline electric pumps are universal in their function, but you will need to ensure they have the correct diameter connectors to fit your fuel lines. For vehicles with integrated priming mechanisms or specific diagnostic activation, a universal tool might not be suitable, and you may need to rely on the vehicle's own system or a compatible diagnostic scanner.

Q: How do I know if my diesel engine is still airlocked after priming?

A: Common symptoms of an airlocked system include the engine cranking but not starting, starting and then immediately stalling, rough idling, or misfires once it does start. If you observe these, it's likely there's still air in the system, and you'll need to re-prime.

Conclusion

The diesel fuel pump priming tool, whether it's a simple hand bulb or a sophisticated electric unit, is an indispensable part of diesel engine maintenance. It acts as a guardian, preventing air from causing havoc within your precision-engineered fuel system. By understanding its purpose, knowing the different types, and following proper priming procedures, you can ensure your diesel vehicle remains reliable, efficient, and free from costly fuel system issues. Don't underestimate the power of a good prime – it's the key to a happy, healthy diesel engine on British roads.
