Volvo Haldex Fluid Change: Essential Maintenance

Often, certain crucial maintenance tasks on our vehicles slip under the radar, especially when the manufacturer doesn't explicitly state a service interval. The Haldex all-wheel drive (AWD) system in many Volvo models is a prime example. While Volvo may not specify a rigid maintenance schedule for the Haldex unit, just like the engine oil that lubricates vital moving parts, the fluid within your Haldex system is absolutely critical for its long-term health and optimal performance. Neglecting this often-forgotten component can lead to costly repairs, including the infamous Haldex pump failure, which is a common ailment in higher mileage vehicles.

This comprehensive guide will delve into why a Haldex fluid change is a wise investment for your Volvo, detail the models it applies to, break down the costs and time involved, and provide a thorough, step-by-step walkthrough for performing the service yourself. Understanding and addressing this maintenance item proactively can save you significant expense and ensure your Volvo's AWD system remains reliable, giving you confidence on the road, come rain or shine.

Why a Haldex Fluid Change is Crucial for Your Volvo

The Haldex system is a sophisticated piece of engineering designed to provide power to all four wheels when needed, enhancing traction and stability. It achieves this through a clutch-based system that precisely controls power distribution. The fluid inside this unit, often referred to as Haldex oil, is responsible for lubricating the clutch plates, bearings, and the intricate pump mechanism. Over time, this fluid degrades due to heat and shear forces, accumulating microscopic metallic particles and clutch material. This contamination reduces its lubricating properties and can lead to increased wear on components, ultimately impairing the system's function.

While Volvo's official stance might not include a specific mileage or time interval for Haldex fluid changes, real-world experience, particularly with higher mileage vehicles, strongly suggests the benefits. Think of it this way: your engine oil gets changed regularly because it gets dirty and loses its effectiveness. The Haldex fluid, though operating in a sealed environment, is no different. It's subjected to intense pressure and heat, especially during periods of active AWD engagement. This leads to breakdown and contamination. A fluid that has lost its protective properties can cause the Haldex pump to work harder, leading to premature wear and eventual failure. A failing Haldex pump can result in a complete loss of AWD functionality, often accompanied by dashboard warning lights and potentially expensive diagnostics and repairs.

In many cases, a fluid change is performed as part of a Haldex pump replacement, as all the fluid must be drained during that procedure anyway. This highlights just how integral the fluid is to the pump's operation. Proactive maintenance, including a fluid change, can significantly extend the life of your Haldex pump and the entire AWD system, saving you the headache and expense of a breakdown.

Applicable Volvo Models and Years

This maintenance guide primarily applies to Volvo models built on the P3 platform equipped with the Haldex all-wheel drive system. If your Volvo falls within these model years, considering a Haldex fluid service is highly recommended:

DIY vs. Professional Service: Costs and Time

Deciding whether to tackle the Haldex fluid change yourself or have a professional garage handle it often comes down to cost, confidence, and convenience. Fortunately, this is a job that is very achievable for the average DIY enthusiast, offering significant savings.

Cost Comparison

As you can see, opting for the DIY approach can cut your costs by roughly half. While a professional garage won't charge you for the use of the fluid extractor tool, their labour rates will quickly add up. Completing this job yourself not only saves you money but also adds a valuable skill to your automotive maintenance repertoire and gives you a deeper understanding of your vehicle.

Time Commitment

While this isn't a physically demanding job, it does require careful attention to detail and cleanliness, as there are several sensitive components involved. Setting aside approximately one hour should give you ample time to complete the procedure without rushing. This estimate accounts for jacking up the car, performing the service, and the crucial post-service checks.

Tools and Parts You'll Need

To successfully perform the Haldex fluid change on your Volvo, you'll need a specific set of tools and the correct parts. Gathering these beforehand will ensure a smooth and efficient process.

Required Tools:

• Hydraulic jack and jack stands (essential for safety)
• Wheel chocks
• 10mm socket and ratchet
• T10 bit socket and ratchet/driver
• Small pick tool (for O-rings)
• Flathead screwdriver or a coin (e.g., a dime/10p coin)
• Catch pan (for draining old fluid)
• Clean rags
• Torque wrench (recommended for proper bolt tightening)
• Safety glasses and gloves

Required Parts:

• Genuine Volvo Haldex fluid (ensure it's the correct specification for your model)
• Haldex pump seal kit (should include new O-rings and possibly a filter screen)
• New service plug (for the fill hole)
• Brake cleaner spray

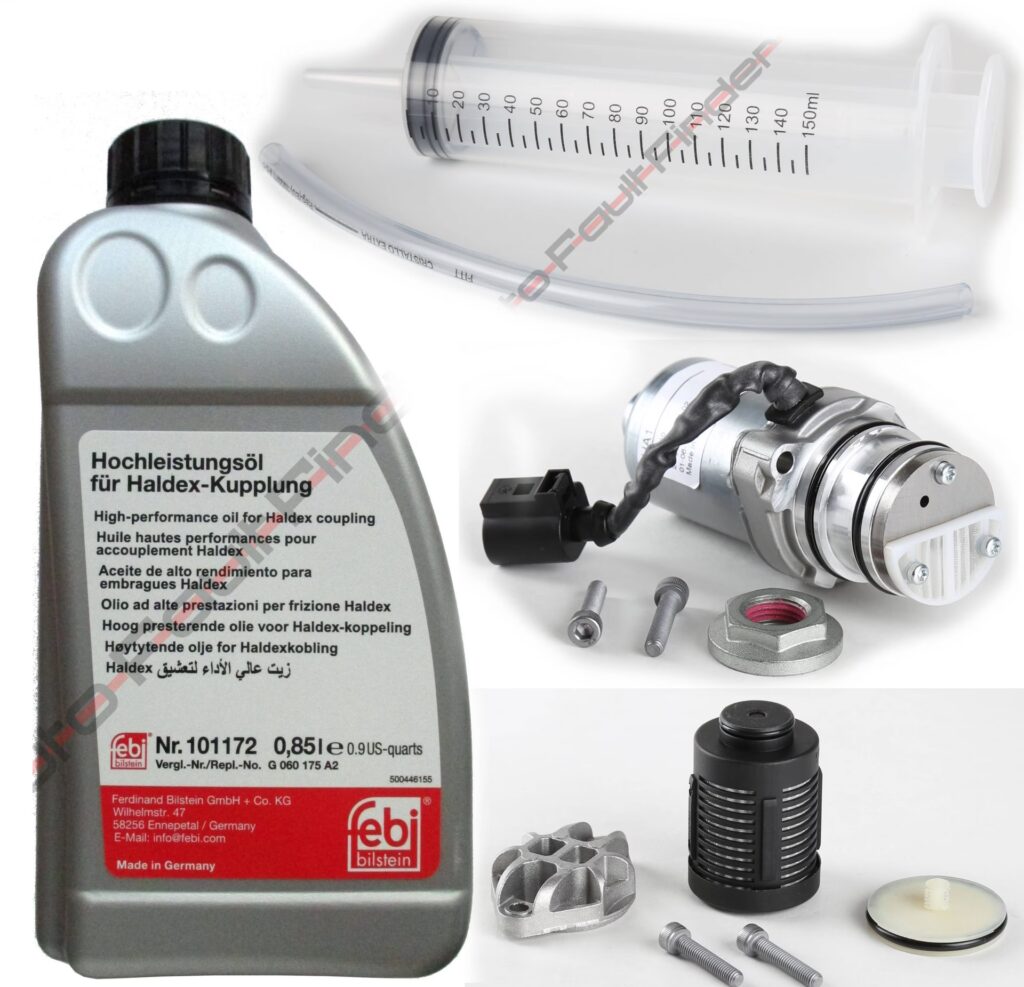

• Fluid extractor/pump (often included in a comprehensive service kit, essentially a large syringe)

Step-by-Step Guide: Servicing Your Volvo's Haldex System

Before you begin, ensure your Volvo is on a level, solid surface. Safety is paramount when working under a vehicle. Never rely solely on a jack; always use sturdy jack stands.

Step 1: Preparation and Safely Elevating Your Volvo

Begin by chocking the front wheels of your Volvo to prevent any movement. Using your hydraulic jack, raise the rear of the vehicle as high as safely possible. Once at the desired height, carefully position your jack stands securely under the vehicle's designated jacking points. Double-check that the car is stable on the stands before proceeding. It's also a good idea to leave the jack in place as an additional safety measure, but without it bearing the full weight of the car. Having a clean work surface and your tools organised nearby will streamline the process.

Step 2: Removing the Haldex Pump

Once your Volvo is safely elevated, slide underneath the rear. The Haldex system is situated at the back of the transmission, integrated with the rear differential. You'll need to locate the Haldex pump, which is usually a compact unit attached to the differential casing. The first order of business is to disconnect its electrical connection. This is typically a plastic clip that you'll need to depress or pull to release.

Next, identify the two bolts that secure the pump to the differential housing. These are usually 10mm bolts. Using your 10mm socket and ratchet, carefully remove these two mounting bolts. Once the bolts are out, the pump might not simply fall free. You'll need to gently wiggle the pump from side to side and pull it outwards. As you extract the pump, be prepared for some Haldex fluid to drain out. Position your catch pan directly underneath to collect the old fluid. This fluid will likely be dark and potentially sludgy, indicating its degraded state.

Step 3: Servicing the Haldex Pump and Cleaning

With the pump removed, take it to a clean work surface. This step is critical for ensuring the longevity of your newly serviced system. Have your new seals ready. Locate the small filter screen on the pump; it's typically secured by two tiny screws, which you'll remove using a T10 bit socket. Upon removing the screen, you'll likely find a significant amount of black, sludgy gunk. This is accumulated debris and worn clutch material, and it's precisely why cleaning is so important. Use brake cleaner and a clean rag to meticulously clean out all this residue from the filter and the pump's housing. Ensure it's spotless.

Next, using your pick tool, carefully remove the two old O-rings from the pump. These seals are crucial for preventing leaks and maintaining proper pressure. Once again, use brake cleaner and a rag to thoroughly clean the entire surface of the pump that seats inside the differential housing. Any lingering debris can contaminate the new fluid or impede the pump's function. With the pump meticulously cleaned, install the two new O-rings from your seal kit. It's good practice to lubricate these new O-rings slightly with some of the new Haldex fluid; this helps them slide into place without damage during reinstallation.

Before reinstalling the pump, take a moment to clean the differential housing itself, specifically the area where the pump sits. Any gunk residing here could immediately re-contaminate your freshly cleaned pump or new fluid. Once clean, carefully reinsert the pump into the housing, ensuring the O-rings seat correctly. Resecure it with the two 10mm bolts you removed earlier. It's advisable to use a torque wrench to tighten these bolts to the manufacturer's specified torque, if known, to prevent overtightening or loosening. Finally, plug the electrical connection back into the pump controller, ensuring it clicks firmly into place.

Step 4: Refilling the Haldex Fluid

The fill plug for the Haldex system is typically located just behind where the pump attaches, on the differential casing. This plastic plug often has a slit in its centre, roughly the thickness of a coin. While a flathead screwdriver might seem like an option, there often isn't enough clearance due to the exhaust system. This is where a coin, such as a 10p piece, becomes incredibly useful. Insert the coin into the slit and use it to turn and remove the fill plug.

Now, take your fluid extractor/pump (the large syringe). Fill it with the new, clean Haldex fluid. Carefully insert the nozzle of the syringe into the fill hole and begin pumping the new fluid into the system. Continue to fill until the fluid starts to leak out slowly from the fill hole. This indicates that the system is full. Avoid overfilling, as this can cause issues.

Once the fluid begins to seep out, remove the syringe and immediately reinsert the fill plug. Use your coin to tighten the plug securely. There's no need to overtighten, but ensure it's snug. Use brake cleaner and a rag to clean off any fluid that may have spilled or run out of the differential during the filling process. A clean workspace not only looks professional but also helps you spot any potential leaks later.

Step 5: Final Checks and Test Drive

With the Haldex system refilled and all components resecured, carefully lower your Volvo from the jack stands and remove the jack. Once the car is back on the ground, it's time for a crucial step: the test drive. This short drive will cycle the new fluid through the entire Haldex system, ensuring it reaches all components and displaces any remaining air pockets. Drive normally, allowing the AWD system to engage briefly if conditions allow.

After your test drive, raise the car back up on jack stands (or a lift, if available) and re-check the fluid level. Sometimes, after cycling, the fluid level might drop slightly as it settles into all the nooks and crannies of the system. If needed, add a small amount of fluid until it again slowly leaks from the fill hole. Once satisfied with the level, re-secure the fill plug and clean up any final drips. Your Volvo's Haldex AWD system has now been successfully serviced!

Common Issues and Frequently Asked Questions

Understanding the common issues associated with the Haldex system and having answers to frequently asked questions can further empower you as a Volvo owner.

What is a Haldex system?

The Haldex system is an electronically controlled, hydraulically operated all-wheel-drive coupling. It's designed to automatically and instantaneously transfer power between the front and rear axles based on traction needs, providing enhanced stability and grip without the constant drag of a traditional full-time AWD system.

How often should I change my Volvo Haldex fluid?

While Volvo doesn't specify an interval, based on the accumulation of contaminants and the importance of the fluid, many independent Volvo specialists and enthusiasts recommend changing the Haldex fluid every 60,000 miles (approximately 100,000 kilometres) or every five years, whichever comes first. This proactive approach helps prevent premature wear and pump failures.

Can I use generic fluid for my Haldex system?

Absolutely not. The Haldex system requires a very specific type of fluid designed for its unique clutch and pump mechanisms. Using generic transmission fluid or any other non-specified fluid can lead to severe damage and costly repairs. Always ensure you use genuine Volvo Haldex fluid or a product explicitly approved for your specific Haldex generation.

What are the signs of a failing Haldex pump or low fluid?

Symptoms can include a complete loss of all-wheel drive, especially noticeable in slippery conditions. You might also experience delayed AWD engagement or unusual noises from the rear differential area. Often, a failing pump will trigger a diagnostic trouble code (DTC) and illuminate a warning light on your dashboard, indicating an issue with the AWD system.

Is this a difficult DIY job for a beginner?

While it requires attention to detail and adherence to safety procedures, the Haldex fluid change is generally considered a manageable DIY task for someone with basic mechanical aptitude. The most crucial aspects are safely jacking up the car, maintaining cleanliness throughout the process, and ensuring the correct fluid and parts are used. If you're comfortable with basic car maintenance, you should be able to tackle this.

What happens if I neglect my Haldex fluid change?

Neglecting the Haldex fluid change can lead to fluid degradation, increased friction, and ultimately, premature wear on the Haldex pump and clutch packs. This can result in a loss of AWD functionality, costly pump replacement (which can be several hundred pounds for parts alone, plus labour), and potentially damage to other components within the differential.

Conclusion

Servicing your Volvo's Haldex all-wheel drive system, particularly changing the fluid and cleaning the pump filter, is a vital maintenance step that should not be overlooked, especially for higher mileage vehicles. While Volvo's official guidelines may not explicitly state a service interval, the benefits of proactive maintenance are clear. By investing a small amount of time and money, you can significantly extend the lifespan of your Haldex unit, prevent costly repairs, and ensure your Volvo continues to deliver reliable all-wheel drive performance. Taking the initiative to perform this service yourself is a rewarding experience that saves money and enhances your understanding of your vehicle. Keep your Volvo running smoothly and confidently, no matter the road conditions, by prioritising this essential maintenance.
