Choosing the Right Big Bore Kit for Your GY6 Engine

So, you're looking to squeeze a bit more power out of your GY6-powered scooter, ATV, or buggy? Upgrading your engine with a big bore kit is a popular and effective way to achieve this. However, with a variety of options available, it's easy to get lost in the technical jargon and end up with the wrong parts. This guide is designed to demystify the process, helping you make an informed decision and avoid common pitfalls when selecting a big bore kit for your 125cc or 150cc GY6 engine.

Understanding Your GY6 Engine

Before diving into big bore kits, it's crucial to correctly identify your engine. While the GY6 platform is common, there are variations, particularly in the smaller 50cc models which use different components than their 125cc and 150cc counterparts. Ensuring you have a 125cc or 150cc GY6 is the first step. If you're unsure, a quick online search with your vehicle's make and model, or checking engine case markings, can often provide clarity. Links in the description can offer deeper insights into engine identification if you're still in doubt.

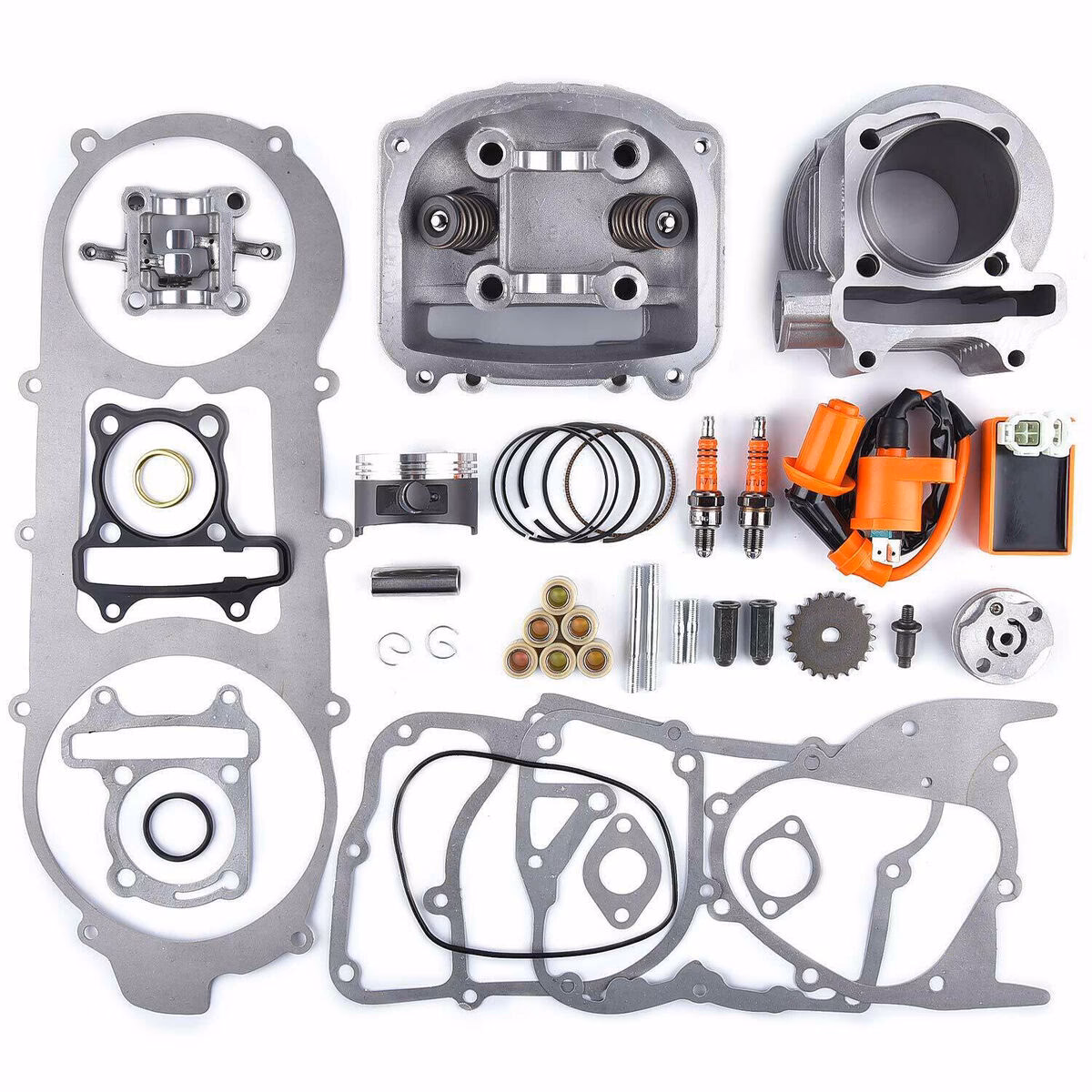

Key Components of a Big Bore Kit

A big bore kit essentially increases the displacement of your engine by using a larger cylinder and piston. The main components you'll encounter are:

• Cylinder: This is the main housing for the piston. The bore size of the cylinder determines the engine's displacement.
• Piston: This moves up and down inside the cylinder. Its diameter is crucial for the displacement increase.
• Piston Rings: These seal the combustion chamber and manage oil.
• Gudgeon Pin and Clips: These connect the piston to the connecting rod.
• Base Gasket: This seals the cylinder to the crankcase. The thickness of this gasket can affect compression.

Drop-in vs. Non-Drop-in Kits: A Crucial Distinction

This is perhaps the most significant factor when choosing a big bore kit. It dictates the complexity of the installation and whether you'll need to modify your existing engine cases.

Drop-in Kits

Drop-in kits are designed to fit directly into your GY6 engine cases without requiring any machining or modification. These are typically the most sought-after kits for DIY enthusiasts due to their ease of installation. They are often pre-assembled or designed for a straightforward swap. For example, a Pro Build GY6 171cc Big Bore Kit is often a drop-in compatible option, simplifying the upgrade process.

Non-Drop-in Kits

Non-drop-in kits, on the other hand, require significant modifications to your engine cases. Specifically, kits with larger bore sizes (generally anything above 61mm) will often need the crankcase to be bored out to accommodate the larger cylinder. This process requires specialized tools and expertise, making it a more involved and potentially costly upgrade. Kits sourced from general marketplaces like eBay might fall into this category if they are not explicitly advertised as drop-in compatible and require assembly or case modifications.

Table 1: Drop-in vs. Non-Drop-in Kits

Piston Types: Forged vs. Cast

The material and construction of the piston play a vital role in performance, durability, and cost. You'll primarily encounter two types: cast and forged pistons.

Cast Pistons

Cast pistons are manufactured by pouring molten aluminum alloy into a mold. They are the most common type found in OEM engines due to their lower production cost. Cast pistons are generally suitable for everyday use and can offer good longevity if not pushed too hard. However, they are less resistant to heat and stress compared to forged pistons, making them less ideal for high-performance applications or frequent aggressive riding.

Forged Pistons

Forged pistons are made by heating a solid billet of aluminum alloy and then hammering or pressing it into shape under immense pressure. This process aligns the grain structure of the metal, making forged pistons significantly stronger, more durable, and more resistant to heat and detonation. They are the preferred choice for racing and high-performance builds. However, they are more expensive and, in some cases, can be noisier in daily use, potentially causing 'piston slap' due to their tighter tolerances when cold.

Table 2: Comparison of Piston Types

Understanding CC and Bore Sizes

Big bore kits are often advertised by their new displacement, such as 171cc or 180cc. These figures are derived from the increased bore size. For example, a common GY6 is 52.4mm bore (150cc class). Moving to a 61mm bore (standard for many 171cc kits) or a 63mm bore (for 180cc kits) significantly increases the engine's capacity.

• 171cc Big Bore Kit: Typically uses a 61mm piston. Many 61mm kits are designed as drop-in options.
• 180cc Big Bore Kit: Often uses a 63mm piston. These kits are more likely to require engine case modifications.
• 190cc Big Bore Kit Package: This suggests an even larger bore size, almost certainly requiring case machining.

It's vital to match the bore size of the kit to your engine's capability and your willingness to perform case modifications. Always check the specifications of the kit you are considering.

Compression Ratios: Dome vs. Flat Pistons

Beyond the piston material, the shape of the piston crown also impacts performance. This relates directly to the engine's compression ratio.

Dome Pistons

Dome pistons have a raised, domed shape on their crown. This design increases the compression ratio of the engine. Higher compression generally leads to more power and torque, especially in the low to mid-range. However, it can also increase the risk of detonation (engine knock) and may limit the engine's ability to rev freely.

Flat Pistons

Flat pistons have a flat crown, similar to the original GY6 piston. These result in a lower compression ratio compared to dome pistons. While they might produce slightly less peak torque, they are generally safer for higher RPM operation and reduce the risk of detonation, offering a more balanced performance profile suitable for a wider range of riding conditions.

Additional Kit Specifications and Considerations

Base Gaskets

High-performance kits often come with multiple base gaskets of varying thicknesses. The base gasket seals the cylinder to the crankcase. A thinner gasket will effectively increase the compression ratio, while a thicker gasket will maintain a lower, or standard, compression ratio. This allows for some tuning of the compression without needing custom machining.

Ceramic-Coated Cylinders

For larger displacement kits, especially those exceeding 61mm (like 180cc or 190cc kits), managing heat becomes more critical. Cylinders with ceramic coatings offer improved heat dissipation and reduced friction, which can enhance performance and longevity. If you're opting for a significantly larger bore, consider a kit with this feature.

Performance Enhancements to Complement Your Big Bore Kit

A big bore kit is a fantastic starting point, but to truly unlock your GY6's potential, consider complementary upgrades:

• Big Valve Cylinder Heads: These heads feature larger intake and exhaust valves, allowing for better airflow into and out of the combustion chamber. This directly improves combustion efficiency and power output, especially when paired with a big bore kit. A 61mm Big Valve Cylinder Head is a common pairing for 171cc kits.
• Performance Camshafts: A performance camshaft, like a PROBLD GY6 Camshaft, is designed with different lift and duration profiles than stock cams. These can be optimized for low to mid-range torque, providing better acceleration and responsiveness.

Going Beyond 171cc and 180cc

While 171cc and 180cc kits are popular, larger displacements are achievable. Kits advertised as 190cc or even higher are available. However, as displacement increases, the likelihood of requiring engine case modifications and more robust supporting components also rises.

For those seeking extreme displacement, stroker cranks can be used in conjunction with big bore kits to further increase engine capacity, potentially exceeding 205cc. These modifications are complex and typically reserved for highly experienced builders aiming for maximum performance.

Common Pitfalls to Avoid

1. Misidentifying Engine Size: Don't buy parts for a 50cc GY6 if you have a 150cc, or vice-versa. Ensure compatibility.
2. Ignoring Case Compatibility: Assuming a kit will fit without checking if it's drop-in or requires machining can lead to costly mistakes and delays. Always verify if the bore size requires case boring.
3. Underestimating Supporting Mods: A big bore kit puts more stress on other engine components. Consider upgrading your carburetor, exhaust, and clutch if you're making significant power gains.
4. Using Low-Quality Components: Cheaper, unbranded kits might seem attractive, but they often use inferior materials, leading to premature failure. Reputable brands generally offer better quality and support.

Frequently Asked Questions (FAQs)

Q1: Do I need a new carburetor with a big bore kit?

A1: Yes, most big bore kits, especially those increasing displacement to 171cc or more, will benefit significantly from a larger carburetor. A PROBLD GY6 171cc Big Bore Kit with Carburetor includes this essential component.

Q2: Will a big bore kit affect my scooter's fuel economy?

A2: Generally, yes. Increased displacement and potential for higher RPMs will likely reduce fuel economy, especially if you ride aggressively.

Q3: Can I install a big bore kit myself?

A3: If you choose a drop-in kit and have basic mechanical skills, it's often manageable. Non-drop-in kits require specialized machining services.

Q4: How much horsepower can I expect from a 171cc kit?

A4: Gains vary depending on the kit quality, installation, and other modifications, but expect a noticeable increase, often in the range of 15-25% or more over a stock 150cc engine.

Conclusion

Choosing the right big bore kit for your GY6 engine is a critical step in upgrading its performance. By understanding the differences between drop-in and non-drop-in kits, the implications of forged versus cast pistons, and the impact of piston crown design on compression, you can make a confident selection. Remember to consider complementary upgrades like performance cylinder heads and camshafts to maximise your engine's potential. Always verify specifications and, if in doubt, consult with experienced mechanics or reputable suppliers. With the correct kit and careful installation, you can enjoy a significant boost in power and performance from your GY6-powered machine.

Check the links in the description for more information on kits and parts that best suit your GY6 engine build. Thanks for tuning in, and we’ll see you in the next video!
