The suspension on your motorcycle is a complex system designed to provide a comfortable and controlled ride. At the heart of this system lie the front forks, which are responsible for absorbing shocks and maintaining tyre contact with the road. A crucial element for their optimal performance is the correct amount and type of fork oil. This article will delve into the intricacies of motorcycle fork oil, covering everything from determining the right oil level to the process of changing it, ensuring your bike handles as it should.

Understanding Fork Oil Levels

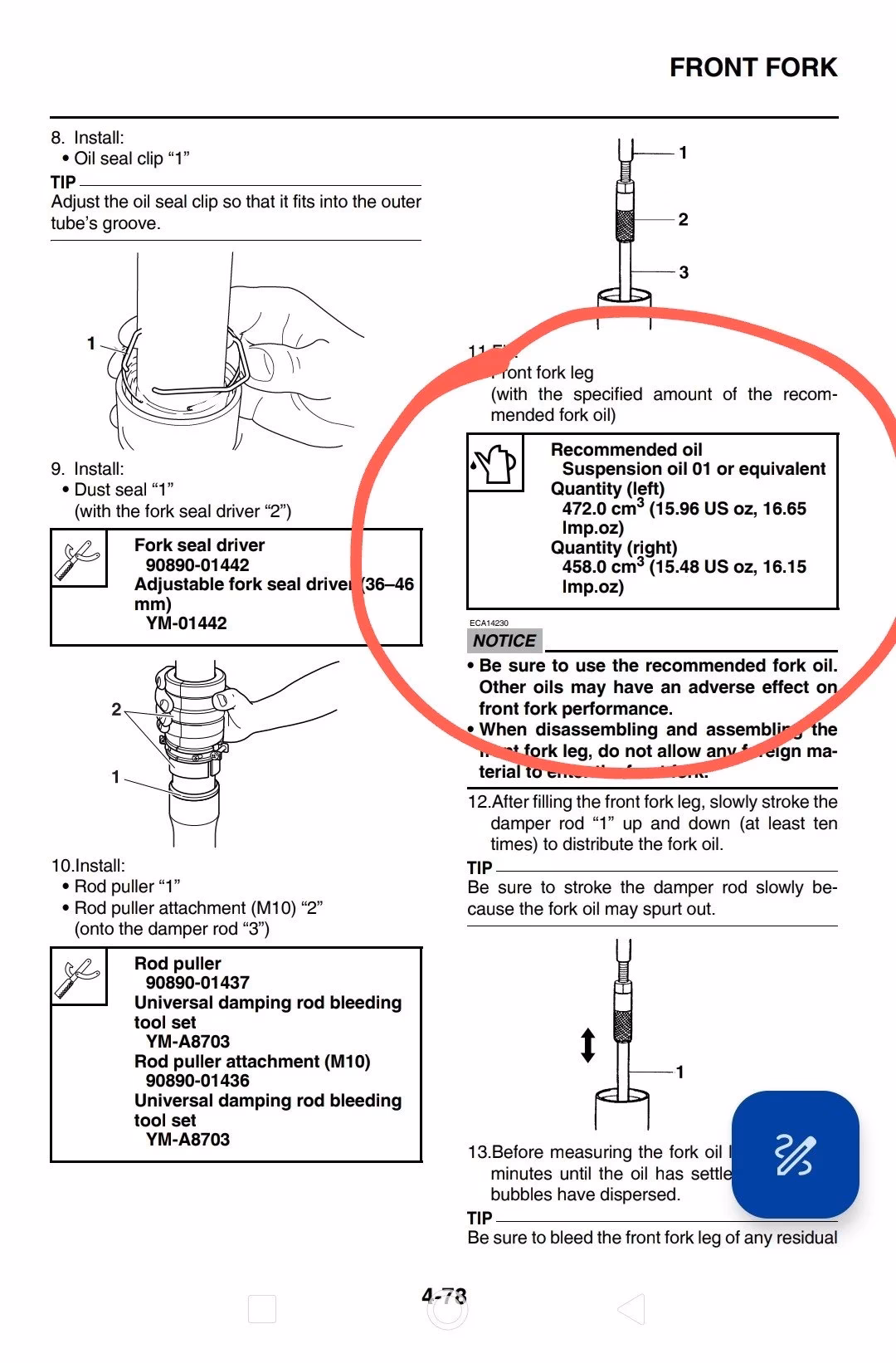

One of the most common questions riders have is about the correct oil level in their motorcycle forks. Unlike engine oil, which is measured by a dipstick or sight glass, fork oil is typically measured by its level within the fork leg when fully compressed. For instance, the Yamaha FZ-07 manual specifies a 162 mm oil level with the forks fully compressed and without any internal components like springs, washers, or spacers. This method accounts for the volume displaced by these parts when they are installed. It's vital to follow the manufacturer's specifications precisely. Too little oil can lead to a harsh ride and poor damping, while too much oil can cause the forks to feel stiff and potentially blow seals under pressure.

Why is the Right Oil Level Crucial?

Fork oil serves a dual purpose: lubrication and damping. It lubricates the moving parts within the fork leg, such as the sliders and bushings, reducing friction and wear. More importantly, it acts as a hydraulic fluid, controlling the compression and rebound of the suspension. The oil is forced through small passages and valves within the fork's damping system. The resistance created by the oil's viscosity and the size of these passages determines how quickly the fork compresses and extends. The oil level directly influences the volume of air trapped above the oil. This trapped air acts as a spring, and its compression is a significant part of the damping process. An incorrect oil level can disrupt this delicate balance, leading to:

• Poor Damping Performance: The bike may feel bouncy, dive too much under braking, or wallow in corners.
• Harsh Ride: Insufficient oil can lead to the forks bottoming out harshly or feeling overly stiff.
• Seal Damage: Overfilling can create excessive pressure within the fork leg, potentially forcing oil past the seals and causing leaks.
• Uneven Wear: Incorrect damping can lead to premature wear of internal fork components.

How to Check Your Fork Oil Level

Checking the fork oil level requires a bit more effort than a simple engine oil check. The general procedure involves:

1. Drain the Forks: This is the first step and often the trickiest. You'll need to remove the front wheel and the forks from the motorcycle. Once the forks are out, you'll typically unscrew the top cap. Some forks have a drain screw at the bottom of the lower leg, but many do not. If there's no drain screw, the oil must be drained by inverting the fork assembly.
2. Compress the Forks: With the forks removed and the top caps loosened (but not fully removed), carefully compress the fork leg. This will push most of the old oil out through the top.
3. Measure the Level: This is where precision is key. Many DIY methods exist. One effective way, as described by a rider, involves using zip ties. Cut a zip tie to the manufacturer's specified measurement (e.g., 162 mm for the FZ-07). Insert the zip tie into the fork leg with the cut end hanging down. Slowly pour in the new fork oil. As you pour, watch the oil's surface tension with a flashlight. When the oil level reaches the cut end of the zip tie, it will break the surface tension, indicating the correct level. Alternatively, use a dedicated fork oil measurement tool, which is essentially a syringe with a calibrated tube that fits into the fork leg.

How to Change Your Motorcycle Fork Oil

Changing your fork oil is a rewarding DIY task that can significantly improve your bike's handling. Here’s a step-by-step guide:

Tools and Materials You'll Need:

• New fork oil (correct weight and quantity specified by your manufacturer)
• Metric wrenches and sockets
• Allen keys
• Screwdrivers
• Fork oil refill tool or a syringe with a long tube
• Measuring tool (calibrated stick or zip tie)
• Drain pan or container
• Shop rags or paper towels
• Gloves
• Safety glasses
• Plexiglass or clear tubing (optional, for draining)
• Zip ties (if using the DIY measurement method)
• Torque wrench

Step-by-Step Procedure:

1. Preparation: Ensure your motorcycle is safely supported, ideally on a motorcycle stand that lifts the front wheel off the ground.
2. Remove Front Wheel and Forks: Loosen the axle pinch bolts and remove the front wheel. Loosen the triple clamp bolts and carefully slide the fork legs out of the triple clamps. You may need to remove fairings or other components to access the fork leg bolts.
3. Drain the Old Oil: This is where methods can vary.
• With Drain Plugs: If your forks have drain plugs at the bottom of the lower leg, simply place a drain pan underneath and carefully unscrew the plugs. Let all the old oil drain out.
• Without Drain Plugs: Loosen the top fork cap (this can be under pressure, so do it carefully). Once loosened, invert the fork assembly over a drain pan. Pump the fork leg several times to expel as much old oil as possible. You can also use a piece of clear tubing attached to the fork's rebound adjuster (if present) to drain the oil from the bottom.
4. Clean the Forks: While the forks are disassembled, it's a good opportunity to clean the exterior of the fork legs. Inspect the fork seals and bushings for any signs of wear or damage.
5. Refill with New Oil: Once drained, reassemble the forks as much as possible, ensuring the top cap is loosely in place and the fork is upright. Using your fork oil refill tool or syringe, carefully add the specified amount of new fork oil. Measure the oil level according to the manufacturer's instructions (e.g., 162 mm with the fork fully compressed and no springs).
6. Reassemble: Once the oil level is correct, carefully reinstall the springs, spacers, and any other internal components. Screw the top fork cap back on securely.
7. Reinstall Forks and Wheel: Slide the fork legs back into the triple clamps, ensuring they are at the correct height (often marked). Tighten the triple clamp bolts to the manufacturer's specified torque. Reinstall the front wheel and tighten the axle and pinch bolts.
8. Final Checks: Pump the front forks several times to ensure proper operation and check for any leaks.

Choosing the Right Fork Oil

Fork oil is not a one-size-fits-all product. It's classified by its viscosity, typically indicated by a "weight" number (e.g., 5W, 10W, 15W). The correct weight depends on several factors:

• Manufacturer's Recommendation: Always refer to your motorcycle's owner's manual for the recommended fork oil weight.
• Riding Style and Conditions: A softer, more compliant ride might benefit from a lighter weight oil, while aggressive riding or track use might call for a heavier oil for more damping resistance.
• Climate: In colder climates, a lighter oil might be preferred to avoid thickening, while in hotter climates, a slightly heavier oil can maintain its viscosity.
• Synthetic vs. Conventional: Synthetic fork oils generally offer more consistent performance across a wider temperature range and can provide better lubrication and longer service life compared to conventional oils. However, they are typically more expensive.

Many manufacturers offer different weights of fork oil, and some riders even experiment with mixing weights to achieve a custom feel. For example, mixing 5W and 10W oil can create a 7.5W oil.

Common Fork Oil Issues and Troubleshooting

Issue: Forks feel too soft or bottom out easily.

Possible Cause: Insufficient oil level or using oil that is too light.

Solution: Check and correct the oil level. Consider using a slightly heavier weight oil for the next change.

Issue: Forks feel too stiff or harsh.

Solution: Possible overfilling or using oil that is too heavy. Check the oil level and ensure it's within the manufacturer's specifications. If the correct oil weight was used, you might consider a lighter weight oil.

Issue: Leaking fork seals.

Possible Cause: Worn seals, dirt ingress, or excessive pressure due to overfilling.

Solution: Inspect seals for damage. Clean the fork legs thoroughly. If the seals are damaged, they will need to be replaced. Ensure the oil level is correct.

Frequently Asked Questions (FAQs)

Q1: How often should I change my fork oil?

A1: It's generally recommended to change fork oil every 10,000 to 20,000 miles, or annually, depending on your riding habits and conditions. However, if you notice a degradation in suspension performance, it's best to change it sooner.

Q2: Can I use motor oil in my motorcycle forks?

A2: No, you should never use motor oil in your motorcycle forks. Fork oil is specifically formulated for damping and lubrication within the suspension system and has different viscosity and additive properties than motor oil.

Q3: What does it mean if my forks feel spongy?

A3: A spongy feel can indicate air in the fork oil or a low oil level. Ensure the oil level is correct and that the forks have been properly bled of air during the oil change.

Q4: How important is the oil level measurement?

A4: The oil level measurement is critical. It dictates the amount of air trapped in the fork, which directly affects the spring rate and damping characteristics. Precision is key for optimal suspension performance.

By understanding and properly maintaining your motorcycle's fork oil, you can significantly enhance your riding experience, ensuring a smoother, more controlled, and safer journey. Always consult your owner's manual for specific details pertaining to your motorcycle model.
