Understanding Functional Safety in Cars

The Crucial Role of Functional Safety in Modern Vehicles

As the automotive industry hurtles towards the era of software-defined vehicles, the complexity of modern cars has exploded. These sophisticated machines are now equipped with numerous electronic systems, each running millions of lines of code. With this increasing reliance on electronics to monitor and control virtually every aspect of a vehicle's operation, from engine management to advanced driver-assistance systems (ADAS), passenger safety has never been more critical. This is where Functional Safety, or FuSa, steps in. FuSa is not an afterthought; it's a fundamental pillar of the product development process for any automotive electrical and electronic system, designed to guarantee their safe and reliable operation. At its core, FuSa is about adopting a systematic, proactive approach to identify, assess, and implement measures to mitigate the risks and potential hazards that could arise from system failures. The ultimate goal? To ensure that should something go wrong, it fails in a predictable and safe manner, preventing harm to occupants and other road users. For the automotive sector, the guiding principle and the definitive benchmark for this rigorous safety development process is the international standard ISO 26262 - Road Vehicles - Functional Safety. This comprehensive standard provides a framework for achieving functional safety throughout the entire lifecycle of automotive electrical and electronic systems.

What Exactly is Functional Safety?

Functional Safety is a discipline concerned with the absence of unreasonable risk due to hazards caused by malfunctioning behaviour of electrical and/or electronic systems. It focuses on how a system reacts when it deviates from its intended function. In simpler terms, it's about ensuring that your car's electronic brains and brawn behave as expected, and if they don't, they do so in a way that minimises danger. This involves a deep dive into potential failure modes and their consequences. For instance, consider a critical system like the anti-lock braking system (ABS). If the ABS malfunctions, it could lead to unintended acceleration or deceleration, or even complete loss of braking. Functional Safety aims to prevent such catastrophic failures or, at the very least, manage them gracefully. This might involve designing redundant systems, implementing robust error detection mechanisms, or ensuring that a failure results in a safe state, such as a warning light illuminating or the vehicle entering a limp-home mode.

The ISO 26262 Standard: A Deep Dive

The ISO 26262 standard is a multi-part standard that addresses the specific needs of the automotive industry for functional safety. It's a risk-based approach, meaning that the level of safety measures required is directly proportional to the potential severity of a hazard. The standard categorises hazards based on their potential impact on safety, leading to the assignment of an Automotive Safety Integrity Level (ASIL). ASILs range from ASIL A (the lowest level of safety requirement) to ASIL D (the highest level of safety requirement). The higher the ASIL, the more stringent the development processes, verification, and validation activities need to be. Let's break down the key concepts and lifecycle stages covered by ISO 26262:

Concept Phase

This initial phase is critical for defining the overall safety goals of the system. It involves identifying potential hazards, assessing their risks, and determining the appropriate ASIL for each identified hazard. The output of this phase is the Safety Plan, which outlines the entire safety lifecycle activities.

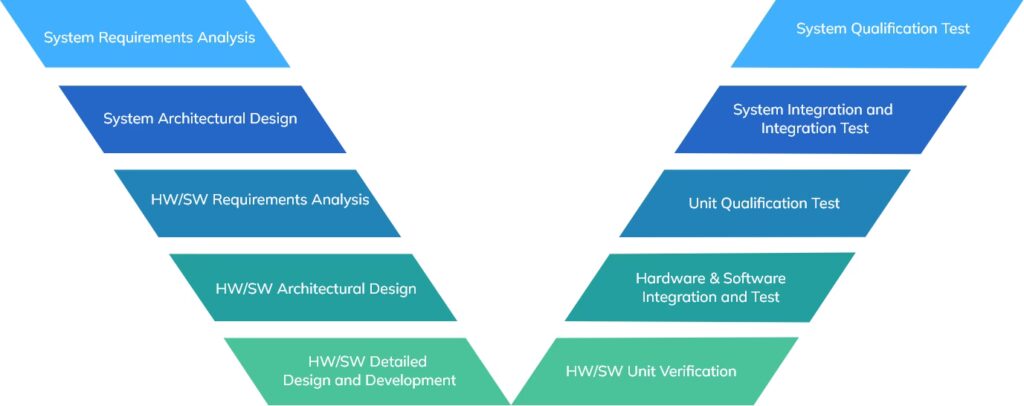

Product Development: System, Hardware, and Software Levels

This is where the bulk of the work happens. ISO 26262 provides detailed requirements for:

• System Level: Defining the system architecture, specifying safety requirements, and ensuring that the system as a whole meets its safety goals. This includes requirements for fault detection, fault tolerance, and safe states.
• Hardware Level: Designing hardware components that are robust and reliable. This involves analysis of hardware failure modes, such as random hardware failures, and implementing measures to mitigate their impact. Techniques like redundancy and built-in self-test (BIST) are often employed here.
• Software Level: Developing software that is free from systematic faults. This covers the entire software development lifecycle, from requirements specification and design to coding, testing, and integration. Strict coding standards and rigorous testing methodologies are essential.

Production and Operation

ISO 26262 also extends its reach to the production phase, ensuring that the manufactured products consistently meet the defined safety requirements. Furthermore, it addresses the operational phase, including maintenance and decommissioning, to ensure that safety is maintained throughout the vehicle's life.

Supporting Processes

Several supporting processes are crucial for the successful implementation of ISO 26262. These include:

• Safety Management: Establishing an organisational structure and processes to manage safety activities effectively.
• Configuration Management: Controlling changes to work products throughout the lifecycle to ensure integrity.
• Change Management: A systematic process for managing all changes to the system, hardware, or software.
• Verification: Confirming that a product or system meets its specified requirements. This includes reviews, analysis, and testing.
• Validation: Confirming that the system meets its intended safety goals in its operational environment.
• Tool Qualification: Ensuring that the tools used in the development process (e.g., compilers, simulators) are suitable for their intended purpose and do not introduce safety risks.

Why is Functional Safety So Important?

The consequences of a failure in an automotive safety-related system can be dire, ranging from minor inconveniences to severe injuries or fatalities. Therefore, functional safety is not just a regulatory requirement; it's a fundamental ethical responsibility for automotive manufacturers. By adhering to standards like ISO 26262, companies can:

• Reduce the risk of accidents: Proactive identification and mitigation of hazards significantly lower the probability of safety-related incidents.
• Enhance product reliability: The rigorous processes mandated by FuSa lead to more robust and dependable vehicle systems.
• Meet regulatory compliance: Adherence to ISO 26262 is often a prerequisite for selling vehicles in major global markets.
• Build customer trust: Demonstrating a commitment to safety fosters greater confidence and loyalty among consumers.
• Improve development efficiency: While it may seem like an added burden, a well-defined safety process can actually streamline development by preventing costly rework later in the cycle.

Key Terms in Functional Safety

To better understand FuSa, it's helpful to be familiar with some core terminology:

• Hazard: A potential source of harm. For example, unintended acceleration.
• Hazard Analysis and Risk Assessment (HARA): The process of identifying hazards and assessing the associated risks to determine the ASIL.
• Safety Goal: A top-level safety requirement that must be achieved to avoid a specific hazard or to reduce the risk associated with a hazard to an acceptable level.
• Failure Mode: A specific way in which a component or system can fail.
• Fault: An abnormal condition that can lead to a failure.
• Safe State: A state in which a system can be placed to prevent a hazard.
• ASIL (Automotive Safety Integrity Level): A risk classification used in ISO 26262 to specify the necessary level of integrity for safety-related automotive systems.

Table: ASIL Levels and Their Implications

Note: S, E, and C are assessed based on specific criteria defined in ISO 26262. The ASIL is determined by combining these factors.

Common Misconceptions about Functional Safety

It's important to clarify what functional safety is and isn't. FuSa is not about predicting every possible failure. Instead, it's about managing the consequences of failures. It's also not solely the responsibility of one department; it requires a collaborative effort across engineering, quality assurance, and management. Furthermore, functional safety is an ongoing process, not a one-time checklist. It requires continuous monitoring, adaptation, and improvement throughout the product's lifecycle.

The Future of Functional Safety

As vehicles become more autonomous and connected, the scope and complexity of functional safety will continue to expand. The integration of AI, machine learning, and advanced sensor technologies presents new challenges and opportunities for FuSa. Standards are constantly evolving to keep pace with these advancements, ensuring that safety remains paramount even as vehicle capabilities soar. The focus is shifting towards ensuring the safety of complex system-of-systems, where interactions between multiple electronic control units (ECUs) and software components must be meticulously managed.

Frequently Asked Questions (FAQs)

Q1: What is the difference between functional safety and cybersecurity?A1: While both are critical for vehicle safety, functional safety deals with hazards caused by malfunctioning behaviour of electrical/electronic systems, whereas cybersecurity focuses on protecting systems from malicious attacks and unauthorised access. Q2: Is ISO 26262 mandatory for all automotive components?A2: ISO 26262 is mandatory for safety-related electrical and electronic components and systems in road vehicles. The specific requirements depend on the ASIL assigned to the component or system. Q3: How does Functional Safety affect the cost of developing a car?A3: Implementing robust functional safety processes requires significant investment in tools, training, and rigorous development and testing. However, this investment is crucial for preventing costly recalls, liability claims, and, most importantly, ensuring passenger safety. Q4: Can a single component failure lead to a high ASIL rating?A4: Yes, if the failure of a single component can lead to a severe hazard with a high probability of occurrence and low controllability, it can result in a high ASIL rating for that component or the system it belongs to. Q5: What is the role of testing in Functional Safety?A5: Testing is a cornerstone of functional safety. It includes various levels of testing, from unit testing and integration testing to system testing and vehicle-level testing, all aimed at verifying that safety requirements are met and that the system behaves safely under all foreseeable conditions, including fault injection testing. In conclusion, Functional Safety, guided by the stringent principles of ISO 26262, is an indispensable aspect of modern automotive engineering. It's a commitment to safeguarding lives by ensuring that the increasingly complex electronic systems within our vehicles operate with the utmost reliability and predictability, making every journey a safer one.
