Diesel Injection Timing: A Comprehensive Guide

Ensuring your diesel engine's injection timing is set correctly is crucial for a variety of reasons, from optimal power delivery and fuel efficiency to smooth running and reduced emissions. While modern engines often have sophisticated electronic control systems, many older or enthusiast-modified vehicles still rely on mechanical adjustment. This guide delves into the intricacies of setting diesel injection timing, covering both the use of diagnostic tools like VAG COM and traditional mechanical methods. We'll also address common questions and potential issues you might encounter.

Understanding Injection Timing

Injection timing refers to the precise moment the fuel injector sprays diesel fuel into the combustion chamber, relative to the piston's position. In a diesel engine, this event happens just before the piston reaches the top dead centre (TDC) on the compression stroke. The goal is to have the fuel ignite and begin its expansion precisely as the piston is at its highest point, maximising the pressure applied to drive the crankshaft downwards.

Key Factors Influencing Timing:

• Engine Speed: At higher RPMs, the injection needs to occur earlier (more advanced) to allow sufficient time for combustion.
• Engine Load: Under heavier loads, timing adjustments can also be beneficial.
• Fuel Quality: Different diesel fuels can have varying ignition characteristics.
• Engine Temperature: Cold engines often benefit from slightly retarded timing, while warm engines might require a more advanced setting.

Incorrect timing can lead to a host of problems, including:

• Too Advanced: Knocking or pinging sounds, increased combustion temperatures, potential engine damage, and reduced power.
• Too Retarded: Rough idling, poor performance, increased smoke, higher exhaust gas temperatures (EGTs), and poor fuel economy.

Adjusting Injection Timing with VAG COM (VCDS)

For vehicles equipped with electronic engine management systems that can be accessed via VAG COM (also known as VCDS), there's a relatively straightforward method to check and, in some cases, adjust injection timing. This is particularly relevant for many Volkswagen Group diesel engines.

Steps for VAG COM Timing Check:

1. Warm Up the Engine: Ensure the engine is at its normal operating temperature. This typically means the coolant should be at or above 85°C. Let the engine idle without touching the accelerator pedal.
2. Connect VAG COM: Hook up your VAG COM interface to the vehicle's diagnostic port and start the software.
3. Select Engine Control Module: Navigate to the Engine control module (usually address 01).
4. Access Measuring Blocks: Go to "08 - Measuring Blocks".
5. Group 004: Enter "004" into the block field and click "Go".

VAG COM will display three values in the fourth block. The crucial one for injection timing is the third value, which represents the injection timing advance, often shown as a percentage or degrees before top dead centre (BTDC). The target value for many VW diesel engines at idle is typically between 0.4° and 2.0° BTDC.

Interpreting the Readings:

• If the engine's timing is less than approximately 3.0° BTDC and the advance solenoid reading is less than 10%, the timing is generally considered to be within an acceptable range.
• If the timing is greater than 3.0° BTDC, the timing may need to be retarded.
• If the advance solenoid reading is greater than 10%, the timing may need to be advanced.

Note: The ability to physically adjust the timing via VAG COM is limited. The solenoid reading indicates the ECU's command, but the mechanical setting of the injection pump dictates the baseline. If the solenoid is working hard (high percentage) but the engine is still running poorly or outside the expected parameters, a mechanical adjustment to the pump's base timing might be necessary.

Mechanical Adjustment of Injection Pump Timing

When a mechanical adjustment is required, the injection pump itself needs to be rotated slightly. This process involves loosening the pump's mounting and carefully nudging it in the desired direction. The exact procedure can vary depending on the engine and injection pump type.

General Procedure (for pumps that can be rotated):

1. Switch Off Engine: Always ensure the engine is completely off and the ignition is disabled.
2. Access Injection Pump: This often involves removing the timing belt cover or other components to gain access to the injection pump and its mounting points.
3. Align Engine: Rotate the engine manually (using a spanner on the crankshaft pulley or by rocking the vehicle in a high gear) to a specific position. For checking base timing, this is often TDC on cylinder 1. You may need to align marks on the flywheel and clutch housing, and on the injection pump sprocket relative to its mounting plate.
4. Loosen Mounting: Carefully loosen the nuts and bolts securing the injection pump. This typically involves a few mounting nuts at the rear of the pump and a central bolt at the front. Do not remove them completely, just slacken them enough to allow the pump to be moved.
5. Adjust Pump Position:
   • Advancing Timing: To advance the timing (make it occur earlier), rotate the top of the injection pump towards the engine block.
   • Retarding Timing: To retard the timing (make it occur later), rotate the top of the injection pump away from the engine block (towards the radiator).

   The movement is usually quite small. Gentle persuasion is key here. Some systems might require loosening injector line unions at the pump to allow for rotation, but this is less common for basic timing adjustments.

6. Tighten Mountings: Once the pump is in the desired position, carefully tighten the mounting nuts and bolts. It's crucial not to overtighten them at this stage, as you may need to make further minor adjustments.
7. Check and Refine: Reassemble any removed covers, start the engine, and re-check the timing using VAG COM or a mechanical timing gauge. Repeat the loosening, adjusting, and tightening process in small increments until the timing is within the specified range.
8. Final Tightening: Once satisfied, tighten all mounting bolts and nuts to the manufacturer's specified torque. Re-check injector line unions if they were loosened.
9. Refit Covers: Reinstall the timing belt cover and any other components removed.

The Role of the Retard Solenoid

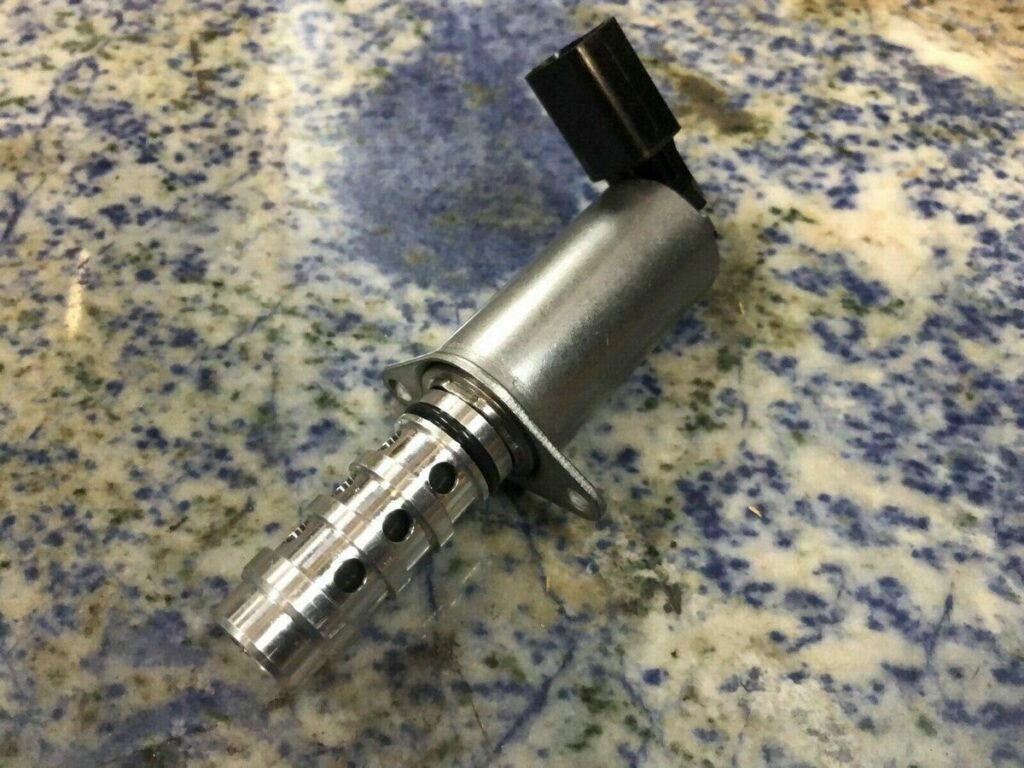

Some diesel injection pumps are equipped with a retard solenoid. This solenoid, when energised (typically by 12V when the ignition is on), can adjust the injection timing, often to retard it for smoother cold starting or to meet emissions regulations. In some performance or modification scenarios, owners might choose to wire this solenoid to remain constantly energised to prevent the timing from being retarded, potentially improving performance but possibly affecting cold start behaviour or emissions.

Specific Engine Considerations (AAZ 1.9 TD)

Discussions around the 1.9L AAZ engine highlight that factory settings might not always yield the best results for all driving conditions or modifications. The specified timing for AAZ engines is often around 0.80 mm of plunger lift before TDC, but many users report improved performance, smoother running, and better fuel economy by advancing this setting, typically to between 0.95 mm and 1.05 mm.

Symptoms of Incorrect Timing on AAZ:

• Retarded Timing: Excessive cranking time when warm, rough idling until warm, poor low-end performance. Pulling out the cold-start lever might improve these symptoms, indicating a need for more advanced base timing.
• Advanced Timing: Engine knocking or pinging, especially under load.

The AAZ engine, particularly earlier models, might use a split pulley system that requires loosening to adjust the injection pump timing. Later models might have a more integrated system.

Mechanical Timing Check without VAG COM

For those without VAG COM or on older mechanical injection pump systems, a dial indicator is the traditional tool.

Procedure:

1. Set Engine to TDC: Rotate the engine to TDC for cylinder 1 on the compression stroke. Align relevant marks on the crankshaft pulley and engine block. The injection pump timing marks should also align.
2. Access Injection Pump Measurement Point: Remove the plug on the rear of the injection pump (often where the cold-start advance mechanism is located, or a dedicated measurement port).
3. Install Dial Indicator: Screw in an adapter and a dial indicator. Ensure the indicator's plunger is pre-loaded against the injection pump's timing plunger (e.g., pre-load to 2.5 mm as per some specifications).
4. Check Reading: Read the value on the dial indicator. This reading corresponds to the plunger lift at TDC. Compare this to the manufacturer's specification (e.g., 0.80 mm, 1.00 mm BTDC).
5. Adjust as Necessary: If the reading is out of specification, loosen the injection pump mounting as described previously and adjust the pump's position until the dial indicator shows the correct value.

Common Questions and Troubleshooting

Is the injection pump driven off the timing belt?

Yes, on many diesel engines, including the VW 1Z/AHU and AAZ, the injection pump is driven by the timing belt, often via a toothed pulley. This is why correct timing belt installation and injection pump alignment are critical.

How do you check the timing of an injection pump?

You can check injection pump timing by setting the crankshaft to TDC on cylinder 1 and aligning the relevant marks. Then, using either VAG COM (measuring blocks group 004) or a mechanical dial indicator installed at the injection pump's measurement port, you can determine the timing advance or plunger lift at TDC. Comparing this reading to the manufacturer's specification confirms if the timing is correct.

Does the injection pump have a retard solenoid?

Yes, many diesel injection pumps, especially those designed for emissions compliance or smoother cold starting, incorporate a retard solenoid. This solenoid is controlled by the ECU and can adjust the injection timing based on various engine operating conditions.

What happens if I advance the timing too far?

Advancing the injection timing too far can lead to:

• Engine Knocking/Pinging: A metallic rattling sound, particularly under load.
• Increased Combustion Temperatures: Leading to higher EGTs and potential overheating.
• Reduced Power: Paradoxically, over-advancing can sometimes reduce peak power.
• Potential Engine Damage: Prolonged operation with excessively advanced timing can damage pistons, valves, and cylinder heads due to increased pressure and heat.

What are the benefits of advancing timing (within limits)?

Advancing the timing, within reasonable limits beyond the factory specification, can often result in:

• Improved Performance: Especially noticeable at lower RPMs and under load.
• Better Fuel Economy: More efficient combustion can lead to increased MPG.
• Smoother Engine Operation: Reduced roughness, particularly when the engine is warm.
• Reduced EGTs: More efficient combustion can sometimes lower exhaust gas temperatures.

It's important to note that factory timing settings are often a compromise to meet emissions regulations (particularly NOx reduction). Adjusting timing for performance might increase these emissions.

Conclusion

Setting the correct diesel injection timing is a fundamental aspect of diesel engine maintenance and tuning. Whether you're using modern diagnostic tools like VAG COM or adhering to traditional mechanical methods, precision is key. By understanding the process and the potential effects of timing adjustments, you can ensure your diesel engine runs smoothly, efficiently, and powerfully.
