Understanding TDI Injection Timing

The world of diesel engines, particularly those featuring TDI (Turbocharged Direct Injection) technology, presents a fascinating complexity when it comes to injection timing. Unlike their petrol counterparts, diesel engines rely on the precise timing of fuel injection to initiate combustion, and within the TDI family, this process is further refined. Understanding why TDI injection timing is different is key to appreciating the engineering that goes into these efficient powerplants and can even shed light on why modifications might alter performance characteristics.

The Ideal vs. The Real: Combustion in Internal Combustion Engines

In an ideal reciprocating engine, the aim is to achieve maximum cylinder pressure precisely when the piston reaches Top Dead Centre (TDC) on the power stroke. This perfect scenario would imply instant ignition and complete combustion of the fuel as it enters the cylinder, leading to the most efficient transfer of energy to the piston. However, the reality of combustion is far from instantaneous. Fuel takes a measurable amount of time to ignite, burn, and expand, and this process is influenced by various factors, including the engine's speed (RPM).

While we measure combustion in seconds, in the context of an engine's operation, it's more relevant to consider it in terms of crankshaft rotation. At higher RPMs, a given period of time translates into a much larger degree of crankshaft movement. This means that even a rapid burn can occur over several degrees of crankshaft rotation. The objective, therefore, is to orchestrate the combustion event so that the peak pressure occurs at or very close to TDC to maximise the downward force on the piston.

TDI's Dual Injection: A Unique Combustion Strategy

The TDI system introduces a layer of sophistication with its pilot injection or pre-injection strategy. This involves a small initial injection of fuel before the main injection event. This initial 'pilot' charge serves a crucial purpose: it begins to pre-heat the combustion chamber and the incoming air. When the main injection of fuel follows, it ignites more readily and burns more smoothly due to this pre-heating. This results in a softer, quieter combustion event, reducing the characteristic diesel 'knock' and lowering NOx emissions.

This dual-injection nature means that the overall combustion process is a combination of the pressure build-up from the pilot injection and the subsequent, more rapid and complete burn of the main injection. All these sequential events – pilot injection, ignition delay, main injection, combustion, and expansion – consume time, and consequently, crankshaft rotation.

The Impact of Injection Timing on Performance and Durability

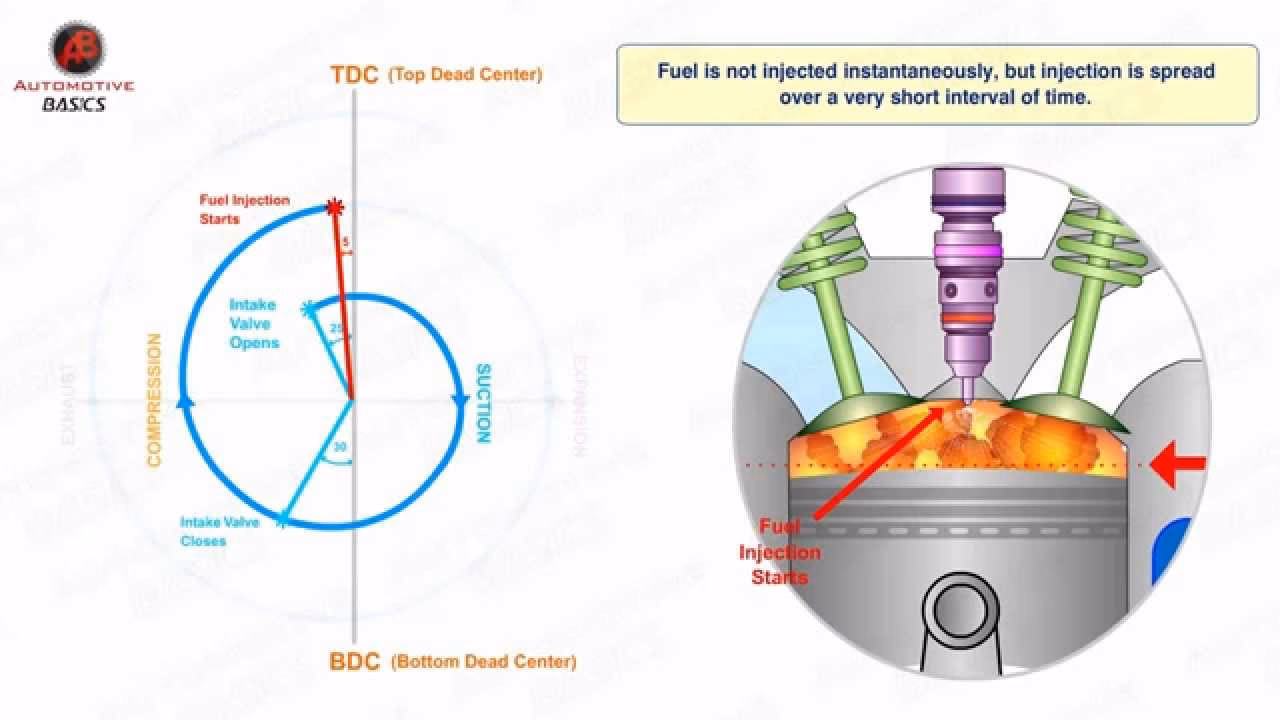

The timing of the injection relative to the piston's position is critical. If injection is too late, combustion will occur after TDC, meaning that the expanding gases will be pushing against the piston as it's already travelling downwards. This reduces the efficiency of the power stroke, as some of the energy generated is lost. In extreme cases, if combustion continues past Bottom Dead Centre (BDC), the heat generated is not converted into useful work, leading to excessive piston temperatures and potential damage.

Conversely, if injection is too early (advanced timing), significant pressure can build up in the cylinder while the piston is still ascending towards TDC. This creates immense strain on the piston, connecting rod, and crankshaft. While this can result in higher peak cylinder pressures and potentially more power if the engine's components can withstand the stress, it also increases the risk of mechanical failure. Furthermore, if the peak pressure occurs too far before TDC, it acts as a brake on the ascending piston, reducing efficiency.

Finding the Optimal Balance: The Manufacturer's Dilemma

Manufacturers like Volkswagen, in their TDI engines, aim to find an optimal balance between performance, fuel efficiency, emissions, and engine durability. This involves carefully calibrating the injection timing across the engine's operating range. A timing setting that is ideal at low RPMs might be detrimental at high RPMs, and vice versa.

For instance, advancing the injection timing overall can lead to a more aggressive combustion event. At lower RPMs, this advance means the piston is subjected to higher pressures for a longer duration as it travels towards TDC. If this advance is excessive, it can result in rough running and increased mechanical stress. At higher RPMs, however, the piston travels through the same degrees of rotation much faster. The same absolute amount of timing advance (in degrees) becomes a shorter period of time relative to the overall stroke, potentially making it more manageable and even beneficial for power delivery at the top end.

This dynamic relationship is why modern engines employ sophisticated engine control units (ECUs) that continuously adjust injection timing based on a multitude of sensor inputs, including engine speed, load, fuel temperature, and air mass. The ECU's 'ideal' timing is a compromise that accounts for emissions regulations, fuel quality, and the engine's designed operating envelope.

Trade-offs and Modifications

It's understood that manufacturers often make further trade-offs, particularly concerning emissions. To meet stringent emissions standards, injection timing might be retarded (made later) in certain operating conditions, even if it means a slight reduction in peak performance or fuel economy. This is where enthusiasts often look to 'optimise' their TDI engines.

Modifications, such as ECU remapping (chipping), can alter these factory settings. By advancing the injection timing beyond the factory settings, particularly in a way that is dynamically adjusted for different RPMs, it's often possible to unlock more power and improve fuel economy. However, it's crucial to remember that these modifications must be approached with caution. Pushing the timing too far can lead to increased EGTs (Exhaust Gas Temperatures), higher mechanical stresses, and a shortened engine lifespan.

Frequently Asked Questions

• Why is TDI injection timing critical? It directly impacts combustion efficiency, engine power output, fuel economy, emissions, and engine longevity.
• What is pilot injection in a TDI? A small, initial fuel injection that pre-heats the combustion chamber, leading to smoother and quieter combustion.
• Can advancing injection timing increase power? Yes, it can, by ensuring peak cylinder pressure occurs closer to TDC, but it also increases mechanical stress.
• What are the risks of incorrect injection timing? Too early timing can cause excessive pressure and strain; too late timing reduces efficiency and can lead to overheating.
• How do ECUs manage injection timing? They use sensor data to continuously adjust timing for optimal performance, emissions, and durability across various operating conditions.
• Are there emissions-related reasons for specific TDI timing? Yes, manufacturers may retard timing in certain conditions to meet emissions regulations, which can be a target for performance tuning.

In essence, TDI injection timing is a sophisticated dance between fuel delivery and piston position, orchestrated by the ECU to balance a complex set of competing demands. While factory settings prioritise a blend of longevity, emissions, and performance, understanding the underlying principles allows for a deeper appreciation of these advanced diesel engines and the potential for optimisation.
