Injector Deviation: What's Good?

Understanding your vehicle's engine performance is crucial for maintaining its longevity and efficiency. One aspect that can significantly impact how your engine runs is the injection quantity deviation. This metric, often checked using diagnostic tools, tells you how much fuel each individual injector is delivering compared to the others. When these values are within a healthy range, your engine will typically run smoothly, delivering consistent power. However, when they deviate too far, you might experience symptoms ranging from a rough idle to a complete breakdown. This article will delve into what constitutes a good injector quantity deviation, how to interpret the readings you obtain, and what might be causing problematic figures.

What is Injection Quantity Deviation?

At its core, injection quantity deviation refers to the difference in the amount of fuel delivered by each injector, as measured against a baseline or a calculated ideal. Modern engines use sophisticated electronic control units (ECUs) to precisely manage fuel delivery to each cylinder. This precise control ensures optimal combustion, fuel economy, and emissions. The ECU monitors various parameters, including engine speed, load, and temperature, to determine the exact amount of fuel needed. However, due to manufacturing tolerances, wear and tear, or blockages, individual injectors can start to deliver slightly more or less fuel than intended.

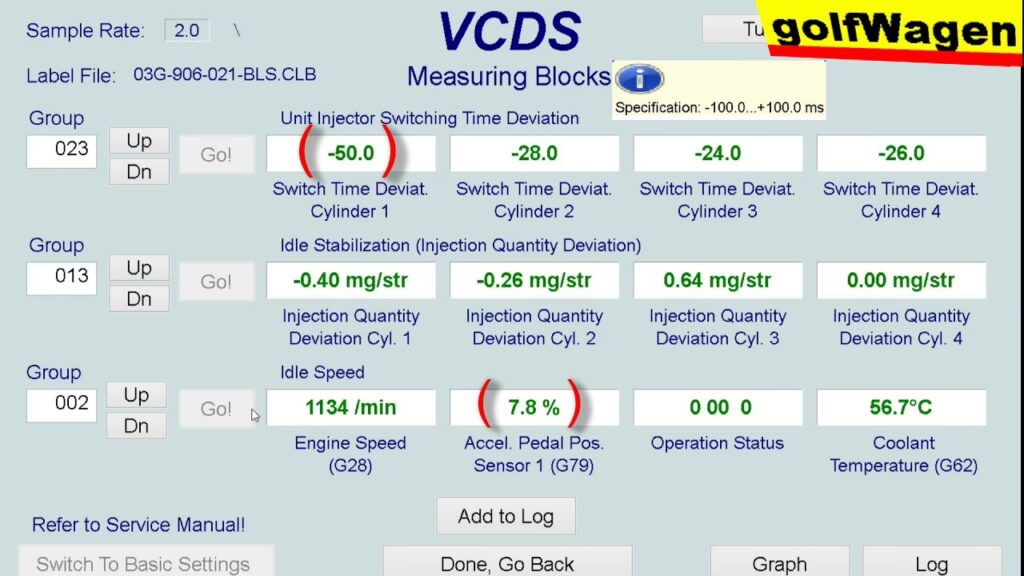

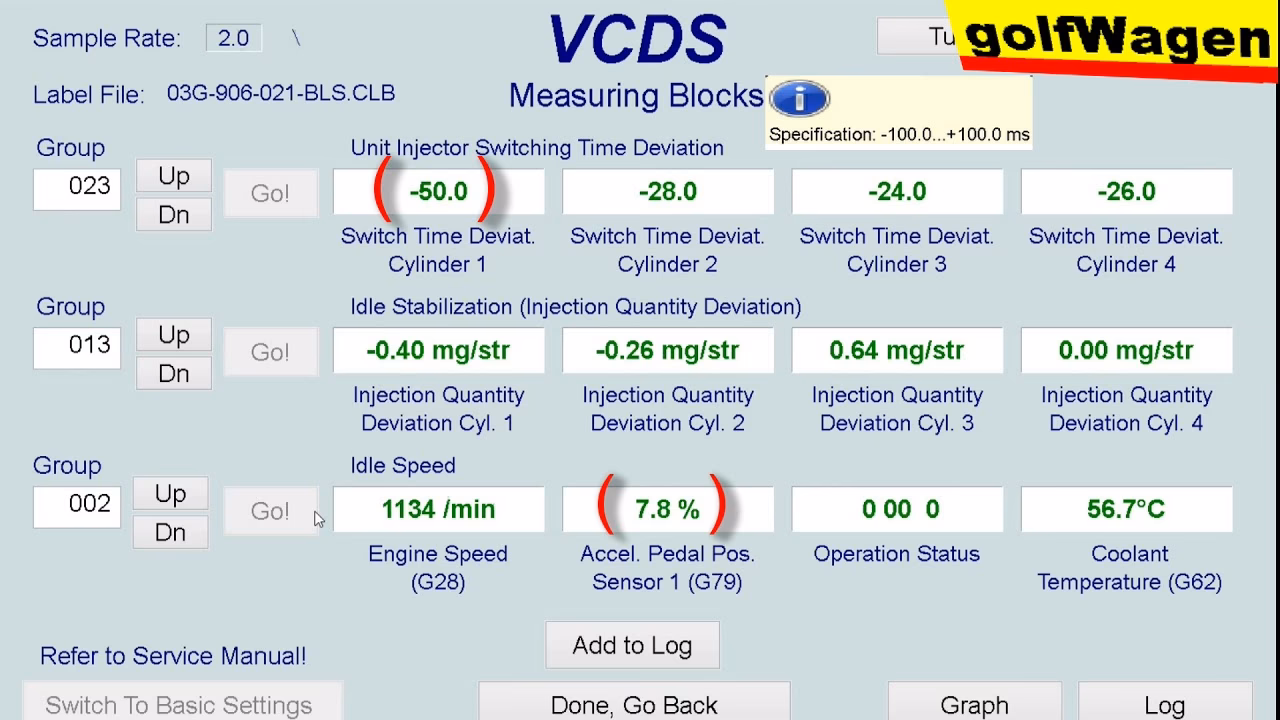

Diagnostic tools, like the Vehicle Validation and Diagnostic System (VVDS) mentioned in your query, can access these readings. Typically, these are presented in milligrams per stroke (mg/str). The ECU constantly works to balance these quantities, but there's a limit to how much deviation it can compensate for. When the deviation becomes too large, the ECU flags it as a fault, or the engine's performance will suffer noticeably.

Interpreting the Readings: What's a 'Good' Deviation?

The specification you've encountered, -2.8 to 2.8 mg/str, is a common benchmark for many diesel engines. This means that each injector's fuel delivery should ideally be within 2.8 mg/str of the average delivery of all injectors. A value of 0.00 mg/str would indicate perfect synchronisation, which is rarely achieved in practice.

Let's break down your initial readings:

• Cylinder 1: -0.42 mg/str (Within specification)
• Cylinder 2: 0.68 mg/str (Within specification)
• Cylinder 3: 0.05 mg/str (Within specification)
• Cylinder 4: -0.56 mg/str (Within specification)
• Cylinder 5: 2.99 mg/str (Slightly outside specification)

In this first instance, only Cylinder 5 is showing a value just outside the specified range. Given that the engine was running "a little lumpy," this slightly high reading for Cylinder 5 is a strong indicator of the issue. Even a small deviation can sometimes be enough to cause noticeable symptoms, especially if it's at the very edge of the acceptable tolerance.

When Readings Become Erratic: What Does It Mean?

Your experience of the readings deviating and becoming inconsistent is a critical piece of information. When you observed values like -3.01 mg/str and inconsistent readings across cylinders after restarting the engine, and then the engine running very lumpy, refusing to rev, and eventually dying, this points towards a more significant problem than just a single injector being slightly off. The fact that the values returned to something similar to the first test after the engine restarted suggests an intermittent fault.

The random and inconsistent measurements, especially while the vehicle is idling, are indeed highly suggestive of a breakdown in the electrical system related to the injectors. This could be due to:

• Faulty Injector Wiring Loom: As you suspect, a damaged or corroded wiring loom can cause intermittent connections. This means the signal from the ECU to the injector, or the feedback signal from the injector back to the ECU, is not consistently being received. This would explain why the readings fluctuate wildly and why the engine performance degrades so dramatically.
• Injector Connector Issues: Similar to the loom, the connectors themselves might be corroded, loose, or damaged, leading to poor electrical contact.
• ECU Problems: While less common, an issue with the ECU itself could lead to erratic control signals.
• Injector Internal Faults: The injectors themselves could have internal electrical faults that manifest intermittently.

The Case for Injector Wiring Loom Failure

Your observation that the figures started deviating with 2.99 seen inconsistently across cylinders, and then the dramatic drop in performance, strongly supports the theory of a failing injector wiring loom. Here’s why:

• Intermittent Nature: Electrical faults are often intermittent. Temperature changes, vibrations, or even slight movements of the wiring harness can cause connections to make or break, leading to fluctuating readings.
• Impact on Multiple Cylinders: When a wiring loom issue affects the common power supply or ground for multiple injectors, you'll see deviations across several cylinders, not just one. This is what you started observing.
• Symptom Correlation: The engine running lumpy, failing to rev, and dying are classic symptoms of poor fuel delivery, which can stem from erratic injector operation due to electrical problems.
• Temporary Recovery: The engine restarting and returning to similar (though still slightly problematic) values after a short pause could be due to the loom cooling down or settling into a slightly different (temporary) state.

Given the evidence, especially the erratic and inconsistent readings that correlate with a significant drop in engine performance, replacing the injector wiring loom is a very logical next step.

What Else Could Cause Deviation?

While the wiring loom is a prime suspect in your case, it's worth understanding other potential causes of injection quantity deviation:

Injector Wear or Blockage

Over time, injectors can wear out. The nozzle might become clogged with carbon deposits, or the internal solenoid or pintle can become sticky. This can lead to:

• Reduced Fuel Flow: A partially blocked injector will deliver less fuel than commanded.
• Poor Spray Pattern: Wear can cause the fuel to be sprayed unevenly, leading to incomplete combustion.
• Sticking: An injector that sticks open or closed can cause significant issues.

Fuel Pressure Issues

The fuel system's pressure is critical for correct injection. If the fuel pump is weak, the pressure regulator is faulty, or there's a restriction in the fuel lines, the pressure might be too low. This can affect the quantity of fuel injected, even if the injectors themselves are functioning correctly.

Air Leaks in the Fuel System

Air entering the fuel system can cause erratic readings and poor engine performance. This can occur at fuel filter connections, fuel lines, or even the fuel pump itself.

ECU Calibration or Faults

While less common, the ECU's software might have issues, or the ECU itself could be failing. This could lead to incorrect calculations for fuel injection, resulting in deviations.

Troubleshooting Steps

Based on your situation, here’s a recommended troubleshooting approach:

Common Symptoms of Injection Quantity Deviation

Besides the readings themselves, you might notice these symptoms when your injector quantity deviations are outside acceptable limits:

• Rough Idle: The engine shakes or vibrates more than usual when stopped.
• Misfires: You might feel a hesitation or stumble, especially under acceleration.
• Poor Acceleration: The vehicle feels sluggish and doesn't respond as quickly when you press the accelerator.
• Reduced Fuel Economy: An engine working harder due to uneven fuel delivery will consume more fuel.
• Increased Emissions: Improper combustion leads to higher levels of pollutants.
• Difficulty Starting: In severe cases, the uneven fuel distribution can make starting the engine challenging.
• Engine Warning Light: The ECU may illuminate the check engine light if the deviations are significant enough.

FAQ: Your Burning Questions Answered

Q1: My deviation readings are only slightly outside the spec (e.g., 2.99 mg/str), but the engine seems okay. Should I worry?

A1: While slight deviations might not cause immediate noticeable problems, they indicate that the engine is already working harder to compensate. It's best to address it, as it can worsen over time and lead to more significant issues. Think of it as a small leak in a pipe – it might not be a flood yet, but it needs fixing.

Q2: Can I clean my injectors to fix deviation issues?

A2: Injector cleaning additives can sometimes help with minor carbon build-up. However, if the deviation is due to mechanical wear, electrical faults (like in the wiring loom), or significant internal damage, cleaning may not resolve the problem.

Q3: Is it possible for the VVDS readings to be inaccurate?

A3: Diagnostic tools are generally reliable, but their readings depend on the sensors and the ECU's interpretation. If you suspect inaccurate readings, ensure your diagnostic tool is up-to-date and that there are no other underlying electrical faults affecting sensor inputs.

Q4: If I replace the injector wiring loom, will that definitely fix my problem?

A4: Based on the intermittent and severe performance degradation you described, a faulty wiring loom is a very strong possibility. Replacing it is a highly probable solution. However, it's always wise to perform basic checks (like injector resistance) to rule out injector-specific electrical faults before fitting a new loom, just in case.

Q5: My readings fluctuate even when the engine is running at a steady state. What does this mean?

A5: Fluctuating readings during steady-state running strongly indicate an intermittent electrical fault, most likely within the injector wiring harness or connectors. This is because the ECU is sending consistent signals, but the injectors (or their electrical supply) are not responding consistently.

Conclusion

The injector quantity deviation is a vital indicator of your engine's health. The specification of -2.8 to 2.8 mg/str is a guideline for optimal performance. Your experience, with fluctuating readings and a significant drop in engine performance, points heavily towards an issue with the injector wiring loom. While other factors can cause deviations, the erratic nature of your readings makes an electrical fault the most likely culprit. Addressing this promptly can prevent further damage and restore your vehicle's smooth operation.
