Throttle Body Gasket: Your Engine's Unsung Hero

In the intricate world of automotive mechanics, countless components work in harmony to ensure your vehicle runs smoothly and efficiently. While many parts grab the limelight, some of the most crucial are often the smallest and most unassuming. One such unsung hero is the throttle body gasket. This humble component plays a profoundly significant role in your engine's performance, acting as a critical barrier that maintains the delicate balance of air entering your engine. Without it, your vehicle could suffer from a range of frustrating and potentially damaging issues, highlighting just how essential this often-overlooked seal truly is.

Essentially, the throttle body gasket is a thin, precisely cut piece of material — typically paper, aluminium, or a composite – that creates an airtight seal between two vital engine components: the throttle body and the intake manifold. Its primary purpose is to prevent any air from bypassing the throttle body and entering the engine without being measured by the mass airflow sensor. This unmeasured air, often referred to as unmetered air, can wreak havoc on your engine's carefully calculated air-fuel mixture, leading to a cascade of performance problems. Understanding its function and the symptoms of its failure is key to maintaining your car's health and efficiency.

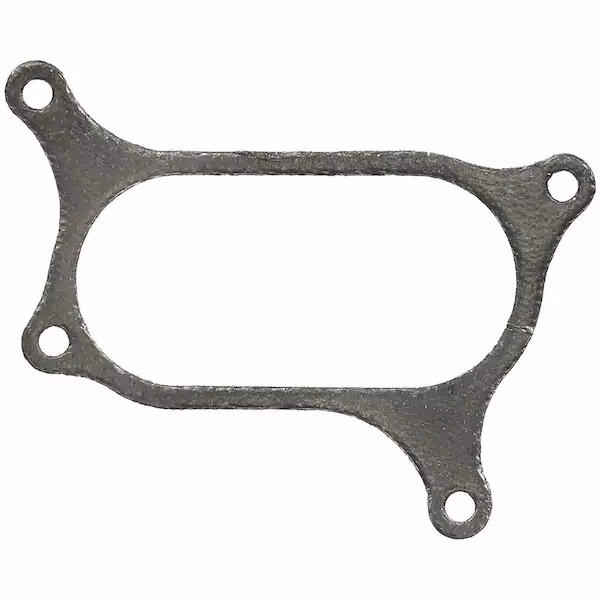

What Exactly Is a Throttle Body Gasket?

To truly appreciate the throttle body gasket, it helps to understand its immediate surroundings. The throttle body is a crucial component located between the air filter box and the intake manifold. It houses a butterfly valve that opens and closes to control the amount of air entering the engine, directly impacting engine speed and power. The intake manifold, in turn, distributes this air evenly to each cylinder for combustion. The gasket sits precisely in the middle, sandwiched firmly between these two metal surfaces.

Historically, many gaskets were made from a dense paper-like fibre material, which provided a cost-effective and adequate seal for many years. As engine designs evolved, so too did gasket technology. Today, you'll find gaskets made from more robust materials like aluminium, which offers superior heat resistance and durability, or various composite materials, including rubber or silicone, designed to provide a more flexible and resilient seal, especially in modern engines with complex manifold designs. Regardless of the material, its mission remains the same: to create a perfect, leak-free junction, ensuring that every molecule of air entering your engine has been accounted for. This meticulous sealing is paramount for the engine control unit (ECU) to accurately calculate the correct amount of fuel to inject, optimising combustion and overall performance.

The Critical Role of an Airtight Seal

Why is an airtight seal so incredibly important? Your engine's ECU relies on precise data from various sensors, including the mass airflow (MAF) sensor, to determine the exact volume of air entering the engine. Based on this information, it calculates and delivers the optimal amount of fuel for efficient combustion. This delicate balance, known as the air-fuel ratio, is fundamental to engine operation. If the throttle body gasket fails, even a tiny crack or tear can allow unmetered air to seep into the intake manifold. This extra, unmeasured air throws the entire air-fuel calculation off balance.

When the engine receives more air than the MAF sensor reports, the mixture becomes "lean" – meaning there's too much air for the amount of fuel injected. A lean condition can lead to a host of problems, including reduced engine power, increased fuel consumption, rough idling, hesitation during acceleration, and even engine damage over time due to excessive heat. Conversely, if the ECU tries to compensate for perceived lean conditions by adding more fuel, it can lead to a "rich" mixture, which also causes inefficiency, increased emissions, and potential damage to catalytic converters. The throttle body gasket is therefore a silent guardian, ensuring the ECU gets accurate information, allowing your engine to run as intended.

Symptoms That Scream 'Gasket Trouble!'

Identifying a failing throttle body gasket often involves recognising a series of common symptoms that point towards a vacuum leak or an incorrect air-fuel mixture. Pay close attention to these warning signs:

• Rough or Erratic Idle: This is one of the most common indicators. If your engine idles unevenly, fluctuates significantly in RPM, or feels "lumpy," it could be due to unmetered air causing an inconsistent air-fuel ratio in the cylinders. The ECU struggles to maintain a steady idle speed when it's constantly battling with unpredicted air ingress.

• Hesitation or Poor Acceleration: When you press the accelerator pedal, you expect a smooth, immediate response. A failing gasket can introduce unmetered air, making the engine hesitate, feel sluggish, or lack its usual power during acceleration. This is because the ECU is struggling to provide the correct fuel for the actual air entering the engine, leading to inefficient combustion.

• Increased Fuel Consumption: A lean air-fuel mixture often prompts the ECU to try and compensate by injecting more fuel than necessary to prevent engine damage. This continuous over-fuelling, or simply inefficient combustion, translates directly into poorer fuel economy. You might notice yourself filling up your tank more frequently without a change in your driving habits.

• Whistling or Hissing Sounds: A distinctive sign of a vacuum leak is an audible whistling or hissing noise coming from the engine bay, particularly when the engine is running. This sound is created by air being sucked through the small gap or tear in the compromised gasket under vacuum pressure. Pinpointing the source of this sound can often lead you directly to the faulty gasket.

• Check Engine Light (CEL) Illuminated: Modern vehicles are equipped with sophisticated diagnostic systems. If the ECU detects an air-fuel imbalance that falls outside its programmed parameters, it will illuminate the Check Engine Light on your dashboard. Often, diagnostic trouble codes (DTCs) like P00171 or P00174 (System Too Lean Bank 1/2) will be stored, directly pointing to a lean condition caused by a vacuum leak.

• Engine Stalling: In more severe cases, or as the gasket deteriorates further, the vacuum leak can become so significant that the engine struggles to maintain a stable idle or even stalls completely, especially when coming to a stop or at low speeds. The ECU simply cannot compensate for the large volume of unmetered air, leading to a complete breakdown of the combustion process.

Diagnosing the Culprit: Pinpointing a Leaky Gasket

If you suspect a faulty throttle body gasket, there are several methods to confirm its failure. While some can be performed by a competent DIY enthusiast, professional diagnosis offers the most accuracy and safety.

• Visual Inspection: Sometimes, a gasket can be visibly cracked, torn, or show signs of deterioration around its edges. However, many leaks are internal or too small to see with the naked eye.

• The Spray Method (Caution Advised): A common DIY diagnostic involves carefully spraying a small amount of an unlit combustible fluid, such as carb cleaner or brake cleaner, around the throttle body gasket area while the engine is running. If there's a leak, the engine will briefly surge in RPM as it draws in the flammable spray. *Always exercise extreme caution with this method: ensure good ventilation, have a fire extinguisher handy, and never spray near hot exhaust components or electrical connections that could spark.*

• Smoke Test: This is arguably the most reliable and safest method, typically performed by professional mechanics. A smoke machine introduces non-toxic smoke into the intake system. Any leaks, including those from the throttle body gasket, will reveal themselves as plumes of smoke escaping from the compromised area, making them easy to spot.

A Glimpse at Gasket Materials: More Than Just Paper

The choice of material for a throttle body gasket is not arbitrary; it's dictated by factors like engine operating temperatures, pressure, chemical exposure, and cost. Here’s a look at the common types:

• Paper/Fibre Gaskets: These are traditional and cost-effective. They are typically made from a compressed cellulose fibre material. While effective for their time, they can be prone to drying out, cracking, and tearing, especially after years of heat cycles. They are still found in older vehicles and some aftermarket applications.

• Aluminium Gaskets: Offering superior durability and heat resistance, aluminium gaskets are often preferred in performance applications or where higher engine temperatures are present. They are less prone to compression set or degradation from chemicals but require very clean mating surfaces and precise torque during installation to prevent deformation.

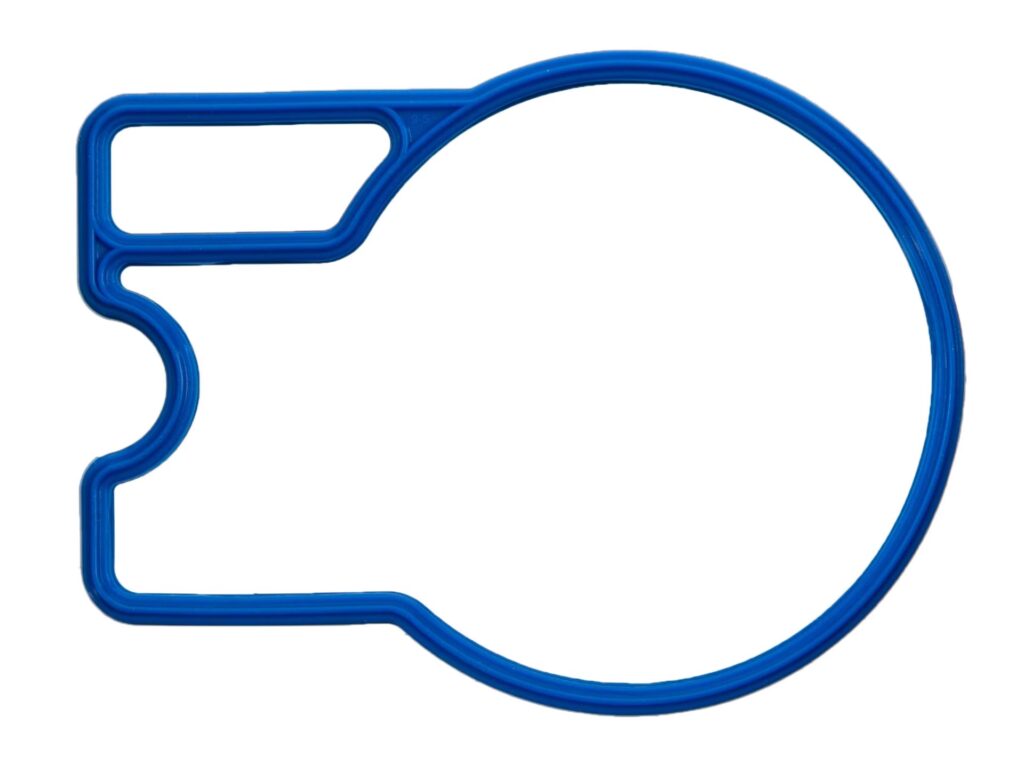

• Rubber/Composite Gaskets: Modern vehicles frequently utilise gaskets made from various rubber compounds (like Viton or EPDM) or multi-layer composite materials. These offer excellent sealing properties due to their flexibility, which allows them to conform better to irregular surfaces. They are also highly resistant to engine fluids and temperature extremes, making them ideal for complex, contoured throttle body designs.

Here’s a comparative overview of these types:

The Replacement Process: A Step-by-Step Guide (General)

Replacing a throttle body gasket is a relatively straightforward procedure for a mechanically inclined individual, though it requires patience and attention to detail. If you're unsure, it's always best to consult a professional mechanic.

1. Safety First: Always ensure the engine is cool, and disconnect the negative terminal of your car's battery to prevent electrical shorts or accidental engine starts.

2. Access the Throttle Body: This usually involves removing the air intake ducting, air filter box, and potentially other components that obstruct access to the throttle body. Label any hoses or electrical connectors you disconnect to aid reassembly.

3. Disconnect Components: Carefully disconnect any electrical connectors (e.g., throttle position sensor, idle air control valve) and vacuum hoses attached to the throttle body. Be gentle, as plastic connectors can become brittle with age.

4. Remove the Throttle Body: The throttle body is typically held in place by four bolts or nuts. Loosen and remove these fasteners. Keep them organised, as they might have different lengths or types.

5. Remove Old Gasket and Clean Surfaces: Once the throttle body is off, carefully peel away the old gasket. This is a critical step. Use a plastic scraper or a razor blade (with extreme care not to scratch the metal surfaces) to remove any remaining gasket material or carbon deposits from both the throttle body and the intake manifold mating surfaces. A perfectly clean, smooth surface is essential for the new gasket to seal properly. Use a clean rag and appropriate cleaner to wipe down the surfaces.

6. Install the New Gasket: Place the new throttle body gasket onto either the throttle body or the intake manifold, ensuring it aligns perfectly with all bolt holes and air passages. Make sure it's facing the correct way if it has a specific orientation.

7. Reinstall the Throttle Body: Carefully position the throttle body back onto the intake manifold, ensuring the gasket remains in place. Start all the bolts or nuts by hand to prevent cross-threading.

8. Tighten to Specifications: Using a torque wrench, tighten the bolts in a criss-cross pattern to the manufacturer's specified torque settings. Overtightening can damage the gasket or components, while undertightening will result in a leak. This step is crucial for an effective seal.

9. Reconnect Everything: Reattach all electrical connectors, vacuum hoses, and the air intake ducting. Double-check that everything is securely connected.

10. Reconnect Battery and Test: Reconnect the negative battery terminal. Start the engine and listen for any hissing sounds. Take the car for a short test drive to ensure normal operation and that the Check Engine Light remains off. The engine's idle might need to "relearn" after the battery disconnection, so don't be alarmed if it's slightly erratic initially.

When Should You Replace This Humble Component?

Knowing when to replace your throttle body gasket can save you a lot of hassle and expense down the line. The most common scenario for replacement is during a throttle body service. Whenever the throttle body is removed for cleaning, repair, or replacement, it's considered best practice to replace the gasket as a matter of course. Gaskets are designed for a single compression and often become brittle or damaged upon removal, making them unreliable for reuse.

Beyond scheduled maintenance, the gasket should be replaced immediately if diagnostic tests confirm it as the source of a vacuum leak. Ignoring a faulty gasket can lead to worsening engine performance, increased emissions, and potentially more costly repairs to other components that are stressed by the incorrect air-fuel mixture.

Extending the Life of Your Gasket (And Your Engine)

While gaskets are wear-and-tear items, their longevity can be influenced by proper maintenance and careful handling. Ensuring that any work involving the throttle body or intake manifold is performed by a qualified technician who uses correct torque specifications and cleans mating surfaces thoroughly will prevent premature gasket failure. Using high-quality, OEM-spec replacement gaskets is also key, as cheaper alternatives may not withstand the engine's operating conditions as effectively. Avoid unnecessary disassembly of the throttle body area, as each removal increases the risk of damaging the existing gasket.

Frequently Asked Questions (FAQs)

Can I ignore a bad throttle body gasket?

While your car might still drive with a faulty gasket, ignoring the problem is highly ill-advised. A continuous vacuum leak will lead to persistent engine performance issues like rough idle, poor fuel economy, and reduced power. Over time, the lean running condition can cause excessive heat in the combustion chambers, potentially damaging pistons, valves, or even the catalytic converter, leading to far more expensive repairs than a simple gasket replacement.

Is it an expensive repair to replace a throttle body gasket?

The gasket itself is typically a very inexpensive part, often costing less than £20. The bulk of the expense, if you're taking it to a garage, will be the labour cost. Depending on your car's make and model, and how accessible the throttle body is, labour can range from one to three hours. It's generally considered a relatively affordable repair compared to many other engine-related issues.

How long does a throttle body gasket typically last?

A throttle body gasket is designed to last for many years, often the lifetime of the vehicle, provided it's not disturbed. Its lifespan is primarily affected by heat cycles, exposure to engine fluids, and the quality of the material. However, once the throttle body is removed for any reason, the old gasket should always be replaced as it can easily tear or lose its sealing properties upon reinstallation.

Can I replace the throttle body gasket myself?

For individuals with some mechanical experience and the right tools, replacing a throttle body gasket can be a manageable DIY task. The process involves disconnecting air intake components, electrical connectors, and hoses, then unbolting the throttle body. The most critical steps are thoroughly cleaning the mating surfaces and tightening the new gasket to the manufacturer's specified torque settings. If you're unsure, it's always best to consult a professional to avoid creating new problems.

What is 'unmetered air' and why is it so bad?

'Unmetered air' refers to air that enters the engine's intake manifold without first passing through the mass airflow (MAF) sensor. The MAF sensor measures the volume of air entering the engine, and the ECU uses this data to calculate the precise amount of fuel to inject. When unmetered air bypasses the sensor, the ECU injects less fuel than needed for the actual air present, creating a "lean" air-fuel mixture. This lean condition leads to inefficient combustion, reduced power, increased emissions, and can cause engine damage over time due to higher combustion temperatures.

Conclusion

The throttle body gasket, though small and often out of sight, is a critically important component in your engine's sophisticated air management system. Its role in maintaining an airtight seal and preventing unmetered air from entering the engine is fundamental to efficient combustion, optimal performance, and healthy emissions. Recognising the symptoms of a failing gasket – such as a rough idle, poor acceleration, or an illuminated Check Engine Light – and addressing them promptly can prevent more significant engine problems and ensure your vehicle continues to run smoothly. So, the next time you hear a mysterious hiss from under the bonnet, remember the humble throttle body gasket; it might just be your engine's way of asking for a little bit of attention.
