Mastering Diesel Injector Testing: The DD 1200 Star

In the intricate world of automotive engineering, diesel engines stand as a testament to power, efficiency, and durability, forming the backbone of transport across the globe. However, the very precision that makes them so effective also demands equally precise maintenance and diagnostic tools. Modern diesel fuel injection systems, particularly Common Rail Diesel Injection (CRDI) setups, operate under immense pressure and with incredibly fine tolerances, meaning even a minor deviation can lead to significant issues with performance, fuel economy, and emissions. This complexity begs a crucial question for any workshop or technician: which diesel fuel injectors and pumps can truly be tested with the accuracy required today?

The answer lies in advanced, versatile diagnostic equipment capable of handling the diverse array of injection technologies currently in use. One such formidable solution is the DD 1200 Star, a comprehensive 2-in-1 multipurpose test bench designed to address the full spectrum of diesel fuel injection system diagnostics. This isn't merely a machine; it's a diagnostic powerhouse, offering unparalleled capabilities across various injector and pump types, ensuring that workshops can accurately identify faults and restore optimal performance.

The Broad Spectrum of Testable Components with the DD 1200 Star

The DD 1200 Star is engineered to tackle a vast range of diesel fuel injection components, making it an indispensable asset for any serious diesel repair facility. Its design thoughtfully incorporates two independent workstations, each tailored to specific testing requirements, allowing for simultaneous operation and maximising workshop efficiency. Let's delve into the specific types of injectors and pumps this remarkable bench can rigorously test.

Common Rail Diesel (CRDI) Injectors: Solenoid and Piezo Technologies

Modern diesel engines heavily rely on Common Rail technology for its precise fuel delivery and atomisation, which significantly contributes to improved fuel efficiency and reduced emissions. CRDI injectors are high-tech components, and their accurate functioning is paramount. The DD 1200 Star excels in this critical area, capable of testing CRDI injectors from all the major manufacturers:

• Bosch
• Delphi
• Denso
• Siemens

Crucially, this test bench is equipped to handle both types of CRDI injector technologies:

• Solenoid Injectors: These are traditionally actuated by an electromagnetic solenoid, offering robust and reliable performance.
• Piezo Injectors: Representing the cutting edge, piezo injectors use piezoelectric crystals for actuation, allowing for incredibly fast and precise multiple injection events per combustion cycle. Their rapid response times demand highly sophisticated testing equipment to accurately assess their performance.

The DD 1200 Star's dedicated CR testing side, powered by the advanced Stardex system, comes with all test plans inbuilt, ensuring comprehensive and accurate diagnostics for these intricate components. It features four inbuilt flowmeters – two specifically for CR injectors (output and return delivery) – providing precise measurements of fuel flow, which is vital for identifying internal leaks or restricted flow patterns. Furthermore, its ability to generate common rail injector codes means that once an injector is serviced or replaced, it can be properly calibrated and coded for the vehicle's Engine Control Unit (ECU), ensuring seamless integration and optimal engine operation.

Common Rail Diesel (CRDI) Pumps and Fuel Rails

The Common Rail system isn't just about the injectors; the high-pressure pump and the fuel rail are equally critical. The DD 1200 Star's CR testing side is fully equipped to test CRDI pumps and fuel rails from the same leading manufacturers: Bosch, Delphi, Denso, and Siemens. The bench can regulate pressure from 0 to an astonishing 2200 BAR, allowing for real-world simulation of extreme operating conditions to thoroughly evaluate pump performance under load. The two additional flowmeters are dedicated to CR pumps (output and return delivery), providing a complete picture of their efficiency and integrity. The inclusion of a Bosch high-pressure common rail pump and a Bosch fuel rail fitted with a pressure sensor and control valve as part of the test kit ensures a robust and accurate testing environment for these vital high-pressure components.

Electronic Diesel Control (EDC) / Electronic VE Pumps

Before the widespread adoption of Common Rail, Electronic Diesel Control (EDC) systems revolutionised diesel injection by introducing electronic control over traditional mechanical distributor pumps. The DD 1200 Star is well-versed in this technology, specifically capable of driving and testing EDC electronic VE pumps, such as the widely used Bosch VP Series pumps – including the VP 36 and VP 37. This capability is facilitated by the integrated EDC 1100 Simulator, which precisely controls these pumps, allowing technicians to diagnose electronic malfunctions and mechanical wear with high accuracy. This ensures that even vehicles with slightly older, but still prevalent, electronic injection systems can be serviced effectively.

Conventional Diesel Fuel Injection Pumps: Inline and Rotary Types

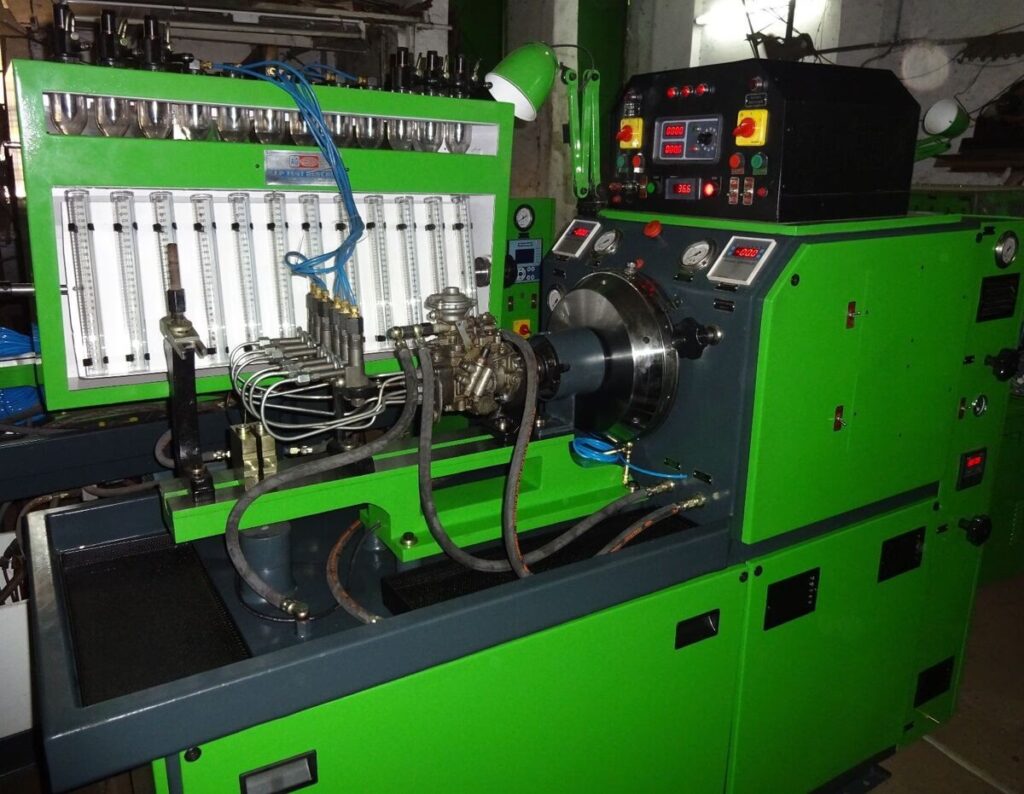

While modern systems dominate new vehicles, a significant proportion of the global vehicle fleet still relies on conventional mechanical and electronically controlled rotary and inline pumps. The DD 1200 Star does not overlook these workhorses. Its 12-cylinder testing side, powered by a robust 15 HP main motor and electronic drive, is designed for comprehensive testing of a wide array of conventional pumps:

• Inline Pumps: This includes all types, from the simplest to the more complex 'P' type pumps, which are commonly found in heavy-duty applications. The bench can test pumps ranging from 2 cylinders up to 12 cylinders, providing immense versatility for commercial vehicles and older passenger cars.
• Rotary Pumps: This category encompasses all types of rotary pumps, including Bosch Distributor V.E. Pumps and all types of Lucas / Delphi Rotary pumps, such as the DPC and DPA series. These pumps are crucial for many light commercial vehicles and agricultural machinery.

The ability to test such a broad range of conventional pumps ensures that workshops can cater to a diverse clientele, from classic vehicle enthusiasts to fleet operators, all with a single, highly capable piece of equipment.

The DD 1200 Star: More Than Just Component Testing

Beyond the sheer breadth of components it can test, the DD 1200 Star incorporates a suite of features that elevate its diagnostic capabilities and operational efficiency:

• Dual Independent Workstations: This is a standout feature. With a 15 HP main motor on the conventional side and a 7.5 HP motor on the CR side, two operators can work simultaneously on different tasks, significantly reducing downtime and increasing throughput in a busy workshop. This simultaneous testing capability is a major time-saver.
• Advanced Control Systems: Equipped with AC Frequency / Electronic drives from Schneider Electric and powerful ABB main motors, the bench offers variable RPM from 0 to 5000, allowing for precise simulation of various engine speeds and loads. Both digital and analog pressure gauges provide clear, accurate readings.
• Integrated Test Plans and Automation: The Stardex system for CR testing includes inbuilt test plans, making the diagnostic process largely automatic. This reduces human error and ensures consistent, repeatable results. The ability to generate PDF test reports after testing is invaluable for record-keeping, customer communication, and warranty claims.
• Safety and Protection: Given the extremely high pressures involved in Common Rail testing (up to 2200 BAR), operator safety is paramount. The CR testing area is well-shielded with an unbreakable transparent acrylic barrier, which can be opened or closed via sliding doors. This allows operators to safely observe spray patterns and perform other tests without risk.
• Fuel Management and Climate Control: The bench includes a 50-litre diesel fuel tank and features inbuilt oil heating as well as chiller/cooler facilities on both testing sides. This ensures that fuel temperature is consistently maintained, which is critical for accurate test results, as fuel viscosity changes with temperature.
• Comprehensive Accessories: The test bench comes complete with all necessary high-pressure pipes, rail return pipes, injector output delivery and return adaptors, and all electrical couplers for various makes of injectors and pumps. This ensures immediate readiness for a wide range of testing scenarios without the need for additional purchases.

Why Comprehensive Diesel Testing is Non-Negotiable

In today's automotive landscape, where emissions regulations are tightening and fuel prices remain high, precise diagnostics of diesel injection systems are more critical than ever. A malfunctioning injector or pump can lead to:

• Reduced engine power and responsiveness.
• Significantly increased fuel consumption.
• Excessive smoke and harmful emissions.
• Rough idling, misfires, or knocking.
• Potential damage to other engine components due to incorrect combustion.

Investing in a test bench like the DD 1200 Star allows workshops to offer a professional, accurate, and efficient service, ensuring vehicles run optimally, cleanly, and reliably. It transforms guesswork into precision diagnostics, building customer trust and loyalty.

Frequently Asked Questions (FAQs)

Here are some common questions regarding diesel injector and pump testing:

Q1: Why can't I simply replace a faulty injector without testing it?

While you can replace an injector, without testing, you're merely guessing the root cause. A new injector might fail prematurely if the underlying issue (e.g., a faulty pump, contaminated fuel, or another injector issue) isn't addressed. Testing ensures you diagnose the actual problem, verify the new component's performance, and often, new injectors require coding to the vehicle's ECU for optimal function, which a test bench can facilitate.

Q2: How often should diesel injectors and pumps be tested?

There's no fixed schedule as it depends on mileage, fuel quality, and driving conditions. However, testing is highly recommended if you experience symptoms like decreased fuel economy, loss of power, excessive smoke, rough idling, or difficulty starting the engine. Proactive testing during major service intervals can also help identify potential issues before they become critical.

Q3: What does 'common rail injector coding' mean, and why is it important?

Injector coding (or calibration) involves assigning a unique numerical code to an injector, which contains information about its specific flow characteristics. When a new or reconditioned injector is installed, its code must be entered into the vehicle's ECU. This allows the ECU to precisely control the fuel delivery for that specific injector, compensating for tiny manufacturing variations and ensuring balanced cylinder performance, optimal combustion, and emissions compliance. The DD 1200 Star's ability to generate these codes is a significant advantage.

Q4: Is testing at such high pressures safe for the operator?

Absolutely, when conducted on a purpose-built test bench like the DD 1200 Star. The machine is designed with operator safety as a priority, featuring robust, unbreakable transparent acrylic shielding around the high-pressure testing area. This barrier protects technicians from the high-velocity fuel spray and potential hazards associated with extreme pressures, making observation safe and secure.

Q5: What are the benefits of a '2-in-1' test bench like the DD 1200 Star?

The primary benefits are efficiency, versatility, and cost-effectiveness. A 2-in-1 bench saves significant workshop space compared to two separate machines. Its dual independent workstations allow two technicians to work simultaneously, drastically cutting down diagnostic and repair times. Furthermore, it provides a comprehensive solution for both modern CRDI systems and conventional pumps, eliminating the need for multiple specialised pieces of equipment and making it a more economical long-term investment.

Conclusion

The DD 1200 Star represents the pinnacle of diesel fuel injection system diagnostics. Its ability to meticulously test a vast array of components – from the latest piezo common rail injectors and their high-pressure pumps to traditional inline and rotary pumps, including sophisticated EDC systems – makes it an unparalleled tool for any workshop. By offering comprehensive diagnostics, precise measurement capabilities, advanced automation, and robust safety features, this test bench ensures that technicians can accurately identify faults, verify repairs, and restore diesel engines to their peak performance. For automotive professionals aiming to provide the highest standard of service in an increasingly complex industry, the DD 1200 Star is not just equipment; it's an investment in accuracy, efficiency, and the future of diesel maintenance.
