Fuel Injection Pump Installation Guide

If your tractor is experiencing fuel delivery issues, a faulty fuel injection pump could be the culprit. While diagnosing the problem is the first crucial step, successfully installing a new pump is key to getting your machinery back to peak performance. This guide will walk you through the process of replacing your old fuel injection pump and setting the timing, specifically tailored for Jinma Tractors, Farm Pro Tractors, and many other Chinese tractor models. With a bit of care and attention to detail, you can have your tractor running efficiently in no time.

Understanding the Fuel Injection Pump's Role

The fuel injection pump is the heart of your tractor's fuel system. Its primary function is to deliver fuel under high pressure to the injectors, which then atomise the fuel and spray it into the combustion chamber at precisely the right moment. The timing of this injection is critical for efficient combustion, power output, and emissions control. A worn or malfunctioning pump can lead to a host of problems, including:

• Loss of power
• Rough idling
• Difficulty starting
• Increased fuel consumption
• Black or white smoke from the exhaust

Preparation is Key: What You'll Need

Before you begin the installation process, ensure you have the necessary tools and supplies. Having everything readily available will make the job smoother and prevent unnecessary delays. You will typically need:

• A new fuel injection pump (ensure it's the correct model for your tractor)
• A set of metric wrenches and sockets
• A torque wrench
• A drain pan or rags for catching any spilled fuel

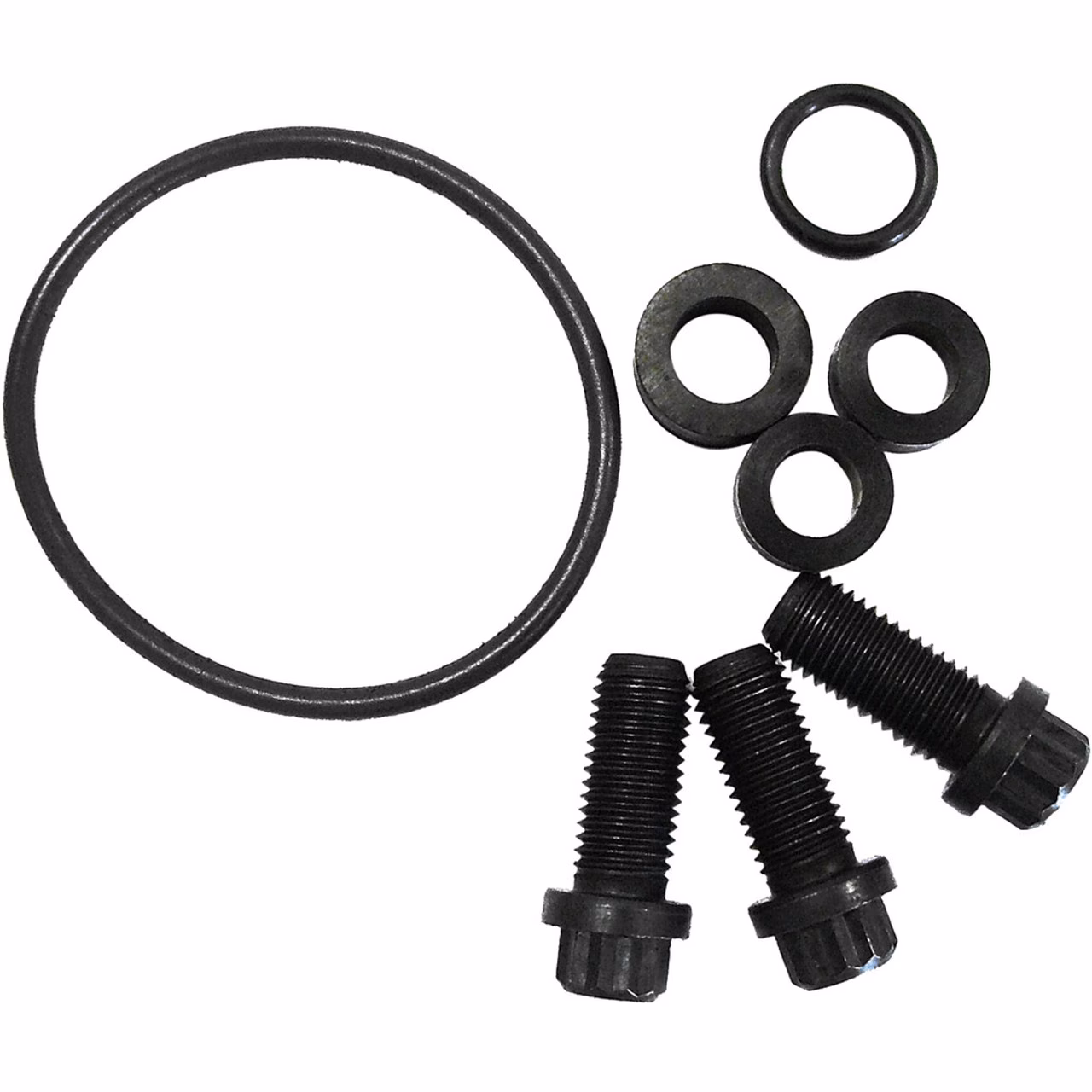

• New fuel line fittings or crush washers, if required
• The correct type and amount of oil for the pump (usually 15W40 Rotella)
• Safety glasses and gloves
• A way to rotate the engine (e.g., a breaker bar and socket for the crankshaft pulley)
• A timing pin or method to hold the pump gear in place

Step-by-Step Installation Process

Once you have removed your old fuel injection pump, here's how to install your new pump and set the timing:

1. Position the Engine for Timing: Rotate the engine crankshaft until the #1 piston is at its highest point (Top Dead Centre - TDC) on its compression stroke. This is a crucial step for accurate timing. You can usually achieve this by turning the crankshaft pulley bolt. Ensure you are on the compression stroke, not the exhaust stroke, by checking that both the intake and exhaust valves for cylinder #1 are closed.
2. Connect Fuel Lines (Partially): Connect the new pump to all the fuel lines, with the exception of the top hard lines that run directly to each injector. Do not connect these injector lines to the pump just yet. This allows you to bleed air from the system without the injectors firing.
3. Bleed the Primer Pump: Locate the primer pump on your fuel system. Press the primer pump repeatedly to build pressure within the fuel lines. Open the bleeder valve on the fuel filter or pump (if present) to release any trapped air. Once a steady stream of fuel, free of air bubbles, emerges from the bleeder valve, close it securely. Repeat this process until you are confident that most of the air has been expelled.
4. Align the Pump Shaft for Injection Timing: This is a critical step for setting the injection timing. Slowly rotate the shaft of the new fuel injection pump. Watch the port for the #1 hardline. Stop rotating the pump shaft as soon as fuel just begins to rise to the very top of this port. This indicates that the pump is positioned to inject fuel into cylinder #1 at the correct time.
5. Mount the Pump: Carefully install the fuel injection pump onto its drive gear in the timing gearcase. Ensure the pump is correctly seated. Secure the pump to the timing gearcase with the appropriate bolts. Tighten these bolts to the manufacturer's specified torque.
6. Connecting the Injector Lines: Now that the pump is mounted and roughly timed, you can connect the top hard lines that run to each injector. Ensure these are tightened securely but avoid over-tightening, which could damage the fittings.
7. Initial Engine Start and Fine-Tuning: This procedure should enable your tractor to start. However, some fine-tuning of the timing may be necessary to achieve optimal performance. Listen to the engine's sound and observe its responsiveness. If it runs rough or lacks power, a slight adjustment to the pump's timing might be required. This often involves slightly rotating the pump body relative to the gearcase, but be cautious and make small adjustments.

Timing Marks Explained

Many timing gears have specific marks to aid in setting the correct timing. For some models, you might find a set of two dots on one gear and a single dot on the other. The general principle is that the single dot on the idle gear should align precisely between the two dots on the timing gear. Refer to your tractor's specific service manual for the exact location and meaning of these timing marks, as they can vary between models.

Crucial Post-Installation Check: Pump Oil

Important: Never forget to check the oil level in the fuel injection pump after installation. Many injection pumps have their own internal lubrication system that requires specific oil. For many Jinma and similar tractor models, use 15W40 Rotella for both the engine and the pump. Typically, there are two small bolts on the backside of the pump that indicate the oil fill and level points. To check and fill the oil:

• Locate the two small bolts on the rear of the fuel injection pump.
• Remove the lower of the two bolts.
• Add 15W40 Rotella oil through the hole where the bolt was removed until oil begins to seep out of the same hole. This indicates the pump is full.
• Reinstall the lower bolt securely.

Ensuring the pump is adequately lubricated is vital for its longevity and proper operation.

Troubleshooting Common Issues

Even with careful installation, you might encounter a few snags. Here are some common issues and how to address them:

Tractor Won't Start:

• Check for air in the fuel lines: Repeat the bleeding process (Step 3).
• Verify timing: Re-check the engine and pump timing (Steps 1 and 4). Even a slight misalignment can prevent starting.
• Ensure fuel supply: Confirm that the fuel tank is not empty and that the fuel shut-off valve is open.
• Check electrical connections: If your tractor has a shutdown solenoid on the pump, ensure it's receiving power when the ignition is on.

Rough Running or Lack of Power:

• Re-adjust timing: Make very small adjustments to the pump timing (Step 7).
• Check for air leaks: Inspect all fuel lines and connections for any signs of air ingress.
• Inspect injectors: While you're focused on the pump, a faulty injector can also cause these symptoms.
• Ensure correct pump installation: Double-check that the pump is seated correctly on its gear and that all bolts are torqued.

Frequently Asked Questions (FAQs)

Q1: How do I know if my fuel injection pump needs replacing?

A1: Symptoms like significant power loss, difficulty starting, rough idling, excessive smoke, and increased fuel consumption can indicate a failing fuel injection pump.

Q2: Can I install a fuel injection pump myself?

A2: Yes, with the right tools, a good understanding of the process, and careful attention to detail, you can install a fuel injection pump yourself. However, if you are not comfortable with mechanical work, it's best to seek professional assistance.

Q3: What is the most critical part of installing a fuel injection pump?

A3: Setting the injection timing correctly is the most critical aspect. Incorrect timing will prevent the engine from running or cause it to run very poorly.

Q4: What type of oil should I use in the fuel injection pump?

A4: For many Chinese tractor models, 15W40 Rotella is recommended for both the engine and the pump. Always consult your tractor's service manual for the specific oil requirements.

Q5: How often should the fuel injection pump be serviced?

A5: Fuel injection pumps are generally considered reliable components and do not require regular servicing unless symptoms of failure appear. However, regular fuel filter changes are crucial to prevent contamination.

Conclusion

Hopefully, this comprehensive guide will help you successfully install a new fuel injection pump and get your tractor back in optimal working condition. Remember the importance of careful preparation, precise timing, and thorough post-installation checks, especially regarding the pump's oil level. If you require a new fuel injection pump or any other parts for your Jinma, Farm Pro, or similar tractor, explore our extensive inventory of fuel system components and other tractor parts. We are here to support your complete engine repair needs. Don't hesitate to contact us if you have any questions or need further assistance!
