Fuel Injection Pump Types Explained

The fuel injection system in a modern vehicle is a complex yet crucial component, responsible for delivering the precise amount of fuel to the engine's cylinders for optimal combustion. At the heart of this system lies the fuel injection pump, a powerhouse that ensures the fuel is pressurised and delivered efficiently. Understanding the different types of fuel injection pumps is vital for any car enthusiast or owner looking to maintain their vehicle's peak performance and longevity. This article will delve into the various kinds of fuel injection pumps, their operational principles, and their significance in the automotive world.

What is a Fuel Injection Pump?

A fuel injection pump is a mechanical or electric device that pressurises fuel from the fuel tank and delivers it to the fuel injectors. Unlike older carburettor systems, which relied on vacuum to draw fuel into the engine, fuel injection systems actively pump fuel under high pressure. This precise control over fuel delivery results in better fuel efficiency, increased power, and reduced emissions. The pump's role is to ensure a consistent and adequate supply of fuel, regardless of engine speed or load.

The Evolution of Fuel Injection Pumps

Early fuel injection systems, particularly in diesel engines, relied heavily on mechanical pumps. These pumps were robust and effective, but lacked the fine-tuning capabilities of modern electronic systems. The advent of electronic fuel injection (EFI) marked a significant leap forward, allowing for more precise control over fuel delivery based on various sensor inputs. This evolution has led to the diverse range of pumps we see today, each with its own strengths and applications.

Types of Fuel Injection Pumps

Fuel injection pumps can be broadly categorised based on their operating principle and their role within the fuel system. Here are the most common types:

1. Mechanical Fuel Pumps

Mechanical fuel pumps are typically driven by the engine's camshaft or crankshaft. They are often found in older petrol (gasoline) engines and many diesel engines. Their operation relies on a simple lever mechanism that moves a diaphragm or plunger, drawing fuel from the tank and pushing it towards the injectors or a distribution manifold. While simpler and often more durable in certain applications, they generally offer less precise fuel delivery compared to their electric counterparts.

Sub-types of Mechanical Pumps:

• Diaphragm Pumps: These use a flexible diaphragm that is moved by an eccentric cam on the engine's camshaft. As the diaphragm moves, it creates suction and pressure to move fuel.
• Plunger Pumps: These employ a reciprocating plunger within a cylinder to pressurise and deliver fuel. They are common in older diesel injection systems.

2. Electric Fuel Pumps

Electric fuel pumps have become the standard in most modern petrol and many diesel vehicles. They are typically located inside the fuel tank, often as part of a fuel pump module that also includes the fuel gauge sender and a fuel filter. These pumps are powered by the vehicle's electrical system, controlled by the engine control unit (ECU). Their primary advantage is the ability to generate and maintain consistent high fuel pressures required for precise fuel injection, especially in high-performance engines.

Common Electric Pump Designs:

• In-tank Pumps: The most prevalent type. They are submerged in the fuel, which helps to cool them and reduce noise. They are typically centrifugal or gear-driven pumps.
• In-line Pumps: Less common now, these were sometimes mounted externally along the fuel line. They might be used as a secondary pump in some systems or in aftermarket applications.

3. High-Pressure Fuel Pumps (HPFP)

This category is particularly relevant for modern direct-injection petrol and common-rail diesel engines. High-pressure fuel pumps are designed to generate extremely high fuel pressures, often exceeding 1,000 bar (14,500 psi) in diesel systems and several hundred bar in direct-injection petrol engines. These high pressures are necessary for direct injection, where fuel is sprayed directly into the combustion chamber, atomising finely for more efficient combustion.

Types of High-Pressure Fuel Pumps:

• Diesel Common Rail Pumps: These are typically axial piston pumps (also known as wobble plate or swashplate pumps) or radial piston pumps. They draw fuel from a low-pressure feed pump and pressurise it for the common rail system.
• Direct Injection Petrol (GDI) Pumps: Often driven by a dedicated camshaft lobe, these are usually three-piston axial pumps designed to deliver fuel at very high pressures to the direct injectors.

4. Rotary Fuel Pumps

Often found in older diesel engines, rotary pumps distribute fuel to the injectors via a rotating internal element. They are generally less complex than inline pumps but still provide a metered amount of fuel to each cylinder. The Roosa Master pump is a well-known example of a rotary distributor pump.

Roosa Master Fuel Pumps:

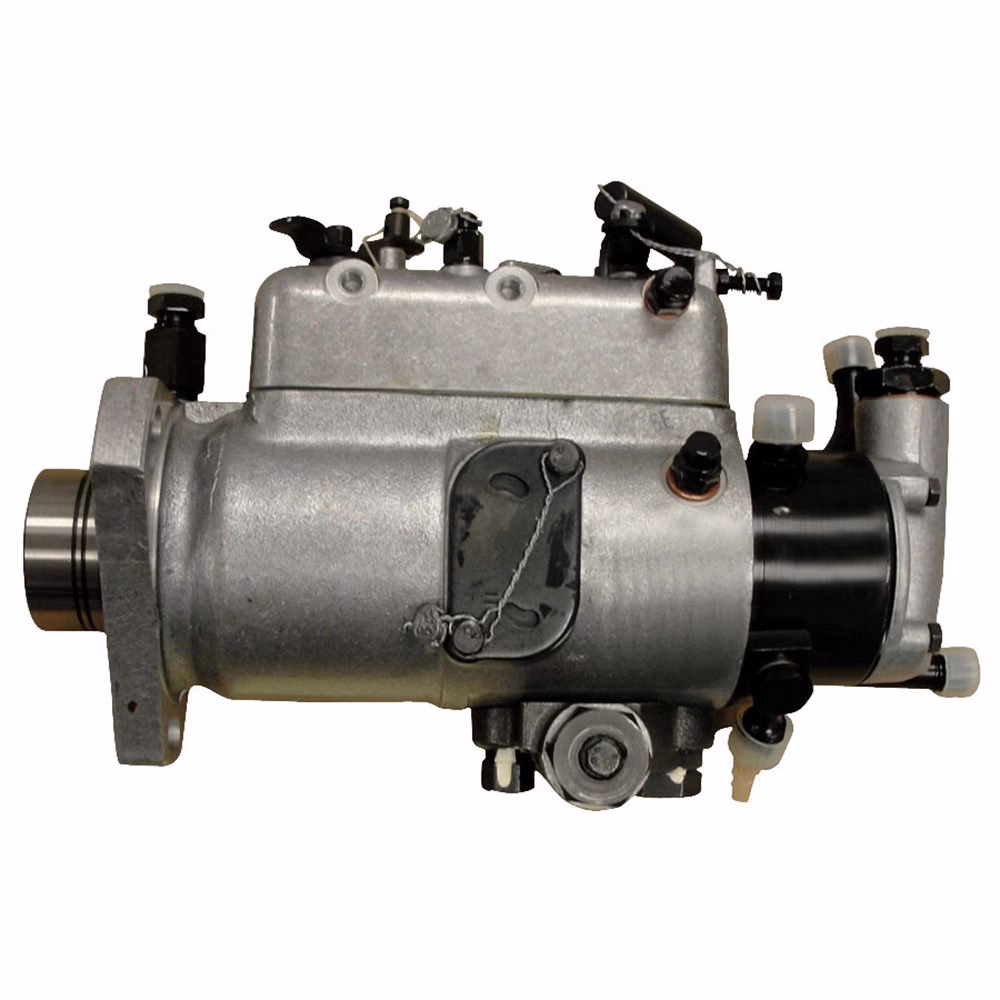

The Roosa Master (now Stanadyne) DB2 rotary injection pump is a very common type of mechanical diesel fuel pump. It's known for its durability and simplicity. Regarding warranties, it's important to note that eBay, as a marketplace, facilitates sales from various sellers. The warranty for a Roosa Master fuel pump purchased on eBay would be determined by the individual seller's policies and any manufacturer's warranty that may still be in effect. eBay itself does not typically offer a direct warranty on individual mechanical parts but provides buyer protection mechanisms. You would need to check the specific listing for warranty information provided by the seller.

5. Inline Fuel Pumps

These are typically mechanical pumps found in older diesel engines. They feature a series of plungers, one for each cylinder, arranged in a line. Each plunger delivers a precisely timed and metered amount of fuel to its corresponding injector. They are known for their robustness and are often found in heavy-duty diesel applications.

How Fuel Injection Pumps Work (General Principles)

Regardless of the specific type, most fuel injection pumps operate on the principle of creating suction to draw fuel from the tank and then pressurising it for delivery. This pressurisation is achieved through various mechanisms, such as:

• Centrifugal Force: Electric pumps often use an impeller that spins at high speed, forcing fuel outwards under pressure.
• Pistons/Plungers: Mechanical and some high-pressure electric pumps use pistons or plungers moving within cylinders to compress and deliver fuel.
• Gears: Gear pumps use meshing gears to trap and move fuel, creating pressure.

The key is the controlled delivery of fuel at the correct pressure and timing, which is managed by the engine's control system in modern vehicles.

Common Fuel Pump Problems and Symptoms

A failing fuel pump can lead to a range of performance issues. Recognizing the symptoms is crucial for timely repair:

• Difficulty starting: If the pump isn't delivering enough fuel pressure, the engine may struggle to start.
• Hesitation or sputtering: During acceleration, if the pump can't keep up with the demand, the engine might hesitate or misfire.
• Loss of power: Especially noticeable when climbing hills or under heavy load.
• Engine stalling: In severe cases, a completely failed pump will prevent the engine from running.
• Whining noise from the fuel tank: Electric fuel pumps can sometimes develop a whining sound as they begin to fail.

Fuel Pump Maintenance and Longevity

While fuel pumps are generally designed for long life, certain practices can help extend their service interval:

• Keep the fuel tank topped up: Most electric fuel pumps are cooled by the fuel they are submerged in. Running the tank consistently low can lead to overheating and premature failure.
• Use quality fuel: Contaminated fuel can clog the pump's internal components or filters, leading to reduced performance and potential damage.
• Replace the fuel filter regularly: A clogged fuel filter puts extra strain on the fuel pump. Following the manufacturer's recommended replacement schedule is important.
• Address fuel system leaks promptly: Leaks can cause the pump to work harder and may indicate other issues within the system.

Table: Comparison of Fuel Pump Types

Frequently Asked Questions (FAQs)

Q1: How do I know if my fuel injection pump is failing?

Common signs include difficulty starting, engine hesitation or sputtering, loss of power, stalling, and sometimes a whining noise from the fuel tank area.

Q2: Can a faulty fuel pump cause poor fuel economy?

Yes, a weak or failing fuel pump may not deliver the correct fuel pressure, leading to inefficient combustion and thus poorer fuel economy.

Q3: What is the difference between a low-pressure and a high-pressure fuel pump?

Low-pressure pumps are typically found in port fuel injection systems, delivering fuel to the injectors at moderate pressures. High-pressure pumps are used in direct injection systems (both petrol and diesel) and generate significantly higher pressures necessary for spraying fuel directly into the combustion chamber.

Q4: Do electric fuel pumps wear out?

Yes, like any mechanical component, electric fuel pumps have a finite lifespan. Wear and tear, electrical issues, or poor fuel quality can all contribute to their failure.

Q5: Is it better to replace a fuel pump with an OEM or aftermarket part?

OEM (Original Equipment Manufacturer) parts are generally recommended for guaranteed fit and performance. However, reputable aftermarket brands can offer a good balance of quality and cost-effectiveness. Always research the brand's reputation.

Conclusion

The fuel injection pump is a critical component that directly impacts your vehicle's performance, fuel efficiency, and emissions. Whether you're dealing with a classic diesel with a mechanical pump or a modern car with a high-pressure electronic system, understanding these different types and their functions is key to proper maintenance. By being aware of the symptoms of a failing pump and following good maintenance practices, you can help ensure your vehicle's fuel system operates reliably for years to come.
