Understanding Diesel Fuel Injection Nozzles: The Heart of Your Engine's Performance
In the intricate world of automotive mechanics, few components are as critical to an engine's overall health and performance as the fuel injection nozzle. For diesel engines, in particular, the nozzle plays a pivotal role, acting as the final gateway for fuel before it ignites and powers your vehicle. This article will delve into the function, types, and maintenance of these vital parts, offering a comprehensive overview for enthusiasts and owners alike.
What Exactly is a Fuel Injection Nozzle?
At its core, a fuel injection nozzle is a precisely engineered component responsible for regulating the flow of fuel into the engine's combustion chamber. In diesel engines, its function is twofold: it atomises the diesel fuel into a fine mist and then sprays this mist onto the piston. This atomisation process is crucial for efficient combustion. Think of it as a highly sophisticated sprinkler system for your engine, ensuring that fuel is delivered in the right quantity, at the right time, and in the perfect state for optimal ignition and power generation.
The assembly of all parts of the injector, with the exception of the nozzle itself, is known as the nozzle holder. The primary purpose of the nozzle holder assembly is to securely position and hold the fuel injection nozzle within the cylinder head. It also contains a passage through which high-pressure fuel flows from the fuel lines to the nozzle, and importantly, a return passage for any excess fuel that might bypass the nozzle.
The Critical Role in Diesel Engines
Diesel engines rely heavily on the precise delivery of fuel. Unlike petrol engines that use spark plugs, diesel engines initiate combustion through the heat generated by compressing air in the cylinder. The finely atomised fuel sprayed by the nozzle mixes with this hot, compressed air, leading to spontaneous ignition. Therefore, the quality of the spray pattern and the timing of the injection are paramount. A poorly functioning nozzle can lead to:
- Reduced engine power
- Increased fuel consumption
- Rough idling
- Excessive smoke emissions (black or white)
- Engine misfires
- Potential internal engine damage over time
The performance of a diesel engine is directly linked to the condition of its injection nozzles. They are designed for high performance, long serviceability, and reliability, making them essential for the longevity of your engine.
Types of Fuel Injection Nozzles
The world of diesel injection nozzles is diverse, with various designs catering to different engine types and applications. These variations often relate to their physical size, stem length, and spray pattern characteristics. Here's a breakdown of common types:
Multi-Hole Nozzles
These are the most common type found in modern diesel engines, especially those used in commercial vehicles, industrial, and agricultural applications. As the name suggests, they feature multiple small holes through which the fuel is sprayed. The number, size, and angle of these holes are meticulously designed to create a specific spray pattern that ensures thorough mixing of fuel and air for efficient combustion. They are further categorised by stem length:
- Multi Hole Long Stem Nozzles: Often used in Direct Injection (DI) modern diesel engines. Examples include DLL-S, DLLA-S, and DLLA-P.
- Multi Hole Short Stem Nozzles: Such as the DL-S types.
Pintle Type Nozzles
These nozzles have a single, central projection (the pintle) that controls the fuel flow and influences the spray pattern. They are generally simpler in design. An example is the DN-S type.
Pintaux Type Nozzles
A variation of the pintle nozzle, the Pintaux type often includes an additional air bleed hole to further refine the spray characteristics.
Korean Type Nozzles
Specific designs developed for certain applications, often found in vehicles or machinery originating from Korea. An example is the DNOPDN.
The specific size and model of the nozzle (e.g., size P, SD, S, T, U, UV, W) are determined by the engine's design and manufacturer specifications. Using the incorrect nozzle can have detrimental effects on engine performance and longevity.

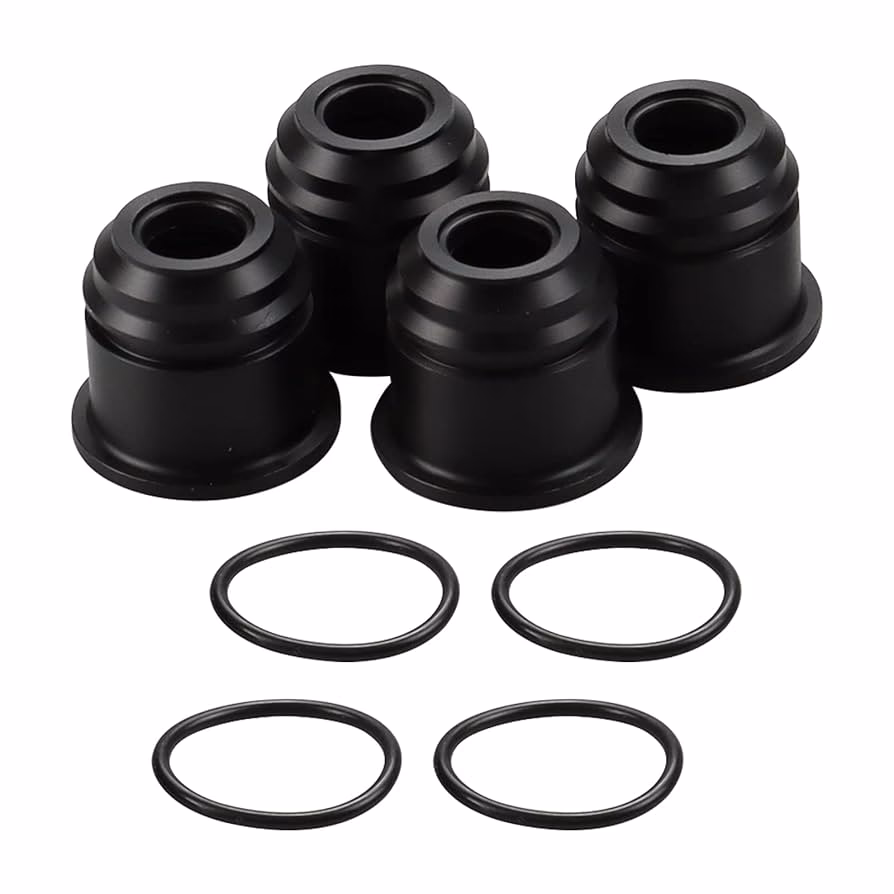

Nozzle Holders and Accessories
As mentioned, the nozzle holder is integral to the fuel injection system. It not only secures the nozzle but also facilitates fuel delivery and return. Beyond the nozzle holder, a range of accessories can help maintain and optimise your fuelling system:
- Nozzle Holders: Designed to securely hold the nozzle, preventing damage and ensuring quick access.
- Swivel Connectors: Facilitate smooth, leak-free connections between fuel lines and the injection system.
- Hose Break Couplings: Engineered with safety in mind, these couplings are designed to break and seal automatically if a vehicle drives off with the nozzle still attached, preventing fuel spills and damage.
These accessories are crucial for ensuring the easy maintenance and efficient operation of your fuel injection system.
Testing and Maintenance of Nozzles
Regular testing and maintenance of your fuel injection nozzles are vital for ensuring optimal engine performance. Specialized equipment, such as nozzle testers, is used for this purpose. These testers are precision-engineered tools designed to:
- Test injection nozzle opening pressure
- Check for 'chattering' (an undesirable rapid opening and closing)
- Perform leakage tests
- Assess the spray pattern and atomisation quality
- Evaluate chatter characteristics
A typical nozzle tester includes a high-pressure pump with a hand lever, a fuel container with a filter, a pressure gauge (often with dual graduations), and connecting pipes with union nuts for various nozzle holder sizes (e.g., M12 x 1.5 and M14 x 1.5). The reliability and durability of these testers are key to accurate diagnostics.
Nozzles are part of a larger, interconnected system. Understanding other components provides a fuller picture:
- Injectors: The complete unit comprising the nozzle, nozzle holder, and internal working parts.
- Injection Elements and Delivery Valves: These are crucial parts within the injection pump that meter and deliver the fuel under high pressure to the injectors. Elements, also known as plungers and barrels, are precisely fitted to create a seal that ensures accurate fuel delivery. Common element types include A, B, K, Q, P, CAV-Simms, Bryce, Deutz, and PAL.
- Automatic Advanced Devices: These centrifugal devices help to advance the timing of fuel injection as engine speed increases, optimising performance and efficiency across different RPMs.
Frequently Asked Questions (FAQs)
Q1: How often should I test my diesel fuel injection nozzles?
It's recommended to have your nozzles tested as part of regular engine servicing, typically every 20,000 to 30,000 miles, or sooner if you notice any performance issues like reduced power, increased smoke, or rough idling.
Q2: Can I clean my fuel injection nozzles myself?
While some minor deposits can be cleared with specialized fuel additives, deep cleaning or repair of nozzles typically requires professional equipment and expertise. Attempting to clean them improperly can cause damage.
Q3: What are the signs of a faulty fuel injection nozzle?
Common signs include excessive black or white smoke, a noticeable drop in engine power, rough idling, increased fuel consumption, difficulty starting, and unusual engine noises.
Q4: Which nozzle holder should I use?
The correct nozzle holder is specific to your engine model and the type of nozzle it is designed to accommodate. Always consult your vehicle's service manual or a qualified mechanic to determine the correct part number.
Q5: Are all diesel nozzles the same?
No, diesel nozzles vary significantly in size, spray pattern, and design depending on the engine manufacturer and application. Using the wrong type can lead to poor performance and engine damage.
Conclusion
Fuel injection nozzles are small but mighty components, absolutely essential for the efficient operation of any diesel engine. Their precise engineering ensures that fuel is delivered and atomised correctly, directly impacting power, fuel economy, and emissions. Regular inspection, testing, and maintenance, along with the use of quality components and accessories, will help keep your diesel engine running smoothly and reliably for years to come. Understanding their function and types is the first step towards ensuring your engine receives the care it deserves.
