Boost Your Ride: Fuel Injection Manifolds

When it comes to extracting maximum power and efficiency from your vehicle's engine, every component plays a crucial role. Among the unsung heroes of internal combustion, the fuel injection manifold stands out as a pivotal player. Often overlooked by the casual enthusiast, this critical component is responsible for distributing the air and fuel mixture evenly to each cylinder, ensuring your engine runs smoothly, powerfully, and efficiently. Upgrading your manifold can significantly ramp up your ride's horsepower and torque, offering a noticeable improvement in throttle response and overall driving dynamics. Whether you're looking to enhance a daily driver or build a track-ready beast, understanding the nuances of fuel injection manifolds and the top brands available is your first step towards unlocking your engine's true potential.

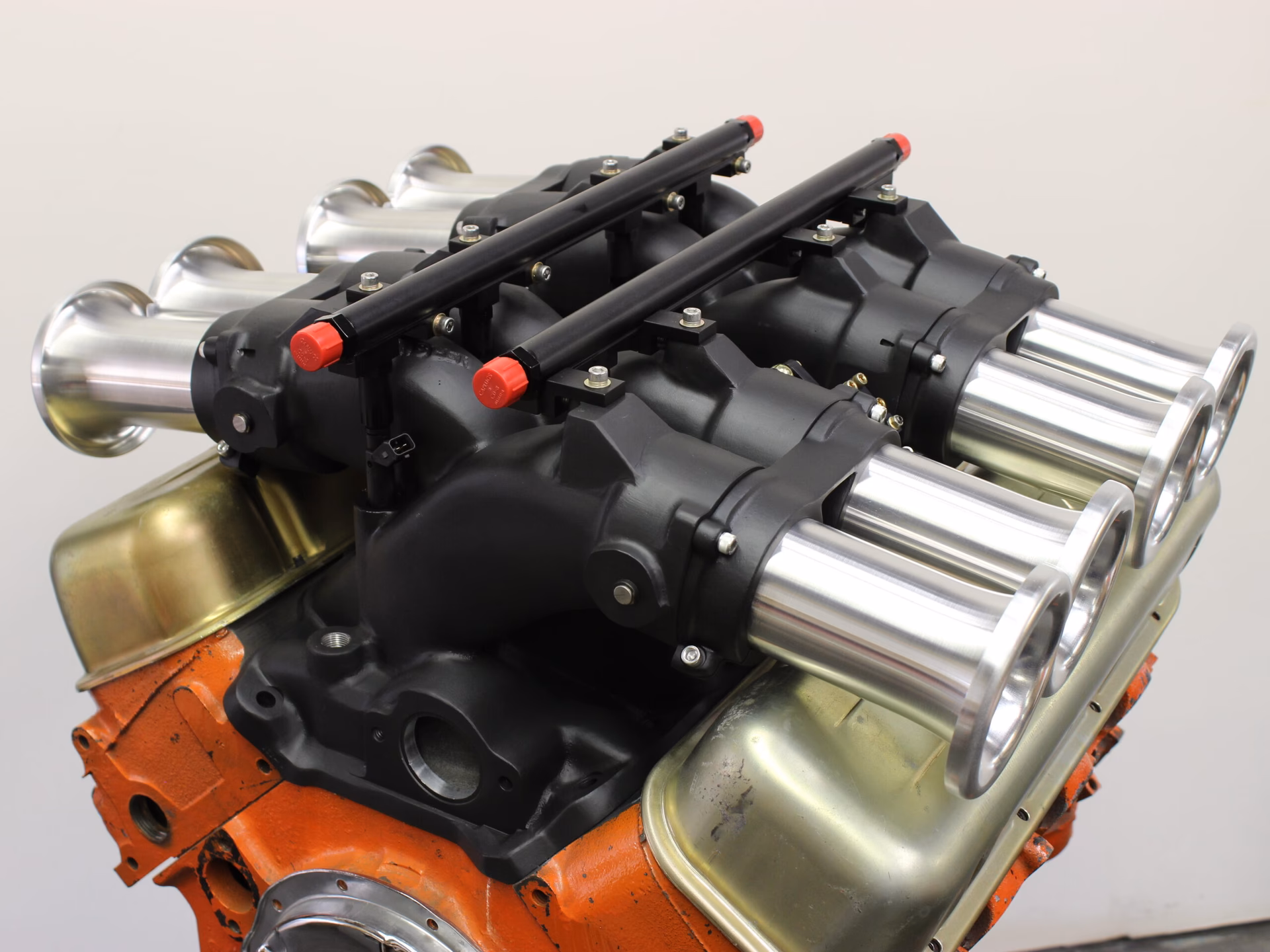

The Heart of Airflow: What is a Fuel Injection Manifold?

A fuel injection manifold, often referred to simply as an intake manifold, is much more than just a pipe that connects to your engine. It's an intricately designed casting or fabrication that channels the air-fuel mixture from the throttle body to the intake ports of each cylinder head. In modern fuel-injected vehicles, it also typically houses the fuel injectors, which precisely spray fuel into the incoming air stream. The design of the manifold directly impacts how efficiently air flows into the engine, how evenly the fuel is distributed, and ultimately, how much power your engine can produce across its RPM range. A well-designed manifold ensures that each cylinder receives an optimal and consistent charge, leading to balanced power output, improved fuel economy, and a smoother-running engine.

Why Upgrade Your Fuel Injection Manifold?

While OEM manifolds are designed for broad applications and manufacturing efficiency, they often compromise on ultimate performance. Aftermarket fuel injection manifolds are engineered with performance in mind, offering several compelling benefits:

• Increased Horsepower and Torque: By optimising airflow and runner design, aftermarket manifolds can significantly reduce restrictions, allowing your engine to breathe more freely and produce more power, especially at higher RPMs.
• Improved Fuel Distribution: Precision engineering ensures that each cylinder receives a more uniform air-fuel charge, leading to more consistent combustion, better power balance, and often improved fuel efficiency.
• Enhanced Throttle Response: A more efficient manifold can lead to quicker and more responsive acceleration, making your vehicle feel more eager and agile.
• Wider RPM Range Optimisation: Different manifold designs cater to specific RPM ranges, allowing you to tailor your engine's power band to your driving style or specific application (e.g., low-end torque for street driving or high-end power for racing).
• Weight Reduction: Some high-performance manifolds are made from lighter materials like composite plastics or thin-wall aluminium, reducing overall vehicle weight.

Understanding Fuel Injection Manifold Types

Before diving into specific brands, it's essential to understand the primary types of fuel injection manifolds available, as each offers distinct performance characteristics:

Multi-Port vs. Throttle Body Injection (TBI) Manifolds

• Multi-Port Fuel Injection (MPFI) Manifolds: This is the most common type in modern vehicles. Each cylinder has its own dedicated fuel injector located in the intake runner, close to the intake valve. This allows for precise fuel delivery to each cylinder, leading to better atomisation, improved efficiency, and more consistent power. Most performance aftermarket manifolds are designed for multi-port setups.
• Throttle Body Injection (TBI) Manifolds: More common in older fuel-injected vehicles, TBI systems typically have one or two injectors mounted in a central throttle body, much like a carburettor. The fuel is then mixed with air and distributed through the manifold runners. While simpler, TBI offers less precise fuel control compared to MPFI, and TBI manifolds are generally less common for performance upgrades today, though some classic car enthusiasts might seek them for period-correct builds.

Runner Length and Design

The length and design of the intake runners (the passages that lead from the plenum to the cylinder heads) significantly impact the engine's power band:

• Long Runners: Generally favour low to mid-range torque. The longer path allows for better air velocity at lower RPMs, enhancing cylinder filling and improving off-the-line acceleration.
• Short Runners: Are designed to maximise high-RPM horsepower. The shorter, straighter path reduces restriction at higher engine speeds, allowing for greater airflow when the engine is revving high.
• Variable Geometry Manifolds: Some advanced OEM and aftermarket manifolds feature internal flaps or valves that can alter the effective runner length based on engine RPM and load. This allows the manifold to optimise airflow for both low-end torque and high-end horsepower.

Material Construction

• Cast Aluminium: The most common material for aftermarket performance manifolds. It offers excellent rigidity, heat dissipation, and durability.
• Sheet Metal: Often used for custom, high-end racing applications. Sheet metal manifolds can be lighter and allow for highly customised runner designs, but they are typically more expensive and can be prone to heat soak if not properly insulated.
• Composite/Plastic: Increasingly used by OEMs for their light weight and ability to mould complex shapes. Some aftermarket options exist, offering good thermal insulation properties.

Leading Brands in Fuel Injection Manifolds

The market for fuel injection manifolds is robust, with several industry-leading brands offering a wide range of products tailored for various applications and performance goals. Here are some of the most trusted names you'll encounter:

Edelbrock

A true legend in the automotive aftermarket, Edelbrock has been a cornerstone of performance for decades. Their fuel injection manifolds are renowned for their quality, performance gains, and wide range of applications. Edelbrock offers manifolds for various engine platforms, from classic V8s to modern modular engines. They are known for providing excellent mid-range and top-end power, often with a focus on street and mild racing applications. Their designs are well-tested and offer reliable performance improvements.

FAST (Fuel Air Spark Technology)

For serious performance enthusiasts and racers, FAST is a go-to brand. As their name suggests, FAST specialises in advanced electronic fuel injection and ignition components, and their intake manifolds are designed to complement their sophisticated EFI systems. FAST manifolds, such as their popular LSX series, are engineered for maximum airflow and horsepower, often featuring large plenums and optimised runner designs for high-RPM power. They are typically considered a premium option, delivering significant gains for high-performance builds.

Trick Flow

Trick Flow is another powerhouse in the aftermarket performance world, particularly known for their cylinder heads and intake manifolds. They focus heavily on optimising airflow and velocity to produce impressive horsepower and torque figures. Trick Flow manifolds are meticulously designed and often feature unique port and runner geometries to maximise performance across various RPM ranges. They offer excellent solutions for a variety of popular engine platforms, delivering a strong balance of streetability and track performance.

Ford Performance (formerly Ford Racing)

For Ford enthusiasts, Ford Performance offers factory-engineered and tested intake manifolds designed specifically for Ford engines. These parts often provide a seamless fit and finish, maintaining OEM quality while delivering noticeable performance improvements. From Coyote engine manifolds to those for older Windsor or Modular engines, Ford Performance parts are a trusted choice for those looking to enhance their Blue Oval vehicle with confidence.

GM Performance

Similarly, GM Performance provides a range of intake manifolds and other performance components specifically for General Motors engines. These parts are designed with OEM quality standards in mind, ensuring proper fitment and integration with GM's vast array of engines, particularly popular LS and LT platforms. GM Performance manifolds offer reliable power gains and are a solid choice for those seeking factory-backed performance.

Dorman

While not strictly a performance brand in the same vein as Edelbrock or FAST, Dorman is an extremely important player in the automotive aftermarket for replacement parts. They offer a vast catalogue of intake manifolds that serve as direct OEM replacements. If you're simply looking to replace a cracked or faulty stock manifold without necessarily chasing maximum horsepower, Dorman provides reliable, cost-effective solutions that meet or exceed original equipment specifications. They cover an incredibly wide range of makes and models.

Professional Products

Professional Products often positions itself as a more budget-friendly alternative to some of the higher-end brands, while still offering performance improvements. They produce a variety of intake manifolds that mimic popular designs, providing a viable option for enthusiasts looking to upgrade without breaking the bank. While they might not always offer the absolute peak performance of a top-tier racing manifold, they provide good value for money and noticeable gains over stock.

Other Notable Brands

Beyond these, you'll also find other reputable brands like Holley (a giant in fuel systems, also offering manifolds under their own name and through acquisitions like Weiand), and various smaller, specialist manufacturers. When exploring options, always consider the reputation of the brand, reviews from other users, and compatibility with your specific engine and vehicle.

Choosing the Right Manifold for Your Engine

Selecting the perfect fuel injection manifold requires careful consideration of several factors to ensure it aligns with your vehicle's specifications and your performance aspirations:

1. Engine Make, Model, and Year: This is paramount. Manifolds are highly engine-specific. Ensure the manifold is designed for your exact engine (e.g., Ford Coyote 5.0L, Chevy LS1, etc.).
2. Intended Use and RPM Range: Are you building a street car, a drag racer, or a track car? A street car might benefit from a manifold that enhances mid-range torque, while a drag car will want maximum high-RPM horsepower. Match the manifold's design (long vs. short runners) to your desired power band.
3. Power Goals: What kind of horsepower and torque gains are you aiming for? Higher performance manifolds from brands like FAST or Trick Flow are designed for more aggressive builds.
4. Budget: Manifolds vary significantly in price. Determine how much you're willing to spend, balancing cost with performance gains and brand reputation.
5. Fitment and Clearance: Some aftermarket manifolds are physically larger than stock, potentially causing clearance issues with bonnets, strut tower braces, or other under-bonnet components. Always check dimensions and compatibility.
6. Future Modifications: Consider if you plan on adding forced induction (turbocharger or supercharger) in the future, as some manifolds are better suited for boosted applications than others.

Here's a simplified comparison of a few common types and brands:

Installation and Tuning Considerations

Installing an aftermarket fuel injection manifold is a significant undertaking. It often involves removing numerous components from the top of the engine, including fuel lines, wiring harnesses, and coolant hoses. While a seasoned DIY mechanic might tackle the job, it's often best left to a professional, especially if you're not familiar with engine work. Furthermore, after installing a performance manifold, a custom engine tune is almost always recommended, if not mandatory. The new manifold will significantly alter the engine's airflow characteristics, and without a re-tune, your engine's air-fuel ratio could be off, leading to poor performance, reduced efficiency, or even potential engine damage. A professional tune will optimise your engine's computer (ECU) to take full advantage of the new manifold, ensuring maximum power, efficiency, and reliability.

Frequently Asked Questions (FAQs)

Q1: Will an aftermarket fuel injection manifold void my car's warranty?

A: In many cases, installing aftermarket performance parts, including intake manifolds, can potentially void parts of your vehicle's factory warranty related to the powertrain. It's always best to check with your dealership or read your warranty terms carefully before making significant modifications.

Q2: Do I need to upgrade other parts when installing a new manifold?

A: While not always strictly necessary, upgrading other components like a larger throttle body, higher-flow fuel injectors, and a performance air intake can help maximise the benefits of a new manifold. A custom ECU tune is highly recommended to fully realise the potential gains and ensure proper engine operation.

Q3: How much horsepower can I expect from an aftermarket manifold?

A: Gains vary widely depending on the manifold design, your specific engine, and other modifications. It's common to see gains ranging from 10-30 horsepower, and sometimes even more on highly modified engines or with forced induction. Always check dyno results and reviews specific to your engine platform.

Q4: What's the difference between a single plane and a dual plane manifold for fuel injection?

A: While single and dual plane designs are more traditionally associated with carburettor manifolds, the concept of runner separation and length still applies in some fuel injection manifold designs. Generally, a single plane design offers shorter, more direct runners, favouring high-RPM horsepower. A dual plane design separates the cylinders into two banks with longer, winding runners, which typically enhances low-to-mid range torque. Modern multi-port fuel injection manifolds often have more complex, tuned runner designs that might not strictly adhere to the traditional single or dual plane definitions but aim to optimise airflow across a broad RPM range.

Q5: Can I install a fuel injection manifold myself?

A: If you have advanced mechanical skills, the necessary tools, and detailed service manuals, it is possible. However, it's a complex job involving fuel systems, electrical connections, and often coolant lines. Incorrect installation can lead to leaks, engine issues, or even fire hazards. If in doubt, professional installation is always recommended.

Upgrading your fuel injection manifold is a fantastic way to unlock significant performance from your engine. By understanding the types available, the leading brands, and the critical factors in choosing the right one, you can make an informed decision that truly transforms your driving experience. Remember, quality components and professional installation/tuning are key to achieving reliable and impressive results. Get ready to feel the difference!
