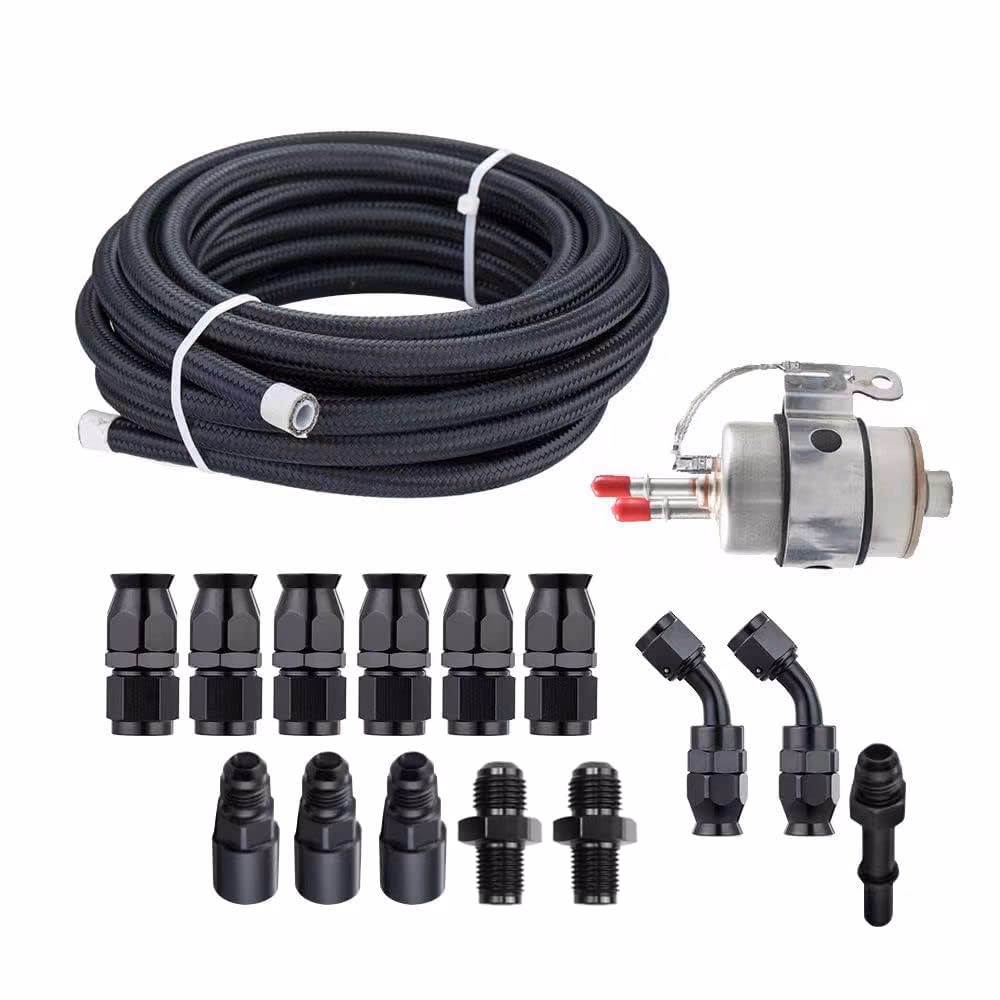

Motorsport Hoses & Fittings Explained

In the demanding world of motorsport, where every fraction of a second counts and engines are pushed to their absolute limits, the components that manage vital fluids like fuel and oil are not just accessories; they are critical lifelines. Motorsport hoses and fittings are specifically engineered to endure the extreme conditions of racing, far exceeding the capabilities of standard automotive parts. These aren't your everyday rubber hoses; they are sophisticated pieces of engineering designed for reliability, performance, and safety under immense pressure and temperature fluctuations. Understanding what these components are and why they are so crucial can provide valuable insight into the meticulous attention to detail required in building a competitive motorsport vehicle.

The Backbone of Fluid Management: Hoses

At the heart of any fluid transfer system in a motorsport vehicle are the hoses. Unlike the flexible rubber hoses found in most road cars, motorsport hoses are constructed from advanced materials and sophisticated layering techniques to ensure they can handle the punishing environment of a race track. The primary function of a hose is to safely and efficiently transfer fluids, whether it's high-octane fuel to the engine or lubricating oil to critical moving parts. The stresses involved in motorsport – from intense vibrations and extreme temperatures to the corrosive nature of certain fuels and lubricants – necessitate a far more robust solution.

Materials Matter: The Construction of Motorsport Hoses

The internal construction of a motorsport hose is key to its performance. Typically, these hoses feature an inner liner made from materials like:

• PTFE (Polytetrafluoroethylene): Often referred to by the brand name Teflon, PTFE is renowned for its exceptional chemical resistance, high-temperature stability, and low friction. This makes it ideal for handling aggressive fuels, oils, and coolants without degradation. Its smooth surface also minimises flow restriction.
• Nylon: While less resistant to extreme temperatures than PTFE, nylon offers excellent flexibility and good chemical resistance, making it a cost-effective option for certain applications.
• Stainless Steel Braiding: This is the most common external reinforcement for motorsport hoses. Multiple layers of braided stainless steel provide immense strength, preventing the hose from expanding under pressure (which would lead to reduced flow and potential failure) and offering excellent protection against abrasion and heat.
• Aramid Fibre (e.g., Kevlar): For applications requiring extreme strength and heat resistance, aramid fibres are sometimes used in place of or in conjunction with stainless steel braiding.

The combination of these materials creates a hose that is not only incredibly strong but also resistant to the specific fluids it will carry and the ambient temperatures it will encounter. The inner liner is the part that directly contacts the fluid, while the reinforcement layers provide the structural integrity. An outer cover may also be present for additional abrasion resistance.

Connecting the Dots: Fittings and Adaptors

A hose is only as good as its connection. Motorsport fittings and adaptors are precision-engineered components that allow hoses to be securely and leak-free connected to other parts of the system, such as fuel pumps, oil coolers, carburettors, or engine blocks. These fittings are not simply threaded pieces of metal; they are designed for maximum flow, minimal restriction, and absolute sealing under high pressure and vibration.

Types of Motorsport Fittings

The most prevalent type of fitting used in motorsport is the AN (Army-Navy) fitting. These are standardised, reusable fittings that offer a reliable, leak-proof connection. They feature a 37-degree flare angle on both the hose fitting and the port, creating a metal-to-metal seal. This design ensures that the connection can withstand significant pressure and vibration without leaking or separating.

Key features of AN fittings include:

• Standardisation: AN fittings are universally recognised, making it easy to source compatible components.
• Reusability: Unlike some compression fittings, AN fittings can be disassembled and reconnected multiple times without compromising their sealing ability.
• Material Variety: They are commonly made from aluminium for weight savings, stainless steel for superior strength and corrosion resistance, or steel for heavy-duty applications.

Adaptors are also crucial. These are used to connect different types of fittings or to adapt a component with a specific thread (e.g., a metric thread on an engine) to an AN fitting. The precision machining of these adaptors ensures that there are no compromises in flow or sealing.

Why are they so important in Motorsport?

The answer lies in the extreme demands of racing. Standard automotive hoses and fittings are simply not designed to cope with:

• Higher Pressures: Fuel systems, especially in turbocharged or high-performance naturally aspirated engines, operate at significantly higher pressures than those in everyday vehicles.
• Extreme Temperatures: Engine bays in motorsport vehicles can reach incredibly high temperatures due to proximity to exhaust systems and the intense heat generated by the engine itself. Conversely, some fluids can also become very cold.
• Vibration: The constant, intense vibration from a racing engine and chassis can quickly loosen or damage less robust connections.
• Corrosive Fluids: Certain racing fuels and additives can be more aggressive than standard pump gasoline, requiring hoses with superior chemical resistance.
• Safety: A catastrophic failure of a fuel or oil line can lead to engine damage, fires, or accidents. The reliability of these components is paramount for driver safety and the integrity of the vehicle.

A Comparative Look: Motorsport vs. Standard Automotive

To illustrate the difference, consider a simple comparison:

Accessories and Ancillary Components

Beyond the hoses and fittings themselves, a complete motorsport fluid system often includes various accessories. These might include:

• Hose Sleeving: Protective sleeves made from heat-resistant materials (like fibreglass or Nomex) are often added over hoses to shield them from radiant heat from exhaust manifolds or other hot components.
• Hose Clamps: While AN fittings are self-sealing, some applications or lower-pressure systems might still use specialised, high-strength hose clamps designed to prevent slippage.
• Bulkhead Fittings: These are designed to pass a hose through a panel or bulkhead, providing a secure and sealed mounting point.
• Swivel Fittings: Many motorsport fittings are designed to swivel, allowing for easier installation and preventing kinks or stress on the hose when connecting to components that might not align perfectly.

Frequently Asked Questions (FAQs)

Q1: Can I use standard automotive hoses in my motorsport build?
It is strongly advised against. The pressure, temperature, and vibration levels in motorsport far exceed those of standard vehicles, and standard hoses are likely to fail prematurely, leading to significant risks.

Q2: What does 'AN' stand for in AN fittings?
While often thought to stand for 'Army-Navy', the term 'AN' actually refers to a standard developed by the US military for aerospace and defence applications. The fittings themselves are often referred to as 'JIC' (Joint Army-Navy) fittings, though AN is the more common term in motorsport.

Q3: How do I know which size hose and fitting to use?
Hose and fitting sizes are designated by a number (e.g., -6AN, -8AN, -10AN). This number corresponds to the inside diameter of the hose in sixteenths of an inch. So, a -6AN hose has an inside diameter of 6/16ths of an inch (3/8 inch).

Q4: Is PTFE the best material for all motorsport hoses?
PTFE offers excellent performance, especially for high temperatures and aggressive fuels. However, its rigidity compared to nylon can be a factor in some applications. For lower-pressure or less demanding situations, nylon hoses can be a suitable and more flexible alternative. The choice depends on the specific application and its requirements.

Q5: How often should motorsport hoses and fittings be inspected?
Regular inspection is crucial. Before and after every event, hoses should be checked for signs of wear, abrasion, cracking, or leaks. Fittings should be inspected for tightness and any signs of damage. It's also good practice to replace hoses periodically, even if they show no obvious signs of wear, as their internal structure can degrade over time.

Conclusion

Motorsport hoses and fittings are far more than simple plumbing. They are highly engineered components that form the critical links in a vehicle's vital fluid systems. Their construction from advanced materials, coupled with precision-machined fittings, ensures the reliability, safety, and ultimate performance required to compete at the highest levels. Investing in quality motorsport-specific hoses and fittings is not just about meeting regulations; it's about ensuring the integrity of the vehicle and the safety of the driver when pushing the boundaries of automotive engineering.
