Suzuki Fuel Injector Repair Kits: Your Complete Guide

Maintaining the fuel system of your Suzuki motorcycle is paramount for ensuring optimal performance, fuel efficiency, and longevity. At the heart of this system are the fuel injectors, precision components responsible for atomising fuel into the engine's combustion chambers. Over time, these vital parts can become clogged or their seals can degrade, leading to a host of issues from rough idling to reduced power. Thankfully, for many common Suzuki models, a dedicated fuel injector repair kit offers a cost-effective solution to breathe new life into your ride. This article delves into the specifics of such a kit, how your fuel injectors operate, and essential maintenance tips to keep your Suzuki running like a dream.

Understanding Your Fuel Injector Repair Kit

When considering a repair, knowing exactly what you're getting and what it covers is crucial. A typical fuel injector repair seal filter kit, such as those offered by reputable suppliers like The Injector Shop, is designed to service a specific number of injectors for particular models. For instance, the kit referenced, designed for Suzuki GSX-R1000 and Hayabusa models, is explicitly stated to service up to four fuel injectors.

What's Inside the Kit?

These kits are meticulously assembled to provide the necessary components for a thorough overhaul of your existing injectors, ensuring they seal correctly and filter fuel effectively. The contents are typically:

• 4 - Micro filter Baskets: These tiny filters are the first line of defence against contaminants entering the injector, preventing clogging and ensuring a consistent spray pattern.
• 4 - Upper Injector Viton O-rings: Made from Viton, a durable synthetic rubber, these O-rings provide a crucial seal at the top of the injector, preventing fuel leaks and maintaining proper fuel rail pressure.
• 4 - Lower Injector Intake Seal: Located at the bottom of the injector, this seal ensures a tight fit into the intake manifold, preventing air leaks that could disrupt the air-fuel mixture.

It is important to note that while these kits provide the essential rebuild components, the fuel injectors themselves are not included. They are shown in product pictures for reference only, demonstrating which injector the kit is designed to repair. Furthermore, the plastic components and O-rings within the kit can sometimes vary in colour from the listing pictures, but their material and function remain consistent.

Compatibility and Fitment

This particular kit is tailored for Suzuki motorcycles, specifically targeting the Keihin 15710-21H00 injector. This injector is found in a range of popular models and years, including:

• Suzuki GSX-R1000: Models from 2007 through 2014.
• Suzuki Hayabusa GSX1300R: Models from 2008 through 2012.

The comprehensive list of compatible models and years often includes detailed sub-models and market specifications (e.g., E3, E28, E33), ensuring you select the correct kit for your specific motorcycle. Always double-check your bike's exact year and model against the kit's fitment guide to guarantee compatibility.

The Vital Role of Fuel Injectors and Their Operation

Understanding how fuel injectors work is key to appreciating the importance of their proper maintenance. In modern motorcycles, fuel injection systems have largely replaced carburetors, offering more precise fuel delivery and better engine control. This precision is vital for meeting stringent emissions standards and extracting maximum power and efficiency from your engine.

How Fuel Injectors Function

At their core, fuel injectors are electronically controlled valves. They receive a continuous 12-volt power supply, typically through a yellow/red wire, which is active whenever the fuel pump has power. However, the injector doesn't open until it receives a ground signal. This crucial ground signal is provided by the Engine Control Module (ECM).

The ECM, often referred to as the bike's 'brain', precisely controls when and for how long each injector opens. It does this by varying the duration of the ground pulse, known as 'pulse width'. A longer pulse width means the injector stays open for longer, delivering more fuel. The ECM calculates the optimal fuel delivery based on various sensor inputs, such as engine RPM, throttle position, air temperature, and oxygen levels in the exhaust. This continuous adjustment ensures the engine always receives the ideal air-fuel mixture for the prevailing conditions.

When the ECM completes the circuit by providing the ground, a solenoid inside the injector is energised, pulling open a tiny pintle valve. This allows pressurised fuel to spray out in a fine, atomised mist, which mixes with air before entering the combustion chamber. This fine mist is essential for efficient combustion, leading to better power output, lower emissions, and improved fuel economy. Any deviation from this ideal spray pattern, often caused by clogged filters or worn seals, can significantly impact engine performance.

Signs of Failing Injectors

When injectors begin to fail, either due to clogging, leaks, or electrical issues, you might notice a range of symptoms:

• Rough idling or misfires: An inconsistent spray pattern or a completely blocked injector can cause one or more cylinders to misfire, leading to a rough engine idle.
• Reduced engine performance and acceleration: Insufficient fuel delivery means the engine cannot produce its full power, resulting in sluggish acceleration.
• Decreased fuel economy: Leaking injectors or an improper spray pattern can lead to wasted fuel, reducing your miles per gallon.
• Increased exhaust emissions: Inefficient combustion due to poor fuel atomisation can result in higher levels of unburnt hydrocarbons and other pollutants.
• Difficulty starting the engine: If injectors are not delivering enough fuel during startup, the engine may crank for longer than usual or fail to start altogether.

Addressing these symptoms promptly with a repair kit or professional service can prevent further engine damage and restore your bike's performance.

Inspecting and Maintaining Your Fuel Injectors

While a full step-by-step installation guide for fuel injectors typically requires a detailed service manual specific to your motorcycle model, there are critical inspection and maintenance procedures you can perform or be aware of when servicing your fuel system. The information provided here focuses on the elements directly mentioned in the kit description and related troubleshooting guidance.

Fuel Injector Inspection

A primary component to inspect during fuel injector service is the fuel mesh filter. This tiny filter, located at the fuel inlet of the injector, can become clogged with debris over time, restricting fuel flow and affecting the injector's spray pattern. The procedure generally involves:

1. Carefully removing the fuel mesh filter. This often requires a specialised tool or careful manipulation to avoid damaging the injector body.
2. Inspecting the filter for any signs of clogging or foreign matter. A clogged filter will appear discoloured or have visible particles trapped within it.
3. Replacing the filter with a new one from your repair kit. Never attempt to clean and reuse a clogged mesh filter, as this can push debris further into the injector or compromise its filtration capability.

For more detailed instructions on removing the fuel mesh filter and other fuel pump components, you would typically refer to the “fuel pump disassembly and assembly” section of your motorcycle's official service manual. This manual will provide visual aids and precise steps crucial for proper execution.

Tightening Torque Specifications

When reassembling fuel system components, adhering to the manufacturer's specified tightening torques is absolutely critical. Overtightening can strip threads, crack delicate plastic components, or deform seals, leading to leaks or component failure. Conversely, undertightening can result in loose connections, fuel leaks, or air ingress into the system. Always consult your service data for specific tightening torque specifications related to the injectors, fuel pump, and fuel pressure regulator. These details are usually found under sections like “Fuel Tightening torque specifications” and are vital for a safe and reliable repair that prevents fuel leaks and ensures proper system pressure.

Troubleshooting Common Fuel System Issues

Sometimes, what appears to be an injector problem might stem from other parts of the fuel or electrical system. A methodical approach to troubleshooting can save you time and expense, helping you accurately diagnose the root cause of your motorcycle's symptoms.

Checking for Power and Ground

A fundamental check for non-firing injectors is to verify their electrical supply. Without proper voltage and a triggering ground signal, injectors cannot function:

• Fuses: Always start by checking the relevant fuses in your motorcycle's fuse box. A blown fuse can cut power to the entire fuel system, including the injectors and fuel pump, leading to a complete lack of fuel delivery.
• Power Supply: Confirm that the injectors are receiving the continuous 12V supply. As mentioned, this typically runs through the yellow/red wire when the fuel pump has power. You can test this with a multimeter by checking voltage at the injector connector. If there's no power, investigate the fuel pump relay or wiring harness for breaks or corrosion.
• ECM Ground Signal: The ECM provides the ground to trigger the injectors. If you have 12V at the injector but it's not firing, the issue could lie with the ECM's ability to provide this ground, or a break in the ground wire itself. Testing the ECM's output requires more advanced diagnostic tools, such as an oscilloscope, and a good understanding of electrical circuits.

Fuel Pump Operation

The fuel pump's health directly impacts injector performance, as it's responsible for delivering fuel under pressure to the injectors. When you turn the ignition key to the 'on' position, the fuel pump should prime for approximately 3 seconds, creating pressure in the fuel rail. It should then come on again when you press the starter button. If the pump isn't priming, or you're unsure if it's delivering adequate pressure to the fuel rail, this needs to be investigated before suspecting the injectors themselves. You can often hear a distinct whirring sound during priming. Do not jump power to the pump unless you are following a specific diagnostic procedure outlined in your service manual, as this can bypass safety circuits and potentially cause damage.

Diagnostic Trouble Codes (DTCs)

Modern motorcycles often have an onboard diagnostic system that can store fault codes, providing clues to underlying issues. For example, a DTC "c23" (P1651-H/L) indicates a "To Sensor Circuit Malfunction". While this isn't directly an injector malfunction, issues with related sensors (e.g., throttle position sensor, oxygen sensor, manifold absolute pressure sensor) can indirectly affect fuel delivery and mimic injector problems by providing incorrect data to the ECM. If the sensor voltage is outside the expected range (e.g., 0.2 V ≤ Sensor voltage < 4.8 V for 2 seconds or more after ignition is turned on), it suggests an open or short circuit in that sensor's wiring. Always check for DTCs using a diagnostic tool if your motorcycle exhibits unusual behaviour, as these codes can narrow down your troubleshooting efforts significantly.

Benefits of DIY Fuel Injector Repair

Opting for a DIY fuel injector repair using a dedicated kit offers several compelling advantages for the home mechanic:

• Cost-Effectiveness: Replacing entire fuel injectors can be significantly more expensive than simply replacing their worn-out seals and filters. A repair kit provides all the necessary components at a fraction of the cost, making it a budget-friendly alternative.
• Extended Lifespan: By proactively replacing degraded components like O-rings and micro filters, you can significantly extend the operational life of your existing injectors, delaying the need for full replacements and ensuring they continue to operate efficiently.
• Restored Performance: New seals ensure proper fuel pressure and prevent leaks, while fresh micro filters ensure a clean, consistent spray pattern. This directly translates to restoring your engine's original performance, improving throttle response, and enhancing fuel efficiency.
• Satisfaction of DIY: For the mechanically inclined, successfully performing a repair yourself can be a deeply rewarding experience, deepening your understanding of your motorcycle's intricate systems and building your confidence as a mechanic.

Important Considerations for DIYers

While DIY repair is empowering, it requires attention to detail and adherence to best practices to ensure a successful and safe outcome:

• Cleanliness is Key: Fuel system components are highly sensitive to dirt and debris. Work in a clean environment and ensure all tools and parts are spotless before assembly. Even a tiny particle can clog an injector or cause a leak, leading to recurring issues.
• Use the Correct Parts: Always ensure your repair kit is specifically designed for your injector model and motorcycle. Using incorrect O-rings or filters can lead to leaks, poor performance, or even damage to the injector or engine. Verify the injector part number (e.g., Keihin 15710-21H00) matches your bike's requirements.
• Safety First: Fuel is highly flammable, and working with it requires extreme caution. Work in a well-ventilated area, free from open flames or sparks. Disconnect the battery before starting work to prevent accidental electrical activation, and be prepared for potential fuel spillage. Always have a fire extinguisher readily accessible.
• Consult the Service Manual: While this article provides general guidance, your motorcycle's specific service manual is an invaluable resource for precise torque specifications, detailed disassembly/assembly procedures, and model-specific troubleshooting. It often contains exploded diagrams that are essential for correct reassembly.
• When to Seek Professional Help: If you encounter difficulties, lack the necessary specialised tools, or suspect a more complex issue (e.g., ECM failure, internal injector damage that cannot be resolved with a kit), do not hesitate to consult a qualified motorcycle mechanic. Sometimes, professional expertise is the safest and most efficient solution.

Kit Contents Overview

Frequently Asked Questions (FAQs)

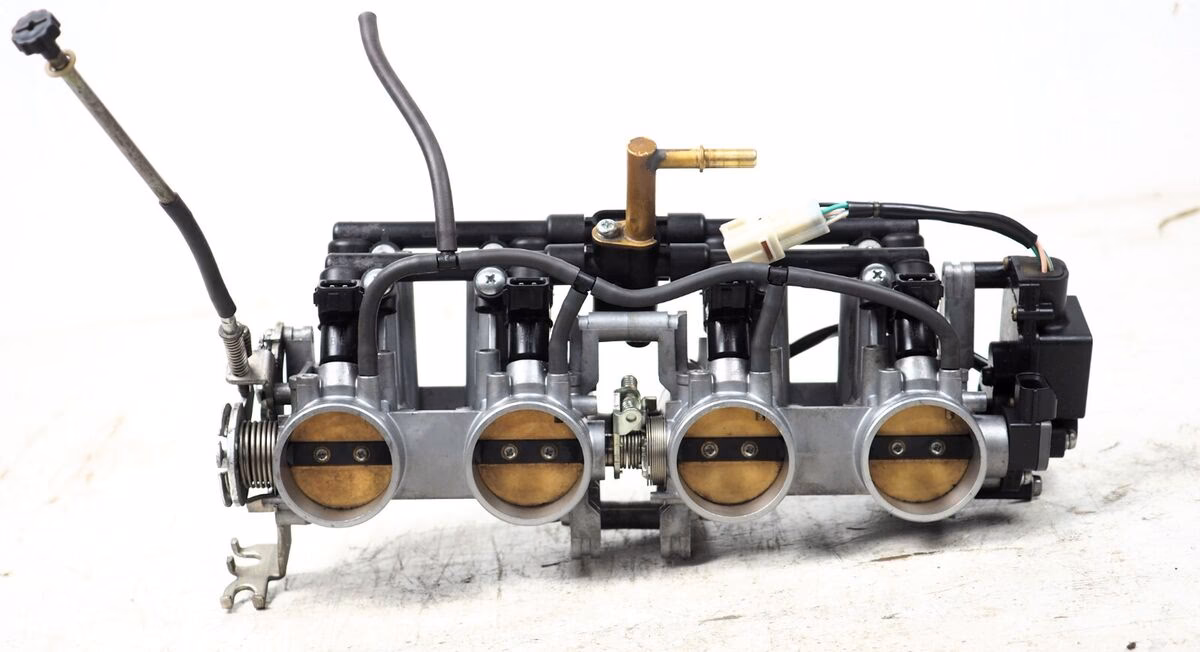

How many fuel injectors will this repair kit service?

This specific Injector Shop repair kit is designed to service up to four Suzuki Keihin fuel injectors, specifically part number 15710-21H00. This means it provides enough components (micro filters, upper Viton O-rings, and lower intake seals) to completely refurbish four individual fuel injectors.

What Suzuki models and years are compatible with this kit?

The kit is compatible with Suzuki GSX-R1000 models from 2007 to 2014 and Suzuki Hayabusa GSX1300R models from 2008 to 2012. It's always best practice to verify your specific motorcycle model and year against the detailed fitment list provided by the kit manufacturer to ensure perfect compatibility.

Are the actual fuel injectors included in the repair kit?

No, the actual fuel injectors are not included in the repair kit. The kit provides the necessary consumable components (seals, filters) to rebuild and service your existing injectors. Any images showing injectors are for reference only, to illustrate which type of injector the kit is designed for.

How do fuel injectors work in a Suzuki motorcycle?

Fuel injectors receive a constant 12-volt power supply when the fuel pump is active. They are precisely triggered to open by a ground signal provided by the motorcycle's Engine Control Module (ECM). The ECM controls the exact timing and duration of this ground pulse, determining how much fuel is sprayed into the engine based on various engine sensor inputs.

Why is checking the fuel mesh filter important during injector service?

The fuel mesh filter is crucial for preventing microscopic debris and contaminants from entering and clogging the delicate internal components of the fuel injector. If this filter becomes clogged, it can restrict fuel flow, lead to an improper and inconsistent spray pattern, and negatively impact engine performance, fuel economy, and potentially cause engine damage. Regular inspection and replacement of this filter, as provided in the kit, are essential for optimal injector function and longevity.

By understanding the components of your fuel injector repair kit, the fundamental operation of your motorcycle's fuel injection system, and adhering to diligent maintenance practices, you empower yourself to keep your Suzuki motorcycle performing at its peak. A well-maintained fuel system is the cornerstone of reliability and enjoyment on the road, ensuring every ride is as smooth and powerful as intended.
