P0200 Code: Your Definitive Injector Circuit Guide

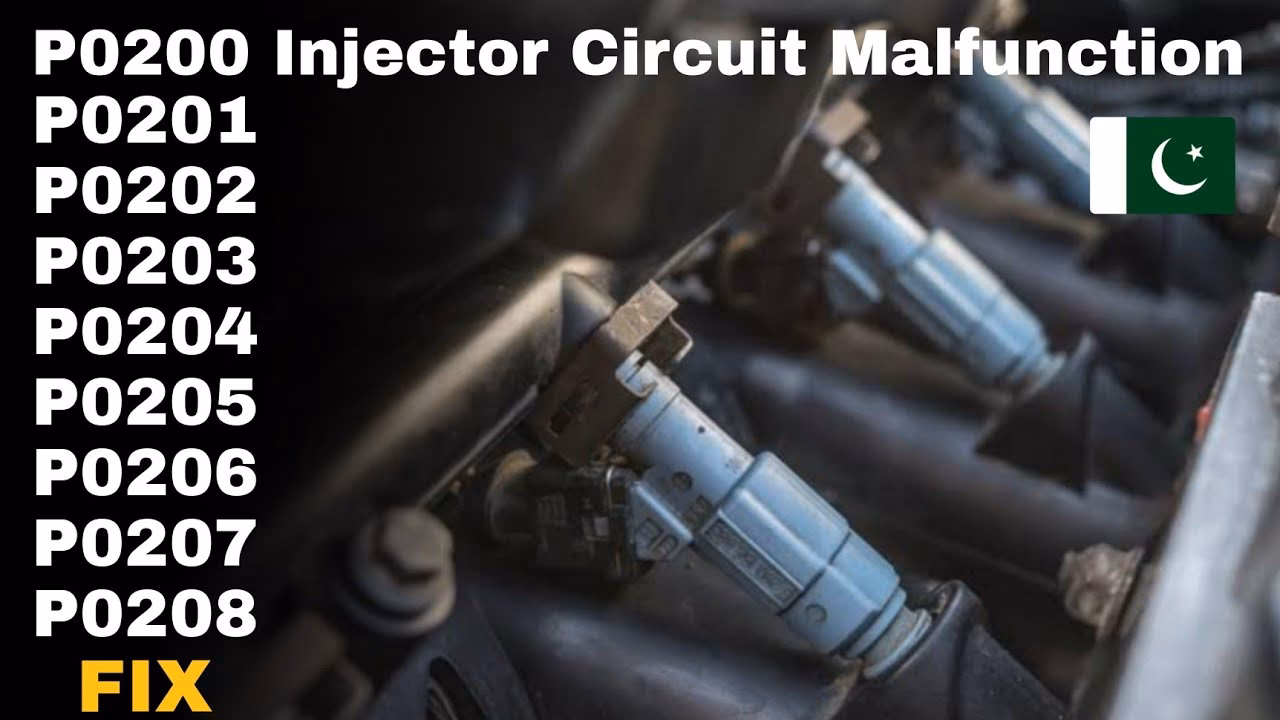

Encountering a P0200 trouble code can be a rather unsettling experience for any vehicle owner. This particular diagnostic trouble code (DTC) signifies an 'Injector Circuit/Open' issue, indicating that your vehicle's Engine Control Module (ECM) has detected a malfunction within the electrical circuit that controls one or more of your fuel injectors. Essentially, this means that the crucial component responsible for delivering precisely metered fuel to your engine's combustion chambers isn't operating as it should, or the electrical pathway to it is compromised.

Understanding the P0200 code is the first step towards resolving it. Fuel injectors are pivotal for your engine's performance, ensuring the correct air-fuel mixture for efficient combustion. When an injector circuit is open or faulty, it can lead to a cascade of problems, from poor engine performance to increased emissions. Having personally dealt with countless vehicles exhibiting this very code, I can assure you that with the right approach and a clear understanding of the underlying mechanics, you can effectively diagnose and rectify this issue. This guide is designed to walk you through the meaning of P0200, its tell-tale symptoms, common causes, and a detailed, practical approach to fixing it efficiently. Let's delve into restoring your vehicle's optimal performance.

What Does the P0200 Trouble Code Mean?

The P0200 trouble code is a generic OBD-II code, meaning it applies to all vehicles equipped with OBD-II systems, though the specific repair steps might vary slightly by make and model. At its core, P0200 indicates a general fault in the fuel injector circuit. Unlike more specific codes like P0201 (Cylinder 1 Injector Circuit) or P0202 (Cylinder 2 Injector Circuit), P0200 points to a broader issue, suggesting that the problem isn't isolated to a single cylinder but rather affects the general injector circuit or the ECM's ability to communicate with the injectors correctly.

The ECM constantly monitors the electrical resistance and voltage within the fuel injector circuits. When it detects an unexpected resistance reading – such as an open circuit (no continuity) or a short circuit (unintended connection) – or an incorrect voltage signal, it interprets this as a malfunction. This triggers the P0200 code and illuminates the Check Engine Light (CEL) on your dashboard. An 'open circuit' typically means there's a break in the electrical path, preventing current from flowing to the injector, thus preventing it from firing. This can be due to damaged wiring, a loose connection, a faulty injector coil, or even a problem within the ECM itself.

The consequences of a malfunctioning fuel injector circuit are significant. Without the precise delivery of fuel, the affected cylinder(s) will either receive too much, too little, or no fuel at all. This directly impacts combustion, leading to misfires, reduced power output, and increased fuel consumption. Prompt diagnosis and repair are essential to prevent further, potentially more severe, engine damage, especially to components like the catalytic converter, which can be harmed by unburnt fuel entering the exhaust system.

Recognising the Symptoms of a P0200 Code

When your vehicle registers a P0200 trouble code, it's highly likely that you'll experience a range of noticeable symptoms that affect its drivability and performance. These symptoms are direct consequences of the engine not receiving the correct amount of fuel, or at the correct time, due to the injector circuit malfunction. Being aware of these signs can help you confirm the presence of the P0200 code even before plugging in a scanner.

• Illuminated Check Engine Light (CEL): This is almost always the first and most obvious indicator. The CEL will come on and typically stay on until the underlying issue is resolved.
• Engine Misfires: One of the most common and noticeable symptoms. You might feel the engine stumble or hesitate, particularly during acceleration or at idle. This happens when a cylinder fails to combust fuel properly due to a lack of, or incorrect, fuel delivery.
• Rough Idling: The engine may shake or vibrate excessively when idling, feeling uneven or 'lumpy'. This is due to one or more cylinders not contributing effectively to the engine's smooth operation.
• Reduced Engine Power: You'll likely notice a significant decrease in acceleration and overall power. The vehicle might struggle to reach higher speeds or ascend inclines.
• Poor Fuel Economy: If injectors are not firing correctly or are stuck open, fuel might be wasted, leading to a noticeable drop in miles per gallon (MPG). Conversely, if they're not opening at all, the ECM might try to compensate, which can also lead to inefficiency.
• Hesitation or Stalling During Acceleration: The vehicle may hesitate or briefly lose power when you press the accelerator pedal, and in severe cases, it might even stall completely, especially when coming to a stop or at low speeds.
• Increased Exhaust Emissions: Unburnt fuel due to misfires can lead to a richer exhaust mixture, potentially causing a strong fuel smell and increased harmful emissions from the exhaust.

To put it into perspective, here's a comparative overview of how a vehicle performs normally versus with a P0200 code:

Common Causes Behind the P0200 Code

Identifying the root cause of a P0200 code is crucial for an effective repair. The problem typically lies within the electrical system related to the fuel injectors, though the injectors themselves can also be culprits. Here are the most common reasons why your vehicle might be flagging a P0200 code:

• Faulty Fuel Injector(s): This is a very common cause. An injector can become clogged, fail mechanically (e.g., stuck open or closed), or its internal coil can fail, creating an open circuit.
• Damaged or Corroded Injector Wiring: The wiring leading to the fuel injectors is constantly exposed to engine heat, vibrations, and sometimes even moisture or rodent damage. This can lead to frayed wires, breaks, or corrosion, creating an open circuit or a short.
• Faulty Injector Connectors: The electrical connectors that plug into the fuel injectors can become loose, corroded, or damaged over time. A poor connection can mimic an open circuit, preventing proper electrical flow.
• Open or Shorted Injector Circuit: Beyond physical damage to wires, there could be an internal open or short within the wiring harness itself. This requires careful tracing with a multimeter.
• Blown Injector Circuit Fuse: Many vehicles have a dedicated fuse for the fuel injector circuit. If this fuse blows, it will cut power to all or a bank of injectors, leading to an open circuit condition detected by the ECM. A blown fuse often indicates an underlying short circuit somewhere in the system.
• Poor Electrical Connections: General poor connections within the engine bay, perhaps at ground points or other relays, can sometimes indirectly affect the injector circuit's integrity.
• Faulty Engine Control Module (ECM): While less common, a malfunctioning ECM can incorrectly send signals, fail to send signals, or misinterpret signals from the injector circuit. The ECM contains the injector drivers; if one of these drivers fails, it can cause an open circuit for a specific injector or a group. This is usually considered a last resort diagnosis after ruling out all other possibilities.

The severity of the P0200 code should not be underestimated. Ignoring it can lead to significant and costly damage to your engine's internal components, such as pistons, valves, and catalytic converters. Persistent misfires can overheat the catalytic converter, causing it to melt internally, which is an extremely expensive repair. Moreover, reduced drivability and poor fuel economy make the vehicle less safe and more costly to operate in the long run. Addressing this code promptly is always recommended.

Step-by-Step Diagnosis and Repair for P0200

Diagnosing and fixing the P0200 trouble code requires a systematic approach, combining visual inspection with electrical testing. While some steps can be performed by a competent DIY mechanic, certain advanced diagnostics might benefit from professional tools or expertise.

Tools You'll Need:

• OBD-II Scan Tool (capable of reading live data and clearing codes)
• Multimeter (for checking voltage and resistance/continuity)
• Basic hand tools (sockets, wrenches, screwdrivers)
• Wire brush and electrical contact cleaner
• Test light (optional, but useful for quick power checks)
• Fuel injector cleaning kit (optional, for clogged injectors)
• Service manual for your specific vehicle (highly recommended for wiring diagrams and specifications)

1. Initial Visual Inspection

Begin by visually inspecting the fuel injectors and their surrounding components. Look for any obvious signs of damage:

• Wiring: Check the entire length of the wiring harness leading to the injectors. Look for chafing, cuts, bare wires, or signs of rodent damage. Pay close attention to areas where wires might rub against engine components.
• Connectors: Inspect the electrical connectors at each fuel injector. Ensure they are securely seated and not loose. Look for corrosion, bent pins, or signs of melting. Disconnect and reconnect them to ensure a good contact.
• Injectors Themselves: Look for physical damage, leaks, or signs of external corrosion on the injectors. While not directly related to the circuit, a leaking injector can cause other issues that might complicate diagnosis.

2. Check the Injector Circuit Fuse

Locate your vehicle's fuse box (usually under the bonnet or inside the cabin). Consult your owner's manual or the fuse box diagram to identify the fuse(s) responsible for the fuel injector circuit. Use a multimeter to check for continuity across the fuse. If the fuse is blown, replace it with one of the correct amperage. However, be aware that a blown fuse often indicates a short circuit elsewhere in the system, which needs to be identified and repaired to prevent the new fuse from blowing immediately.

3. Test for Voltage at the Injectors

With the ignition on (engine off), use your multimeter to check for battery voltage at the injector connectors. Disconnect one injector connector and place the positive lead of your multimeter on the power wire terminal of the connector and the negative lead on a good ground point. You should see approximately battery voltage (around 12V). If there's no voltage, or significantly reduced voltage, it indicates a problem with the power supply to the injectors, possibly a blown fuse, a faulty relay, or a break in the power supply wire from the ECM or fuse box.

4. Test Injector Resistance (Continuity)

This step helps identify a faulty injector or an open circuit within the injector itself. Disconnect the electrical connector from each fuel injector. Set your multimeter to the ohms (Ω) setting. Place one probe on each of the two terminals of the injector itself. Compare the reading to the manufacturer's specifications (found in your service manual). Typical resistance values for fuel injectors range from 10 to 18 ohms. If an injector shows an extremely high resistance (open circuit, 'OL' on multimeter) or a very low resistance (short circuit), that injector is faulty and needs replacing.

5. Test the Injector Control Circuit (Ground Side)

The ECM controls the injectors by providing a ground signal. This test is a bit more advanced and often requires a Noid light or an oscilloscope for accurate measurement, but a test light can give a basic indication. With the engine cranking or running (if possible), connect a Noid light to the injector connector (in place of the injector). The light should flash, indicating that the ECM is sending a ground pulse. If it doesn't flash, there's an issue with the wiring between the ECM and the injector, or a problem with the ECM's injector driver.

6. Inspect and Test the Wiring Harness for Shorts/Opens

If the injectors test good, and you have power, the problem likely lies in the wiring between the injector connector and the ECM. This requires checking for continuity and shorts. Disconnect both the injector connector and the ECM connector (refer to your service manual for pinouts). Use your multimeter to check for continuity on each wire in the injector circuit from one end to the other. Also, check for shorts to ground (each wire to chassis ground) and shorts to power (each wire to a constant 12V source if applicable). Repair any breaks or shorts found.

7. Clean the Injectors (If Suspected Clogged)

While a P0200 typically points to an electrical issue, a severely clogged injector can sometimes mimic an open circuit by drawing insufficient current or causing the ECM to misinterpret its operation. If all electrical tests pass, consider an off-vehicle professional injector cleaning, or use a high-quality in-tank fuel system cleaner designed for injectors. This is less likely to fix a P0200 directly but can improve overall fuel delivery if clogging is also present.

8. ECM Assessment

If all other components (injectors, wiring, fuses) test out perfectly, the ECM itself might be faulty. This is the least common cause and the most expensive to replace. Diagnosis of a faulty ECM often requires a professional scan tool capable of performing specific ECM diagnostic tests and potentially reprogramming. Before condemning the ECM, ensure all power and ground connections to the ECM are also thoroughly checked.

Preventing Future P0200 Issues

While some issues are unavoidable, proactive maintenance can significantly reduce the likelihood of encountering a P0200 code again or other fuel system related problems. Here are some preventative measures:

• Regular Fuel Filter Replacement: A clogged fuel filter can strain the fuel pump and lead to inconsistent fuel pressure, indirectly affecting injector performance.
• Use Quality Fuel: Opt for reputable fuel stations. Lower quality fuel can contain impurities that lead to injector clogging over time.
• Periodic Fuel System Cleaner: Using a high-quality fuel system cleaner every few oil changes can help keep injectors clean and prevent carbon build-up.
• Inspect Wiring During Maintenance: Whenever you're working under the bonnet, take a few moments to visually inspect the wiring harnesses, especially those near heat sources or moving parts, for any signs of wear or damage.
• Secure Connections: Ensure all electrical connectors in the engine bay are securely fastened. Vibrations can cause them to loosen over time.

Frequently Asked Questions (FAQs)

Q1: Is it safe to drive with a P0200 code?

A1: It is generally not recommended to drive extensively with a P0200 code. While you might be able to drive short distances to a repair shop, prolonged driving can lead to significant engine damage, particularly to the catalytic converter due to unburnt fuel. The engine will be running inefficiently, which can also lead to increased wear on other components.

Q2: Can a P0200 code clear itself?

A2: A P0200 code will typically not clear itself unless the underlying issue (e.g., a loose connection that temporarily re-established contact) resolves on its own. Even then, it's likely to return. It's always best to diagnose and fix the problem. Once repaired, you can clear the code with an OBD-II scanner, and if the repair was successful, it should not reappear.

Q3: How much does it cost to fix a P0200 code?

A3: The cost to fix a P0200 code varies widely depending on the root cause. If it's a simple loose connection or a blown fuse, the cost might be minimal (just the cost of a fuse or your time). If it requires replacing a single fuel injector, costs can range from £100-£300 per injector (parts and labour). If a wiring harness needs extensive repair, it could be £200-£500. A faulty ECM is the most expensive, potentially costing £500-£1500 or more for parts, programming, and labour. Diagnosis time also adds to the cost if you're taking it to a professional.

Q4: Can a P0200 code cause other codes to appear?

A4: Yes, a P0200 code can definitely trigger other related codes. For instance, persistent misfires caused by the injector circuit issue can lead to misfire codes (e.g., P0300, P0301, etc.). Issues with fuel trim (P0171, P0174) can also appear as the ECM tries to compensate for incorrect fuel delivery. Always address the P0200 first, as it's often the foundational problem.

Q5: Is it possible to test fuel injectors without removing them?

A5: Yes, basic electrical tests like resistance and voltage checks can often be performed with the injectors still in place, by simply disconnecting their electrical connectors. However, more advanced tests, such as flow testing or spray pattern analysis, typically require removing the injectors and using specialised bench testing equipment. A Noid light is also a quick way to check if the injector is receiving a pulse without removing it.

Successfully addressing the P0200 trouble code involves a methodical approach, beginning with basic visual inspections and progressing to more detailed electrical diagnostics. While some fixes are straightforward, others may require patience and specific tools. By following the steps outlined in this guide, you are well-equipped to tackle this common automotive issue, ensuring your vehicle runs reliably and efficiently once more. Remember, when in doubt or if you feel uncomfortable with any step, don't hesitate to consult a qualified mechanic. Your engine's health and your safety are paramount.
