The Importance of Calibration Fluid in Diesel Systems
Maintaining the precision and efficiency of diesel fuel injection systems is paramount for optimal engine performance and longevity. While often overlooked by the average car owner, specialised fluids play a crucial role in ensuring these complex systems operate as intended. One such vital component is calibration fluid. This article delves into what calibration fluid is, why it's indispensable, and the benefits it offers to both professionals and the health of diesel engines.
What Exactly is Calibration Fluid?

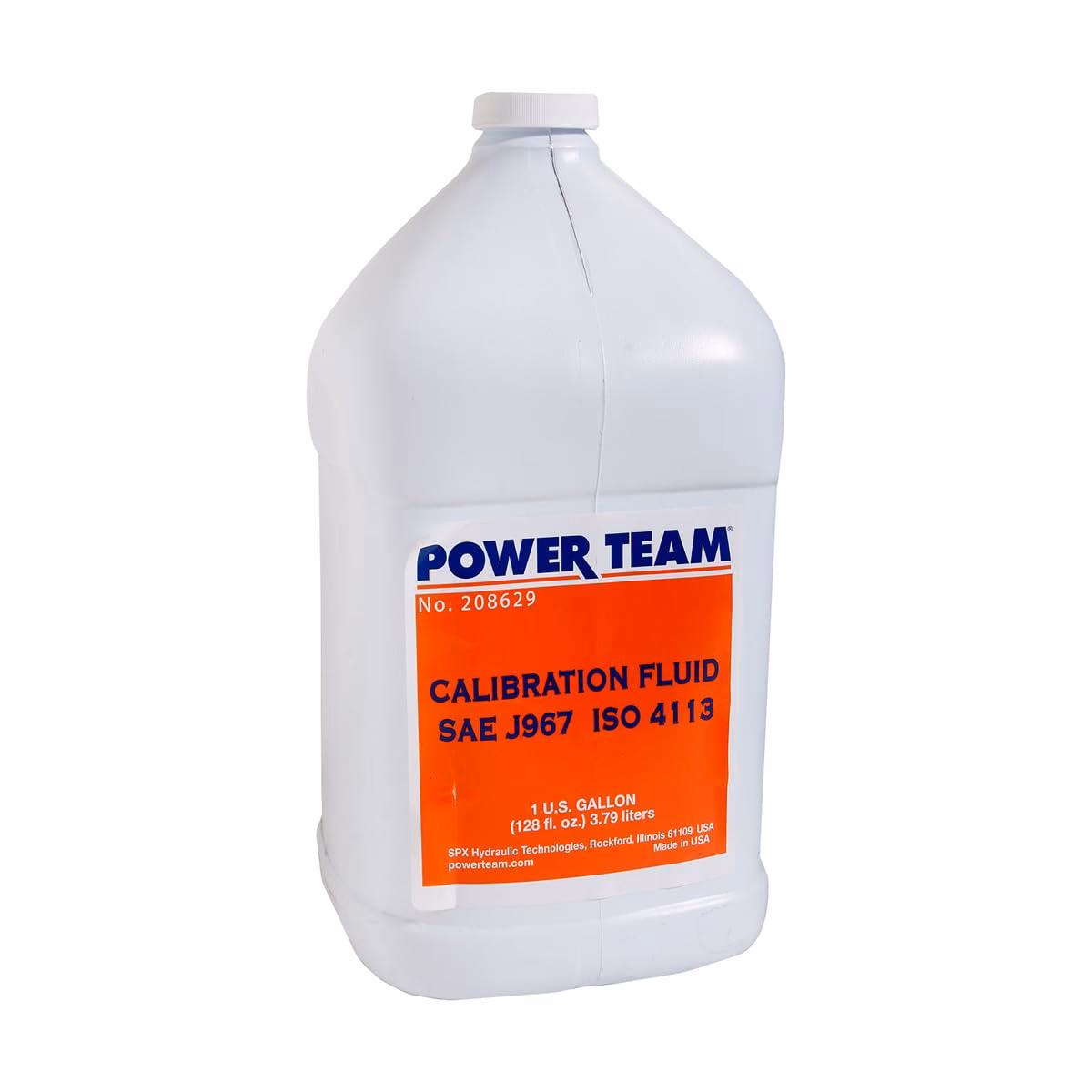

Calibration fluid, in essence, is a specially formulated synthetic fuel designed to mimic the physical properties of actual diesel fuel. Its primary purpose is to replicate diesel fuel accurately for the precise calibration, flow testing, and flushing of diesel fuel pumps and injectors. These fluids are engineered to meet stringent specifications, ensuring that when mechanics use them with testing equipment, they achieve reliable and consistent results. Unlike regular diesel, calibration fluid possesses specific characteristics that make it ideal for diagnostic and maintenance procedures.
The Evolution of Diesel Calibration Standards
The need for a standardised reference fluid for diesel fuel injection systems became apparent long ago. Before the late 1960s, different vehicle manufacturers (OEMs) had their own unique specifications for the reference fluids used in calibrating pumps and nozzles. This lack of uniformity created complexities and potential inaccuracies. Recognising this, the Society of Automotive Engineers (SAE) and the International Standards Organization (ISO), comprising major OEMs and component suppliers, collaborated to develop a single, uniform fluid. This joint effort led to the creation of standards that allow a single fluid to be used across all automotive and truck diesel fuel injection systems, simplifying the calibration process significantly.
Key Properties and Benefits of Calibration Fluid
Calibration fluids are meticulously formulated to possess a range of beneficial properties:
- Guaranteed Viscosity and Specific Gravity: These ensure the fluid flows and behaves like diesel under test conditions, providing accurate measurements.
- Corrosion Protection: Calibration fluids often include high anti-corrosion properties, safeguarding the internal components of fuel systems and testing equipment from rust and degradation. This is particularly important when systems are not in active use.
- Light Colour for Leak Testing: A clear or light-coloured fluid makes it easier to detect and pinpoint leaks within the fuel system during testing.
- Oxidation Stability: This property ensures a longer service life for the fluid in test stands and prevents the formation of deposits that could affect test accuracy.
- Anti-Wear Protection: Essential for protecting vital pump and injector components from scoring and premature wear during the calibration process.
- Foam Resistance: Prevents the formation of air bubbles that could interfere with flow rate measurements.
- High Flash Point: Enhances safety by reducing the risk of fire during testing procedures.
The texture of calibration fluid is typically smooth, making it suitable for a wide array of testing equipment, including nozzle testing systems and various types of pump test stands, both manual and powered.
Compliance and Standards
For a calibration fluid to be considered effective and safe, it must adhere to established industry standards. The most widely recognised standards are SAE J967 and ISO 4113. Fluids that meet these specifications have been rigorously tested and approved by leading manufacturers, ensuring their suitability for calibrating a broad spectrum of diesel fuel injection systems.
Types of Calibration Fluids
While the core function remains the same, different formulations may exist to cater to specific needs or manufacturer approvals. For instance, some fluids are specifically designed to offer enhanced anti-wear protection required by particular brands, such as Bosch. When selecting a calibration fluid, it's crucial to ensure it is ISO 4113 compliant and suitable for the specific make and model of the equipment being tested.
Test Fluid Based on Mineral Oil
A variation of calibration fluid is one based on mineral oil. These are specifically formulated to meet the high-tolerance requirements of modern fuel injectors. Beyond calibration, these fluids also serve a protective role, preserving the fuel injectors and eliminating the need for cleaning after the test procedure. Furthermore, using such fluids can significantly prolong the lifespan of the testing rig itself.
Where to Source Calibration Fluid
Specialised automotive suppliers, such as Darwen Diesels, are key sources for high-quality workshop consumables, including calibration fluid. These suppliers understand the need for hard-to-find, specialised tools and materials. Calibration fluid is typically available in convenient container sizes, such as 20-litre drums, and is often stocked for immediate dispatch, ensuring that workshops can maintain their diagnostic and calibration schedules without interruption.
Calibration Fluid vs. Diesel Fuel
It is important to understand that calibration fluid is not a substitute for diesel fuel in a running engine. Its purpose is strictly for testing and calibration. Using calibration fluid in a vehicle's fuel tank can lead to poor engine performance, potential damage, and will not provide the necessary lubrication and combustion properties required for normal operation. Always use the correct fluid for the intended purpose.
Frequently Asked Questions (FAQ)
Q1: Can I use regular diesel fuel for calibrating my diesel injectors?
No, using regular diesel fuel for calibration is not recommended. Diesel fuel's properties can vary significantly, and it does not possess the consistent, controlled characteristics required for accurate calibration and testing. Calibration fluid provides the necessary stability and precision.
Q2: How often should I use calibration fluid?
Calibration fluid is typically used during specific maintenance procedures, such as when testing or recalibrating fuel pumps and injectors, or during the flushing of fuel systems. It is not intended for regular use as a fuel additive or replacement.
Q3: What happens if I don't use proper calibration fluid?
Using incorrect fluids or no fluid at all during calibration can lead to inaccurate test results, improper injector or pump settings, and potentially damage to the testing equipment or the components being tested. This can result in poor engine performance, increased emissions, and costly repairs.
Q4: Is Delphi calibration fluid different from other types?
While the core function of calibration fluids is similar across brands, specific formulations might be developed or recommended by particular manufacturers like Delphi to meet their unique system requirements or diagnostic tool specifications. It's always best to consult your equipment's manual or a specialist for specific brand recommendations.
Q5: What are the main advantages of using approved calibration fluids?
The main advantages include ensuring accurate and repeatable calibration results, protecting sensitive fuel injection components from wear and corrosion, extending the life of testing equipment, and complying with industry standards for reliable diagnostics and maintenance.
Conclusion
Calibration fluid is an indispensable tool in the arsenal of any mechanic or workshop dealing with diesel engines. Its specialised formulation ensures the accuracy and reliability of critical diagnostic and calibration procedures. By understanding its properties and adhering to industry standards like ISO 4113, professionals can maintain the peak performance and longevity of diesel fuel injection systems. Whether for routine testing or complex repairs, the correct use of calibration fluid is a testament to precision engineering and diligent maintenance.
