Fiat 500 Dualogic Oil: Your Essential Guide

The Fiat 500 Dualogic system, an ingenious automated manual transmission, offers the convenience of an automatic with the efficiency of a manual. However, many owners, particularly those new to the system or without direct dealer support, often find themselves perplexed by its fluid requirements. It’s a common misconception that there’s just one type of 'Dualogic oil.' In reality, this sophisticated system requires two distinct types of fluid, each serving a crucial role in different parts of the transmission. Understanding these differences and using the correct fluids is paramount for the longevity and smooth operation of your beloved Fiat 500.

This guide aims to clarify the confusion surrounding Dualogic oil, providing you with the precise information needed to maintain your vehicle correctly. We'll delve into the specific fluid types, their purposes, typical capacities, and offer guidance on how to check and change them, empowering you to undertake informed maintenance, even without local Fiat service expertise.

Understanding the Fiat Dualogic System

Before we dive into the specifics of oil, it’s helpful to briefly understand what the Dualogic system is. Essentially, it’s a standard manual gearbox coupled with an electro-hydraulic actuator unit. This actuator takes over the tasks of clutch operation and gear selection, which would typically be performed by the driver in a conventional manual car. This means you get the feel of a manual transmission (like direct power transfer and efficiency) but without the need for a clutch pedal or manual gear changes. Because it's fundamentally a manual gearbox with an automated layer, it necessitates two separate lubrication and hydraulic circuits.

Two Distinct Fluids, Two Crucial Roles

The core of the confusion often stems from not differentiating between the fluid that lubricates the internal components of the manual gearbox itself and the hydraulic fluid that powers the Dualogic actuator. These are entirely separate systems, and using the wrong fluid in either can lead to severe, costly damage.

1. Gearbox Oil (Manual Transmission Fluid - MTF)

This is the oil that lubricates the gears, bearings, and shafts within the manual part of your Dualogic transmission. Just like any manual gearbox, it requires a specific type of oil to reduce friction, dissipate heat, and protect against wear. For the Fiat 500 Dualogic, the correct specification for the gearbox oil is TUTELA CAR TECHNYX 75W85.

• Purpose: To lubricate the internal mechanical components of the manual gearbox, ensuring smooth gear engagement and preventing wear.
• Type: TUTELA CAR TECHNYX 75W85 (an M/T oil, meaning Manual Transmission oil).
• Capacity: For most Fiat 500 Dualogic models, the gearbox typically requires approximately 1.8 to 2.0 litres of this fluid. However, it is always crucial to consult your specific owner's manual or a workshop manual for the precise capacity for your vehicle's year and engine variant. Overfilling or underfilling can both cause problems.
• Change Interval: While often considered 'lifetime' by some manufacturers, it's generally good practice to consider changing gearbox oil every 50,000 to 100,000 miles, or every 5-7 years, especially in demanding driving conditions or if you notice any unusual gearbox behaviour. Fresh oil can significantly improve shift quality and extend gearbox life.

2. Dualogic Hydraulic System Oil (Actuator Fluid)

This is the fluid that powers the electro-hydraulic actuator unit. This unit, in turn, operates the clutch and shifts the gears. It's a high-pressure hydraulic system, and as such, it requires a very specific, thin, and stable hydraulic fluid. For the Fiat 500 Dualogic, this fluid is TUTELA CAR CS SPEED.

• Purpose: To act as the hydraulic medium that allows the Dualogic actuator to engage/disengage the clutch and select gears. This is what makes the 'automatic' shifting possible.
• Type: TUTELA CAR CS SPEED (an A/T oil, meaning Automatic Transmission oil, but specifically formulated for hydraulic actuator systems like Dualogic/Selespeed).
• Capacity: The hydraulic system has a much smaller capacity than the gearbox. The reservoir for this fluid is typically only around 0.5 to 0.7 litres. This is often checked and topped up rather than a full drain and refill, as a full change often requires bleeding the system with diagnostic equipment.
• Change Interval: Unlike gearbox oil, this fluid is not typically changed at regular mileage intervals. It's more about checking the level regularly (e.g., during routine service) and topping up if low. A full fluid change is usually only performed if the fluid is contaminated, or if the actuator unit itself is being serviced or replaced, as the system needs to be properly bled to remove air bubbles.

The Alfa Romeo Selespeed Analogy

The user's reference to Alfa Romeo's Selespeed system is spot on and very helpful. The Fiat Dualogic system is mechanically very similar, if not identical, in principle to the Selespeed system found in various Alfa Romeo models. Both are automated manual transmissions that use an electro-hydraulic actuator. This means the fluid requirements and maintenance procedures share many commonalities. If you're familiar with Selespeed maintenance, you'll find the Dualogic system operates on the same premise of having a separate gearbox oil and a separate hydraulic actuator fluid.

Why the Confusion Persists

The primary reasons for this widespread confusion include:

• Owner's Manual Ambiguity: Some manuals may not explicitly differentiate between the two systems as clearly as needed, especially for owners who aren't mechanically inclined.
• Lack of Local Expertise: As highlighted by the user, in regions without dedicated Fiat service centres, obtaining accurate, specific information can be challenging.
• The Term 'Dualogic': The name itself can imply a single, integrated system rather than two distinct ones.
• The 'Automatic' Perception: While it shifts automatically, it's not a traditional torque-converter automatic transmission, which uses a single type of ATF for both lubrication and hydraulic functions.

How to Change Your Fiat 500 Dualogic Gearbox Oil (MTF)

Changing the gearbox oil is a relatively straightforward DIY task for someone with basic mechanical skills and tools. Always work on a cold engine and gearbox to avoid burns.

Tools and Materials Required:

• New TUTELA CAR TECHNYX 75W85 gearbox oil (approx. 2 litres)
• Drain pan
• Socket wrench and appropriate sockets (often 10mm Allen key or specific square drive for drain/fill plugs)
• Funnel with a long, flexible hose or a pump for refilling
• Gloves and safety glasses
• Jack and axle stands (never work under a car supported only by a jack)
• Cleaning rags
• Torque wrench (optional, but recommended for drain/fill plugs)

Step-by-Step Procedure:

1. Prepare the Vehicle: Park your Fiat 500 on a level surface. Engage the handbrake. Use a jack to lift the front of the car and securely support it with axle stands. Ensure the car is stable before proceeding.
2. Locate Drain Plug: Get underneath the car. The gearbox drain plug is usually located at the lowest point of the gearbox casing, often facing downwards or slightly towards the rear. It might be a large Allen key or square drive bolt.

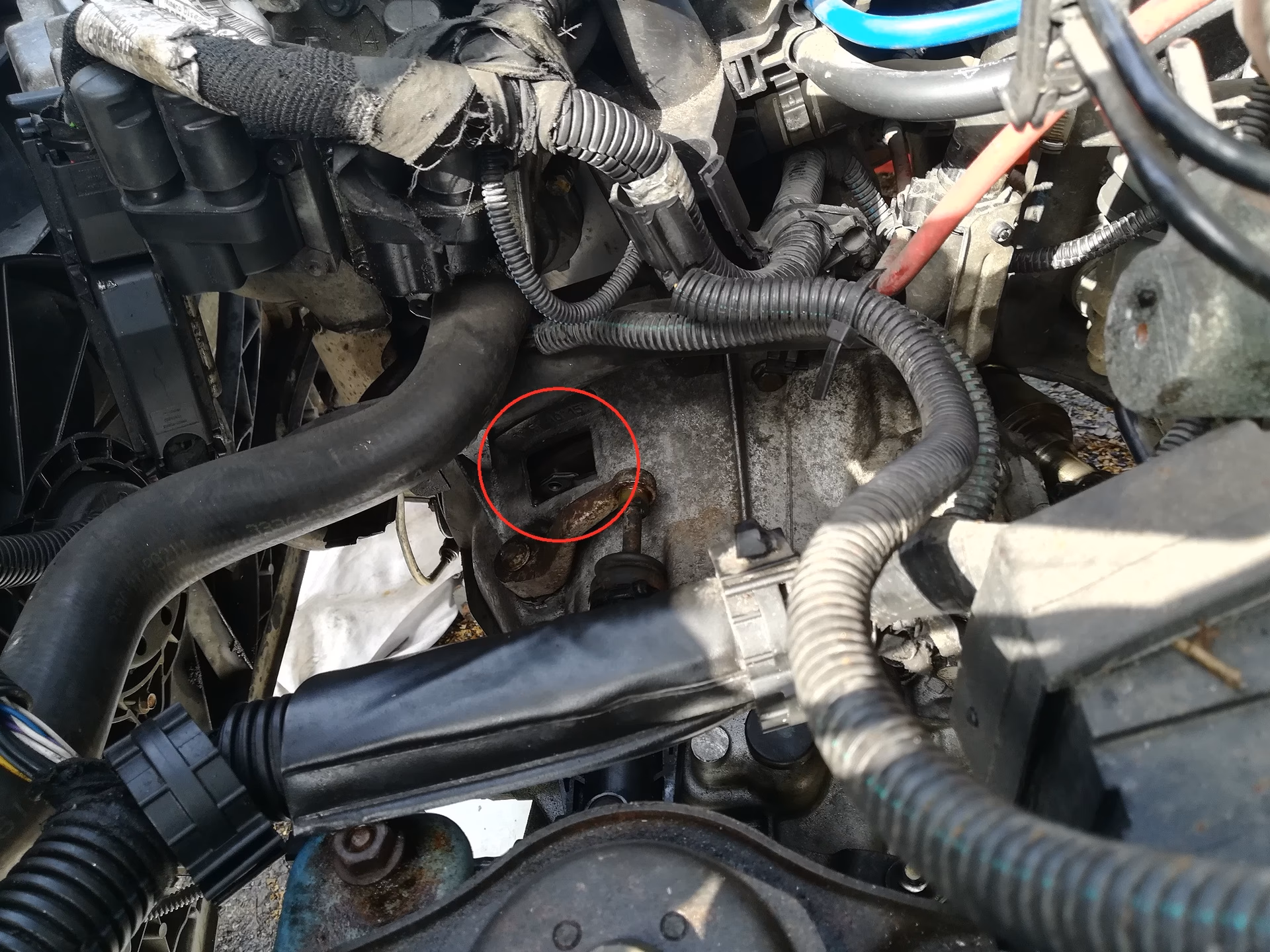

3. Locate Fill Plug: The fill plug is typically on the front or side of the gearbox, higher up than the drain plug. This is crucial as the fill level often dictates the correct fluid level (fill until it starts to seep out of the fill hole).
4. Drain Old Oil: Place your drain pan directly beneath the drain plug. Carefully loosen and remove the drain plug. Be prepared for the oil to come out quickly. Allow all the old oil to drain completely. It might take 15-30 minutes. Inspect the drained oil for any metal shavings, which could indicate internal wear.
5. Replace Drain Plug: Once drained, clean the drain plug and its sealing washer (replace the washer if it's crushed or damaged). Reinstall the drain plug and tighten it to the manufacturer's specified torque. Do not overtighten.
6. Refill with New Oil: Using your funnel with a long hose or a pump, begin slowly adding the new TUTELA CAR TECHNYX 75W85 oil through the fill plug opening. Continue filling until the oil just begins to drip out of the fill hole. This indicates the correct level.
7. Replace Fill Plug: Once the correct level is reached, clean and reinstall the fill plug, tightening it to the specified torque.
8. Final Checks: Lower the car off the axle stands. Check for any leaks around the drain and fill plugs. Take the car for a short drive, paying attention to gear changes.

Checking and Topping Up Dualogic Hydraulic System Oil (Actuator Fluid)

Unlike the gearbox oil, a full change of the Dualogic hydraulic fluid (TUTELA CAR CS SPEED) is rarely a DIY task due to the need for system bleeding. However, checking the level and topping it up is something you can do.

Tools and Materials Required:

• New TUTELA CAR CS SPEED hydraulic fluid
• Clean cloth
• Gloves and safety glasses

Step-by-Step Procedure:

1. Locate the Reservoir: The Dualogic hydraulic fluid reservoir is usually a small, clear or translucent plastic bottle located in the engine bay, often near the battery or on the driver's side. It typically has a yellow or black cap and might be labelled 'CS Speed' or have a hydraulic system symbol.
2. Check the Level: The reservoir will have 'MIN' and 'MAX' markings. The fluid level should be between these two marks when the engine is cold. If the level is consistently low, it could indicate a leak in the system, which should be investigated by a professional.
3. Top Up (If Necessary): If the level is below 'MIN', carefully unscrew the cap and slowly add TUTELA CAR CS SPEED fluid until it reaches the 'MAX' mark. Do not overfill.
4. Replace Cap: Securely screw the cap back on.

Important Note on Full Fluid Change: If you suspect contamination or wish to perform a full fluid change for the Dualogic hydraulic system, it is strongly recommended to have it done by a qualified technician with the appropriate diagnostic tools (e.g., Examiner, MES - MultiECUScan). These tools are required to cycle the pump, open/close valves, and bleed air from the system effectively. Without proper bleeding, the system can malfunction, leading to poor shifting or even complete failure.

Comparative Table: Dualogic Fluids

To help summarise the key differences, here's a comparative table:

Frequently Asked Questions (FAQs)

Q: What happens if I use the wrong type of oil?

A: Using the wrong oil can lead to severe and costly damage. If you put standard gearbox oil into the hydraulic system, it will likely seize the pump or damage seals due to incorrect viscosity and chemical properties. Conversely, putting hydraulic fluid into the gearbox will not provide adequate lubrication for the gears, leading to rapid wear and gearbox failure. Always use the specified fluids: TUTELA CAR TECHNYX 75W85 for the gearbox and TUTELA CAR CS SPEED for the hydraulic actuator.

Q: How often should I check the Dualogic hydraulic fluid level?

A: It's good practice to check the hydraulic fluid level every few months or during your routine engine oil checks. A consistently low level warrants investigation, as it could indicate a leak within the hydraulic system.

Q: Can I mix different brands of oil if they meet the same specification?

A: While technically oils meeting the same specification should be compatible, it is generally best practice to stick to the recommended brand (Tutela in this case) or at least ensure that any alternative brand explicitly states it meets or exceeds the exact specification (e.g., 'equivalent to TUTELA CAR TECHNYX 75W85'). Mixing different formulations, even if 'compatible,' can sometimes lead to reduced performance or unexpected interactions with seals and components. Given the small quantities and critical nature, sticking to the specified Tutela products is the safest bet.

Q: Is it okay if the Dualogic hydraulic fluid looks dark or murky?

A: The hydraulic fluid should ideally be a clear or light amber colour. If it appears dark, murky, or has a burnt smell, it indicates degradation or contamination. In such cases, a full fluid change is recommended, but as mentioned, this is best left to a professional due to the bleeding procedure.

Q: My Dualogic system is making strange noises or shifting poorly. Could it be the oil?

A: Yes, issues with either fluid can manifest as poor shifting, hesitation, or unusual noises. Low hydraulic fluid can cause delayed shifts or 'gear not available' messages. Incorrect gearbox oil can lead to grinding noises or difficult engagement. Always check fluid levels and condition as a first step in diagnosing such problems.

Conclusion

Maintaining your Fiat 500 Dualogic system correctly is crucial for its reliability and your driving pleasure. The key takeaway is to remember that there are two distinct fluid requirements: TUTELA CAR TECHNYX 75W85 for the manual gearbox and TUTELA CAR CS SPEED for the hydraulic actuator system. Understanding their individual roles, capacities, and service intervals will empower you to perform the necessary maintenance or instruct your garage with confidence. Always prioritise using the correct fluids and, when in doubt about complex procedures like bleeding the hydraulic system, seek the expertise of a qualified professional. By doing so, you'll ensure your Fiat 500 Dualogic continues to provide smooth, efficient, and enjoyable motoring for years to come.
