Understanding Your Engine's Fuel Delivery: Carburettors and Fuel Injection
For decades, the heart of most internal combustion engines relied on a seemingly simple, yet remarkably ingenious device: the carburettor. This mechanical marvel was responsible for mixing air and fuel in the correct proportions to power your vehicle. However, as automotive technology advanced, a more precise and efficient system emerged: fuel injection. While both systems aim to achieve the same goal – feeding your engine the necessary combustible mixture – their methods and effectiveness differ significantly. This article will delve into the intricacies of both carburettors and fuel injection, exploring their workings, advantages, disadvantages, and the evolution that led to the dominance of fuel injection in modern vehicles.
The Humble Carburettor: A Mechanical Marvel

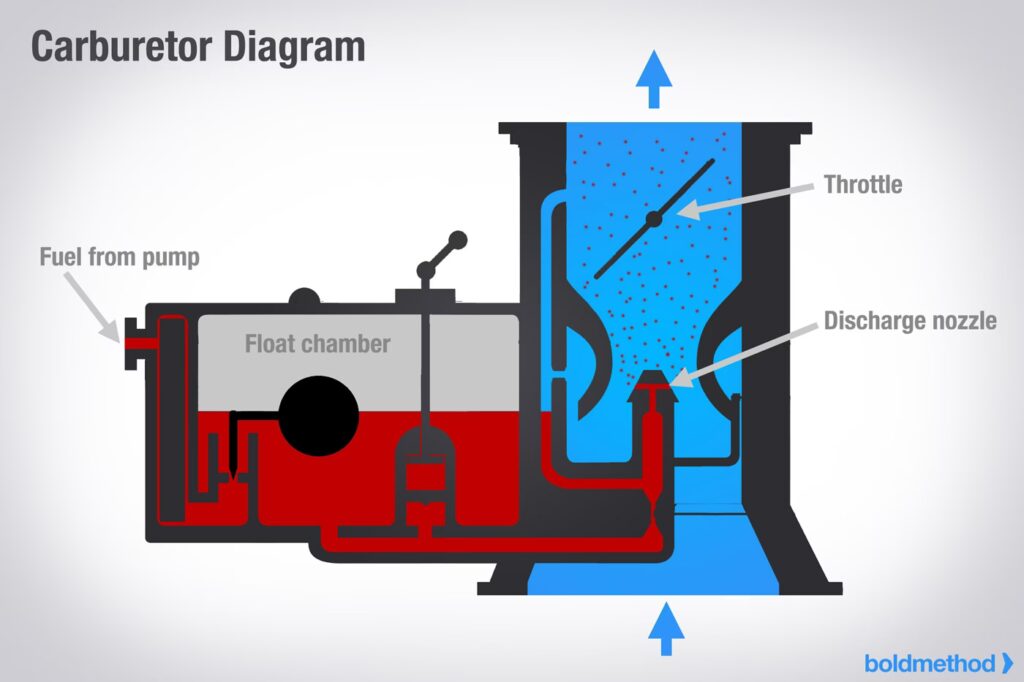

Before the advent of sophisticated electronics, the carburettor was the undisputed king of fuel delivery. At its core, a carburettor operates on a simple principle: the Venturi effect. As air is drawn into the engine through the carburettor, it passes through a narrowed section called a Venturi. This constriction causes the air to speed up, creating a low-pressure area. This low pressure then draws fuel from a float bowl, through a jet, and into the airflow, where it atomises and mixes with the air before entering the engine's cylinders.
The amount of fuel delivered is regulated by various components within the carburettor, including jets, needles, and slides. Different jets control the fuel flow at various engine speeds and loads, while a throttle butterfly valve, controlled by the accelerator pedal, dictates the overall amount of air-fuel mixture entering the engine. This mechanical control, while effective for its time, is inherently less precise than electronic systems.
Key Components of a Carburettor:
- Float Bowl: Stores a reservoir of fuel, maintaining a constant level for the jets.
- Jet: A precisely drilled opening that meters the amount of fuel drawn into the airstream.
- Venturi: The narrowed section that creates low pressure to draw fuel.
- Throttle Butterfly Valve: Controls the volume of air-fuel mixture entering the engine.
- Choke: Restricts airflow to create a richer fuel mixture for cold starts.
The Rise of Fuel Injection: Precision and Efficiency
Fuel injection systems represent a significant leap forward in engine management. Instead of relying on vacuum pressure to draw fuel, fuel injection systems actively spray fuel directly into the engine's intake manifold or even directly into the combustion chamber. This is achieved through electronically controlled injectors, which are essentially small, high-pressure valves that open and close rapidly to deliver precise amounts of fuel.
The brain behind a fuel injection system is the Engine Control Unit (ECU), also known as the Powertrain Control Module (PCM). The ECU receives data from various sensors located throughout the engine, including the throttle position sensor, air flow meter, oxygen sensor, coolant temperature sensor, and crankshaft position sensor. Based on this data, the ECU calculates the optimal amount of fuel to inject and precisely times the injection event for each cylinder. This sophisticated electronic control allows for much finer tuning of the air-fuel mixture, leading to improved performance, better fuel economy, and reduced emissions.
Types of Fuel Injection:
- Throttle Body Injection (TBI): The earliest form of fuel injection, where injectors are located in the throttle body, similar to a carburettor's position.
- Multi-Point Fuel Injection (MPFI): Injectors are placed in the intake manifold, just before each cylinder's intake port, providing a more even fuel distribution.
- Direct Injection (DI): Fuel is injected directly into the combustion chamber, offering the highest level of precision and efficiency.
Carburettor vs. Fuel Injection: A Comparative Look
To better understand the differences, let's compare the two systems across various criteria:
| Feature | Carburettor | Fuel Injection |
|---|---|---|
| Fuel Delivery Method | Relies on vacuum to draw fuel into the airstream. | Actively sprays fuel under pressure. |
| Precision | Less precise, can be affected by temperature and altitude. | Highly precise, electronically controlled for optimal mixture. |
| Fuel Economy | Generally less fuel-efficient. | Significantly more fuel-efficient. |
| Emissions | Higher emissions due to less precise mixture control. | Lower emissions due to precise mixture control. |
| Performance | Can be tuned for performance, but less adaptable to varying conditions. | Adaptable to varying conditions, generally offers better throttle response. |
| Cold Starts | Often requires a manual choke for cold starts. | ECU manages cold start enrichment automatically. |
| Maintenance | Can be prone to clogging and require regular adjustment. | Generally requires less maintenance, but injectors can clog. |
| Complexity | Mechanical, relatively simpler in principle. | Electronic, relies on sensors and ECU. |
Advantages and Disadvantages
Carburettors:
- Advantages: Simpler design, easier to understand and repair for those familiar with mechanical systems, often cheaper to manufacture.
- Disadvantages: Less fuel-efficient, higher emissions, performance can be affected by altitude and temperature changes, can be prone to icing in cold, damp conditions, requires manual choke for cold starts.
Fuel Injection:
- Advantages: Superior fuel economy, lower emissions, consistent performance in various conditions, better throttle response, automatic cold start management, eliminates the need for a choke.
- Disadvantages: More complex system, requires specialised diagnostic tools for troubleshooting, can be more expensive to repair if major components fail.
The Evolution and Modern Context
In the realm of automotive engineering, the shift from carburettors to fuel injection was driven by increasingly stringent emissions regulations and the relentless pursuit of greater fuel efficiency. Governments worldwide began imposing stricter standards on exhaust emissions, and carburettors, with their inherent imprecision, struggled to meet these demands. Fuel injection systems, on the other hand, offered the precise control necessary to minimise harmful pollutants like unburnt hydrocarbons, carbon monoxide, and nitrogen oxides.
Furthermore, the demand for better fuel economy, especially in the face of fluctuating fuel prices, pushed manufacturers towards more efficient technologies. Fuel injection's ability to deliver the exact amount of fuel needed for any given driving condition translated directly into significant savings at the pump for consumers. While carburettors were a revolutionary technology in their time, they were ultimately outpaced by the benefits offered by electronic fuel injection. Today, you will rarely find a new car equipped with a carburettor; fuel injection is the standard across the vast majority of internal combustion engine vehicles.
Frequently Asked Questions (FAQs)
1. Can I convert my carburetted car to fuel injection?
Yes, it is possible to convert a carburetted vehicle to a fuel injection system. However, this is a complex and often expensive modification that requires significant mechanical and electrical expertise. It typically involves replacing the carburettor, fuel pump, fuel lines, ECU, wiring harness, and various sensors. While it can offer benefits in terms of efficiency and emissions, it's a project best suited for experienced mechanics or dedicated enthusiasts.
2. Why did my carburettor start giving me problems?
Carburettors can develop issues due to several factors, including wear and tear on internal components, clogging of jets and passages by dirt or debris, fuel degradation, and maladjustments. Common symptoms of a failing carburettor include rough idling, poor acceleration, decreased fuel economy, stalling, and difficulty starting.
3. Is fuel injection more reliable than a carburettor?
Generally, modern fuel injection systems are considered more reliable and require less frequent adjustment than carburettors. Their electronic control and self-diagnostic capabilities contribute to their overall dependability. However, like any complex system, fuel injectors can become clogged, and sensors or the ECU can fail.
4. Does fuel injection always mean better performance?
While fuel injection systems offer superior control and adaptability, leading to generally better throttle response and drivability, raw performance can depend on the specific tuning of both systems. A well-tuned carburettor can still offer competitive performance in certain applications, but fuel injection's ability to adapt to changing conditions provides a more consistent performance advantage.
Conclusion: The Superiority of Modern Fuel Delivery
The evolution from carburettors to fuel injection marks a pivotal moment in automotive history. While the carburettor served faithfully for many years, the precision, efficiency, and environmental benefits offered by fuel injection systems have made them the undisputed standard in modern vehicles. Understanding the fundamental differences between these two fuel delivery methods not only demystifies a core aspect of your car's operation but also highlights the incredible advancements made in automotive technology. As technology continues to evolve, we can expect even further refinements in how our engines are fuelled, leading to even cleaner, more efficient, and more powerful vehicles in the future.
