Fueling Your Crate Engine: A UK Racer's Guide

For any dedicated motorsport enthusiast in the UK, the crate engine represents an incredible opportunity: a lower-cost, high-performance solution designed to open up the competitive racing ranks. However, despite its accessible nature, it's crucial to remember that a crate engine is, unequivocally, a race engine. It's engineered for high performance, boasting impressive horsepower figures typically ranging from 350 to 450, a compression ratio around 9.5:1, and a screaming top RPM of 6800. These demanding parameters mean your crate engine requires precise attention, particularly when it comes to the fuel you feed it. Simply put, treating it like a standard road engine and skimping on fuel quality is a surefire way to compromise performance, reliability, and ultimately, the longevity of your investment.

This guide will delve into the critical aspects of fuel selection and related systems to ensure your crate engine performs optimally, race after race. We'll explore why standard pump petrol is a detrimental choice, the benefits of dedicated race fuels, and the essential components of a properly regulated fuel system.

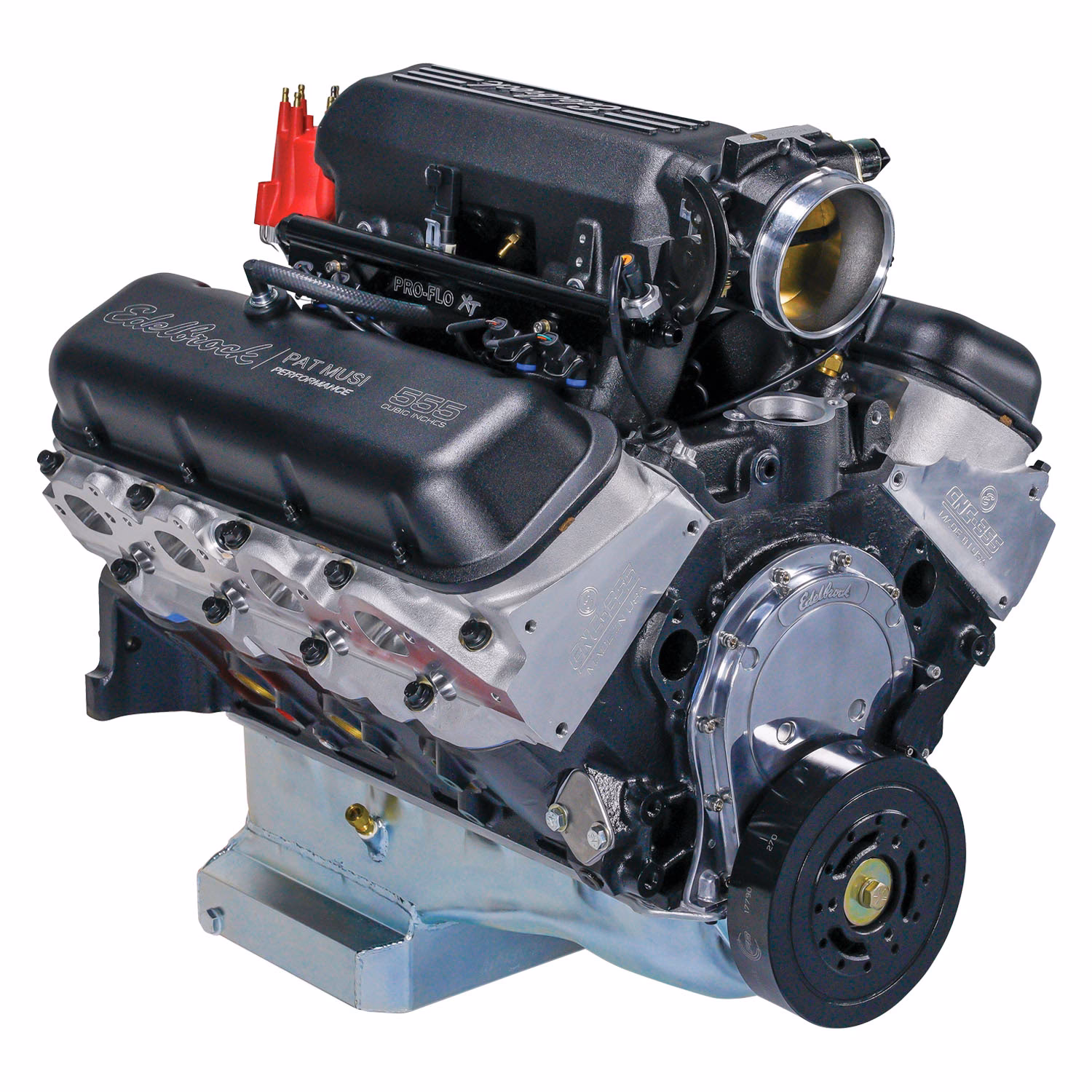

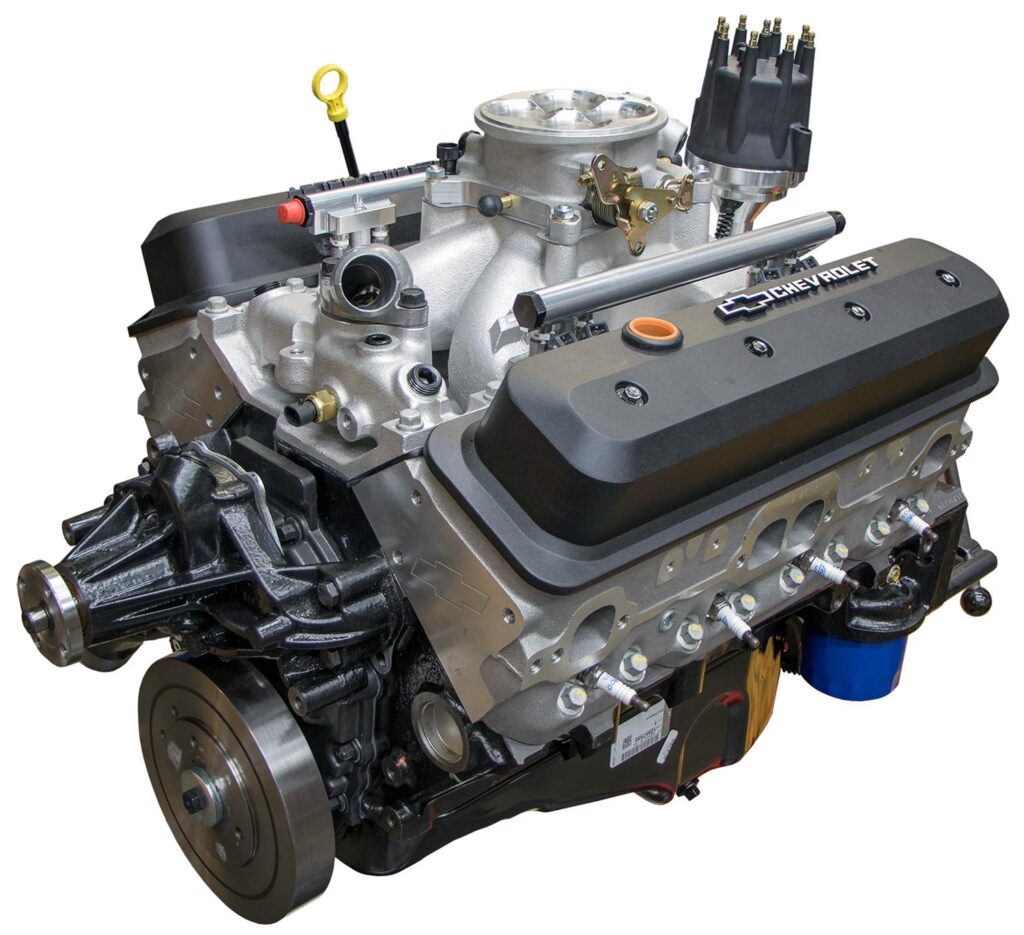

The Crate Engine: A High-Performance Beast Demanding Respect

Before diving into fuel specifics, let's reiterate what a crate engine truly is. It's not a modified street engine; it's a purpose-built unit for competitive racing. Its design specifications — high horsepower, significant compression, and elevated RPM limits — are far beyond what typical road vehicles experience. To achieve and maintain these performance metrics, every component must work in harmony, and the fuel it consumes is arguably the most critical input. Without the correct fuel, even the most meticulously assembled engine, with the perfect ignition system and a precisely tuned carburettor, will fall short of its potential. Worse still, it risks severe internal damage.

The Perilous Path of Pump Petrol

It might be tempting to use readily available pump petrol, perhaps to save a few quid or for convenience. However, this is a grave mistake for any crate engine. The risks far outweigh any perceived benefits, and the long-term consequences can be incredibly costly.

Inconsistency: A Tuner's Nightmare

One of the primary issues with pump petrol is its inherent inconsistency. Its blend can vary significantly from batch to batch, pump to pump, and even season to season. This variability makes consistent engine tuning virtually impossible. A carburettor, being a reactive device, relies on receiving consistent 'information' from the fuel. If the fuel's properties are constantly shifting, your carburettor cannot maintain optimal performance settings, leading to erratic behaviour on the track and sub-par power delivery.

Corrosive Additives: Eating Away at Your Engine

Beyond inconsistency, pump petrol contains various additives necessary for its combustion in standard road engines. While harmless in a typical car, these additives are highly corrosive to the delicate components of a race engine's fuel system and internal parts. Over time, they will:

• Eat away the glue holding power valves together within the carburettor.
• Deteriorate fuel gaskets, leading to leaks and potential fire hazards.
• Break down the foam in your fuel cell, contaminating your fuel supply.
• Cause steel parts within the engine, such as valves and pistons, to rust.

The cumulative effect of this corrosion is a significant reduction in component lifespan, leading to premature failures and expensive repairs or replacements. When considering the 9.5:1 compression ratio common in crate engines, the need for a stable, non-corrosive fuel becomes even more apparent.

Performance Compromise: Losing Horsepower and Torque

If you insist on running pump petrol, you will almost certainly need to lower your engine's ignition timing to prevent detonation – a destructive uncontrolled combustion event. While this might prevent immediate damage, it comes at a significant cost: a noticeable loss of both horsepower and torque. A race engine is built for maximum output; deliberately reducing its power through fuel choice defeats the entire purpose of crate racing.

The Champion's Choice: Leaded 110 Octane Race Fuel

Given the high compression and performance demands, a crate engine emphatically requires a good leaded 110 octane race fuel. This is the recommended standard for several crucial reasons:

• Octane Rating: The 110 octane provides the necessary resistance to detonation under the high cylinder pressures generated by a 9.5:1 compression engine operating at high RPMs.
• Consistency and Reliability: Unlike pump petrol, dedicated race fuels are manufactured to incredibly tight tolerances, ensuring batch-to-batch consistency. This stability allows for precise carburettor tuning and reliable, predictable performance on the track.
• Component Protection: Race fuels are formulated without the aggressive corrosive additives found in pump petrol, protecting your fuel system components, carburettor, and internal engine parts from degradation and rust.

For these reasons, making a carburettor jetting recommendation for pump petrol is impossible due to its inherent instability. Stick to what works and protects your engine.

Navigating Oxygenated Fuels

Oxygenated fuels are another category of race fuel that can offer performance advantages, specifically increased horsepower. However, their use comes with significant caveats and requires a dedicated approach.

Potential for Power, But With Conditions

Oxygenated fuels contain additional oxygen, which can allow for a more complete burn of the fuel, thus releasing more energy and increasing horsepower. However, this benefit is only realised if the carburettor is jetted correctly to account for the altered fuel properties. This often necessitates dyno tuning to optimise the air-fuel mixture precisely. Without proper re-jetting, the potential benefits will be lost, and you might even experience a performance deficit.

Strict Storage and Maintenance Regimes

The chemical composition of oxygenated fuels demands a stringent storage protocol. They must be kept in a cool environment, ideally in a sealed, non-transparent container. Why? The "light ends" or volatile components of oxygenated fuel can evaporate off if exposed to heat or light. This evaporation changes the fuel's composition, leaving you with an unknown blend that performs unpredictably and inconsistently. Furthermore, using oxygenated fuels requires a rigorous maintenance programme after every race weekend. If neglected, these fuels can also exhibit corrosive properties similar to pump petrol, leading to the same issues with gaskets, power valves, and internal engine rust.

Ultimately, while oxygenated fuels can offer a performance edge, they are best suited for teams or individuals willing to invest in meticulous tuning, proper storage, and diligent post-race maintenance. For many, the benefits of a standard 110 octane leaded race fuel, with its simpler handling, outweigh the marginal gains of oxygenated options.

The Lifeline: Fuel Pressure and System Regulation

You wouldn't head to the track without checking your tyre pressures, would you? Similarly, operating your crate engine without a reliable fuel pressure gauge is pure folly. Fuel pressure is as vital as oil pressure and must be monitored constantly.

Why a Gauge is Non-Negotiable

The ideal fuel pressure range for your crate engine is between 6 and 7 pounds per square inch (psi). While a fuel pump might be rated for a certain pressure on the box, its actual output can vary significantly due to factors specific to your engine setup, such as the cam lobe driving the pump, the length of the pump arm, and the internal diaphragms and springs. The only way to truly know your fuel pressure is with a dedicated gauge.

We highly recommend installing a fuel pressure gauge directly on the dashboard, visible to the driver. This allows for real-time monitoring and immediate diagnosis of any issues. A simple bulkhead fuel pressure regulator installed between the fuel pump and the carburettor will complete a worry-free setup, allowing you to precisely set and maintain the desired pressure.

Troubleshooting with Your Fuel Pressure Gauge

The fuel pressure gauge needle should be rock solid, much like an oil pressure gauge, from idle right through to wide-open throttle. Any movement or fluctuation is an indicator of a problem:

• A Bouncing Needle: This often signifies air in the fuel line, potentially due to vapour locking, a collapsed or split fuel line, a loose fitting, or even poor placement of the fuel pickup within the fuel cell.
• Movement Between Idle and Wide-Open Throttle: If the needle fluctuates with throttle input, it suggests a poorly functioning fuel pump or a clogged fuel filter restricting fuel flow.

By installing a dashboard gauge and setting your regulator to a steady 6.5 pounds, you eliminate a significant source of worry and gain a powerful diagnostic tool that can save your race and your engine.

Optimising Ignition & Spark: A Complementary System

While the focus is on fuel, it's impossible to discuss optimal crate engine performance without touching upon the ignition system and spark plugs, as they work in direct synergy with your fuel choice.

Ignition Timing: Precision is Key

For a crate engine, locking out the distributor is highly recommended. This removes the advance curve, ensuring full timing throughout the entire RPM band – from idle to wide-open throttle. The ideal timing for a crate engine is 36 degrees. This setup will result in crisper restarts and sharper off-the-corner throttle response. However, as previously mentioned, if you were to foolishly run pump petrol, you would need to retard the timing to avoid detonation, which directly translates to a loss of valuable horsepower and torque.

Spark Plugs: The Right Spark for the Right Fuel

Many crate engines leave the factory with inappropriate spark plugs, often a resistor plug or one with a heat range that's too hot for racing applications. The recommended Champion plug number for crate engines is S61YC. While Champion is a familiar brand, you can cross-reference this number to your preferred manufacturer. For instance, Autolite AR94 and NGK R5724-8 are suitable alternatives. There's no performance difference between brands, as the plug's sole purpose is to generate a consistent spark to ignite the fuel mixture.

Crucially, pay attention to the spark plug gap. While some valve covers might suggest a .045-inch gap, for crate engines, it's essential to gap your plugs to .035 inches. A wider gap offers no performance advantage and can actually lead to misfires or engine stumbles, especially under high RPM loads. Precision here ensures reliable ignition and efficient combustion of your chosen race fuel.

The Heartbeat: Carburettor Synergy

The carburettor is the heart of your crate engine's fuel delivery system, and its performance is intrinsically linked to the quality and consistency of your fuel. A properly designed and tuned carburettor will extract the maximum horsepower from your engine and contribute significantly to smooth, crisp restarts and throttle response.

Specialised carburettors, such as those from VDL Fuel Systems (e.g., Holley 80541/650 HP or 80528/750 HP for 604 crates, or Holley 4412/7448 for 2-barrel classes), are custom-built for specific crate engine configurations and racing classes. A carburettor designed for a DIRT Sportsman crate is not the same as one for an asphalt Pro Late Model crate, just as a 602 crate differs from a 603, 604, 525, or 347. This customisation ensures the carburettor is perfectly matched to your engine's unique requirements.

Remember, carburettors are reactive; they don't proactively adjust. They need to be 'fed' the correct information – meaning consistent, high-quality race fuel delivered at the correct pressure – to perform to their potential. Without this foundational stability, even the best custom-built carburettor will struggle to deliver consistent results.

Comparative Analysis: Fuel Types for Crate Engines

To summarise the differences, here's a comparative overview of fuel types:

Frequently Asked Questions (FAQs)

Can I use standard pump petrol in my crate engine?

Absolutely not. While it might seem like a cost-saving measure, pump petrol's inconsistency, corrosive additives, and lower octane rating will lead to performance loss, potential detonation, and long-term damage to your engine and fuel system components. It's simply not designed for the demands of a high-performance race engine.

What octane rating should I aim for with my crate engine?

For a crate engine with a typical 9.5:1 compression ratio, a good leaded 110 octane race fuel is recommended. This octane level provides the necessary resistance to pre-ignition and detonation under the high pressures and temperatures of a racing environment, ensuring optimal performance and engine longevity.

Are oxygenated fuels a good option for all crate racers?

Oxygenated fuels can offer horsepower gains, but they come with significant demands. They require precise carburettor jetting (often via dyno tuning), strict storage conditions (cool, sealed, non-transparent containers to prevent evaporation), and a rigorous post-race maintenance programme to avoid corrosive issues. Unless you're prepared for this level of commitment, a standard 110 octane race fuel is often a more practical and equally effective choice for consistent performance.

Why is a fuel pressure gauge so important?

A fuel pressure gauge is critical because it provides real-time feedback on your fuel system's health. It allows you to confirm that your engine is receiving the ideal 6-7 psi of fuel pressure and helps diagnose issues like vapour lock, clogged filters, or a failing fuel pump. Without one, you're operating blind, risking inconsistent performance or even engine damage.

What's the correct spark plug gap for a crate engine?

For crate engines, the recommended spark plug gap is .035 inches. While some general guidelines might suggest wider gaps like .045 inches, a wider gap offers no performance benefit in this application and can actually increase the risk of misfires or engine stumbles, especially under demanding racing conditions.

Will using the wrong fuel damage my crate engine?

Yes, unequivocally. Using unsuitable fuels like pump petrol can cause significant damage. The inconsistent blend can make proper tuning impossible, leading to sub-optimal performance. More critically, the corrosive additives in pump petrol will degrade gaskets, eat power valve glues, break down fuel cell foam, and cause internal rust in steel components, leading to premature failures and costly repairs. Always use the specified race fuel to protect your investment.
