Clicking Brakes? Your Guide to Diagnosing Noises

A clicking sound emanating from your vehicle's brakes can be unsettling, often prompting immediate concern. Whether it's a subtle tick or a more pronounced pop, discerning the source of the noise is crucial for both your peace of mind and, more importantly, your safety on the road. This comprehensive guide will delve into the various reasons your brake system might be clicking, distinguishing between sounds that occur during braking, turning, or even just driving, and provide practical advice on how to diagnose and resolve these issues.

Understanding Brake Caliper Clicking

When you hear a clicking sound directly related to your brake calipers, especially after a recent brake service, it's often a sign of specific issues within the caliper assembly or its immediate surroundings. The brake caliper is a critical component, housing the brake pads and applying pressure to the rotors to slow your vehicle. Any anomaly here warrants prompt investigation.

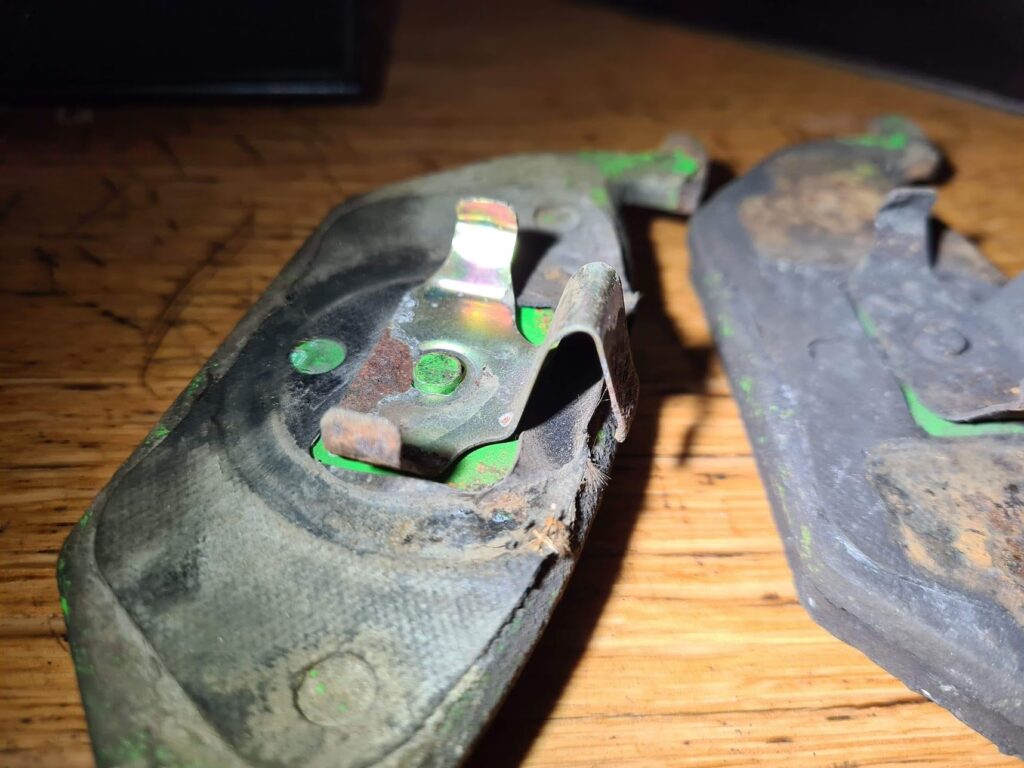

Worn or Missing Hardware Clips

One of the most frequent culprits for clicking noises, particularly if you've recently replaced your brake pads and rotors, involves the hardware clips. Most modern vehicles utilise an anchor bracket-style caliper that relies on stainless steel clips to correctly position and load the brake pads. These spring steel clips can wear out over time, losing their tension and allowing slight movement of the pads within the caliper bracket. This movement, often noticeable when changing direction from forward to reverse (or vice-versa), results in a distinct clicking sound as the pads settle against the clips. It's paramount to always use new hardware when performing a brake job, as these components are designed for a specific lifespan and function. Furthermore, lubricating these clips with a high-performance synthetic brake lubricant during installation can significantly reduce or eliminate such noises by allowing smoother movement and preventing premature wear.

Loose Brake Pads

Brake pads are designed to fit snugly within the caliper's seat. If they become loose, perhaps due to incorrect installation, worn hardware, or even manufacturing tolerances, they can shift and jump slightly within the caliper assembly. This movement, particularly pronounced during braking, especially at lower speeds, can manifest as a clicking sound. The pads are essentially 'rattling' against the caliper body or the rotor, creating the audible click.

Loose Brake Calipers

Brake calipers are secured to their mounts by guide pins and bolts. These components ensure the caliper remains in proper suspension, allowing the brake pads to make firm and consistent contact with the rotors. If these guide pins or mounting bolts become loose, or if the slide pins become seized due to rust or lack of lubrication, the entire caliper assembly can move erratically. This uncontrolled movement leads to a popping or clicking sound, particularly noticeable when driving over bumps, turning, or applying the brakes. Checking and tightening all caliper bolts and ensuring guide pins are clean and well-lubricated are crucial steps in resolving this issue.

Bent Brake Backing Plates

The brake backing plate, attached to the rear of your brake assembly, serves to protect the brake components from road debris and grime. If this plate becomes bent inward, perhaps from an impact or improper handling during maintenance, it can make contact with the rotating brake rotor or even the caliper itself. This constant rubbing creates a distinct clicking or scraping sound that might be intermittent or consistent, depending on the degree of bending and contact.

Stone Lodged in the Braking System

It might sound improbable, but a small stone or piece of debris can occasionally become lodged within the brake system. This foreign object can interfere with the uniform transmission of pressure across the wheels or rub against a rotating component like the rotor. The instability or friction caused by the stone can result in a clicking sound when the brakes are applied. Resolving this often involves inspecting the visible parts of the brake system and, if necessary, disassembling the caliper to check for hidden debris.

Worn Out Anti-Rattle Spring

Many brake systems incorporate an anti-rattle spring, typically positioned beneath the brake pads. Its purpose is to evenly distribute pressure and absorb any excessive movement of the brake pad, ensuring all components engage simultaneously during braking. If this spring becomes worn, rusted, or loses its tension, it can no longer effectively dampen pad movement. This allows for gaps between the brake pad and rotor, leading to inconsistent braking activity and a noticeable clicking sound when the brakes are applied.

Clicking Noises When Turning vs. Braking

While some clicking sounds are directly linked to brake application, others may occur during turns or even general driving, indicating issues beyond just the caliper or pads. It's important to differentiate these scenarios.

Clicking or Popping When Turning

• Damaged CV Joints: A common cause of popping or clicking when accelerating or turning is a damaged Constant Velocity (CV) joint. Located at the end of the front axle, CV joints transmit power through various angles. When a CV joint breaks or its protective boot tears, allowing grease to escape and contaminants to enter, it affects the axle's flexibility and internal play, resulting in a popping sound, particularly noticeable during turns.
• Worn Tie Rod: As tie rods wear out, they can develop excessive play. When close to failing, this play can cause a popping or clicking noise, especially when turning. A failing tie rod is a serious safety concern, as a complete break can lead to a loss of steering control.
• Loose Hubcaps: Surprisingly, a loose hubcap can generate a popping or clicking sound. As the wheel rotates, a loose hubcap can wobble and flutter, creating noise that might be heard during turning, acceleration, or even general driving. This is often the easiest issue to check and rectify.
• Loose Drive Belt or Tensioners: The drive belt connects various accessories (power steering, alternator, air conditioning) to the crankshaft. Tensioners keep this belt tight. If the drive belt or its tensioners become loose, they can tap against other components or the vehicle's chassis, producing a clicking or popping noise.

Clicking or Popping When Braking (Additional Causes)

• Warped Brake Rotors: Excessive heat build-up from prolonged braking or repeated hard stops can cause brake rotors to warp, creating an uneven surface. This misalignment with the brake pads can generate vibrations and, sometimes, a clicking sound when the brakes are applied. While 'burnishing' (a controlled braking procedure) can sometimes help with minor warping, severe cases often require rotor replacement.
• Worn-Out Wheel Bearing: While less common for brake-specific clicks, a loose or worn wheel bearing can cause a clicking sound when you apply the brakes, especially if you're also turning. The bearing supports the wheel, and if it's not correctly installed or has worn out, it can move and generate noise.

Diagnosing the Clicking Noise

Pinpointing the exact source of a clicking noise requires a systematic approach. Here's how to go about it:

1. Listen Carefully: Try to identify when the sound occurs (braking, turning, accelerating, specific speeds, forward/reverse). Does it come from a specific wheel?
2. Visual Inspection: With the vehicle safely supported on jack stands, remove the wheels. Inspect the brake components – calipers, pads, rotors, and hardware clips – for any obvious signs of looseness, wear, damage, or foreign objects. Check the hubcaps.
3. Check for Play: Gently try to wiggle the brake pads within the caliper. Check for any play in the caliper itself by trying to move it. Inspect CV joint boots for tears and grease leakage. Wiggle tie rods to check for excessive play.
4. Road Test: If the visual inspection doesn't reveal the issue, a controlled road test can help. Listen for the noise under different conditions (light braking, hard braking, turning left/right, accelerating).

Solutions and Maintenance Tips

Addressing the clicking noise typically involves rectifying the identified issue. Here are common solutions:

• Replace Hardware Clips: If the clicking is due to worn hardware clips, especially after a brake job, replace them with new, high-quality stainless steel clips. Ensure they are properly lubricated with synthetic brake lubricant.
• Secure Loose Components: Tighten any loose brake caliper bolts, guide pins, or mounting nuts. If slide pins are seized, clean them thoroughly with a wire brush or emery cloth and re-lubricate them with anti-seize lubricant. Secure loose hubcaps.
• Replace Worn Brake Pads: If brake pads are worn below 3mm (approximately 1/8th of an inch) or show uneven wear, they should be replaced. Choose pads specifically designed for your vehicle's make and model.
• Address Warped Rotors: For minor warping, a 'burnishing' procedure might help (repeated moderate braking from 40 mph to 20 mph without coming to a complete stop). For significant warping, replacing the rotors is the most reliable solution. Always replace brake pads when replacing rotors.
• Inspect and Replace CV Joints/Tie Rods: If a damaged CV joint or worn tie rod is identified, professional inspection and replacement are recommended due to the complexity and safety implications.
• Check Wheel Bearings: A loose wheel bearing typically requires replacement. Ensure new bearings are pre-lubricated and installed correctly, with fasteners tightened to the specified torque.
• Remove Foreign Objects: If a stone is lodged, carefully remove it with pliers. Inspect surrounding components for any damage caused by the stone.
• Replace Anti-Rattle Spring: A worn or rusted anti-rattle spring is relatively easy to replace for those with basic automotive maintenance knowledge.

PowerStop Brake Pads and Clicking

It's worth noting that many premium brake pad manufacturers, such as PowerStop, specifically design their products to minimise noise. Nearly all PowerStop brake pads, for instance, come with the necessary new hardware and lubricant. This inclusion is a significant advantage, as it addresses one of the primary causes of clicking – worn or unlubricated hardware clips – directly out of the box, simplifying the brake job and helping to prevent future noise issues.

Common Clicking Sounds & Their Causes

To help you quickly identify the potential source of your clicking noise, here's a brief comparative table:

Frequently Asked Questions (FAQs)

Why do my brakes click when I change direction from forward to reverse?

This is almost certainly due to worn or unlubricated brake pad hardware clips. These clips position the brake pads. When you change direction, the pads shift slightly within the caliper, causing them to 'click' as they settle against the worn or dry clips. Replacing the hardware and applying synthetic brake lubricant usually resolves this.

Are clicking brakes dangerous?

While a minor click from worn hardware might not be immediately dangerous, any persistent or new noise from your brakes should be investigated promptly. Issues like loose calipers, severely worn brake pads, damaged CV joints, or failing tie rods can pose significant safety risks and lead to more expensive repairs if left unaddressed. It's always best to err on the side of caution.

Can I drive with clicking brakes?

It depends on the cause. A slight click from hardware might allow you to drive carefully to a mechanic, but if the clicking is accompanied by a change in braking performance, a grinding sensation, or occurs constantly, you should minimise driving and get it inspected immediately. Driving with issues like loose calipers, warped rotors, or severely worn pads can lead to brake failure.

How much does it cost to fix clicking brakes?

The cost varies wildly depending on the cause. Replacing hardware clips is relatively inexpensive, often part of a standard brake pad replacement. Fixing a bent backing plate might be minor. However, replacing components like CV joints, brake calipers, or warped rotors can be significantly more expensive due to parts and labour costs. It's always best to get a professional diagnosis for an accurate estimate.

How often should I check my brake hardware?

Brake hardware should ideally be inspected every time your brake pads are checked or replaced. It's highly recommended to replace the hardware clips every time you replace your brake pads, as they are designed to wear out over time and are crucial for proper brake operation and noise prevention.

The braking system is paramount to your vehicle's safety. While a clicking noise can be irritating, it's often your car's way of telling you that something needs attention. By understanding the potential causes and knowing when to seek professional help, you can ensure your vehicle remains safe and quiet on the road. Always remember that timely diagnosis and repair can prevent minor issues from escalating into major, costly, or even dangerous problems.
