Isuzu D-Max Tyre Wear Explained

Concerns have been raised by some owners of the MY23 Isuzu D-Max and the mechanically similar Mazda BT-50 Utes, along with the Isuzu MU-X SUVs, regarding what they perceive as excessive and potentially dangerous front tyre wear. One owner, in particular, reported significant wear on the inside edge of a tyre, exposing the canvas, after covering a mere 14,739km on sealed roads. This premature and uneven wear has led to questions about its impact on vehicle safety and handling. This article delves into the reported issues, explores potential causes, and outlines the recommended actions for concerned owners.

Understanding the Tyre Wear Phenomenon

The specific issue highlighted by an MY23 Isuzu D-Max owner involves the rapid degradation of the tyre's inner edge, while other parts of the tread remain in seemingly good condition. This pattern of wear is often indicative of an underlying mechanical or alignment problem. When the inside edge of a tyre wears down significantly faster than the rest of the tread, it can compromise the tyre's structural integrity. This is a serious safety concern as it increases the risk of a sudden tyre blowout, especially under load or at higher speeds. Furthermore, uneven tyre wear can negatively affect a vehicle's handling, braking performance, and fuel efficiency.

Potential Causes of Premature Tyre Wear

Several factors can contribute to premature and uneven tyre wear. In the context of the MY23 Isuzu D-Max and similar models, the reported issues suggest a focus on:

• Wheel Alignment: Incorrect wheel alignment is a common culprit for rapid tyre wear. If the toe, camber, or caster angles are outside the manufacturer's specifications, it can cause tyres to drag or scrub across the road surface, leading to accelerated wear on specific areas of the tyre. The owner's suspicion of "bump steer" points towards potential issues with how the steering geometry reacts to road imperfections, which can be exacerbated by alignment problems.
• Steering Knuckle Issues: The steering knuckle is a critical component of the suspension system, connecting the wheel hub, steering arm, and suspension components. If there are issues with the steering knuckle, such as wear in the ball joints or improper manufacturing, it could lead to incorrect wheel positioning and alignment, resulting in the observed tyre wear pattern.
• Suspension Geometry: Beyond basic alignment, broader suspension geometry issues can also play a role. Problems with components like control arms, bushings, or even the mounting points of the suspension can alter the way the wheels sit and interact with the road, leading to uneven wear.
• Tyre Pressure: While less likely to cause such specific inner-edge wear, consistently under-inflated or over-inflated tyres can contribute to accelerated and uneven wear patterns across the entire tyre surface.
• Driving Style: Aggressive driving, frequent hard cornering, and rapid acceleration/deceleration can put extra stress on tyres and suspension components, potentially contributing to premature wear. However, the reported mileage in this case suggests this is unlikely to be the sole cause.

Manufacturer's Response and Recommendations

In response to concerns raised by owners, Isuzu has acknowledged the reports and has recommended that vehicle owners experiencing such issues should visit their local dealership for an inspection. This proactive approach by the manufacturer is crucial for diagnosing the root cause of the problem. Dealerships are equipped with specialised alignment equipment and trained technicians who can accurately assess the vehicle's suspension and steering geometry. They can then identify if any components are worn, damaged, or outside of specification, and rectify the issue accordingly.

It is important for owners to:

• Document the Wear: Take clear photographs of the affected tyres, showing the extent of the wear and its location on the tyre.
• Record Mileage: Keep a precise record of the vehicle's mileage when the wear was first noticed and at the time of inspection.
• Note Road Conditions: Mention the types of roads the vehicle has primarily been driven on (e.g., sealed roads, unsealed roads, rough terrain).
• Communicate Clearly: When visiting the dealership, clearly explain the issue, provide your documentation, and express your concerns about safety.

What to Expect During a Dealership Inspection

A thorough inspection at an Isuzu dealership will typically involve:

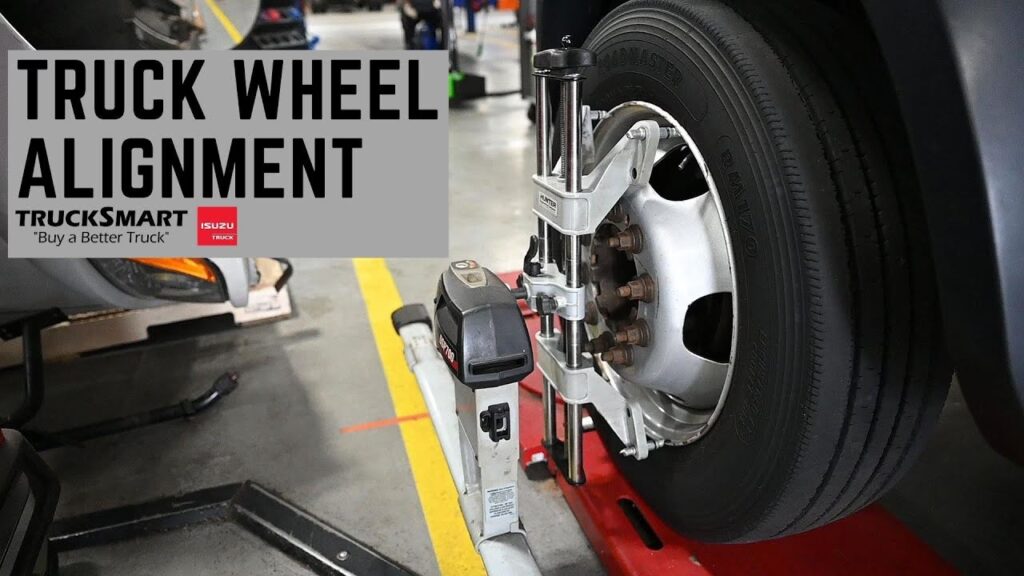

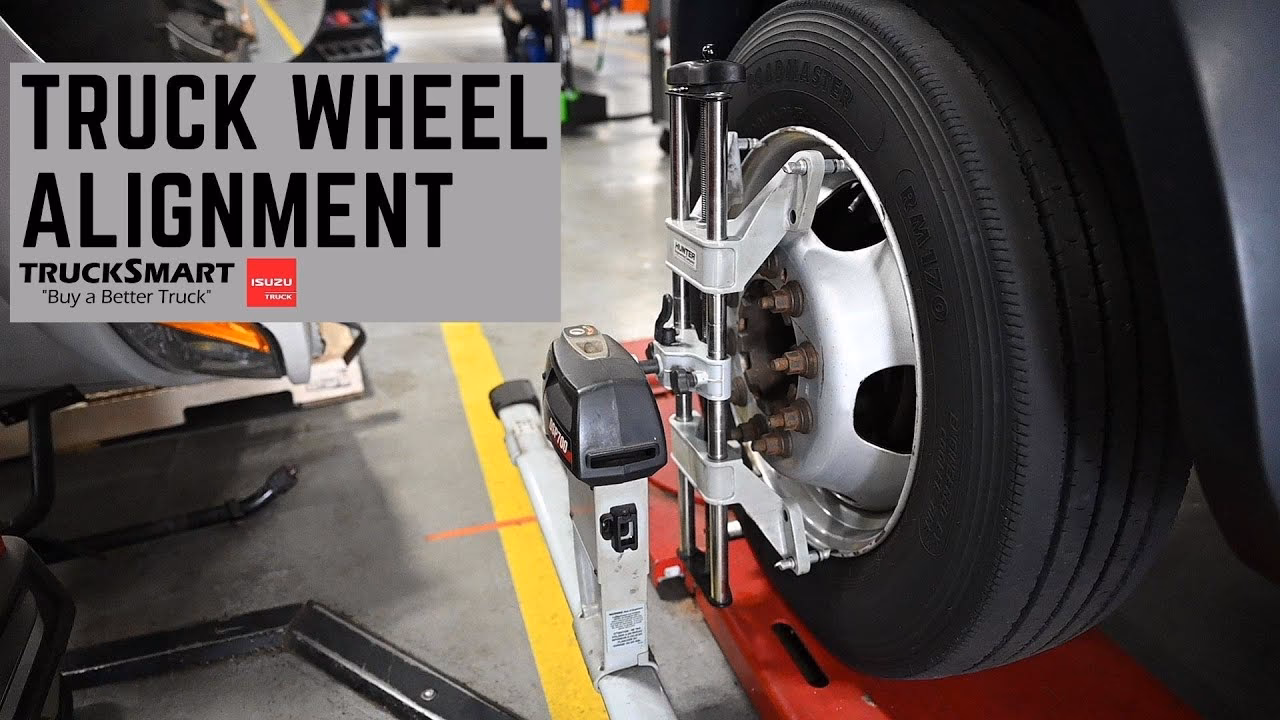

Wheel Alignment Check

Technicians will place the vehicle on a specialised alignment rack and use laser or camera-based equipment to measure the key alignment angles:

Suspension and Steering Component Inspection

Beyond alignment, a visual and physical inspection will be carried out on:

• Steering Knuckles: Checking for any signs of damage, bending, or wear in the ball joint sockets.
• Ball Joints and Tie Rod Ends: Assessing for play or looseness, which can significantly affect steering precision and alignment.
• Control Arms and Bushings: Inspecting for wear, cracking, or deformation of bushings, which can allow excessive movement in the suspension.
• Wheel Bearings: Checking for play or roughness, which can cause the wheel to wobble and lead to uneven wear.

The Safety Implications of Uneven Tyre Wear

Uneven tyre wear, particularly the severe inner-edge wear described, presents several safety risks:

• Reduced Grip: The worn section of the tyre will have significantly less tread depth, leading to a reduction in grip, especially in wet conditions. This can increase braking distances and make the vehicle more prone to skidding.
• Increased Risk of Blowout: When the tyre tread wears down to the canvas or steel belts, the structural integrity of the tyre is compromised. This makes it highly susceptible to failure, which could result in a sudden and dangerous tyre blowout.
• Compromised Handling: The uneven wear can affect how the vehicle steers and handles, potentially leading to unpredictable behaviour, especially during cornering or emergency manoeuvres.
• Impact on Other Components: Persistent alignment or suspension issues that cause tyre wear can also put additional strain on other suspension and steering components, potentially leading to further costly repairs.

Frequently Asked Questions (FAQs)

Q1: My MY23 Isuzu D-Max is showing similar tyre wear. Should I be worried?
Yes, it is advisable to be concerned and seek a professional inspection. Severe inner-edge wear can be a safety hazard and indicates an underlying issue that needs addressing.

Q2: How quickly should front tyres on an Isuzu D-Max typically wear?
Tyre wear is influenced by many factors, including driving style, road conditions, and tyre quality. However, premature wear down to the canvas after such low mileage is not typical and warrants investigation.

Q3: Can I fix this problem myself?
While you can check tyre pressures and visually inspect components, correcting wheel alignment and diagnosing suspension issues requires specialised equipment and expertise found at a dealership or a reputable alignment shop.

Q4: What if the dealership finds an issue? Will it be covered under warranty?
If the wear is due to a manufacturing defect or a fault covered by the vehicle's warranty, Isuzu should cover the costs of repair and potentially tyre replacement. It's essential to discuss warranty coverage with your dealership.

Q5: How often should I check my tyre wear?
It's good practice to visually inspect your tyres for any signs of uneven wear, damage, or low tread depth at least once a month, and before any long journeys.

Preventative Measures and Long-Term Care

To ensure the longevity of your tyres and the safety of your vehicle, consider these preventative measures:

• Regular Wheel Alignment Checks: Have your wheel alignment checked periodically, especially after hitting a significant pothole or kerb, or if you notice any changes in steering feel.
• Tyre Rotation: Follow the manufacturer's recommended schedule for rotating your tyres. This helps to ensure more even wear across all four tyres.
• Maintain Correct Tyre Pressures: Regularly check and maintain the recommended tyre pressures as indicated in your vehicle's owner's manual or on the doorjamb sticker.
• Inspect Suspension Components: Periodically have your suspension and steering components inspected by a qualified mechanic, particularly if you drive on rough roads frequently.

In conclusion, while the reported tyre wear on some MY23 Isuzu D-Max models is concerning, taking prompt action by seeking a professional inspection is the most effective way to address the issue. Understanding the potential causes and the manufacturer's recommendations empowers owners to ensure their vehicle remains safe and performs optimally. Don't delay in getting your vehicle checked if you suspect a similar problem.
