Front Wheel Alignment Explained

A front-end wheel alignment is a fundamental aspect of vehicle maintenance, directly impacting how your car handles, its fuel efficiency, and the lifespan of your tyres. While the term 'front-end alignment' might suggest it only concerns the front wheels, modern alignment procedures are far more comprehensive, encompassing adjustments to all four wheels to ensure they are positioned correctly relative to the road surface and each other. This precise calibration is essential for optimal performance and safety. In essence, a wheel alignment is the process of adjusting the angles of the wheels so that they are set to specification. These specifications can be manufacturer-driven, and they are designed to maximise tyre life and for the vehicle to handle and travel straight with minimal pulling to one side.

The Evolution of Wheel Alignment

Historically, the concept of wheel alignment was a much simpler affair. The term 'front-end only' alignment, as mentioned, was indeed a method primarily applied to older vehicles. These cars typically featured more rudimentary suspension systems, often with solid axles at the front. In such cases, only the front wheels could be adjusted, focusing on basic parameters like toe and camber. This traditional approach was adequate for the vehicles of its era, but it falls significantly short when considering the complexities of modern automotive engineering.

Why Modern Vehicles Require a Full Alignment

Modern cars boast sophisticated independent suspension systems for all four wheels. This means that each wheel can move independently, allowing for greater control, comfort, and stability. Consequently, the alignment of all four wheels needs to be precisely set. A front-end only alignment on a modern vehicle would be akin to only tuning half an orchestra – you might get some pleasing notes, but the harmony and full sound will be missing. Adjusting only the front wheels on a car designed for four-wheel alignment will not address potential issues with the rear axle's geometry, leading to compromised handling, uneven tyre wear, and an unsafe driving experience. Therefore, when we speak of 'front-end alignment' today, it is almost universally understood to refer to a four-wheel alignment procedure that includes adjustments to the rear wheels as well.

Key Components of Wheel Alignment

A comprehensive wheel alignment involves adjusting several critical angles that dictate how your wheels interact with the road. Understanding these angles is key to appreciating the importance of a proper alignment:

1. Toe

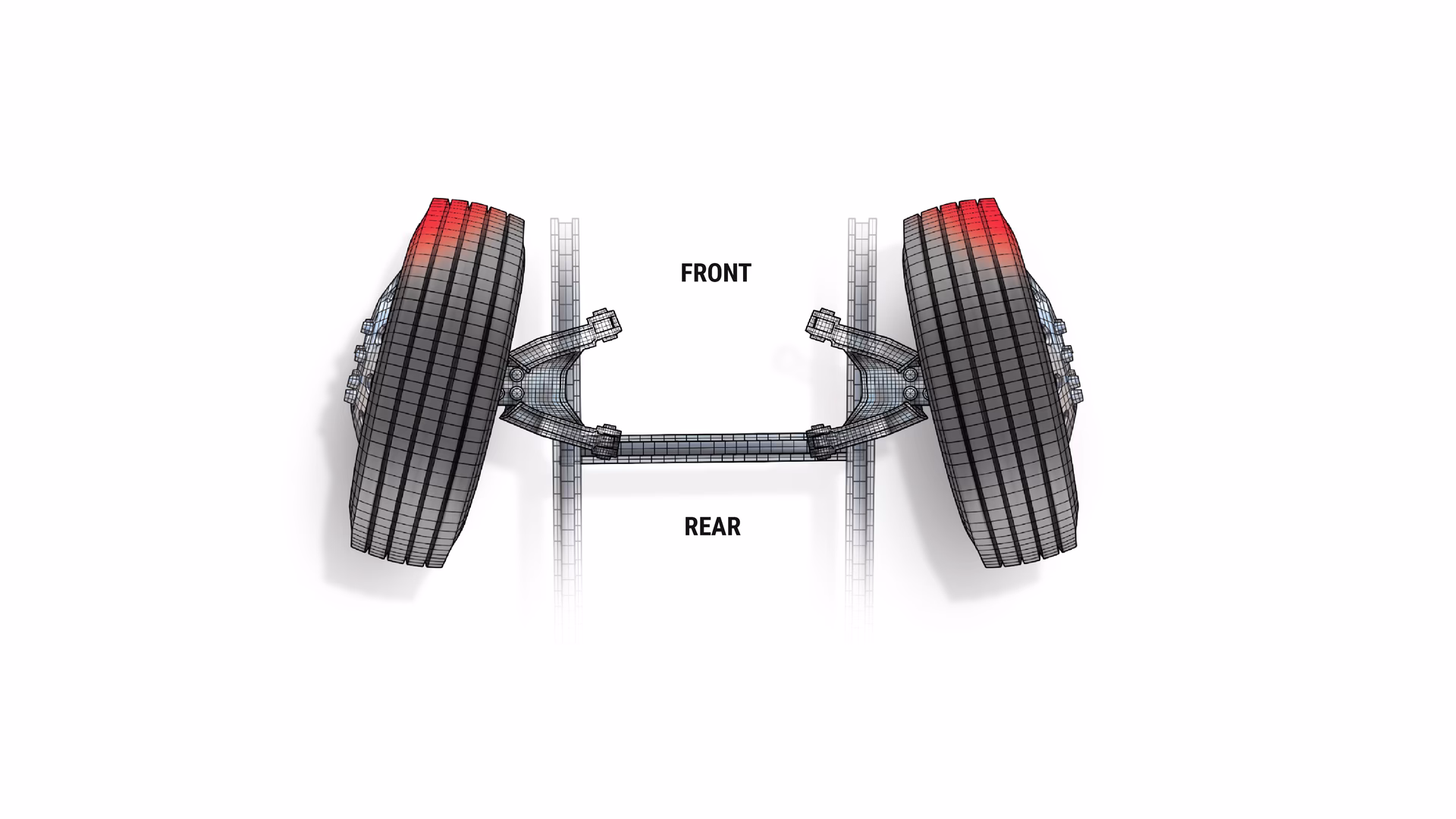

Toe refers to the angle of the wheels when viewed from above. If the front of the wheels are closer together than the back, it's called 'toe-in'. If the back of the wheels are closer together than the front, it's called 'toe-out'.

• Toe-in: Can improve straight-line stability but may cause tyre scrub and wear.
• Toe-out: Can improve turn-in response but may make the car feel twitchy and less stable.

The correct toe setting is crucial for preventing tyre scrubbing and ensuring the vehicle tracks straight. An incorrect toe setting is often a primary cause of uneven tyre wear, where the edges of the tyres appear worn down prematurely.

2. Camber

Camber is the angle of the wheel in relation to the vertical axis when viewed from the front or rear of the car. If the top of the wheel is tilted outwards, it's 'positive camber'. If the top of the wheel is tilted inwards, it's 'negative camber'.

• Positive Camber: The top of the wheel is tilted away from the vehicle.
• Negative Camber: The top of the wheel is tilted towards the vehicle.

Camber affects how the car handles in corners and how the tyres make contact with the road. Too much positive or negative camber can lead to rapid and uneven tyre wear, often on the inner or outer edge of the tyre.

3. Caster

Caster is the angle of the steering axis in relation to the vertical axis when viewed from the side of the car. It's essentially the angle of the pivot point of the steering system. Positive caster means the top of the steering pivot is tilted backward, while negative caster means it's tilted forward.

• Positive Caster: Helps the steering wheel return to centre after a turn and contributes to steering stability.
• Negative Caster: Makes steering lighter but can reduce straight-line stability.

Caster significantly influences steering feel and stability. It’s a key factor in how a car behaves at higher speeds and how it corners. Incorrect caster can lead to steering that feels heavy, light, or wanders.

4. Thrust Angle

The thrust angle is the direction in which the rear axle is pointing relative to the vehicle's longitudinal centreline. If the rear axle is not perfectly square to the vehicle, the thrust angle will be off. This can cause the car to 'dogleg', meaning it travels forward but not in a perfectly straight line with the steering wheel centred.

A zero thrust angle is desirable for optimal handling and to prevent the vehicle from pulling to one side. An incorrect thrust angle is a strong indicator that the rear suspension or chassis may have been compromised, perhaps due to an accident.

Signs Your Car Needs a Wheel Alignment

It's not always obvious when your car is due for an alignment. However, several tell-tale signs indicate that your wheel alignment may be off:

• Uneven Tyre Wear: This is perhaps the most common and noticeable sign. Look for feathering, scalloping, or excessive wear on the edges or centre of your tyres.
• Vehicle Pulling to One Side: If your car consistently pulls to the left or right when you're driving on a straight and level road, even with a relaxed grip on the steering wheel, it's a strong indicator of an alignment issue.
• Crooked Steering Wheel: If your steering wheel is off-centre when you're driving in a straight line, the alignment is likely incorrect.
• Vibrations or Shuddering: While vibrations can be caused by other issues, misaligned wheels can sometimes lead to a general feeling of instability or vibration through the steering wheel or the car's body.
• Poor Fuel Economy: Misaligned wheels create more rolling resistance, forcing your engine to work harder and consume more fuel.
• Recent Impact: If you've hit a significant pothole, curb, or been involved in even a minor collision, it's wise to have your alignment checked.

The Wheel Alignment Process: What to Expect

When you take your car for a wheel alignment, a qualified technician will perform a series of checks and adjustments. The process typically involves:

1. Initial Inspection: The technician will first inspect your tyres for wear patterns and check for any obvious damage to suspension components.
2. Vehicle Data Input: The make, model, and year of your vehicle are entered into a specialised computer system. This system contains the manufacturer's precise alignment specifications for your car.
3. Wheel Clamping: Special clamps, known as "targets" or "sensors", are fitted to each wheel.
4. Laser or Camera Measurement: High-tech equipment, usually using lasers or cameras, measures the angles of all four wheels. The targets on the wheels reflect beams of light or are captured by cameras, allowing the system to calculate the current alignment angles.
5. Comparison and Adjustment: The measured angles are compared to the manufacturer's specifications. If any angles are outside the acceptable range, the technician will make the necessary adjustments. This often involves adjusting various nuts and bolts on the suspension components, such as tie rods, control arms, and strut mounts, to bring the wheels back into the correct orientation.
6. Final Check: Once adjustments are made, the system re-measures the angles to confirm that they are within specification.

Types of Wheel Alignment

While the term "front-end alignment" is often used colloquially, it's important to distinguish between different types of alignment services:

1. Two-Wheel Alignment (Front-End Alignment)

As discussed, this is the older method that only adjusts the front wheels. It is generally only suitable for vehicles with a solid rear axle and is rarely performed on modern cars.

2. Four-Wheel Alignment

This is the standard for modern vehicles. It involves adjusting the toe, camber, and caster angles on all four wheels to ensure they are correctly positioned relative to each other and the vehicle's chassis. This is essential for optimal handling, tyre life, and safety.

3. Thrust Angle Alignment

This is a critical part of a four-wheel alignment, specifically focusing on ensuring the rear axle is perpendicular to the vehicle's centreline, thereby eliminating the thrust angle.

The Importance of Proper Wheel Alignment

Investing in regular wheel alignments is not just about avoiding inconvenient tyre wear. It’s about ensuring the overall health and performance of your vehicle:

• Tyre Longevity: Correct alignment significantly extends the life of your tyres by ensuring they wear evenly across the tread.
• Fuel Efficiency: Properly aligned wheels reduce rolling resistance, meaning your engine doesn't have to work as hard to move the vehicle, leading to better fuel economy.
• Driving Safety: Correct alignment ensures your car tracks straight, handles predictably, and responds accurately to steering inputs, which is paramount for safe driving, especially in emergencies.
• Smoother Ride: Misalignment can cause vibrations and erratic handling. A proper alignment contributes to a more comfortable and stable ride.
• Reduced Stress on Components: When wheels are misaligned, it puts undue stress on suspension and steering components, potentially leading to premature wear and costly repairs.

Frequently Asked Questions (FAQs)

Q1: How often should I get my wheel alignment checked?

It's generally recommended to have your wheel alignment checked annually, or every 12,000 miles, whichever comes first. However, you should also get it checked if you notice any of the signs mentioned above, or after hitting a large pothole or curb.

Q2: Can I do a wheel alignment myself?

While basic toe adjustments can sometimes be made by experienced DIY enthusiasts, a proper wheel alignment requires specialised equipment and a controlled environment. For accurate and safe results, it is highly recommended to have it done by a professional mechanic.

Q3: What is the difference between a wheel alignment and a wheel balance?

Wheel balancing addresses the weight distribution of a tyre and wheel assembly. If a wheel is unbalanced, you'll typically feel vibrations at certain speeds. Wheel alignment, on the other hand, deals with the angles of the wheels themselves relative to the car and the road.

Q4: My car pulls to the left. Is it definitely a wheel alignment issue?

While a pull to one side is a strong indicator of alignment problems, it can also be caused by other factors such as uneven tyre pressure, worn suspension components, or uneven braking. It's best to have a professional diagnose the exact cause.

Q5: How long does a wheel alignment take?

A typical four-wheel alignment service usually takes between 45 minutes to an hour, depending on the complexity of the adjustments required and the technician's efficiency.

In conclusion, understanding what a front-end wheel alignment entails, especially in its modern, comprehensive four-wheel form, is vital for any car owner. It’s a cornerstone of good vehicle maintenance, directly impacting safety, tyre life, and overall driving enjoyment. Don't overlook the subtle signs; ensure your vehicle's alignment is always spot on for a smoother, safer, and more economical drive.
