Ford 6.0L FICM: Diagnosis & Repair Guide

Few things are as frustrating as a diesel engine that refuses to start, runs erratically, or simply loses its characteristic power. For owners of the robust Ford 6.0L Power Stroke, one component often at the heart of such woes is the Fuel Injection Control Module, or FICM. This unassuming module plays a pivotal role in ensuring your engine runs smoothly and efficiently, and understanding its function, common failure points, and diagnostic procedures can save you a significant amount of time, money, and headaches. Whether you're experiencing a hard start on a cold morning or inexplicable power loss, a failing FICM could be the culprit.

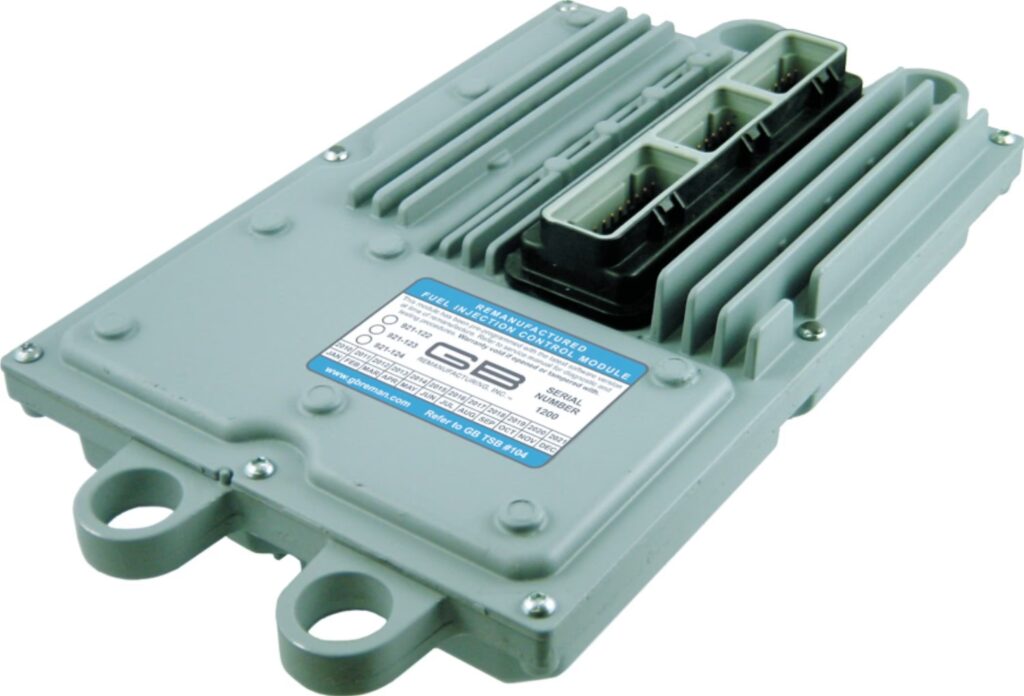

Understanding the Fuel Injection Control Module (FICM)

At its core, the FICM is an electronic control unit specifically designed for the Ford 6.0L Power Stroke diesel engine. It's not just another module; it's the brain behind your fuel injectors' precise operation. The 6.0L Power Stroke engine utilises a unique high-pressure oil system to actuate its fuel injectors, and these injectors require a substantial voltage to operate correctly. This is where the FICM steps in.

The primary function of the FICM is to convert the standard 12-volt electrical supply from your vehicle's batteries into a much higher 48-volt supply. This elevated voltage is crucial for powering the fuel injectors, allowing them to open and close with the necessary speed and force. Beyond merely supplying power, the FICM is also responsible for the precise timing and firing sequence of each individual fuel injector. It receives signals from the Powertrain Control Module (PCM), interpreting engine speed, load, and other parameters to determine exactly when and for how long each injector should fire, ensuring optimal fuel delivery for combustion.

The FICM's Dual Personality: Power Supply vs. Logic Board

The 6.0L FICM is essentially comprised of two distinct, yet interconnected, halves: the power supply half and the logic half. Each plays a critical role, and a failure in one can manifest in different symptoms, making accurate diagnosis paramount.

• The Power Supply Half: This section is dedicated to the voltage conversion. It takes the 12-volt input and steps it up to the required 48 volts that the injectors demand. It's a robust piece of electronics, but like any component, it can degrade over time, especially if subjected to inadequate battery voltage or excessive heat.
• The Logic Half: Often referred to as the 'brains' of the operation, the logic board is responsible for receiving commands from the PCM, processing them, and then sending the precise firing signals to each injector. It controls the timing, duration, and even the 'buzz' of the injectors.

Understanding these two halves is key because the symptoms your vehicle exhibits will often point towards which section of the FICM might be failing. A common misconception is that a FICM either works or it doesn't; in reality, a partial failure is quite common and can lead to a range of performance issues.

Common Symptoms of a Failing FICM

Identifying the symptoms early can prevent further damage and more costly repairs. FICM failures typically fall into two categories, depending on which half of the module is compromised.

Symptoms of a Failed Power Supply Half

When the power supply side of your FICM begins to fail, the injectors aren't receiving their full 48 volts, leading to a variety of tell-tale signs. These symptoms are often more pronounced during cold starts or when the vehicle has been sitting for an extended period.

• Hard Starting, Especially Overnight: One of the most classic symptoms. The engine may crank for an unusually long time before it finally catches, or it might not start at all. This is because the injectors aren't getting enough voltage to properly atomise fuel, making ignition difficult.
• Prolonged Crank Time: Even if the engine eventually starts, you might notice that it takes much longer to crank over than it used to. This is a direct indication of insufficient voltage reaching the injectors.
• Crank, No-Start Condition: In severe cases, the engine will crank continuously without ever firing up. This is usually due to the FICM's voltage output dropping significantly below the 48-volt threshold, preventing the injectors from operating entirely.
• Starts But Then Dies or Runs Very Rough: The engine might sputter to life but then quickly die, or run extremely rough, almost as if it's misfiring on multiple cylinders. This happens when the FICM can barely supply enough voltage to get the engine running, but not enough to maintain stable operation.
• Trouble Code P0611 (FICM Performance): This is a direct fault code indicating that the Powertrain Control Module has detected an issue with the FICM's performance, often related to voltage output.
• Multiple Injector Low Circuit Codes: You may also encounter codes such as P0264, P0270, P0273, P0276, P0279, and P0282, which indicate low circuit voltage for specific injectors. If you see several of these, especially in conjunction with P0611, it strongly suggests a power supply issue affecting multiple injectors.

It's crucial to remember that low battery voltage can mimic many of these symptoms. Always check your batteries first! Weak batteries can directly cause the FICM to struggle, leading to what appears to be a FICM failure. Ensure your batteries are fully charged and in good health before delving deeper into FICM diagnostics.

Symptoms of a Failed Logic Half

While less common than power supply failures, issues with the FICM's logic board can be trickier to diagnose and often require more sophisticated scan tools.

• Engine Runs But Misfires: Unlike power supply issues that cause rough running on multiple cylinders, a logic board fault might cause a misfire on one or a few specific cylinders, as the module struggles to send correct signals to individual injectors.
• Crank – No Start Due to Loss of FICM SYNC: The logic board is responsible for synchronising the injector firing with the engine's rotation. If this synchronisation is lost, the engine will crank but won't start, even if the 48-volt supply is present.
• Injectors Don't Buzz Like Normal Prior to Starting: When you turn the key to the 'on' position (but before cranking), you should typically hear a distinct 'buzzing' sound from the engine bay. This is the FICM cycling the injectors. If this sound is absent or unusually weak, it can indicate a logic board problem, even if voltage readings appear normal.
• Frequent Engine Stalling: The engine might start and run, but then unpredictably stall, especially under varying loads or speeds. This points to intermittent signal loss or incorrect commands from the logic board.
• Check Engine Light on Dash is Lit: While a common indicator for many issues, a lit check engine light, especially with specific misfire or injector circuit high codes, can point to a logic board issue.
• Loss of Power While Driving: The vehicle might feel sluggish, lacking its usual acceleration or towing capability. This occurs when the FICM fails to command the injectors to deliver the precise amount of fuel needed for optimum performance under load.
• Single Cylinder Misfire Codes: Unlike the multiple 'low circuit' codes seen with power supply issues, logic board problems are more likely to generate misfire codes for just one or two specific cylinders (e.g., P0301, P0302, etc.).
• Injector Circuit High Codes: These codes indicate that the FICM is sending an incorrect, excessively high, or continuous signal to an injector, suggesting a fault within the logic board's output circuitry.

If the injector 'buzz' test fails, but your FICM voltage checks out, it's a strong indicator of a logic board problem. Diagnosing a faulty logic board can be quite challenging without factory-style scan tools that can read specific FICM parameters and perform advanced tests. In such cases, it may be best to get your truck to a reputable diesel repair facility for a professional diagnosis.

Diagnosing Your FICM: A Step-by-Step Approach

Before condemning your FICM, it's essential to follow a systematic diagnostic process. Many symptoms can overlap with other issues, so ruling out simpler problems first is always the best approach.

1. Check Your Batteries and Charging System

This cannot be stressed enough. The FICM relies heavily on a stable 12-volt supply. If your batteries are weak, old, or not fully charged, the FICM will struggle to produce the necessary 48 volts, leading to a range of symptoms that mimic a failing FICM. Use a multimeter to check the voltage of both batteries (they should be nearly identical and above 12.6 volts when fully charged and rested). Also, check your alternator to ensure it's charging the system correctly (typically 13.5-14.5 volts with the engine running).

2. Test the FICM Voltage

Once you've confirmed your battery and charging system are healthy, the next critical step is to test the FICM's output voltage. This is usually done by probing specific pins on the FICM connector or by using a dedicated FICM diagnostic tool. With the key in the 'on' position (engine off), the FICM should output a steady 48-49 volts. If it reads significantly lower (e.g., 24 volts or less), or fluctuates wildly, then your power supply half is likely failing. There are numerous online resources and videos demonstrating how to perform this test safely and accurately.

3. Listen for the Injector Buzz

This simple audible test can provide valuable insight. With the key in the 'on' position (engine off), listen closely for the distinct buzzing sound of the injectors cycling. This sound confirms that the FICM's logic board is attempting to send signals to the injectors. If you don't hear this buzz, or it sounds weak or irregular, even if your FICM voltage is reading 48 volts, it could indicate a problem with the logic board or the wiring to the injectors.

4. Check for Wiring Harness Chafing

A very common and often overlooked issue with the 6.0L Power Stroke is chafing of the fuel injection wiring harness. Over time, the wiring harness can rub against various engine components such as the valve covers, intake manifold, or even intake manifold mounting bolts. This constant friction can wear through the wire insulation, leading to exposed wires that can short out, cause intermittent connections, or even damage the FICM. Symptoms of chafing can mimic FICM issues, including misfires, rough running, and even no-start conditions. A thorough visual inspection of the harness, particularly in areas prone to rubbing, is highly recommended.

Important Note: If you're uncomfortable with electrical diagnostics or don't have the proper tools, it's always best to consult a qualified mechanic, especially one experienced with Ford Power Stroke engines. Incorrect testing can lead to further damage.

How Does a FICM Fuel Injector Work? A Deeper Dive

To fully appreciate the FICM, it's worth understanding the intricate dance between the module and the injectors. Unlike typical petrol injectors that are purely electrically actuated, the 6.0L Power Stroke injectors are hydraulically actuated, using high-pressure engine oil.

Here's a simplified breakdown:

1. The FICM receives a command from the PCM to fire a specific injector.
2. To activate the injector, the FICM produces two precise control signals for each injector. First, a high-amperage 'open coil' signal (a 20-amp pulse) is sent. This powerful electrical pulse is designed to rapidly shift an internal spool valve within the injector.
3. Once the spool valve shifts, it opens a passage, allowing high-pressure engine oil to be directed onto the top of an internal intensifier piston within the injector.
4. The high-pressure oil forces this intensifier piston downwards, which in turn pressurises the fuel within the injector barrel to extreme levels (up to 26,000 PSI).
5. This ultra-high-pressure fuel is then injected into the combustion chamber through the injector nozzle, atomising it finely for efficient combustion.
6. Once the desired amount of fuel has been injected, the FICM sends a second signal, the 'close coil' signal, to return the spool valve to its original position, cutting off the high-pressure oil supply and stopping fuel injection.

This complex process explains why the FICM's 48-volt output is so critical. The 20-amp pulse needed to quickly shift the spool valve requires a substantial electrical force, which 12 volts simply cannot provide efficiently or quickly enough for the rapid, precise injection events required in a modern diesel engine.

Troubleshooting Table: FICM Symptoms at a Glance

This table summarises common symptoms and their likely cause within the FICM, helping you narrow down your diagnosis.

Frequently Asked Questions About the 6.0L FICM

What does FICM mean on a Ford Power Stroke?

FICM stands for Fuel Injection Control Module. On Ford Power Stroke 6.0L diesel engines, it's the electronic unit responsible for taking the vehicle's 12-volt battery supply and converting it into a 48-volt electrical current. This higher voltage is essential for powering the two solenoids within each fuel injector, which control the flow of high-pressure oil needed for the injectors to function properly and deliver fuel to the engine.

Why is 48 volts specifically required for the 6.0L injectors?

The 6.0L Power Stroke injectors are hydraulically actuated, meaning they use high-pressure engine oil to spray fuel. However, they also contain an internal spool valve that must be precisely and rapidly opened and closed by an electrical signal. This rapid action, combined with the need to overcome the hydraulic pressure, requires a significant amount of electrical energy delivered as a quick, powerful pulse. A standard 12-volt supply simply isn't sufficient to provide the necessary speed and force for optimal injector performance and fuel atomisation. The 48-volt supply ensures the injectors can operate with the required speed and precision, leading to efficient combustion and power output.

Can I replace a FICM myself?

Replacing the FICM itself is a relatively straightforward mechanical task for someone with basic automotive knowledge and tools. It's typically located on top of the engine, making it accessible. However, the true challenge lies in accurately diagnosing whether the FICM is indeed the problem and, if so, which part of it has failed. Furthermore, after replacement, some mechanics recommend flashing the PCM or performing specific relearn procedures, depending on the type of replacement FICM. While physically swapping the unit isn't overly complex, confirming it's the correct fix and ensuring proper post-installation steps are taken often requires professional expertise.

Are refurbished FICM parts reliable?

The reliability of refurbished FICM parts can vary significantly depending on the quality of the refurbishment process and the vendor. Reputable companies that specialise in diesel components often offer high-quality refurbished units that have been thoroughly tested and had common failure points addressed, sometimes even with upgraded components. These can be a cost-effective alternative to brand-new OEM (Original Equipment Manufacturer) parts. However, buying from an unknown or unverified source carries a higher risk of receiving a poorly refurbished unit that may fail prematurely. Always research the vendor, look for warranties, and read reviews before purchasing refurbished parts. For critical components like the FICM, investing in a reputable refurbished unit or a new OEM part is generally recommended.

What is '6.0L fuel injection harness chafing' and how does it relate to FICM issues?

Fuel injection harness chafing is a well-known issue with the Ford 6.0L Power Stroke engine. It refers to the wiring harness that connects to the fuel injectors (and thus, ultimately to the FICM) rubbing against various engine components, such as the valve covers, the intake manifold, or even the intake manifold mounting bolts. Over time, this constant friction wears away the protective insulation on the wires, exposing the copper conductors. This exposure can lead to short circuits, intermittent electrical connections, or even open circuits within the injector wiring. These wiring faults can directly mimic FICM symptoms, such as misfires, rough running, or no-start conditions, because the electrical signals from the FICM cannot reach the injectors correctly. In some cases, prolonged chafing and shorting can even damage the FICM itself. It's a critical area to inspect during any 6.0L Power Stroke diagnosis, especially if FICM symptoms are present but the FICM itself tests as good.

Conclusion

The Fuel Injection Control Module is undeniably a vital component of the Ford 6.0L Power Stroke diesel engine. Its precise control over the fuel injectors is paramount for optimal engine performance, efficiency, and starting reliability. While diagnosing a failing FICM can sometimes be straightforward, especially with power supply issues, logic board failures and external factors like wiring harness chafing can complicate matters. Armed with the knowledge of common symptoms, basic diagnostic steps, and an understanding of how the FICM operates, you're better equipped to tackle potential issues. Remember, for complex or persistent problems, seeking assistance from a qualified diesel mechanic is always the wisest course of action to ensure your robust 6.0L Power Stroke continues to serve you reliably on the road.
