Fuel Injection Types: The Engine's Precision Delivery

In the intricate world of automotive engineering, the method by which fuel is delivered to an engine's combustion chambers is paramount to its performance, efficiency, and environmental impact. For decades, the venerable carburettor reigned supreme, mixing air and fuel before it entered the engine. While simple and effective for its time, carburettors struggled with issues like inconsistent fuel delivery across cylinders, poor cold starting, and difficulties in adapting to varying atmospheric conditions. The advent of fuel injection technology revolutionised this process, offering far greater precision and control. By directly spraying fuel into the engine, either into the intake manifold or directly into the cylinders, fuel injection systems dramatically improved fuel atomisation, leading to more complete combustion, better fuel economy, lower emissions, and enhanced power delivery. Let's delve into the different types of fuel injection systems that have evolved over the years, each representing a significant step forward in automotive technology.

Throttle Body Injection (TBI) / Single Point Injection (SPI)

Throttle Body Injection, often referred to as Single Point Injection (SPI) in the UK, was one of the earliest forms of electronic fuel injection to gain widespread adoption, particularly in the 1980s. It served as a transitional technology, bridging the gap between carburettors and more advanced multi-port systems. In a TBI system, one or two fuel injectors are centrally mounted in a throttle body, much like a carburettor, positioned above the intake manifold. These injectors spray fuel into the air stream as it passes through the throttle body, where it then mixes with air and travels down the intake manifold runners to the individual cylinders.

The primary advantage of TBI over carburettors was the introduction of electronic control. An Engine Control Unit (ECU) could precisely manage fuel delivery based on inputs from various sensors, such as engine speed, load, and temperature. This allowed for better fuel economy, improved cold starting, and reduced emissions compared to carburettors. However, TBI still suffered from some of the inherent drawbacks of its carburettor-like design. Since the fuel had to travel through the intake manifold, it could condense on the manifold walls, leading to uneven fuel distribution among cylinders, especially during cold starts or rapid acceleration. This phenomenon, known as 'wall wetting', limited its ultimate efficiency and performance potential compared to systems that delivered fuel closer to the cylinder.

Multi-Port Fuel Injection (MPFI)

Multi-Port Fuel Injection (MPFI), also commonly known as Electronic Fuel Injection (EFI), represented a significant leap forward from TBI. Instead of a single point of injection, MPFI systems employ a dedicated fuel injector for each cylinder, located in the intake manifold runner, just upstream of the intake valve. This design ensures that fuel is delivered much closer to the cylinder, significantly reducing the problem of wall wetting and providing far more consistent and even fuel distribution to each cylinder.

The benefits of MPFI are substantial. By spraying fuel directly at the intake valve, the atomised fuel has less distance to travel, leading to a more precise air-fuel mixture entering the combustion chamber. This results in improved throttle response, greater power output, better fuel economy, and significantly lower exhaust emissions. The ECU has fine control over each injector, allowing it to precisely meter the fuel for optimal combustion under all operating conditions. This system became the standard for petrol engines from the late 1980s through the early 2000s and is still widely used today, often in conjunction with more advanced strategies.

Sequential Multi-Port Fuel Injection (SFI)

Sequential Multi-Port Fuel Injection (SFI) is an evolution of MPFI, offering an even higher degree of control and performance. While standard MPFI systems might fire all injectors simultaneously or in banks (e.g., half the cylinders at once), SFI systems fire each injector individually and precisely timed with the opening of its corresponding intake valve. This means that fuel is sprayed only when that particular cylinder is ready to receive it, just before its intake valve opens.

The key advantage of SFI is its unparalleled control over fuel delivery. By timing each injection event so precisely, SFI virtually eliminates any wasted fuel and ensures that the exact amount of fuel needed for optimal combustion enters the cylinder at the correct moment. This leads to further improvements in fuel economy, even lower emissions (especially during transient conditions), smoother idle, and enhanced engine responsiveness. SFI is a hallmark of modern petrol engines and is often combined with other advanced technologies like variable valve timing to maximise engine output and efficiency across the entire RPM range.

Direct Injection (DI) / Gasoline Direct Injection (GDI)

Direct Injection (DI), particularly Gasoline Direct Injection (GDI) for petrol engines, is one of the most advanced and widely adopted fuel injection technologies in contemporary vehicles. Unlike TBI or MPFI, where fuel is injected into the intake manifold, GDI systems inject fuel directly into the combustion chamber of each cylinder. This requires incredibly high fuel pressures, often hundreds or even thousands of PSI, to ensure proper atomisation within the cylinder.

The benefits of GDI are profound. By injecting fuel directly into the cylinder, the engine can achieve a much higher compression ratio without the risk of pre-ignition (knocking), as the fuel doesn't mix with air until it's inside the cylinder. This allows for greater power and torque output. Furthermore, GDI enables 'stratified charge' operation at light loads, where a lean mixture (more air, less fuel) is created around the spark plug for ignition, while the rest of the cylinder contains mostly air. This significantly improves fuel economy. At higher loads, a homogeneous mixture is formed. GDI also provides a cooling effect as the fuel vaporises inside the cylinder, further aiding performance. However, GDI systems can be prone to carbon build-up on intake valves (as fuel no longer washes over them) and require more complex high-pressure fuel pumps and injectors, which can increase manufacturing and maintenance costs.

Common Rail Direct Injection (CRDI)

While primarily associated with diesel engines, Common Rail Direct Injection (CRDI) is a form of direct injection that shares similarities with GDI in its direct cylinder injection, but operates under even higher pressures and with distinct characteristics suited for diesel combustion. In a CRDI system, fuel is stored at extremely high pressure (up to 30,000 PSI or more) in a 'common rail' that feeds all the injectors. The ECU precisely controls the timing and duration of multiple, tiny injection events per combustion cycle, rather than just one.

This multi-injection capability allows for incredibly fine control over the combustion process in diesel engines, leading to significantly reduced noise and vibration (a common complaint with older diesels), improved fuel economy, and drastically lower emissions of harmful pollutants like NOx and particulate matter. CRDI has been instrumental in making modern diesel engines quieter, more powerful, and cleaner than their predecessors, playing a crucial role in meeting stringent emission regulations worldwide.

Comparison of Fuel Injection Types

Here's a brief comparison of the main fuel injection types:

Why Fuel Injection Matters: Beyond the Basics

The shift from carburettors to fuel injection has been pivotal for several reasons:

• Fuel Economy: Precise metering of fuel reduces waste, leading to more miles per gallon.
• Emissions Reduction: Better combustion and control over the air-fuel ratio significantly cuts down on harmful pollutants.
• Performance: Consistent fuel delivery and optimal air-fuel mixtures lead to more consistent power output and improved throttle response.
• Reliability and Drivability: EFI systems are less susceptible to environmental factors like altitude and temperature changes, offering consistent starting and smooth running.
• Diagnostics: With electronic control, issues can be easily identified and diagnosed via onboard diagnostic (OBD) systems.

Maintaining Your Fuel Injection System

While fuel injection systems are generally robust, regular maintenance is crucial for their longevity and optimal performance. Key areas to consider include:

• Fuel Filter Replacement: The fuel filter prevents contaminants from reaching the sensitive injectors. Replacing it at recommended intervals is vital.
• Fuel Injector Cleaning: Over time, injectors can become clogged with deposits, affecting spray patterns. Professional cleaning or fuel system cleaners can help.
• Sensor Health: Sensors (e.g., oxygen sensor, mass air flow sensor, coolant temperature sensor) provide critical data to the ECU. Faulty sensors can lead to incorrect fuel metering.
• Fuel Pump Condition: The fuel pump ensures adequate pressure for the injectors. Any signs of weakness or noise should be investigated.

Frequently Asked Questions About Fuel Injection

Can I convert my carburetted engine to fuel injection?

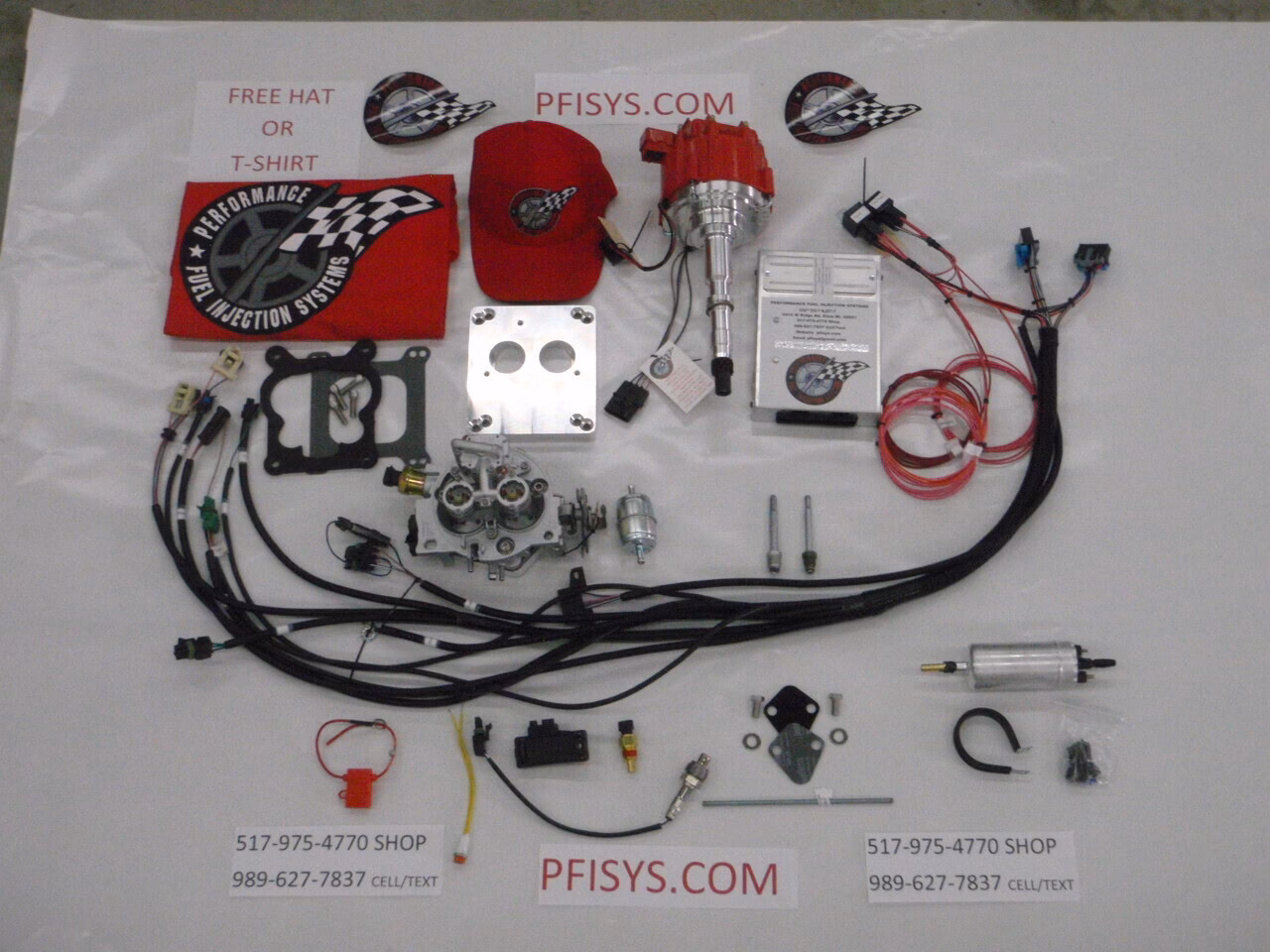

Yes, it's possible. Aftermarket EFI conversion kits are available, often starting with a TBI or MPFI setup. This can offer modern drivability and efficiency benefits for classic cars, and indeed, an Electronic Fuel Injection system will work perfectly fine with engine modifications such as a stroker kit, allowing for precise tuning to optimise the new engine's characteristics. However, it's a significant undertaking requiring fuel tank modifications for an in-tank pump, new fuel lines, an ECU, and wiring.

What are the signs of a faulty fuel injector?

Common signs include misfires, rough idle, poor fuel economy, loss of power, a strong fuel smell, or the 'check engine' light illuminating.

Is direct injection better than multi-port injection?

Generally, direct injection offers superior fuel economy and power output due to its precise fuel delivery directly into the cylinder. However, it can be more prone to carbon build-up on intake valves and may have higher repair costs.

How often should fuel injectors be cleaned?

There's no fixed schedule, but if you notice performance issues, a professional cleaning might be beneficial. Regular use of quality fuel system cleaners can help prevent deposits.

Do fuel injection systems require tuning?

Modern OEM systems are self-tuning within certain parameters thanks to the ECU and various sensors. However, if you make significant engine modifications (like adding a stroker kit or performance camshafts), a custom tune (remapping the ECU) is highly recommended to optimise performance and reliability.

Conclusion

The evolution of fuel injection technology has been a cornerstone of modern automotive development, transforming how engines operate and interact with their environment. From the early, somewhat rudimentary TBI systems to the sophisticated, high-pressure direct injection units of today, each iteration has pushed the boundaries of engine adaptability, efficiency, and performance. Understanding these different types provides valuable insight into the engineering marvels beneath the bonnet, ensuring your vehicle runs as cleanly and powerfully as its designers intended.
