Unravelling Production & Reservoir Fluids

In the vast and intricate realm of oil and gas extraction, understanding the various fluids involved is paramount to successful and efficient operations. From the moment hydrocarbons are brought to the surface to the specialised liquids used during drilling, each fluid plays a critical role. This article aims to demystify two core concepts: Production Fluid, the natural mixture flowing from a well, and Reservoir Drilling Fluids (RDFs), engineered solutions designed to protect the very formations they help access. Grasping their characteristics, behaviours, and the sophisticated chemistry behind them is essential for anyone involved in or interested in the petroleum industry.

What Exactly is Production Fluid?

At its core, production fluid, often referred to as well fluid, is the naturally occurring mixture of oil, gas, and water that flows from a reservoir to the surface of an oil well. This fluid is a dynamic entity, with its consistency and composition varying significantly depending on the specific geological formation and the conditions of the well. It represents the raw product of hydrocarbon extraction before any separation or processing takes place.

Key Characteristics of Production Fluid

To accurately describe and manage production fluid, several characteristics are meticulously measured and analysed:

• Composition: This refers to the precise quantity of every molecular component present within the fluid. Examples include various hydrocarbons such as methane, ethane, propane, i-butane, and n-butane, alongside non-hydrocarbon gases and water.
• Water Cut: An essential metric, water cut quantifies the proportion of the fluid that is water, as opposed to valuable hydrocarbons. A higher water cut can indicate reservoir depletion or water encroachment.
• API Gravity: This is an oilfield measurement that describes the weight of the hydrocarbons relative to water. Higher API gravity indicates lighter, less dense oil, which is often more valuable.
• GOR (Gas-to-Oil Ratio): GOR indicates how many standard cubic feet of gas can be obtained for every stock tank barrel of oil. It's a crucial indicator of the gas content in the produced stream.
• H₂S (Hydrogen Sulphide) & S (Sulphur) Concentration: The presence and concentration of these gases are vital safety and operational considerations. Fluids with a high concentration of H₂S are described as "sour" and require special handling due to their corrosive and toxic nature. Other contaminants like mercury may also be present, necessitating specific material selection and handling protocols.
• BS&W (Base Sediment and Water): This refers to the undesirable components that settle out during fluid storage, including solid particles and water. Minimising BS&W is a goal for efficient production.

Beyond composition, physical properties such as viscosity, density, and temperature-pressure relationships are also critical for predicting fluid behaviour during flow and processing.

Understanding Reservoir Drilling Fluids (RDFs)

While production fluid is what we extract, Reservoir Drilling Fluids (RDFs), also known as drill-in fluids, are a specialised subset of drilling fluids employed specifically when drilling through the reservoir section of certain wells. Their primary purpose is to minimise Formation Damage, a broad term encompassing various processes that can significantly reduce a well's producibility.

Why RDFs are Crucial for Minimising Damage

RDFs are meticulously designed to prevent or mitigate harmful interactions between the drilling fluid and the delicate reservoir rock. This is particularly important in wells where the native permeability of the formation will be directly utilised for hydrocarbon production. Such completions typically include:

• Barefoot Completions: Where the reservoir section is left open and uncased.
• Openhole Completions: Similar to barefoot but may involve screens or liners.
• Liner Completions: Where a liner is run and cemented, but the production zone is left open.

Conversely, in wells completed by casing and perforation, standard drilling fluids are often deemed sufficient. This is because the perforations are typically designed to extend beyond the zone of near-wellbore damage, negating the added value of switching to a more expensive RDF.

Assessing RDF Performance: The Formation Response Test

The effectiveness of an RDF in preventing formation damage is rigorously assessed through a formation response test, also known as a return or regained permeability test. This laboratory procedure mimics the conditions of drilling and production to evaluate the fluid's impact on reservoir rock.

How the Test Works:

1. Initial Permeability Measurement: A core sample of reservoir rock is prepared, and a hydrocarbon (gas, crude, or synthetic crude) is flowed through it at a controlled rate. The pressure drop across the core is measured and used to establish the initial permeability, a measure of the rock's ability to allow fluids to flow through it, according to Darcy's Law.
2. Drilling Fluid Exposure: The RDF is then flowed across the face of the core from the opposite direction (injection direction) for a prescribed period. This simulates the invasion of drilling fluid filtrate into the reservoir and the formation of a Filter Cake on the core's surface.
3. Final Permeability Measurement: In the concluding step, hydrocarbon is again flowed through the core in the original production direction. The pressure drop is measured to calculate a final permeability.
4. Damage Assessment: By comparing the initial and final permeabilities, a "percent return" is calculated. Good return permeability data typically exceeds 80%, often surpassing 90%. A 90% return permeability, for instance, signifies that only 10% of the original permeability was lost due to drilling fluid interactions with the core and hydrocarbon.

Mechanisms of Formation Damage

Drilling fluids, if not properly designed, can damage the near-wellbore area through several detrimental mechanisms:

• Pore Blocking by Solids: Solid particles from the drilling fluid can invade and block the microscopic pore spaces within the reservoir rock, hindering fluid flow.
• Clay Swelling: Many reservoirs contain clay minerals that can swell significantly when exposed to incompatible aqueous drilling fluids, further reducing permeability.
• Wettability Alteration: The drilling fluid can change the natural Wettability of the reservoir rock, making it more oil-wet rather than water-wet. Water-wet reservoirs typically exhibit higher relative permeability to hydrocarbons.
• Emulsion Blocking: Unwanted emulsions can form between the drilling fluid filtrate and reservoir fluids, creating blockages within the pore network.
• Water Blocking: Capillary forces from water-based filtrates can create "water blocks" in small pore spaces, preventing hydrocarbon flow.
• Scaling: Precipitation of salts or other minerals from the drilling fluid or reaction with formation water can lead to scale deposition, restricting flow paths.

RDFs are specifically formulated to limit the potential damage impact through these mechanisms.

Key Additives in Reservoir Drilling Fluids

While RDFs share many common additives with standard drilling fluids, there are significant differences, particularly for aqueous-based RDFs. The ease of removability or degradability of additives is a paramount concern for RDFs, ensuring minimal long-term damage.

Weighting Agents

Density control is a critical area where RDFs differ. Insoluble weighting materials are generally undesirable in RDFs because they can enter and block formation pore spaces. Barite, a common weighting agent in standard drilling fluids, is particularly problematic due to its poor solubility in conventional acids, making remediation difficult.

Calcium Carbonate: This is a much more acceptable weighting material for RDFs due to its acid solubility, allowing it to be easily removed post-drilling. However, its relatively low specific gravity (2.6) limits its utility for achieving medium to high fluid densities.

Brine Solutions: For aqueous-based RDFs, density is primarily achieved through dissolved salts in brine solutions. Because salts vary in solubility and the density of their resultant solutions, a wide range of required densities can be achieved without solid weighting agents. The advantage here is that the weighting agent (salt) is fully dissolved, preventing pore blocking by solids.

Table: Typical Maximum Working Specific Gravities of Various Brines

Halide brines (chlorides, bromides) are common, with formates being non-halide alternatives, particularly caesium formate for very high densities. A critical consideration for high-concentration brines is the potential for salt precipitation (crystallisation) downhole, which must be tested for. Compatibility with formation water to prevent scaling is also crucial.

Non-Aqueous Fluids (NAFs): Some non-aqueous RDFs can still use barite due to their inherently lower fluid invasion. They may also use high concentrations of calcium carbonate combined with high-density internal phases (e.g., increasing brine content in an emulsion).

Filtration Control (Bridging)

Even with clear brines, solid bridging agents are typically added to aqueous RDFs to reduce fluid loss into the formation. Sized calcium carbonate, often used in combinations to achieve appropriate particle size distributions (PSDs) for bridging specific formation pore spaces, is most common. Sized salt (sodium chloride) can also be used, requiring a saturated base fluid to prevent premature dissolution.

Polymers for Fluid Loss: Polymers are added to further reduce fluid loss. Starches, including chemically modified starches (e.g., cross-linked starch, hydroxypropyl starch), are frequently employed. Polyanionic cellulose (PACs) and carboxymethyl cellulose (CMCs) are less common due to their difficulty in degradation. Synthetic polymers are designed for high-temperature applications, some offering dual function as viscosifiers and fluid loss control agents.

Filter Cake Removal

Removing the filter cake prior to production is often desirable to enhance production rates. Calcium carbonate can be dissolved using acids or chelants like ethylenediaminetetraacetic acid (EDTA), which forms water-soluble complexes with calcium. Starches can be hydrolysed by acids or degraded by amylase enzymes or oxidisers. Acid treatments can often remove both starches and calcium carbonate simultaneously.

Delayed Acid Breakers: This innovative approach utilises acid precursors in the form of esters. These esters are neutral at the surface and hydrolyse downhole (triggered by temperature and time) to produce acids (e.g., formic or lactic acid from formate/lactate esters). This method avoids handling "live" acid at the surface, reduces corrosion, and promotes more even filter cake removal.

Peroxide Salts and "Self-Destructing" Filter Cakes: Insoluble peroxide salts can be incorporated into aqueous RDF filter cakes, acting as bridging agents with latent reactivity. Acid treatment then forms hydrogen peroxide, assisting in polymer degradation. "Self-destructing" filter cakes feature solid esters embedded within the cake that hydrolyse over time to produce acid.

For NAF RDFs, degradable bridging agents, usually calcium carbonate, are also used. Polymers in NAFs typically don't infiltrate significantly and/or flow out with hydrocarbons, limiting damage.

Viscosifiers

In aqueous-based RDFs, biopolymer-based viscosifiers are preferred. Clays are generally avoided due to their damage potential, lack of degradability, high concentration requirements, and poor performance in brine solutions. Xanthan gum and scleroglucan are effective options, with scleroglucan being valuable in calcium brines. Hydroxyethyl cellulose (HEC) can viscosify various brines but is better as a thickener than a suspension agent. Nanocellulose has shown promise in improving suspension properties.

Nonaqueous RDFs often use the same rheology modifiers as standard NAFs, such as organophilic clay and dimer/trimer acids.

Shale Inhibition

Due to the high salt content and inherent inhibitive nature of many aqueous-based RDFs, supplemental shale inhibitors are often unnecessary. If additional swelling control is required, small- to medium-sized molecules like amines and glycols can be used. Silicates are generally considered damaging due to their precipitation-based inhibition mechanism. Large molecule encapsulators (e.g., acrylamide-based) are not used due to poor degradability and high retention in the rock. NAFs and nonaqueous RDFs typically do not require supplemental shale inhibition chemistry due to the inhibitive nature of their emulsion systems.

Lubricants

Many classes of lubricants can be used in aqueous-based RDFs, but compatibility with the high-salinity brines is crucial. Precipitation, "cheesing," or "greasing" of lubricants can occur, not only reducing their efficacy but, more importantly, potentially damaging the reservoir. Lubricants can also stabilise undesirable emulsions between the RDF and crude oil. Thorough laboratory compatibility and return permeability testing are advisable. Discrete lubricant additives are typically not needed in nonaqueous RDFs.

Surfactants

Surfactants play diverse roles in RDFs:

• Demulsifiers & Non-emulsifiers: Used to break or prevent the formation of emulsions between produced hydrocarbons and aqueous RDFs.
• Water Block Removal: By reducing surface tension, surfactants can help remove water blocks in small pore spaces caused by capillary forces.
• Wettability Alteration: Reservoirs ideally should be water-wet for higher relative permeability to hydrocarbons. Drilling with NAFs can make the formation oil-wet due to strong oil-wetting surfactants. Certain surfactants can be used to restore the preferential water-wet state.
• Reversible Surfactant Systems: An advanced NAF RDF system uses reversible surfactants where a pH change (e.g., triggered by acid treatment) causes a molecular change in the surfactant, flipping the emulsion from oil-external to water-external. This allows a water-external fluid to contact the wellbore, promoting better water-wetting.

Incorporating water-wetting surfactants can also improve the removal of oil-wet filter cakes through acidic treatments.

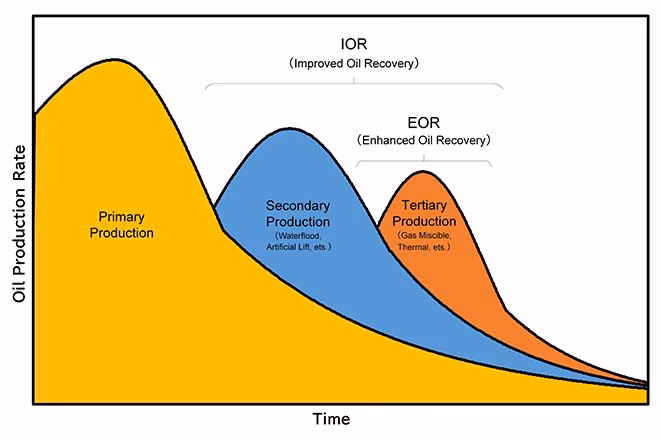

The Evolution of Fluid Flow Understanding in Petroleum Production

The complexities of liquid and gas flow in petroleum production systems have been a subject of extensive research and development for many decades. The sheer volume of academic literature and patents related to multiphase flow, flow patterns, pressure drops, and fluid dynamics in wellbores and pipelines indicates a long-standing and continuous effort to understand and optimise these processes. While a definitive "start date" for the study of liquid and gas flow is elusive, the foundational principles of fluid mechanics and thermodynamics, combined with practical challenges of hydrocarbon extraction, have driven continuous innovation and modelling since the early days of the industry. The provided references alone span from the mid-20th century to the early 21st, highlighting the enduring nature of this critical field of study.

Comparative Table: Standard Drilling Fluids vs. Reservoir Drilling Fluids (RDFs)

To summarise the key differences, here's a comparison of typical characteristics:

Frequently Asked Questions About Production and Reservoir Fluids

Q1: Why is it important to measure the "water cut" in production fluid?

A1: Measuring water cut is crucial because it indicates the efficiency of oil production. A rising water cut can signal the influx of formation water, which might be due to natural reservoir conditions, water flooding operations, or issues with well integrity. High water cut increases processing costs, as water needs to be separated and disposed of, and can reduce the overall profitability of a well.

Q2: How does a "sour" production fluid impact operations?

A2: "Sour" production fluids, containing high concentrations of hydrogen sulphide (H₂S), pose significant challenges. H₂S is extremely toxic and corrosive, requiring stringent safety protocols for personnel and demanding the use of specialised, corrosion-resistant materials for all equipment (e.g., pipelines, vessels). This adds considerable complexity and cost to drilling, production, and processing operations.

Q3: What does "formation damage" mean in the context of drilling, and why do RDFs prevent it?

A3: Formation damage refers to any process that reduces the natural permeability and producibility of a reservoir rock. This can happen when drilling fluids interact unfavourably with the formation, causing issues like pore blocking by solids, clay swelling, or wettability alteration. Reservoir Drilling Fluids (RDFs) are specifically designed with soluble weighting agents, degradable polymers, and carefully selected filtration control additives to minimise these damaging interactions, ensuring that the reservoir's ability to flow hydrocarbons is preserved.

Q4: Why are brines preferred over solid weighting agents in many aqueous RDFs?

A4: Brines are preferred because the weighting agent (salt) is fully dissolved, meaning there are no solid particles to invade and block the microscopic pore spaces of the reservoir rock. In contrast, insoluble solid weighting agents like barite can cause significant formation damage by plugging pores, which is difficult to remediate. Brines allow for precise density control while minimising the risk of permeability impairment.

Conclusion

The journey of hydrocarbons from deep within the earth to the surface is supported by a sophisticated understanding and management of fluids. From the raw Production Fluid that yields valuable oil and gas to the meticulously engineered Reservoir Drilling Fluids that protect the very pathways of extraction, every fluid interaction is critical. The continuous innovation in fluid chemistry and engineering, particularly in the design of RDFs, underscores the industry's commitment to maximising recovery while minimising environmental and operational impact. As technology advances, our ability to precisely control and manipulate these fluids will continue to be a cornerstone of efficient and sustainable energy production.
