Mastering Flexible Exhaust Pipes

In the intricate world of automotive and industrial mechanics, every component plays a crucial role in the overall efficiency and longevity of a system. Among these, the flexible exhaust pipe, often overlooked, stands as a silent guardian against the harsh realities of engine operation. Far from a mere pipe, this ingenious piece of engineering is designed to absorb stresses, mitigate vibrations, and ensure the integrity of your entire exhaust system. Understanding its function, construction, and applications is key to appreciating its indispensable value.

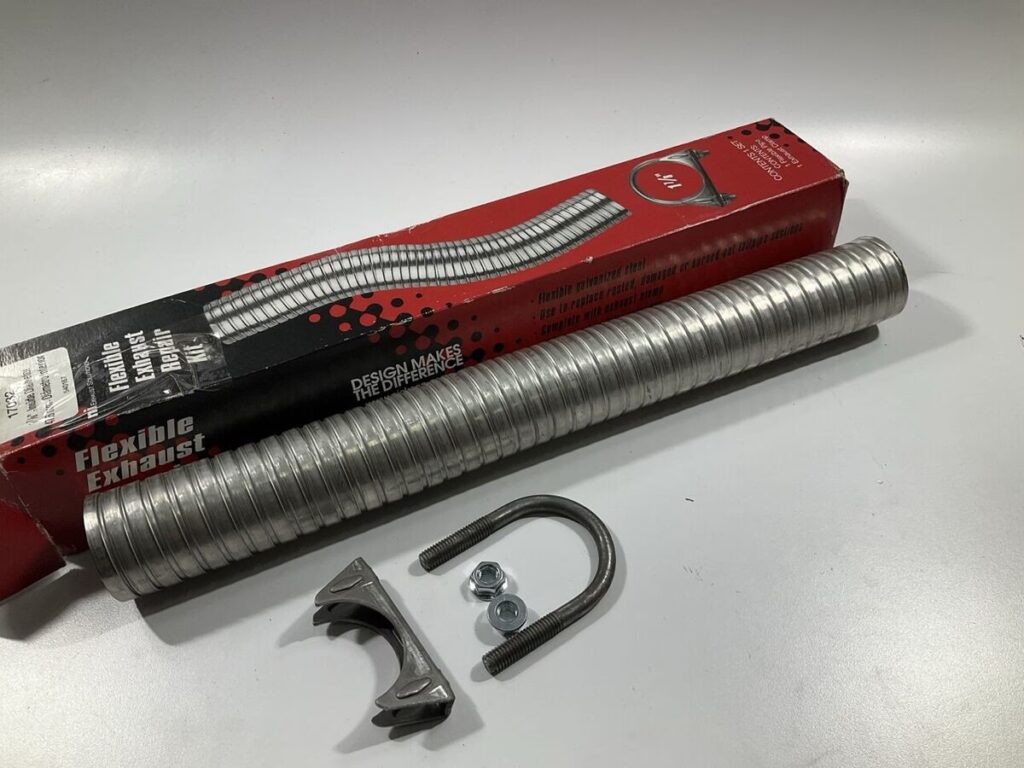

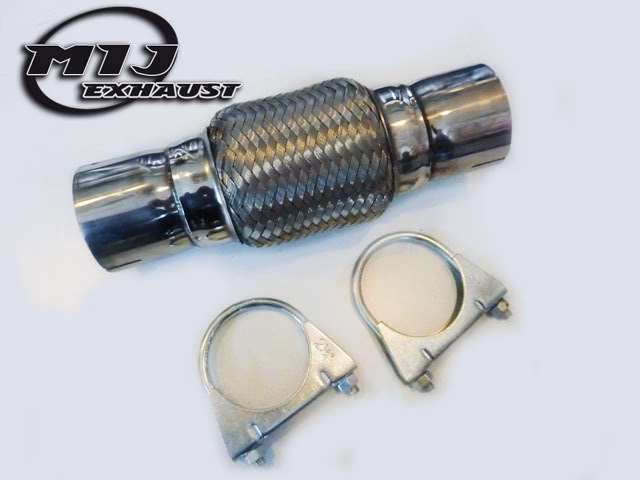

A flexible exhaust pipe, sometimes referred to as a flex pipe or bellows, is a critical component within an exhaust system, designed to provide a degree of flexibility and movement. Unlike rigid sections of piping, which are fixed and unyielding, a flex pipe incorporates a corrugated or braided structure that allows it to bend, stretch, and compress. This inherent flexibility is vital for accommodating the dynamic movements of an engine, which constantly vibrates and shifts during operation. Without such a component, these movements would directly transfer stress to the rigid exhaust components, leading to cracks, fractures, and ultimately, system failure.

These specialised pipes are typically constructed from high-quality materials, with 304-grade stainless steel being a preferred choice due to its excellent resistance to corrosion, high temperatures, and fatigue. This material ensures durability and a long service life, even under the most demanding conditions. The design often involves an inner corrugated bellow, which provides the primary flexibility, encased within an outer wire mesh or braided layer that offers protection against impact and limits over-extension. Some designs may also incorporate an inner liner to smooth exhaust flow and prevent turbulence.

Why Flexible Exhaust Pipes Are Indispensable

The operational environment of an engine and its exhaust system is fraught with challenges. Engines generate significant vibrations, especially internal combustion engines, which inherently produce pulsating forces as cylinders fire. Furthermore, the vehicle itself is subjected to constant movement – bumps, turns, and acceleration – all of which impart stress on mounted components. Flexible exhaust pipes are engineered specifically to counteract these forces, serving several critical functions:

• Vibration Absorption: This is perhaps their most fundamental role. By absorbing the constant vibrations produced by the engine, flex pipes prevent these movements from being transmitted throughout the entire exhaust system and into the vehicle's chassis. This not only reduces noise and discomfort for occupants but also protects other exhaust components, such as catalytic converters, mufflers, and manifolds, from premature wear and failure.
• Thermal Expansion Compensation: Exhaust gases can reach extremely high temperatures, causing the metal components of the exhaust system to expand and contract. A rigid system would be under immense stress during these thermal cycles, leading to warping or cracking. Flex pipes allow for this natural expansion and contraction, relieving thermal stress.
• Misalignment Correction: During manufacturing or after repairs, perfect alignment of exhaust components can be challenging. Flex pipes can compensate for minor misalignments, making installation easier and reducing stress on connection points. They also accommodate slight shifts in engine mounts over time.
• Protection Against Road Hazards: While not their primary function, the flexibility of these pipes can offer a small degree of resilience against impacts from road debris or accidental scrapes, reducing the likelihood of catastrophic damage to the entire exhaust line.

Construction and Material: The Power of 304 Stainless Steel

The choice of material for flexible exhaust pipes is paramount to their performance and longevity. 304-grade stainless steel is widely recognised as the industry standard for high-quality flexible exhaust components, and for good reason. This austenitic stainless steel boasts an excellent combination of properties that make it ideal for the harsh exhaust environment:

• Corrosion Resistance: Exhaust gases contain corrosive elements, and exposure to moisture and road salts further exacerbates corrosion. 304 stainless steel offers superior resistance to rust and oxidation compared to mild steel, ensuring the pipe remains intact for many years.
• High Temperature Resistance: It can withstand the extreme temperatures generated by engine exhaust without losing its structural integrity or becoming brittle.
• Durability and Strength: While flexible, 304 stainless steel maintains excellent tensile strength and fatigue resistance, allowing it to endure constant flexing and vibrations without cracking.
• Weldability: It is readily weldable, which is crucial for integrating the flex pipe into existing exhaust systems during manufacturing or repair.

The typical construction involves an inner corrugated tube, often formed from multiple plies of thin stainless steel, which provides the primary flexibility. This is then surrounded by an outer braid or interlock mesh, also made from stainless steel. The outer braid serves to reinforce the inner corrugated section, preventing excessive expansion and protecting it from external damage. Some designs feature an internal liner, which can be either a solid tube or a series of interlocking rings, to smooth the flow of exhaust gases and prevent exhaust gas from getting trapped in the corrugations, which can lead to noise or even accelerate wear.

Diverse Applications: Beyond Just Cars

While commonly associated with automotive applications, flexible exhaust pipes are incredibly versatile and find use across a wide spectrum of industries. Their ability to manage vibrations and thermal expansion makes them indispensable in any setup where an engine or vibrating machinery connects to a rigid exhaust or ventilation system.

• Automotive: This is perhaps their most common application. In cars, they are frequently found between the engine's exhaust manifold and the catalytic converter, or sometimes further down the exhaust line, to absorb engine movement. For lorries and buses, which experience significant engine vibrations and often have longer, more complex exhaust systems, flex pipes are absolutely essential for system integrity. Even motorbikes utilise smaller versions to manage engine vibrations.
• Industrial Machinery: Heavy machinery, such as excavators, bulldozers, and industrial generators, often have large diesel engines that produce considerable vibrations. Flexible exhaust pipes are integral to their exhaust systems, ensuring reliability and preventing damage to expensive components.
• Agricultural Equipment: Tractors and other farm machinery operate in demanding environments, often on uneven terrain, leading to significant chassis and engine movement. Flex pipes accommodate these dynamics, safeguarding the exhaust system.
• Stationary Engines: Generators, pumps, and other stationary engines, though not moving on wheels, still vibrate intensely. Flexible exhaust pipes are used as an exhaust extension to direct fumes away from the unit or building, while simultaneously isolating vibrations from the main exhaust ducting or chimney, preventing structural damage and noise transmission.
• Marine Vessels: Boats and ships with large engines rely on flexible exhaust sections to cope with engine vibrations and the constant movement of the vessel in water.

Benefits of Incorporating Flexible Exhaust Pipes

The integration of flexible exhaust pipes offers a multitude of benefits that extend beyond mere functionality, impacting reliability, maintenance costs, and overall system performance:

• Enhanced Durability of the Entire Exhaust System: By absorbing stresses and vibrations, flex pipes significantly reduce the strain on other, more expensive exhaust components like manifolds, catalytic converters, and mufflers, prolonging their lifespan and reducing the frequency of costly repairs.
• Reduced Noise and Vibration: The dampening effect of a flex pipe results in a quieter operation, as engine vibrations are less likely to be transmitted through the exhaust system into the vehicle's cabin or surrounding environment. This contributes to improved comfort for vehicle occupants and less noise pollution from industrial machinery.
• Easier Installation and Repair: The inherent flexibility can simplify the installation process, as minor misalignments between components are easily accommodated. During repairs, it allows for greater tolerance, making it less precise to fit rigid components together perfectly.
• Cost-Effectiveness in the Long Run: While there's an initial cost for the flex pipe itself, it pales in comparison to the potential repair costs associated with a rigid system failing due to vibration-induced stress. Investing in a quality flex pipe upfront saves money on future repairs and replacements of other exhaust parts.
• Versatility for Customisation: Their adaptability makes them ideal for custom exhaust fabrications or repairs where precise measurements might be difficult to achieve with rigid piping alone.

Choosing the Right Flexible Exhaust Pipe

Selecting the appropriate flexible exhaust pipe is crucial for optimal performance and longevity. Several factors need to be considered:

• Diameter: The internal diameter of the flex pipe must match the existing exhaust system to ensure proper exhaust flow and maintain back pressure.
• Length: Choose a length that allows for sufficient flexibility without being excessively long, which could lead to sagging or rubbing. It should be long enough to absorb vibrations but not so long that it becomes cumbersome.
• Material: Always opt for 304-grade stainless steel for its superior corrosion and heat resistance, especially for automotive and industrial applications where durability is paramount.
• Construction Type: Consider whether an inner liner is necessary for smoother flow or if a more robust outer braid is required for protection in high-impact environments.
• Application: Ensure the pipe is rated for the specific application (e.g., automotive, heavy-duty industrial) to guarantee it can withstand the expected pressures, temperatures, and vibrations.

When installing, it's important to ensure proper alignment and avoid over-stretching or compressing the pipe. Secure clamping is also vital to prevent leaks and ensure the pipe remains in place under operational stresses.

Comparative Analysis: Flexible vs. Rigid Exhaust Sections

To further highlight the importance of flexible exhaust pipes, let's compare their characteristics with traditional rigid exhaust sections:

Frequently Asked Questions About Flexible Exhaust Pipes

How long do flexible exhaust pipes typically last?

The lifespan of a flexible exhaust pipe varies significantly depending on the quality of the material (304 stainless steel is crucial), driving conditions, climate, and how well it was installed. A high-quality 304 stainless steel flex pipe, properly installed, can last many years, often matching or exceeding the life of other exhaust components. However, exposure to road salt, extreme temperatures, and excessive vibration can reduce its lifespan.

Can I install a flexible exhaust pipe myself?

For those with mechanical aptitude and the right tools (welder, pipe cutters, clamps), replacing a flexible exhaust pipe can be a DIY project. However, proper welding techniques are essential to ensure a leak-free and durable connection. If welding is not an option, universal fitment flex pipes with clamp-on ends are available, but professional installation is always recommended to ensure safety and optimal performance.

What are the common signs of a failing flexible exhaust pipe?

Several signs indicate a failing flexible exhaust pipe: an increase in exhaust noise (a hissing or roaring sound), a strong exhaust smell inside the vehicle, a noticeable vibration or rattling coming from underneath the vehicle, and visible cracks, rust, or fraying on the outer braid of the pipe. A decrease in engine performance or fuel efficiency can also be symptoms, as a leaking exhaust can affect sensor readings.

Are all flexible exhaust pipes the same?

No, they are not. Flexible exhaust pipes vary significantly in quality, material, and construction. Cheaper options might use lower grades of stainless steel or even mild steel, which are more susceptible to corrosion and premature failure. The inner construction (e.g., interlock liner, braided design) also varies, impacting flexibility, flow, and durability. Always look for 304-grade stainless steel and a reputable supplier.

Why is 304 stainless steel preferred for flexible exhaust pipes?

304 stainless steel is preferred due to its exceptional resistance to corrosion, high temperatures, and fatigue. It can withstand the harsh chemical composition of exhaust gases, the extreme heat generated by engines, and the constant flexing and vibrations without degrading quickly. This ensures a long service life and reliable performance, making it a cost-effective choice in the long run despite a higher initial price than lesser materials.

In conclusion, the flexible exhaust pipe is far more than just a piece of metal tubing; it's a meticulously engineered component that safeguards the entire exhaust system. Its ability to absorb vibrations, compensate for thermal expansion, and correct misalignments makes it an indispensable part of modern vehicle and machinery design. By choosing high-quality, 304-grade stainless steel options and ensuring proper installation, you can significantly extend the life of your exhaust system, reduce maintenance costs, and enjoy a quieter, more reliable operation.
