Mastering Your Ford Flathead Rebuild

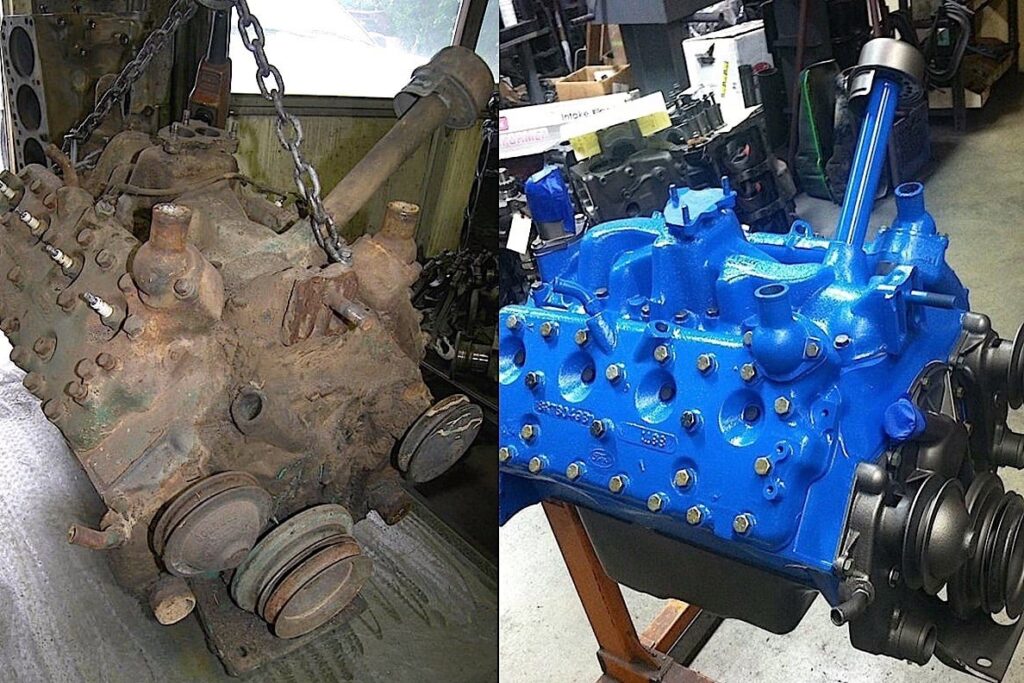

The Ford Flathead engine stands as a true icon in automotive history, a symbol of American ingenuity and a cornerstone of the hot rod culture. Its distinctive design and robust nature have captivated enthusiasts for decades, making it a highly sought-after powerplant for restoration projects and custom builds alike. However, bringing one of these venerable motors back to its former glory isn't merely a case of replacing a few parts; it's a meticulous journey that demands precision, expertise, and a deep understanding of its unique characteristics. This comprehensive guide delves into the intricate processes involved in a proper Flathead rebuild, from foundational terminology to advanced machining techniques, ensuring your legendary engine receives the care it deserves.

Understanding the Flathead Rebuilding Spectrum

Before embarking on any engine project, it's crucial to understand the distinct levels of work involved. Miscommunication with a machine shop due to unclear terminology can lead to unsatisfactory results. Here’s a breakdown of common terms used in engine work:

Is Rebuilding an Old Flathead Engine Worth It?

Absolutely. For many, the Flathead is more than just an engine; it's a piece of history, a work of art, and a source of immense satisfaction. The distinctive sound, the traditional aesthetic, and the sheer joy of piloting a vehicle powered by this iconic motor make the investment in a quality rebuild entirely worthwhile. The value isn't just monetary; it's steeped in heritage and personal passion. However, the success of your rebuild hinges significantly on finding the right professionals.

Choosing the Right Machine Shop for Your Flathead

This is perhaps the most critical decision in your rebuilding journey. While many machine shops excel at modern engines, the Ford Flathead has its own unique quirks and challenges. A shop accustomed to rebuilding small-block Chevrolets might not possess the specialised knowledge required for a Flathead. It's imperative that your chosen shop genuinely understands Flatheads and their idiosyncrasies. Do not pressure a shop into learning or experimenting on your valuable engine; it could prove to be a costly error for both parties.

Before entrusting your block, take numerous photographs of it and any identifying marks. Consider putting your own discreet mark on the block to ensure you receive your original component back after the work is complete. Research is paramount: check online reviews, ask fellow enthusiasts in clubs or forums about their experiences, and heed the old adage: caveat emptor – let the buyer beware.

Precision Engineering: Blueprinting and Balancing Your Flathead

The terms 'blueprinting' and 'balancing' often conjure images of arcane automotive magic, but in reality, they refer to the precise assembly and optimisation of your engine's components to achieve peak performance and longevity. While factory specifications are designed for mass production and a broad range of driving styles, a blueprinted engine adheres to far tighter tolerances, ensuring every part works in perfect harmony. Theoretically, a blueprinted engine has no tolerance; it either is or it isn't, aiming for zero variance between components.

Weight Matching Components

The first step in achieving a balanced engine involves weight matching individual components. This is a meticulous process where pistons and connecting rods are weighed individually on a highly sensitive balancing scale. Material is then carefully removed from the heavier components until all pistons weigh the same as the lightest piston, and all rods match the weight of the lightest rod, typically within 0.25 grams. For connecting rods, a balancing fulcrum is also used to ensure weight is evenly distributed at both ends.

Dynamic Balancing the Rotating Assembly

Dynamic balancing focuses on the entire rotating assembly, including the crankshaft, rods, and pistons. While the crankshaft itself is placed on a balancer, special 'bob weights' are installed to accurately replicate the combined weight of the rod and piston assemblies. All component weights (rods, pistons, pins, clips, rings) are recorded and entered into a computer, which then calculates the precise size of the bob weights needed. The bob weights, resembling large clamps, are positioned with extreme care on the crank, aligning them precisely. The computer then dictates where and how deep material needs to be removed from the crankshaft to achieve perfect balance. This exacting process, often performed on high-end digital balancing machines, eliminates power-robbing vibrations, resulting in a remarkably smooth and efficient engine. Unlike many factory production engines, a truly balanced Flathead can be balanced to within 1 gram, significantly enhancing its performance and durability.

Honing and Balancing Connecting Rods

Even modern aftermarket rods benefit from careful checking, and reusing stock rods absolutely necessitates resizing the big ends due to years of wear causing them to go out of round. This process involves grinding the mating surfaces of the rod cap and then honing the assembled rod to return the big end to its exact original size and roundness. Similarly, the small ends, which can also become misshapen, are honed back to specification. Weight matching of rods, whether new or reused, is crucial. While Ford's original tolerances for rod weight were more liberal (451-455 grams), with patience, all rods can be matched to weigh exactly the same, contributing significantly to a smooth-running engine.

Balancing Pistons

Similar to rods, most modern pistons are well-balanced, but double-checking is always recommended. The process mirrors rod balancing: individual pistons are weighed, and material is removed from the skirt just inside the piston bore until all match the lightest piston. Even minor components like wrist pins and clips are weighed, as their aggregate weight is vital for accurately balancing the crankshaft later in the process. Ford's allowable tolerance for pistons with rings and pins was typically 8 grams, but a meticulous rebuild aims for far tighter matching.

Addressing Common Issues: Crack Repair

Flathead blocks, given their age and casting methods, are prone to cracks. Unless you are a highly competent machinist with access to specialist equipment, crack repair is best left to experts. This procedure demands a deep understanding of castings, core shift, wall thickness, and the specific machining required for valve-seat and cylinder sleeve installation. A keen eye is needed to distinguish genuine cracks from harmless casting marks.

Magnaflux inspection is almost always the starting point, revealing cracks that might otherwise be hidden, often directly under the valve seat or within the ports. The repair typically involves drilling and tapping the ends of the crack and then installing tapered Sea lace plugs, which effectively 'stitch' the crack together. Each plug is coated with a special fluid weld before being screwed into the block. The head of the screw is then ground flush with the port wall. This process seals the crack, but because cast iron is inherently porous, a subsequent pressure sealing operation is critical to ensure the block is completely sealed and free of hidden fissures.

Precision Machining: Cylinder Boring & Honing

The foundation of a good rebuild lies in the accuracy of the cylinder bores. Unless you've discovered a rare New Old Stock (NOS) block, your engine will almost certainly require a rebore.

Cylinder Boring

A machine shop uses a boring bar to machine each cylinder to the next oversize, meticulously maintaining correct geometry relative to the main bearing bore. This is a key aspect of blueprinting. High-quality shops position the block on the main bearing registers, ensuring all bores are perfectly square to the main bearing axis. The boring bar typically makes two passes: a rough cut with a carbide insert tool, followed by a finer finish cut to minimise subsurface fracturing and prepare the bore for the final honing. Crucially, the boring process must be performed with the specific pistons and rings you intend to use, matching the bore diameter precisely to the manufacturer's suggested clearance tolerance.

Align Boring

For very high-performance builds, align boring the block is a recommended operation. This process re-establishes a perfectly straight and round bearing bore for the crankshaft, while simultaneously maintaining the correct cam-to-gear dimensions. Specialist align-boring systems, often historical equipment used by early Ford engine remanufacturers, are employed for this task. The main caps are torqued down, and the hole is precisely bored, ensuring perfect main bearing alignment.

Sleeving Cylinders

If a cylinder wall is severely cracked, has extensive water damage, or exhibits porous pinholes from internal corrosion, sleeving that cylinder becomes necessary. A trusted machine shop can expertly handle this. Sleeves are typically made of cast iron, similar to the block material, to ensure proper heat transfer, though harder ductile iron sleeves are available for high-performance applications. On Flathead V-8s, step sleeving is critical due to the full water block design and inconsistent historical casting procedures. A 1/4-inch-thick step register shoulder is machined at the bottom of the bore, on which the sleeve sits, preventing any slippage during the engine's operational life. The sleeve is installed with a precise interference fit, often using a small amount of two-part epoxy around the step, and then hammered home. After installation, the sleeve itself is bored and honed to the final size, just like an original cylinder.

Honing the Bores

Honing is the final, critical step in preparing the cylinder bores. It removes the last few thousandths of material, finely grinding the bore to achieve the precise tolerance between the piston rings and the cylinder wall. A power hone, often accompanied by a dial bore gauge, is used. Before honing, the block's head stud threads are cleaned, and a billet aluminium torque plate is bolted down and torqued to simulate the stresses the cylinder head will induce when installed. This ensures the bore remains perfectly round under operational conditions. With plenty of honing oil, multiple passes are made with roughing stones, followed by fine stones, to achieve the proper cross-hatch pattern essential for effective ring seating and sealing. The bore is constantly checked with a dial gauge until it perfectly matches the proposed piston and desired clearance.

Ensuring Flat Surfaces: Decking the Block and Heads

After decades of use and thermal cycles, Flathead blocks and heads can become twisted or warped. Ensuring perfectly flat mating surfaces is paramount for proper head gasket sealing and overall engine integrity.

Decking the Block

Decking, or resurfacing, the block is a mandatory procedure. It guarantees that the block's mating surfaces are flat, smooth, and parallel to the main bearings and crankshaft. For this operation, the block is registered on the main saddles, allowing the resurfacing machine to create a deck surface that is perfectly square and has equal deck heights relative to the main bearings. Segmented stone surface grinders, often with continuous coolant flow, are used to prevent distortion and ensure a flawless finish. Not only the main deck but also the intake manifold deck often requires surfacing to ensure proper sealing.

Surfacing the Cylinder Heads

Just like the block, original or old aftermarket cylinder heads will almost certainly have warped over time and require professional resurfacing. Unlike the block, which is registered on its mains, the heads must be meticulously leveled both fore and aft, and side to side, in the surfacing machine. This process, while seemingly straightforward to an experienced rebuilder, involves multiple minute adjustments to ensure the head is perfectly flat while removing the minimum amount of material necessary. It's often advisable to consider New Old Stock (NOS) or new aftermarket heads over trying to restore severely damaged original heads, as the cost and effort of welding and machining can quickly outweigh the benefits.

Optimising Performance & Durability

Power Slotting (Relieving)

Cutting a 'power slot' in the block, now commonly referred to as 'relieving,' is an old performance technique that involves machining a channel between the valve ports and the cylinder bore. This process was designed to facilitate the flow of the fuel charge into the cylinder. While once popular, it's rarely employed today as it generally decreases compression and is primarily reserved for blown (supercharged) engines. It is not compatible with Ardun heads.

Pressure Sealing the Block

Pressure sealing is a critical, often overlooked, step in a Flathead rebuild due to the inherent porosity of cast iron. This process helps to seal any missed cracks, captures loose particles that might have escaped the thorough cleaning process, and ensures that all crack repairs are permanently sealed. A ceramic sealer is circulated throughout the cooling system under pressure, permeating the internal casting to reduce scale buildup and permanently impregnate any hidden casting fissures. This time-consuming procedure significantly enhances the block's integrity and prevents future coolant leaks or issues.

Valve-Seat Installation and Grinding

Proper valve-seat work is fundamental for efficient engine operation, heat transfer, and long-term durability.

Valve-Seat Installation

New hardened valve seats are highly recommended for all Flathead rebuilds. Modern fuel formulations and the demands of contemporary driving make new seats, typically made from chromemoly, Stellite, or beryllium, essential. They ensure correct heat transfer from the valve and prevent valve-seat recession. Before installation, existing valve seats must be removed, allowing for a crucial Magnaflux inspection underneath, where many cracks originate. The new seats are installed with an interference fit, often with a coat of red Loctite to prevent loosening due to different expansion rates. They are then carefully hammered into place, often using a guide that registers on the valve guide hole to ensure precise alignment.

Valve-Seat Grinding

After installation, the valve seats undergo a precision 'three-angle valve job.' This involves grinding the seat to specific angles to create an optimal sealing surface with the valve. Typically, a 30-degree cut is made on the uppermost side of the seat, a 60-degree cut for the interior of the bowl, and a 45-degree cut for the actual valve contact area. This 45-degree cut is the crucial sealing surface and must be minimal and perfectly even. After machining, all 16 valves are often hand-lapped into their respective seats. Hand-lapping creates a slightly wider and more effective sealing surface, ensuring maximum combustion pressure retention. Each valve should be marked to correspond with its seat to ensure correct reassembly.

Frequently Asked Questions (FAQs)

Does R&L Engines rebuild a Ford Flathead?

While the provided information highlights that R&L Engines offers a high-quality remote oil filter kit for Flatheads, designed to convert them to a full-flow oil set-up, and that they use this system on all their custom Flatheads, it doesn't explicitly state that they perform complete engine rebuilds. They certainly work with Flathead engines and can perform the oil filter conversion for you, indicating a specialisation in these motors.

Who is Flathead Speed and Machine?

Flathead Speed and Machine is a company dedicated to the Ford Flathead engine. They hold the Flathead in high regard, respecting its traditional aspects and honouring its legacy as "The King of All Hot Rod Engines." They are clearly passionate specialists in this field.

Are old Flathead engines worth rebuilding?

Absolutely. Despite their age, old Flathead engines are highly valued for their historical significance, unique character, and the distinct driving experience they offer. With proper, meticulous rebuilding techniques, these engines can be brought back to a condition that often surpasses their original factory specifications, ensuring many more years of reliable and enjoyable service for enthusiasts.

Why is balancing the engine so important?

Balancing is crucial because it eliminates power-robbing vibrations and imbalances within the rotating assembly. A well-balanced engine runs significantly smoother, more efficiently, and experiences less wear and tear on its components, leading to increased durability and performance. It ensures that all parts work in perfect harmony, reducing internal stresses and maximising power output.

What is pressure sealing and why is it necessary for Flatheads?

Pressure sealing is a process where a ceramic sealer is circulated through the engine's cooling system under pressure. It's necessary for Flatheads because their cast iron blocks are inherently porous and can develop tiny, undetectable fissures or even missed cracks over time. The ceramic sealer permeates these internal casting imperfections, permanently sealing them and preventing future leaks or internal corrosion. It significantly enhances the block's integrity and longevity.
