Does Your 2012 Kia Soul Have a Handbrake Lever?

For many drivers, the parking brake – often referred to as the handbrake in the UK – is a fundamental part of operating a vehicle. It's a simple, reassuring mechanism that provides an additional layer of safety, especially when parked on an incline. However, with the evolution of automotive technology, many modern cars have transitioned to electronic parking brakes, leaving some owners of slightly older models, like the 2012 Kia Soul, wondering about their car's specific setup. So, does a 2012 Kia Soul feature a traditional parking brake lever? The answer, for the vast majority of these models, is a resounding yes!

While this might seem like a straightforward question, the mechanics behind that lever in your 2012 Kia Soul are surprisingly intricate, incorporating a blend of modern disc brake technology for everyday stopping and a more traditional drum brake system specifically for parking. Understanding this dual setup is key to appreciating its function, diagnosing potential issues, and even tackling maintenance yourself. Let's delve deeper into what makes your Soul's parking brake tick, how it operates, and how you can keep it in peak condition.

Understanding the 2012 Kia Soul's Parking Brake System

The 2012 Kia Soul, consistent with many vehicles of its era, indeed comes equipped with a manual parking brake lever located in the centre console, typically between the front seats. This lever provides a direct, mechanical actuation of the parking brake system, offering a tactile and familiar experience for drivers. When you pull this lever up, you are engaging a series of cables and linkages that apply a braking force to the rear wheels, preventing the vehicle from rolling.

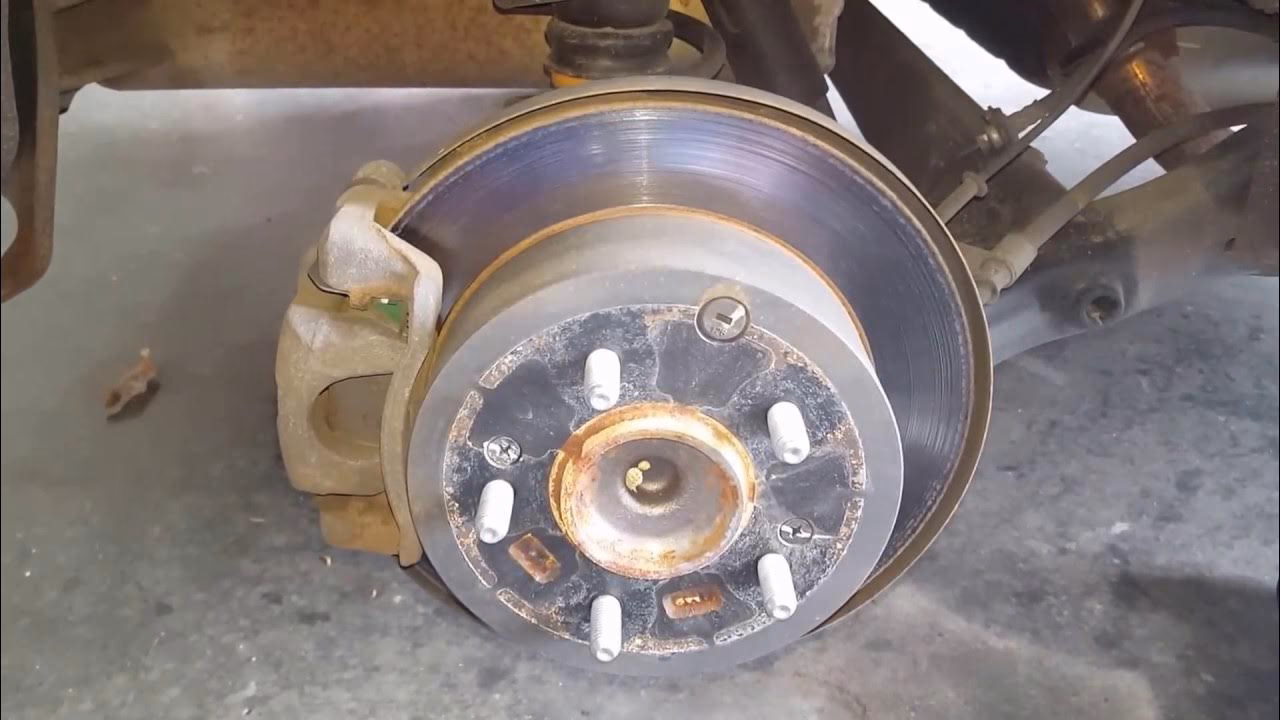

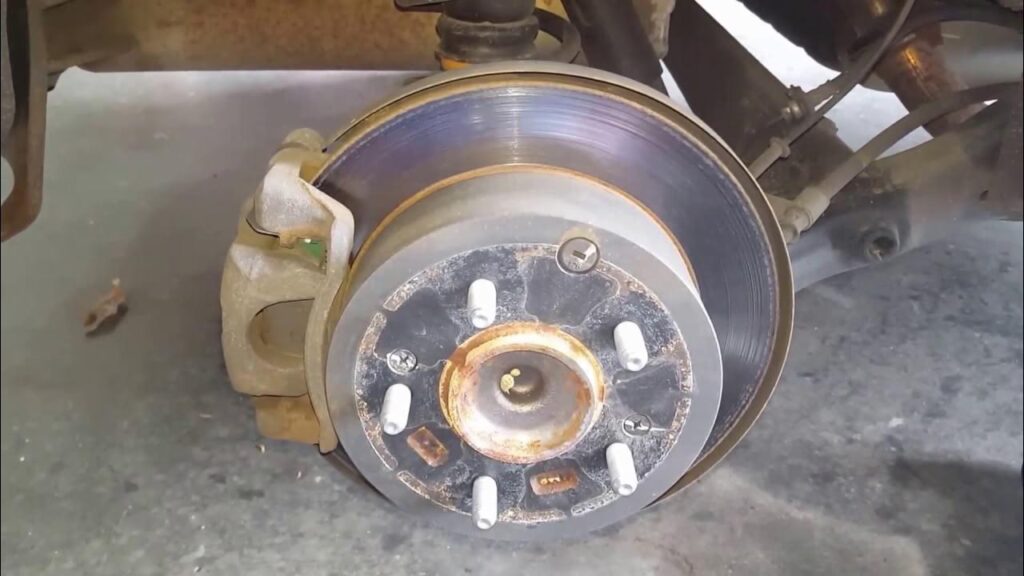

What's particularly interesting about the 2012 Kia Soul's rear brake setup is its 'drum-in-hat' design. While the primary service brakes on the rear wheels are disc brakes (comprising a rotor and caliper with pads), the parking brake system itself is a small, self-contained drum brake unit located within the 'hat' or inner section of the rear brake rotor. This clever design allows for the efficiency and stopping power of disc brakes for regular driving, while providing a simple, robust, and mechanically actuated parking brake that's less prone to the complexities and potential electronic failures of newer systems.

The Dual Rear Brake System Explained

To fully grasp how your Kia Soul's parking brake works, it's essential to differentiate between the two braking systems at the rear wheels:

• Service Brakes (Disc Brakes): These are what you use every time you press the brake pedal. They consist of a rotor (a large metal disc) that spins with the wheel, and a caliper that clamps down on the rotor with brake pads to create friction and slow the vehicle. This system is hydraulically operated and provides the main stopping power.
• Parking Brake (Drum-in-Hat System): This is entirely separate from the hydraulic service brake system. Inside the 'hat' section of the rear brake rotor, there's a small drum, and within this drum are two curved brake shoes. When you pull the parking brake lever, it mechanically pulls a cable, which in turn expands these shoes outwards, pressing them against the inner surface of the drum. This friction holds the vehicle stationary.

This dual system is a cost-effective and reliable solution. It means that even if your primary hydraulic brake system were to fail (a very rare occurrence), your mechanical parking brake would still function independently, offering a vital safety backup. It also ensures that the parking brake isn't reliant on the hydraulic fluid, which can be susceptible to leaks or pressure loss over time.

Common Issues Plaguing the Parking Brake System

Even a robust mechanical system like the Kia Soul's parking brake isn't immune to problems. Over time, components can wear out, seize, or become less effective. Recognising these issues early can save you from more significant repairs down the line.

The Dreaded Frozen Cable

One of the most common ailments for mechanical parking brake systems, especially in regions with varying climates, is a frozen cable. This occurs when moisture or dirt enters the cable housing, leading to corrosion and rust. Eventually, the inner cable can become so seized that it can no longer move freely within its sheath. Symptoms include a parking brake lever that is incredibly stiff or impossible to pull, or a brake that remains partially engaged even when the lever is released. A frozen cable can lead to dangerous situations, such as the brake dragging while driving, causing excessive heat, wear, and reduced fuel efficiency.

Worn Parking Brake Shoes

Just like your regular brake pads, the parking brake shoes are friction materials that wear down over time. If you frequently park on steep hills, or if you accidentally drive with the parking brake partially engaged, these shoes can wear out prematurely. Signs of worn shoes include the parking brake lever having to be pulled much higher than usual to hold the car, or the car still rolling slightly when the brake is engaged on an incline.

Adjustment and Neglect

Over time, parking brake cables can stretch, and shoes can wear, leading to a loss of effectiveness. Regular adjustment is necessary to ensure the parking brake engages properly with minimal lever travel. Furthermore, neglecting to use the parking brake regularly can actually contribute to problems. Components like the cables and shoes can become stiff or corroded from disuse. Engaging the parking brake regularly helps to keep these parts moving freely and prevents seizing.

DIY Parking Brake Repair on Your Kia Soul: A Step-by-Step Guide (with a Pro Hack!)

Undertaking parking brake repairs on your 2012 Kia Soul can be a rewarding experience, saving you a considerable amount on labour costs. While it requires patience and the right tools, it's definitely achievable for the home mechanic. Here's a general guide, incorporating a clever hack for one of the trickier parts.

Essential Tools and Safety Precautions

Before you begin, gather your tools: a good jack, sturdy axle stands, wheel chocks, a socket set, screwdrivers, pliers, a wire brush, brake cleaner, and perhaps some penetrating oil. Crucially, prioritise safety. Never work under a car supported only by a jack. Always use axle stands on a flat, stable surface, and chock the wheels that are remaining on the ground.

Accessing the Rear Brake Assembly

1. Loosen Wheel Nuts: While the car is on the ground, slightly loosen the wheel nuts on the rear wheels.
2. Raise and Support: Jack up the rear of the car and place it securely on axle stands. Remove the rear wheels completely.
3. Remove Caliper and Rotor: Unbolt the brake caliper and carefully hang it out of the way (do not let it hang by the brake hose). Then, remove the brake rotor. You might need to adjust the parking brake shoes inwards (through an access hole in the rotor face) or use a rubber mallet to free a stubborn rotor.

Replacing Parking Brake Components

With the rotor removed, you'll expose the parking brake shoes, springs, and the actuator mechanism. This is where you can inspect for worn shoes or a seized cable. If replacing the cable, you'll need to trace it back to the lever inside the cabin, which can involve removing some interior trim.

The Ingenious Hold-Down Spring Hack

One of the most frustrating parts of replacing drum brake shoes (or the drum-in-hat shoes in this case) is dealing with the small hold-down springs and their retaining pins. These 't-nail thingies' are notorious for being fiddly and difficult to compress and turn, especially when partially obscured by the hub. Here's the brilliant hack that can save you immense frustration:

The Hack: Instead of struggling with the existing retaining pin, replace it with a 2-inch long, 6-32 stainless steel screw and a mating nylon-insert locknut (ny-lock nut). You'll reuse the existing cup washer. Here's how:

1. Insert the screw from the back of the brake backing plate, through the shoe.
2. Slide on the spring, then the cup washer, and finally, start the ny-lock nut on the screw.
3. The beauty of using a longer screw is that you don't need to compress the spring at all to get the nut started. Simply turn the nut with a wrench or socket, and it will progressively compress the spring until it's firmly secured.
4. Once tightened, use a cutting tool (like small bolt cutters or an angle grinder with care) to snip off the excess part of the screw extending beyond the nut.

This method transforms a potentially 30-minute struggle per side into a quick 5-minute job, making the whole process far less daunting and potentially saving your knees and back!

Why Regular Parking Brake Use is Crucial

Despite the occasional maintenance, it's vital to use your parking brake regularly, not just on hills. Many drivers fall into the habit of relying solely on the 'Park' (P) gear in automatic transmissions. While this engages a locking pin in the gearbox, it puts direct strain on the transmission, especially on an incline. Using the parking brake first takes the load off the transmission, prolonging its life.

Furthermore, regular engagement of the parking brake helps to prevent the cables and shoe mechanisms from seizing up due to disuse, corrosion, or accumulation of road grime. If you only use it once a year for your MOT, you're increasing the chances of it being seized when you need it most, leading to costly repairs. A quick note on the dash, as one experienced owner suggested, can be a great reminder to make it a habit!

Troubleshooting Your Kia Soul's Parking Brake

If you're experiencing issues with your 2012 Kia Soul's parking brake, here's a quick guide to common symptoms and their likely causes:

Frequently Asked Questions (FAQs)

Q: How often should I use my parking brake?
A: You should use your parking brake every time you park, regardless of whether you're on a flat surface or an incline. This keeps the components free and functional and protects your transmission.

Q: Can I drive with the parking brake on?
A: No, absolutely not. Driving with the parking brake engaged, even partially, will cause rapid wear to the parking brake shoes and drum, generate excessive heat, potentially warp the brake rotor, and significantly reduce fuel efficiency. It can lead to expensive repairs and dangerous brake fade.

Q: How do I know if my parking brake cable is frozen?
A: A frozen cable will typically make the parking brake lever feel extremely stiff or impossible to pull up. Alternatively, if you manage to pull it up, it might not fully release, causing the rear wheels to drag.

Q: Is replacing the parking brake cable a DIY job?
A: Yes, for a mechanically inclined individual with the right tools and safety precautions, replacing the parking brake cable on a 2012 Kia Soul is a feasible DIY project. It requires patience and some disassembly of the rear brake system and potentially interior trim.

Q: What's the difference between the service brake and parking brake on my Soul?
A: The service brake (foot pedal) uses hydraulic pressure to activate disc brakes (caliper and pads) for primary stopping. The parking brake (hand lever) uses a mechanical cable to activate small drum brake shoes located inside the rear disc rotor's 'hat' section, primarily for holding the vehicle stationary when parked.

In conclusion, the 2012 Kia Soul does indeed feature a traditional, mechanically actuated parking brake lever, utilising a clever drum-in-hat system at the rear wheels. While robust, this system does require occasional attention and, crucially, regular use to prevent common issues like seized cables or worn shoes. By understanding its mechanics, conducting routine checks, and not shying away from DIY maintenance (especially with a handy hack up your sleeve!), you can ensure your Soul's parking brake remains a reliable and safe component for many years to come, saving you a considerable amount of money and potential headaches in the process. Remember, a little effort goes a long way in vehicle longevity and safety.
