Fiat 500 Front Brake Disc Replacement Guide

The Fiat 500, a true icon of charming design and urban agility, has captivated drivers since its re-introduction in 2008. From its compact dimensions to its surprisingly potent performance, especially in variants like the Abarth, there's a 500 for every taste. Its widespread presence on UK roads is undeniable, a testament to its enduring appeal. However, beneath that delightful exterior, like any vehicle, the Fiat 500 requires diligent maintenance, and one area that often raises questions is brake servicing. While the car's general design has remained largely consistent, the accessibility for maintenance, particularly for brake components, has evolved. This guide will focus specifically on replacing the front brake discs on your Fiat 500, a task that, for most models from 2008 onwards, is surprisingly accessible for the home mechanic.

It's true that the Fiat 500 range hasn't always been consistent in its approach to maintenance accessibility. Some models present a more significant challenge than others, often leading owners to believe that all brake work requires professional intervention. Thankfully, when it comes to the front brakes, the story is largely positive for the DIY enthusiast. Unlike some of the more notorious rear brake setups on early models, which can be a genuine headache due to inaccessible bolts, the front brakes are designed with a much clearer path for replacement. This guide aims to demystify the process, providing you with the knowledge to confidently tackle the job yourself, ensuring your beloved Fiat 500 remains a safe and reliable companion on the road.

Understanding Your Fiat 500's Front Brakes: The Wear Indicator

A significant advantage of the Fiat 500's front brake system is the inclusion of a wear indicator. This clever little device is typically a thin electrical cable attached to one of your front brake pads. Its purpose is simple yet crucial: as the brake pad wears down, the cable eventually comes into contact with the brake disc, completing an electrical circuit. This action triggers a warning light on your dashboard, alerting you that your brake pads have reached their minimum safe thickness and require immediate attention. This indicator is a valuable tool, preventing you from unknowingly driving on dangerously worn pads and potentially damaging your brake discs.

It's important to remember that while the wear indicator primarily signals worn pads, if your pads are excessively worn, your discs will also likely be suffering. Replacing both the pads and discs together is often recommended, especially if the discs show signs of scoring, warping, or are below their minimum thickness specification. Always check the condition of both components when you're working on your braking system.

When to Consider Replacing Your Front Brake Discs

While the wear indicator is a clear sign for pads, discs have their own set of tell-tale signs for replacement. Knowing when to act is key to maintaining optimal braking performance and safety:

• Vibrations or Pulsations: If you feel a pulsation through the brake pedal or steering wheel when braking, it's a strong indicator of warped brake discs. Uneven disc surfaces cause the caliper to 'pump' as it tries to grip, leading to these uncomfortable vibrations.
• Scoring or Grooves: Visually inspect your discs. Deep grooves or score marks on the disc surface suggest that the pads have worn into the disc, or there's debris caught between the pad and disc. This reduces braking efficiency and can lead to premature pad wear.
• Reduced Braking Performance: A noticeable increase in stopping distance or a spongy feeling in the pedal can point to various brake issues, including worn discs that aren't providing adequate friction.
• Squealing or Grinding Noises: While squealing often indicates worn pads (especially if the wear indicator hasn't triggered yet), a grinding noise usually means metal-on-metal contact, signifying severely worn pads and likely damaged discs.
• Minimum Thickness: Brake discs have a minimum thickness specified by the manufacturer. This value is usually stamped on the disc's hub or can be found in your car's service manual. Always measure your discs with a micrometer. If they are at or below this limit, they must be replaced, regardless of their visual appearance.

Tools You'll Need for the Job

Before you begin, gather all the necessary tools. Having everything at hand will make the process smoother and safer:

• Vehicle Jack and Jack Stands: Absolutely essential for safely lifting and supporting your car. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the car from rolling.
• Lug Wrench or Breaker Bar with Socket: For removing wheel nuts.
• Socket Set and Ratchet: You'll need sockets for the caliper bolts and possibly the caliper carrier bolts. Sizes typically range from 13mm to 19mm.
• Torque Wrench: Crucial for tightening bolts to the manufacturer's specified torque settings, preventing over-tightening or under-tightening.
• Caliper Piston Compressor or Large C-Clamp: To push the caliper piston back into its bore, making space for the new, thicker pads.
• Wire Brush: For cleaning the wheel hub and caliper mounting surfaces.
• Brake Cleaner: To clean new discs and any brake dust.
• Gloves and Safety Glasses: For personal protection against brake dust and chemicals.
• Flathead Screwdriver or Pry Bar: To help remove old pads or for leverage.
• Copper Grease (Anti-Seize Compound): For applying to non-friction surfaces to prevent seizing and reduce noise.
• New Brake Discs and Pads: Ensure they are the correct parts for your specific Fiat 500 model year and engine variant.

Step-by-Step Guide: Replacing Your Fiat 500's Front Brake Discs

1. Safety First: Preparation

Park your Fiat 500 on a flat, level, and firm surface. Engage the parking brake and place wheel chocks behind the rear wheels (if working on the front) to prevent any movement. If you have a locking wheel nut, ensure you have the key readily available. Loosen the front wheel lug nuts slightly while the car is still on the ground – this makes them easier to remove once the car is lifted.

2. Lifting the Vehicle and Removing the Wheel

Using your jack, carefully lift the front of the vehicle. Once lifted to a sufficient height, place the jack stands securely under the vehicle's frame, near the jacking points. Lower the car onto the stands and remove the jack. Now, fully remove the loosened wheel nuts and take off the wheel. Store it safely out of your working area.

3. Accessing the Caliper and Pads

With the wheel off, you'll have clear access to the brake assembly. Locate the two bolts that hold the brake caliper to the caliper carrier. These are usually at the back of the caliper, sometimes covered by plastic caps. Depending on your model, they might be hex bolts or require a Torx bit. Carefully remove these bolts. Once the bolts are out, the caliper should be able to pivot upwards or be lifted off the pads. Do NOT let the caliper hang by the brake hose, as this can damage the hose. Use a wire or bungee cord to suspend the caliper securely from the suspension spring or another sturdy point.

Now, you can remove the old brake pads from the caliper carrier. Note how the wear indicator cable is routed and connected. Disconnect the wear indicator from the old pad and from its harness. This is also a good time to inspect the caliper piston dust boot for any tears or damage.

4. Removing the Old Discs

To remove the disc, you first need to unbolt the caliper carrier (also known as the caliper bracket or mounting bracket). This is the larger, more robust part that the caliper bolts onto, and which holds the brake pads. It's typically secured by two larger, more robust bolts, often 17mm or 19mm, located behind the carrier and bolted to the steering knuckle. These bolts can be very tight, so a breaker bar might be necessary. Once these bolts are removed, you can take off the caliper carrier and set it aside.

The brake disc itself is usually held in place by a single small screw (often a Torx head) or sometimes by friction against the hub and the wheel bolts. Remove this small retaining screw if present. If there's no screw, the disc might be stuck to the hub due to rust. A few firm taps with a rubber mallet on the disc's face (avoiding the hub area) should help free it. Be careful not to damage the wheel studs.

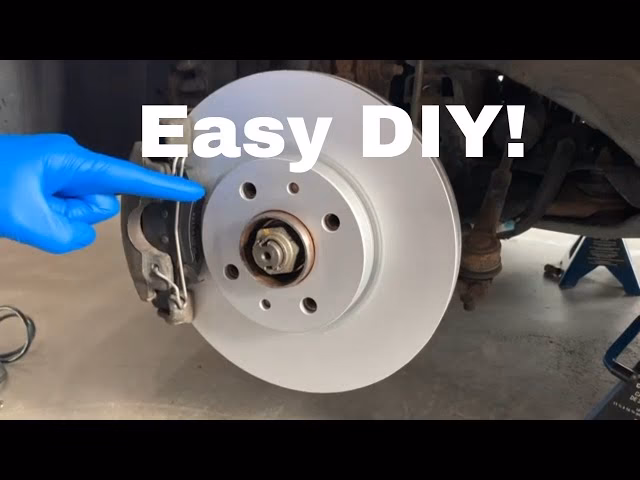

5. Installing the New Discs

Before installing the new disc, thoroughly clean the wheel hub surface where the disc mounts using a wire brush. Remove any rust or debris to ensure the new disc sits perfectly flat. A clean surface is crucial for preventing disc run-out and vibrations. You can apply a thin layer of copper grease to the hub surface (avoiding the wheel studs) to prevent future corrosion and seizing, making removal easier next time.

Carefully place the new brake disc onto the hub, aligning any retaining screw holes. Reinstall the small retaining screw if applicable, tightening it by hand. Spray the new disc with brake cleaner to remove any protective oils or coatings, then wipe it clean with a lint-free cloth. This step is crucial to ensure proper bedding-in and braking performance.

6. Reassembling the Brakes

Now, reinstall the caliper carrier onto the steering knuckle. Apply a small amount of thread locker to the caliper carrier bolts and tighten them to the manufacturer's specified torque using your torque wrench. This is a critical safety step.

Next, it's time to prepare the caliper for the new pads. The new pads will be thicker, so you'll need to compress the caliper piston(s) back into the caliper body. Use your caliper piston compressor or a large C-clamp, placing an old brake pad against the piston to protect it. Slowly and steadily push the piston back until it's flush with the caliper body. As you do this, keep an eye on your brake fluid reservoir under the bonnet – the fluid level will rise. If it's near the 'max' line, you might need to remove a small amount of fluid to prevent overflow, but only do so if absolutely necessary and dispose of it properly.

Install the new brake pads into the caliper carrier. Ensure they fit snugly and that any anti-rattle clips or shims are correctly positioned. Connect the new wear indicator cable to the new pad and route it correctly back to its harness, ensuring it's securely plugged in.

Carefully lower the caliper over the new pads and disc, aligning it with the caliper carrier. Reinstall the two caliper bolts, applying a small amount of thread locker if recommended by the manufacturer. Tighten these bolts to the specified torque. Again, a torque wrench is essential here.

7. Final Checks and Bedding In

With the brake assembly complete, reinstall your wheel, tightening the lug nuts by hand. Lower the car off the jack stands, then fully tighten the lug nuts to the correct torque specification in a star pattern. Once the car is back on the ground, before driving, pump the brake pedal several times until it feels firm. This will push the caliper pistons back out and seat the new pads against the discs. Check your brake fluid reservoir to ensure the level is between the 'min' and 'max' marks. If needed, top up with the correct type of brake fluid.

The final crucial step is 'bedding in' your new brakes. This process properly transfers a layer of pad material onto the disc surface, optimising performance and preventing judder. The general procedure involves a series of moderate stops from increasing speeds (e.g., 5-6 stops from 30mph to 5mph, then 5-6 stops from 50mph to 5mph), allowing the brakes to cool between runs. Avoid hard braking or prolonged braking immediately after installation.

Front vs. Rear Brake Differences in the Fiat 500: A Comparison

The information provided highlights a significant disparity in brake maintenance accessibility between front and rear axles, especially on older Fiat 500 models. Understanding this difference is key to deciding whether a DIY approach is feasible for your specific model and task.

As you can see, while the front brakes on most Fiat 500 models are quite amenable to home servicing, the early rear brake designs presented a significant obstacle. This distinction is crucial to avoid attempting a job that is beyond the scope of typical DIY tools and access.

Frequently Asked Questions (FAQs)

Q1: How often should I replace my Fiat 500's front brake discs?

A1: There's no fixed interval, as it depends heavily on your driving style, mileage, and road conditions. Generally, brake discs can last between 50,000 to 70,000 miles, but they should be inspected with every pad change. Replace them if they are warped, deeply scored, or below their minimum thickness specification.

Q2: Do I need to replace brake pads when I replace discs?

A2: It is highly recommended to replace brake pads whenever you replace brake discs. New discs should always be paired with new pads to ensure proper bedding-in, optimal braking performance, and even wear. Using old pads on new discs can lead to uneven wear, noise, and reduced braking efficiency.

Q3: What type of brake fluid should I use in my Fiat 500?

A3: Your Fiat 500 will typically use DOT 4 brake fluid. Always check your owner's manual or the cap on the brake fluid reservoir to confirm the correct specification. Using the wrong type of fluid can cause significant damage to your braking system.

Q4: What if I break a bolt or can't loosen one?

A4: Seized bolts are a common issue. Try using penetrating oil and letting it soak for a while. A longer breaker bar or a 6-point socket can provide more leverage and reduce the risk of rounding off the bolt head. If a bolt breaks, or if you're unable to loosen it safely, it's best to stop and seek professional assistance to avoid further damage.

Q5: Is it safe to drive with worn brake discs?

A5: No, it is extremely unsafe to drive with worn or damaged brake discs. Worn discs significantly reduce your car's stopping power, increase stopping distances, and can lead to brake fade or even complete brake failure. They also compromise your vehicle's stability during braking, especially in emergency situations. Replace them as soon as you identify a problem.

Q6: How long does it take to replace front brake discs on a Fiat 500?

A6: For an experienced DIY mechanic, replacing both front brake discs and pads might take 2-4 hours. For someone doing it for the first time, allow significantly more time, perhaps 4-6 hours, to account for learning, troubleshooting, and ensuring all steps are followed correctly. Rushing the job can lead to mistakes and safety hazards.

Q7: Do I need to bleed the brakes after replacing discs and pads?

A7: Generally, if you are only replacing discs and pads and haven't opened any hydraulic lines (e.g., by disconnecting the brake hose from the caliper), you do not need to bleed the brakes. However, you must pump the brake pedal several times after reassembly to push the pistons out and firm up the pedal before driving. Always check the brake fluid level and top up if necessary.

Q8: Can I replace just one disc?

A8: No, brake discs (and pads) should always be replaced in pairs across an axle (i.e., both front discs, or both rear discs). Replacing only one can lead to uneven braking, pulling to one side, and premature wear on the new components, compromising safety and performance.

Conclusion

Replacing the front brake discs on your Fiat 500 is a manageable and rewarding DIY task for most models from 2008 onwards. By understanding the specific features of your Fiat's braking system, gathering the right tools, and meticulously following each step, you can ensure your charming city car remains safe and responsive on the road. Remember, safety is paramount: always use jack stands, torque all fasteners to specification, and never compromise on the quality of parts. While the rear brakes on earlier Fiat 500 models might be best left to the professionals, empowering yourself with the knowledge to tackle the front brakes can save you money and give you a deeper understanding of your vehicle. Drive safely, and enjoy the peace of mind that comes with well-maintained brakes!
