Fiat 500 Rear Brake Disc & Pad Replacement

Maintaining your Fiat 500's braking system is paramount for your safety and the longevity of your vehicle. Over time, brake pads wear down and discs can become grooved or warped, leading to reduced stopping power, noise, and potential safety hazards. While a trip to the garage might seem convenient, replacing your rear brake discs and pads on a Fiat 500 (models 2007-2022) is a highly achievable DIY task for the mechanically inclined, potentially saving you a significant amount of money. This detailed guide will walk you through every step, ensuring a safe and successful brake overhaul.

Before you begin, it's crucial to understand that brakes are a safety-critical component. If you're unsure at any point, it's always best to consult a qualified mechanic. However, with the right tools, a methodical approach, and a commitment to safety, you can confidently tackle this job and restore your Fiat 500's braking performance to its optimal level.

Why Replace Your Fiat 500's Rear Brakes?

Recognising the signs of worn brakes is the first step towards timely replacement. Ignoring these indicators can lead to more extensive damage and compromise your safety. Here are the common tell-tale signs that your Fiat 500's rear brakes need attention:

• Squealing or Grinding Noises: A high-pitched squeal often indicates that the brake pads' wear indicators are touching the disc. A harsh grinding sound suggests metal-on-metal contact, meaning your pads are completely worn out and the discs are likely being damaged.
• Reduced Braking Performance: If your car takes longer to stop, or the brake pedal feels spongy or requires more effort than usual, your brakes are likely compromised.
• Vibrations: A pulsating sensation through the brake pedal or steering wheel when braking often points to warped brake discs.
• Visual Inspection: Regularly check your brake pads through the wheel spokes. If the friction material on the pad is less than 3mm thick, it's time for a replacement. Discs should be smooth, without deep grooves or excessive rust.
• Dashboard Warning Light: Some Fiat 500 models are equipped with brake wear sensors that will illuminate a warning light on your dashboard when the pads reach a critical wear limit.

Proactive maintenance not only ensures safety but also prevents more costly repairs down the line. Replacing pads and discs together is generally recommended as new pads require a smooth, flat surface for optimal contact and performance.

Essential Tools and Materials You'll Need

Having the right equipment before you start will make the job much smoother and safer. Gather the following:

• Hydraulic Jack and two sturdy Axle Stands
• Wheel Brace (or socket to fit your wheel nuts)
• Torque Wrench
• Socket Set (common sizes for Fiat 500 calipers are 13mm, 15mm, 17mm, and sometimes Torx bits)
• Spanner Set (to hold nuts while loosening bolts)
• C-Clamp or Brake Piston Compression Tool (essential for retracting the caliper piston)
• Wire Brush (for cleaning the hub)
• Brake Cleaner spray
• Copper Grease (or an equivalent high-temperature anti-seize lubricant)
• New Rear Brake Discs (x2)
• New Rear Brake Pads (one set for both wheels)
• Rubber Mallet (optional, for stubborn discs)
• Gloves and Safety Glasses
• Container for old brake fluid (if bleeding, though not always necessary for just pads/discs)
• Brake Fluid (DOT4 is common for Fiat 500, check your owner's manual)

Safety First: Non-Negotiable Steps

Your safety is paramount. Do not skip or rush these steps:

1. Work on a Flat, Level Surface: Ensure your car is on stable ground, ideally concrete or asphalt, not soft earth or gravel.
2. Engage the Handbrake: Firmly apply the handbrake.
3. Chock the Front Wheels: Place wheel chocks in front of and behind the front wheels to prevent the car from rolling.
4. Use Axle Stands: Never rely solely on a jack to support the vehicle. Once the car is lifted, immediately place sturdy axle stands under the vehicle's designated jacking points and lower the car onto them. Give the car a gentle shake to ensure it's stable.
5. Wear Protective Gear: Always wear safety glasses to protect your eyes from debris and brake dust, and gloves to protect your hands from grease, dirt, and brake fluid.
6. Be Mindful of Brake Fluid: Brake fluid is corrosive to paintwork. Wipe up any spills immediately.
7. Do One Wheel at a Time: This allows you to reference the assembled side if you forget how something goes back together.

Step-by-Step Guide: Fiat 500 Rear Brake Overhaul

1. Preparation and Wheel Removal

With the car on a flat surface and chocked, use your wheel brace to slightly loosen the wheel nuts on the rear wheel you're starting with. Just a quarter turn should suffice to break their initial torque. Now, position your hydraulic jack under the appropriate jacking point near the rear wheel and lift the vehicle until the wheel is clear of the ground. Carefully place your axle stands under the designated support points, then slowly lower the car onto the stands. Once stable, fully remove the wheel nuts and take off the wheel, setting it aside.

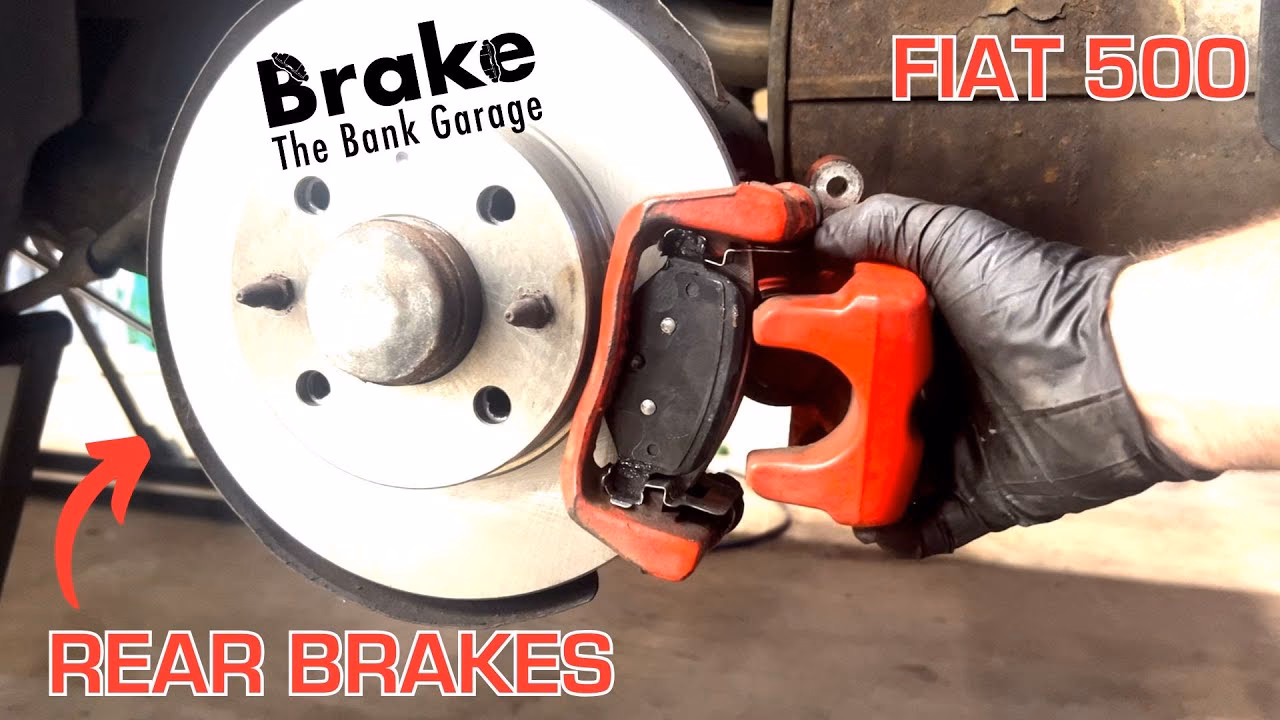

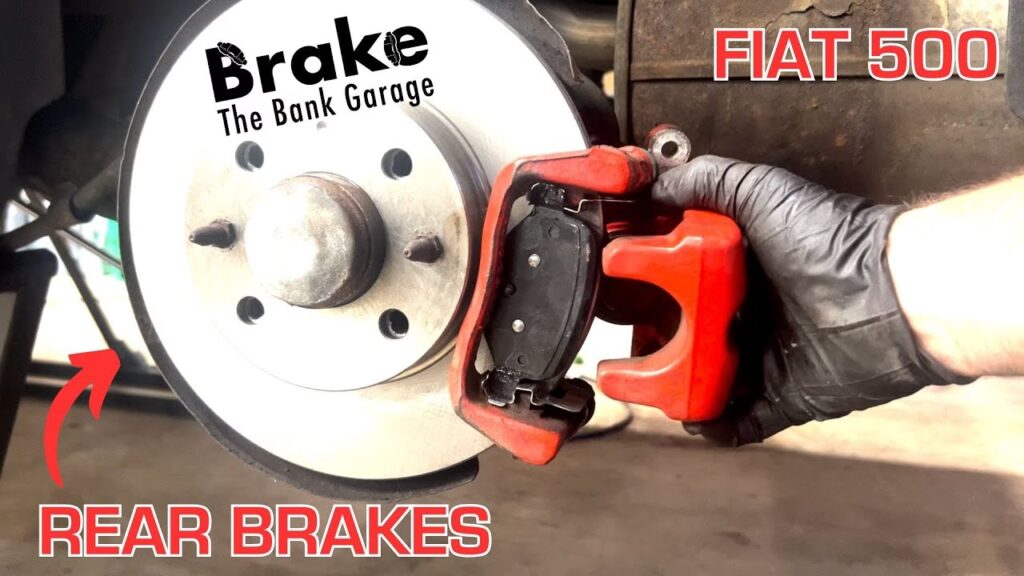

2. Caliper Removal

The brake caliper assembly houses the brake pads and piston. You'll need to remove it to access the pads and disc. Locate the two caliper guide pin bolts at the back of the caliper. These are typically 13mm or 15mm bolts. Use your socket wrench to loosen and remove both bolts. Once the bolts are out, the caliper should slide off the disc. It might require a gentle wiggle or pull. Be careful not to let the caliper hang by the brake hose, as this can damage the hose. Use a bungee cord or a piece of wire to suspend the caliper securely from the suspension spring or bodywork, ensuring there's no strain on the brake line.

3. Old Pad Removal

With the caliper safely suspended, you can now easily slide the old brake pads out of the caliper carrier. Note their orientation, as the new pads will need to go in the same way. Pay attention to any shims or clips that might be present – these often need to be transferred to the new pads or come with the new pad set.

4. Disc Removal

The brake disc is usually held in place by a single retaining screw (often a Torx T30 or Phillips head) or simply by the wheel nuts when they're tightened. Remove any retaining screws. If the disc is stubborn and doesn't slide off easily, it might be rusted onto the hub. A few firm but gentle taps with a rubber mallet around the edge of the disc (between the wheel studs) should help loosen it. Avoid hitting the wheel studs themselves. Once loose, slide the old disc off the hub and set it aside for disposal.

5. Hub Cleaning

This is a critical step that is often overlooked but essential for preventing brake judder and ensuring proper disc seating. The hub face, where the brake disc mounts, will likely have rust and debris built up. Use a wire brush to thoroughly clean this surface until it's shiny metal. Any rust or dirt left here will prevent the new disc from sitting perfectly flat, leading to vibrations and premature wear. Once clean, apply a very thin, even layer of copper grease to the hub face (avoiding the wheel studs) to prevent future corrosion and aid in disc removal next time.

6. New Disc Installation

Take your new brake disc and, ensuring it's free of any grease or oil (use brake cleaner if necessary, then wipe dry), slide it onto the clean hub. Make sure it sits flush against the hub face. If there was a retaining screw, replace it now and tighten it gently to hold the disc in place. This screw isn't load-bearing; its purpose is merely to keep the disc from falling off during reassembly.

7. Piston Retraction

Before installing new, thicker pads, you'll need to push the caliper piston back into its bore. First, open the bonnet and locate your brake fluid reservoir. Open its cap to relieve pressure, but keep an eye on the fluid level as you retract the piston; it might rise and overflow if the reservoir was already full. Using a C-clamp or a dedicated brake piston compression tool, slowly and steadily push the piston back into the caliper until it's fully recessed. Be gentle and ensure the piston goes in straight. If it resists heavily, stop and double-check for any issues. Once retracted, you can close the brake fluid reservoir cap.

8. New Pad Installation

Take your new brake pads. Apply a small amount of copper grease to the metal backing plate of the pads where they contact the caliper carrier and piston. This helps prevent squealing. Install the new pads into the caliper carrier, ensuring they fit snugly and any anti-squeal shims or clips are correctly positioned. Make sure the wear indicator (if present) is on the correct side (usually the inner pad) and facing the disc.

9. Caliper Reassembly

Carefully slide the caliper assembly back over the new pads and disc. It should fit without excessive force. Align the caliper with the mounting points and insert the two caliper guide pin bolts. Tighten these bolts to the manufacturer's specified torque settings. For Fiat 500 rear calipers, this is typically around 25-30 Nm, but always consult your vehicle's service manual for precise figures.

10. Final Checks and Bedding In

With the caliper reassembled, replace the wheel, tighten the wheel nuts by hand, and then lower the car fully off the axle stands. Once on the ground, use your torque wrench to tighten the wheel nuts to the manufacturer's specified torque (typically 100-120 Nm for Fiat 500). Before driving, get into the car and pump the brake pedal several times until it feels firm. This pushes the caliper piston out against the new pads. Check the brake fluid level in the reservoir and top up if necessary. Now, take your Fiat 500 for a test drive. For the first 100-200 miles, avoid harsh braking. Perform a series of gentle stops from moderate speeds (e.g., 30 mph to 5 mph) to allow the new pads and discs to 'bed in'. This process creates a transfer layer of friction material from the pads to the discs, ensuring optimal braking performance and longevity.

Comparative Analysis: Brake Components

Frequently Asked Questions (FAQs)

How often should I replace my Fiat 500's rear brakes?

There's no fixed interval, as it depends heavily on driving style and conditions. However, a general guideline for rear brake pads is every 40,000-60,000 miles, and discs typically last through two sets of pads, so around 80,000-120,000 miles. Always go by visual inspection and the signs of wear mentioned earlier.

Can I replace just the pads, or do I need discs too?

While it's technically possible to replace just the pads if the discs are in good condition (no deep grooves, warping, or excessive wear), it's generally recommended to replace both the pads and discs together, especially on the same axle. New pads require a perfectly smooth surface to bed in properly and achieve optimal performance. If the old discs are worn, new pads won't perform efficiently and may wear unevenly or cause judder.

What torque settings do I need for my Fiat 500?

Specific torque settings can vary slightly by model year and variant. Always refer to your Fiat 500's owner's manual or a reliable workshop manual for the exact torque specifications. However, common values are around 25-30 Nm for caliper guide pin bolts and 100-120 Nm for wheel nuts.

Why are my new brakes squealing?

Squealing can occur for several reasons. It might be due to improper bedding in, lack of copper grease on the pad backing plates, or cheap pads. Ensure you've performed the bedding-in procedure correctly. If the squealing persists, it might indicate an issue with pad quality or installation.

Do I need to bleed the brakes after replacing pads and discs?

Generally, no. If you haven't opened any brake lines or introduced air into the system, bleeding isn't necessary. Pushing the piston back into the caliper only displaces fluid within the system, it doesn't introduce air. However, if your brake pedal feels spongy after the job, or you suspect air has entered the system (e.g., if you accidentally disconnected a brake line), then a full brake bleed would be required.

Replacing your Fiat 500's rear brake discs and pads is a rewarding maintenance task that significantly contributes to your vehicle's safety and performance. By following these steps carefully and prioritising safety, you can ensure your braking system is in top condition, giving you peace of mind on every journey.
