Understanding the P0401 OBD Code

The illuminated Check Engine Light on your dashboard can be a source of anxiety for any driver. When this warning illuminates, it signifies that your vehicle's Engine Control Module (ECM) has detected a fault within one of its many complex systems. One such code that can appear is the P0401, a diagnostic trouble code (DTC) that specifically points to an issue with the Exhaust Gas Recirculation (EGR) system. Understanding what this code means, its potential causes, and how to address it is crucial for maintaining your vehicle's performance and longevity.

What Does the P0401 Code Signify?

The P0401 OBD code is a universal diagnostic code that stands for "Exhaust Gas Recirculation Flow Insufficient Detected." In simpler terms, the ECM has determined that the amount of exhaust gas being recirculated back into the intake manifold is less than what it expects or has commanded. The EGR system plays a vital role in reducing harmful nitrogen oxide (NOx) emissions by lowering combustion temperatures within the engine. When this system isn't functioning correctly, and the EGR flow is insufficient, the P0401 code is triggered.

Common Symptoms of the P0401 Code

While the most obvious indicator is the Check Engine Light, there are other symptoms you might notice if your vehicle is experiencing an EGR flow issue. These can include:

• Reduced Engine Performance: You might feel a noticeable lack of power or sluggishness, especially when accelerating.
• Engine Hesitation: The engine may stumble or hesitate during acceleration.
• Increased Fuel Consumption: An improperly functioning EGR system can sometimes lead to a slight increase in fuel usage.
• Engine Pinging or Knocking: In some cases, insufficient EGR flow can lead to higher combustion temperatures, causing the engine to ping or knock, particularly under load.
• Failed Emissions Test: If your vehicle is due for an emissions test, a P0401 code will almost certainly cause it to fail.

What Causes the P0401 Code?

The P0401 code is a strong indicator of a problem within the EGR system. Several factors can contribute to insufficient EGR flow:

Carbon Buildup and Blockages

This is arguably the most frequent culprit. Over time, exhaust gases contain soot and carbon particles that can accumulate within the EGR system. This can lead to:

• Clogged EGR Passages: The small passages within the intake manifold and exhaust supply tubes can become completely blocked by carbon deposits, preventing exhaust gas from flowing through.
• Carbon Buildup on the EGR Valve: The EGR valve itself, which controls the flow of exhaust gas, can become caked with carbon. This can prevent the valve from opening fully or sealing properly, leading to incorrect flow readings.

Faulty EGR Components

The EGR system relies on several components to function correctly. A failure in any of these can trigger the P0401 code:

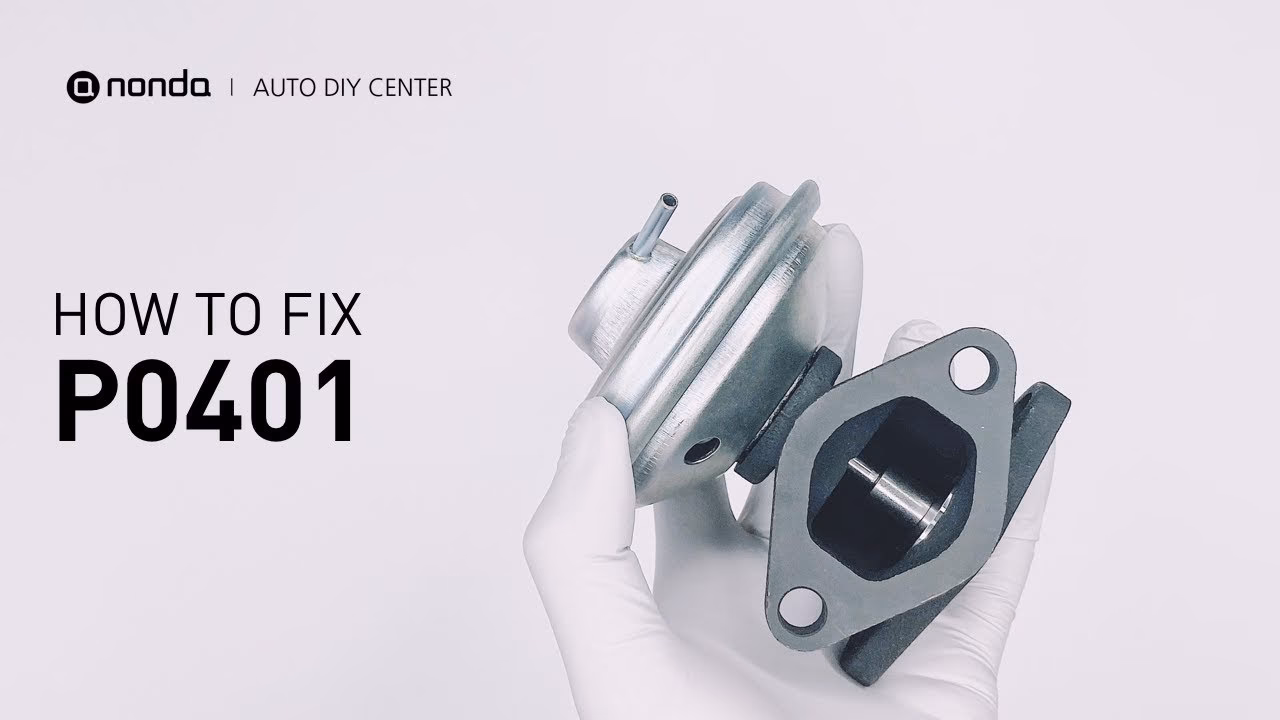

• Faulty EGR Valve: The valve itself may be mechanically stuck, damaged, or simply worn out, preventing proper operation.
• Faulty EGR Solenoid or Vacuum Modulator: These components control the vacuum or electrical signal to the EGR valve. If they fail, the EGR valve may not receive the correct commands to open or close.
• Defective EGR Valve Position Sensor: Many EGR systems use a sensor to report the position of the EGR valve pintle to the ECM. If this sensor is faulty or providing inaccurate readings, the ECM will interpret it as an insufficient flow issue.
• Defective DPFE (Differential Pressure Feedback EGR) Sensor: Some Ford vehicles, for example, use a DPFE sensor to measure the pressure difference across an orifice in the EGR system, which indicates flow. These sensors are known to have a high failure rate.

Electrical and Vacuum Issues

The EGR system is also susceptible to electrical and vacuum-related problems:

• Open or Shorted EGR Solenoid Valve Harness: Damaged wiring to the EGR solenoid can prevent it from receiving power or signals.
• Poor Electrical Connections: Corroded or loose connectors in the EGR circuit can interrupt communication between the ECM and the EGR components.
• Vacuum Leaks or Restrictions: For systems that rely on vacuum actuation, leaks or blockages in the vacuum lines can prevent the EGR valve from operating correctly.
• Weak or Dead Battery: While less common, a severely weak battery can sometimes lead to erratic sensor readings and trigger various codes, including P0401.

Exhaust Gas Leaks

Leaks in the exhaust system before or around the EGR components can disrupt the proper flow and pressure readings, potentially leading to a P0401 code.

Manifold Absolute Pressure (MAP) Sensor Issues

A faulty MAP sensor, which measures intake manifold vacuum, can also indirectly affect the EGR system. The ECM uses MAP sensor data to calculate the appropriate EGR flow, so an inaccurate reading can lead to incorrect EGR operation and trigger the P0401 code.

How to Diagnose and Fix P0401

Diagnosing the P0401 code requires a systematic approach to pinpoint the exact cause. Here's a general outline of the diagnostic process:

1. Read All Codes and Gather Data

Connect an OBD-II scanner to your vehicle's diagnostic port. Read all stored trouble codes, not just the P0401. Sometimes, other codes can provide clues to the root cause. Also, check for freeze-frame data, which captures the engine's operating conditions when the code was set.

2. Visual Inspection

Start with a thorough visual inspection:

• EGR Valve and Passages: Locate the EGR valve and its associated passages. Look for obvious signs of carbon buildup, blockages, or physical damage.
• Wiring and Connectors: Inspect all wiring harnesses and connectors related to the EGR system for any signs of fraying, corrosion, damage, or loose connections. Pay close attention to areas exposed to heat.
• Vacuum Lines (if applicable): Check all vacuum hoses connected to the EGR system for cracks, leaks, or blockages.

3. Inspect the EGR Valve

The EGR valve is a prime suspect. You can often remove it and manually inspect it:

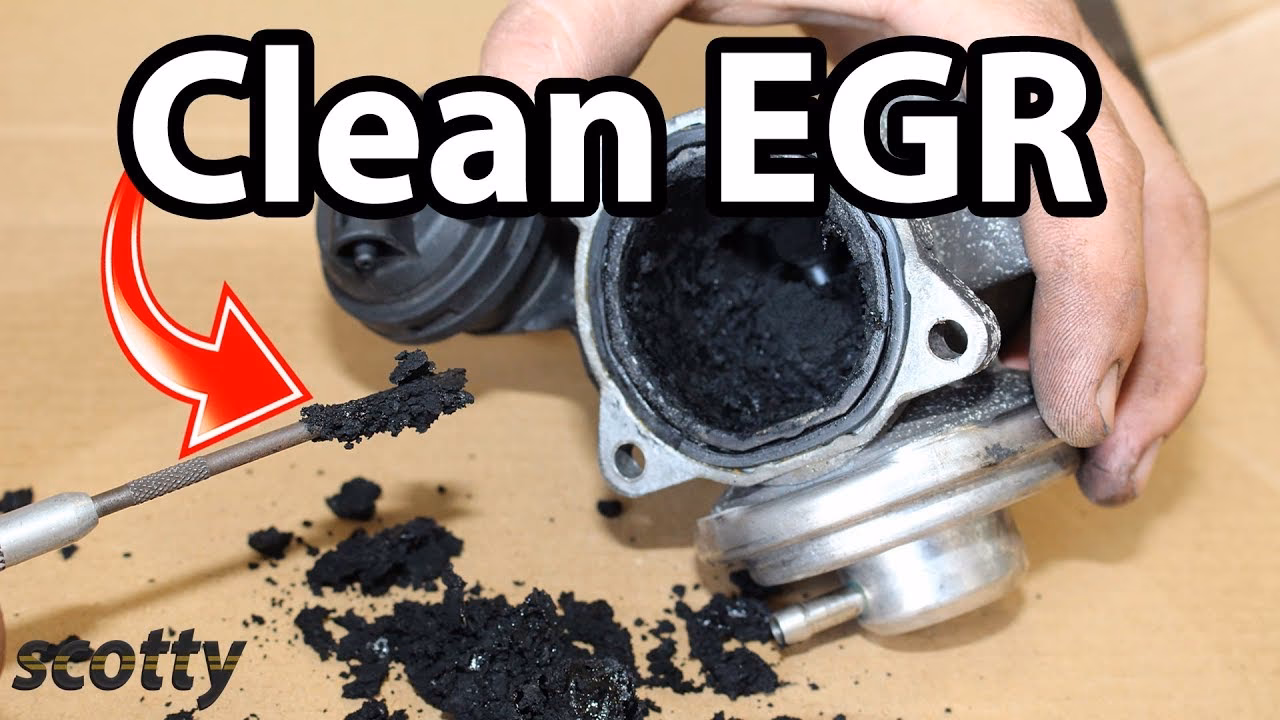

• Clean Carbon Buildup: If you find significant carbon deposits on the valve seat or pintle, use a throttle body cleaner or a dedicated EGR cleaner to thoroughly clean it. Ensure all carbon is removed to allow the valve to move freely.
• Test Valve Operation: Depending on your vehicle, you might be able to manually apply vacuum or use a scan tool to command the EGR valve to open and close. Check if it moves freely and responds correctly.

4. Test EGR System Components

Use a multimeter and your vehicle's service manual to test the electrical components:

• EGR Solenoid/Vacuum Modulator: Test for proper resistance and continuity according to the manufacturer's specifications.
• EGR Position Sensor/DPFE Sensor: Test the sensor's output voltage or resistance as you manually operate the EGR valve or as commanded by a scan tool. Compare the readings to the specifications in your service manual.

5. Check for Vacuum Leaks

If your vehicle uses a vacuum-operated EGR system, a smoke machine can be invaluable for detecting even small vacuum leaks in the hoses and associated components.

6. Test the MAP Sensor

If you suspect the MAP sensor, test its voltage output at idle and under various engine loads. Compare these readings to the expected values in your service manual.

7. Clear Codes and Test Drive

After performing any necessary repairs or cleaning, clear the DTCs using your OBD-II scanner. Then, take the vehicle for a test drive under various conditions to see if the P0401 code reappears. Monitor live data from the EGR position sensor or DPFE sensor if your scanner supports it.

8. Consider Other Possibilities

If the problem persists after addressing the common EGR system issues, you might need to consider less common causes such as exhaust restrictions, intake manifold leaks unrelated to the EGR passages, or in rare instances, an ECM issue that may require reprogramming or replacement.

Repair Importance and Cost

The P0401 code is generally considered to have a Repair Importance Level of 6.67 out of 10. While not an immediate breakdown risk, neglecting it can lead to further engine issues and failed emissions tests. The estimated repair time is typically around 1.0 hour, with a Repair Difficulty Level of 6.67 out of 10, suggesting it can be a moderately challenging DIY repair for those with some mechanical aptitude.

The cost of fixing a P0401 code can vary significantly depending on the cause and your location's labor rates. Here are some estimated costs:

Note: Prices are estimates and can vary based on vehicle make, model, year, and local labour rates.

Frequently Asked Questions (FAQ)

1. What are the most common causes of the P0401 code?

The most common causes are a clogged EGR passage, carbon buildup on the EGR valve, a faulty EGR valve, a malfunctioning EGR solenoid or vacuum modulator, and issues with the EGR position sensor or DPFE sensor. Electrical problems with wiring and connectors are also frequent culprits.

2. Is it safe to drive with a P0401 code?

While your vehicle may still be drivable, it is not recommended to drive with a P0401 code for an extended period. The reduced engine performance can affect drivability, and the increased emissions are harmful to the environment. Furthermore, it will likely cause your vehicle to fail an emissions test.

3. Can a simple cleaning fix the P0401 code?

Yes, often cleaning the EGR valve and associated passages of carbon buildup can resolve the P0401 code. It's a good first step to try before replacing more expensive components.

4. How can I check my EGR valve operation?

You can check the EGR valve operation by manually applying vacuum to it (if it's vacuum-operated) or by using an OBD-II scanner that can command the EGR valve to open and close. You should observe if the valve moves freely and if the scanner indicates a change in EGR position or flow.

5. Can a clogged catalytic converter cause a P0401 code?

While less direct, a severely clogged catalytic converter can create excessive backpressure in the exhaust system, which could potentially impact EGR flow readings. However, you would typically experience other significant symptoms like a severe loss of power, a sulfur smell, or dark exhaust smoke before the P0401 code appears due to this specific issue.

Conclusion

The P0401 code indicates an issue with your vehicle's Exhaust Gas Recirculation system, specifically insufficient flow. While often caused by simple carbon buildup that can be cleaned, it can also stem from faulty sensors, valves, or electrical issues. By understanding the symptoms and following a thorough diagnostic procedure, you can identify the root cause and perform the necessary repairs to restore your vehicle's performance, reduce harmful emissions, and ensure it passes its next emissions inspection. Remember, addressing these codes promptly is key to maintaining your vehicle's health and your peace of mind.
